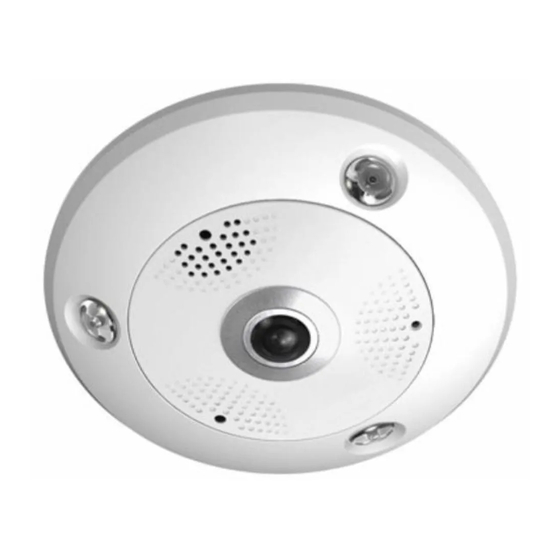

Onix IP360IR3M User Manual

Network fisheye camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual of Network Fisheye Camera
Thank you for purchasing our product. If there are any questions, or requests, please
do not hesitate to contact the dealer.
IP360IR3M & IP360IR6M
This manual applies to
network fisheye camera.
This manual may contain several technical incorrect places or printing errors, and the
content is subject to change without notice. The updates will be added to the new
version of this manual. We will readily improve or update the products or procedures
described in the manual.
DISCLAIMER STATEMENT
"Underwriters Laboratories Inc. ("UL") has not tested the performance or reliability
of the security or signaling aspects of this product. UL has only tested for fire, shock
or casualty hazards as outlined in UL's Standard(s) for Safety, UL60950-1. UL
Certification does not cover the performance or reliability of the security or signaling
aspects of this product. UL MAKES NO REPRESENTATIONS, WARRANTIES OR
CERTIFICATIONS WHATSOEVER REGARDING THE PERFORMANCE OR
RELIABILITY OF ANY SECURITY OR SIGNALING RELATED FUNCTIONS
OF THIS PRODUCT."
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP360IR3M and is the answer not in the manual?

Questions and answers

Related Manuals for Onix IP360IR3M

Summary of Contents for Onix IP360IR3M

  • Page 1 User Manual of Network Fisheye Camera Thank you for purchasing our product. If there are any questions, or requests, please do not hesitate to contact the dealer. IP360IR3M & IP360IR6M This manual applies to network fisheye camera. This manual may contain several technical incorrect places or printing errors, and the content is subject to change without notice.
  • Page 2 User Manual of Network Fisheye Camera Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 3 User Manual of Network Fisheye Camera Safety Instruction These instructions are intended to ensure that the user can use the product correctly to avoid danger or property loss. The precaution measure is divided into ‘Warnings’ and ‘Cautions’: Warnings: Serious injury or death may be caused if any of these warnings are neglected.
  • Page 4 User Manual of Network Fisheye Camera Cautions: Make sure the power supply voltage is correct before using the camera. Do not drop the camera or subject it to physical shock. Do not touch sensor modules with fingers. If cleaning is necessary, use a clean cloth with a bit of ethanol and wipe it gently.

  • Page 5: Table Of Contents

    User Manual of Network Fisheye Camera Table of Contents Chapter 2 Network Connection ................8 Chapter 1 System Requirement ................7 Setting the Network Camera over the LAN ............8 2.1.1 Wiring over the LAN ......................8 2.1.2 Detecting and Changing the IP Address ................9 Setting the Network Camera over the WAN ............
  • Page 6 User Manual of Network Fisheye Camera 5.4.2 Configuring Audio Settings ....................42 5.4.3 Configuring ROI Encoding ....................43 Configuring Image Parameters ................45 5.5.1 Configuring Display Settings .................... 45 5.5.2 Configuring OSD Settings ....................48 5.5.3 Configuring Privacy Mask ....................49 Configuring and Handling Alarms ..............

  • Page 7: Chapter 1 System Requirement

    User Manual of Network Fisheye Camera Chapter 1 System Requirement   Operating System: Microsoft Windows XP SP1 and above version / Vista / Win7 / Server 2003 / Server 2008 32bits CPU: Intel Pentium IV 3.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 6.0 and above version, Safari 5.02 and above version, Mozilla Firefox 3.5 and above version and Google Chrome8 and above...

  • Page 8: Network Connection

    User Manual of Network Fisheye Camera Chapter 2 Network Connection Before you start: If you want to set the network camera via a LAN (Local Area Network), please refer to Section 2.1 Setting the Network Camera over the LAN. If you want to set the network camera via a WAN (Wide Area Network), please refer to Section 2.2 Setting the Network Camera over the WAN.

  • Page 9: Detecting And Changing The Ip Address

    User Manual of Network Fisheye Camera Figure 2-2 Connecting via a Switch or a Router 2.1.2 Detecting and Changing the IP Address You need the IP address to visit the network camera. Steps: 1. To get the IP address, you can choose either of the following methods: Use SADP, a software tool which can automatically detect the online network cameras in the LAN and list the device information including IP address, subnet mask, port number, device serial number, device version, etc.,...

  • Page 10: Setting The Network Camera Over The Wan

    User Manual of Network Fisheye Camera Figure 2-3 SADP Interface 2.2 Setting the Network Camera over the WAN Purpose: This section explains how to connect the network camera to the WAN with a static IP or a dynamic IP. 2.2.1 Static IP Connection Before you start: Please apply a static IP from an ISP (Internet Service Provider).

  • Page 11: Dynamic Ip Connection

    User Manual of Network Fisheye Camera 2. Assign a LAN IP address, the subnet mask and the gateway. Refer to Section 2.1.2 Detecting and Changing the IP Address for detailed IP address configuration of the camera. 3. Save the static IP in the router. 4.
  • Page 12 User Manual of Network Fisheye Camera 1. Connect the network camera to the router. 2. In the camera, assign a LAN IP address, the subnet mask and the gateway. Refer to Section 2.1.2 Detecting and Changing the IP Address for detailed LAN configuration.
  • Page 13 User Manual of Network Fisheye Camera Figure 2-7 Normal Domain Name Resolution Steps: 1. Apply a domain name from a domain name provider. 2. Configure the DDNS settings in the DDNS Settings interface of the network camera. Refer to Section 5.3.4 Configuring DDNS Settings for detailed configuration.

  • Page 14: Chapter 3 Access To The Network Camera

    User Manual of Network Fisheye Camera Chapter 3 Access to the Network Camera 3.1 Accessing by Web Browsers Steps: 1. Open the web browser. 2. Input the IP address of the network camera in the address bar, e.g., 192.0.0.64 and press the Enter key to enter the login interface.
  • Page 15 User Manual of Network Fisheye Camera Figure 3-2 Download and Install Plug-in Figure 3-3 Install Plug-in (1) Figure 3-4 Install Plug-in (2) You may have to close the web browser to install the plug-in. Please reopen the Note: web browser and log in again after installing the plug-in.

  • Page 16: Accessing By Client Software

    User Manual of Network Fisheye Camera 3.2 Accessing by Client Software The product CD contains the iVMS-4200 client software. You can view the live video and manage the camera with the software. Follow the installation prompts to install the software. The control panel and live view interface of iVMS-4200 client software are shown as bellow.

  • Page 17: Chapter 4 Live View

    User Manual of Network Fisheye Camera Chapter 4 Live View 4.1 Live View Page Purpose: The live view page allows you to view the real-time video, capture images, realize PTZ control, set/call presets and configure video parameters. Log in the network camera to enter the live view page, or you can click Live View on the menu bar of the main page to enter the live view page.

  • Page 18: Starting Live View

    User Manual of Network Fisheye Camera Operations on the live view page, e.g., live view, capture, record, audio on/off, two-way audio, etc. PTZ Control: Panning, tilting and zooming actions, and the PTZ speed of the camera. Preset/Patrol Settings: Set and call the preset/patrol for the camera. 4.2 Starting Live View In the live view window as shown in Figure 4-2, click on the toolbar to start the...

  • Page 19: Operating Ptz Control

    User Manual of Network Fisheye Camera 4.4 Operating PTZ Control Purpose: In the live view interface, you can use the PTZ control buttons to realize pan/tilt/zoom control of the camera. If the expand mode is 1 fisheye + 3 PTZ or 1 panorama + 3 PTZ, you can use the PTZ control interface to adjust the view angle and the PTZ speed.
  • Page 20 User Manual of Network Fisheye Camera Figure 4-4 Setting a Preset 2. Use the PTZ control buttons to move the lens to the desired position. • Pan the camera to the right or left. • Tilt the camera up or down. •...

  • Page 21: Setting / Calling A Patrol

    User Manual of Network Fisheye Camera 4.4.3 Setting / Calling a Patrol Note: No less than 2 presets have to be configured before you set a patrol. Steps: 1. Click to enter the patrol configuration interface. 2. Select a path No., and click to add the configured presets.

  • Page 22: Chapter 5 Network Camera Configuration

    User Manual of Network Fisheye Camera Chapter 5 Network Camera Configuration 5.1 Configuring Local Parameters The local configuration refers to the parameters of the live view, record files Note: and captured pictures. The record files and captured pictures are the ones you record and captured using the web browser and thus the saving paths of them are on the PC running the browser.
  • Page 23 User Manual of Network Fisheye Camera streaming under some network environments. MULTICAST: It’s recommended to select MCAST type when using the Multicast function. For detailed information about Multicast, refer to Section 5.3.1 TCP/IP Settings. Live View Performance: Set the live view performance to Shortest Delay, Real Time, Balanced or Best Fluency.

  • Page 24: Configuring Time Settings

    User Manual of Network Fisheye Camera 5.2 Configuring Time Settings Purpose: You can follow the instructions in this section to configure the time synchronization and DST settings. Steps: 1. Enter the Time Settings interface: Configuration > Basic Configuration > System > Time Settings Or Configuration >...
  • Page 25 User Manual of Network Fisheye Camera Figure 5-3 Time Sync by NTP Server If the camera is connected to a public network, you should use a NTP server Note: that has a time synchronization function, such as the server at the National Time Center (IP Address: 210.72.145.44).

  • Page 26: Configuring Network Settings

    User Manual of Network Fisheye Camera 5.3 Configuring Network Settings 5.3.1 Configuring TCP/IP Settings Purpose: TCP/IP settings must be properly configured before you operate the camera over network. The camera supports both the IPv4 and IPv6. Both versions may be configured simultaneously without conflicting to each other, and at least one IP version should be configured.

  • Page 27: Configuring Port Settings

    User Manual of Network Fisheye Camera Notes: The valid value range of MTU is 500 ~ 1500. The Multicast sends a stream to the multicast group address and allows multiple clients to acquire the stream at the same time by requesting a copy from the multicast group address.

  • Page 28: Configuring Pppoe Settings

    User Manual of Network Fisheye Camera No. which is not occupied. Server Port: The default server port number is 8000, and it can be changed to any port No. ranges from 2000 to 65535. 3. Click Save to save the settings. A reboot is required for the settings to take effect.
  • Page 29 User Manual of Network Fisheye Camera the camera. Steps: 1. Enter the DDNS Settings interface: Configuration > Advanced Configuration > Network > DDNS Figure 5-9 DDNS Settings 2. Check the Enable DDNS checkbox to enable this feature. 3. Select DDNS Type. Four DDNS types are selectable: HiDDNS, IPServer, DynDNS, and NO-IP.
  • Page 30 User Manual of Network Fisheye Camera Figure 5-10 DynDNS Settings • IP Server: Steps: (1) Enter the Server Address of the IP Server. (2) Click Save to save the settings. For the IP Server, you have to apply a static IP, subnet mask, gateway and Note: preferred DNS from the ISP.
  • Page 31 User Manual of Network Fisheye Camera Figure 5-12 NO-IP DNS Settings (2) Enter the Server Address as www.noip.com (3) Enter the Domain name you registered. (4) Enter the Port number, if needed. (5) Enter the User Name and Password. (6) Click Save and then you can view the camera with the domain name. •...

  • Page 32: Configuring Snmp Settings

    User Manual of Network Fisheye Camera 5.3.5 Configuring SNMP Settings Purpose: You can set the SNMP function to get camera status, parameters and alarm related information and manage the camera remotely when it is connected to the network. Before you start: Before setting the SNMP, please download the SNMP software and manage to receive the camera information via SNMP port.

  • Page 33: Configuring 802.1X Settings

    User Manual of Network Fisheye Camera Figure 5-14 SNMP Settings 2. Check the corresponding version checkbox ( ) to enable the feature. 3. Configure the SNMP settings. The settings of the SNMP software should be the same as the settings you Note: configure here.

  • Page 34: Configuring Qos Settings

    User Manual of Network Fisheye Camera connecting the camera to the network protected by the IEEE 802.1X. Before you start: The authentication server must be configured. Please apply and register a user name and password for 802.1X in the server. Steps: 1.

  • Page 35: Configuring Upnp™ Settings

    User Manual of Network Fisheye Camera Configuration >Advanced Configuration > Network > QoS Figure 5-16 QoS Settings 2. Configure the QoS settings, including video / audio DSCP, event / alarm DSCP and Management DSCP. The valid value range of the DSCP is 0-63. The bigger the DSCP value is, the higher the priority is.

  • Page 36: Email Sending Triggered By Alarm

    User Manual of Network Fisheye Camera Figure 5-17 Configure UPnP Settings 5.3.9 Email Sending Triggered by Alarm Purpose: The system can be configured to send an Email notification to all designated receivers if an alarm event is detected, e.g., motion detection event, video loss, video tampering, etc.
  • Page 37 User Manual of Network Fisheye Camera Figure 5-18 Email Settings 3. Configure the following settings: Sender: The name of the email sender. Sender’s Address: The email address of the sender. SMTP Server: The SMTP Server IP address or host name (e.g., smtp.263xmail.com).

  • Page 38: Configuring Nat (Network Address Translation) Settings

    User Manual of Network Fisheye Camera this checkbox to use authentication to log in to this server and enter the login user Name and password. Choose Receiver: Select the receiver to which the email is sent. Up to 2 receivers can be configured.

  • Page 39: Configuring Ftp Settings

    User Manual of Network Fisheye Camera 5.3.11 Configuring FTP Settings Purpose: You can configure the FTP server related information to enable the uploading of the captured pictures to the FTP server. The captured pictures can be triggered by events or a timing snapshot task. Steps: 1.

  • Page 40: Configuring Video And Audio Settings

    User Manual of Network Fisheye Camera Figure 5-21 FTP Settings The anonymous access function must be supported by the FTP server. Note: 3. Click Save to save the settings. If you want to upload the captured pictures to FTP server, you have to Note: enable the continuous snapshot or event-triggered snapshot on Snapshot page.
  • Page 41 User Manual of Network Fisheye Camera Figure 5-22 Configure Video Settings 2. Select the Stream Type of the camera to main stream (normal), sub-stream or third stream. The main stream is usually for recording and live viewing with good bandwidth, and the sub-stream and third stream can be used for live viewing when the bandwidth is limited.

  • Page 42: Configuring Audio Settings

    User Manual of Network Fisheye Camera Set the frame rate to 1/16~25 fps. The frame rate is to describe the frequency at which the video stream is updated and it is measured by frames per second (fps). A higher frame rate is advantageous when there is movement in the video stream, as it maintains image quality throughout.

  • Page 43: Configuring Roi Encoding

    User Manual of Network Fisheye Camera Figure 5-23 Audio Settings 2. Configure the following settings. Audio Encoding: G.711 ulaw, G.711alaw, G.726, and MP2L2 are selectable. And 32kbps, 64kbps, and 128kbps are supported if MP2L2 is selected. Audio Input: MicIn and Linein are selectable for the connected microphone and pickup respectively.
  • Page 44 User Manual of Network Fisheye Camera Figure 5-24 Region of Interest Settings 2. Draw the region of interest on the image. There are four regions can be drawn. 3. Choose the stream type to set the ROI encoding. 4. Choose the ROI type. There are two options for ROI encoding, the fixed region encoding and the dynamic tracking.

  • Page 45: Configuring Image Parameters

    User Manual of Network Fisheye Camera 5.5 Configuring Image Parameters 5.5.1 Configuring Display Settings Purpose: You can set the image quality of the camera, including brightness, contrast, saturation, hue, sharpness, etc. Note: The display parameters vary according to the different camera model. Please refer to the actual interface for details.
  • Page 46 User Manual of Network Fisheye Camera Brightness describes bright of the image, which ranges from 1~100, and the default value is 50. Contrast describes the contrast of the image, which ranges from 1~100, and the default value is 50. Hue adjusts color of the image. Saturation describes the colorfulness of the image color, which ranges from 1~100, and the default value is 50.
  • Page 47 User Manual of Network Fisheye Camera to the configured time period. Triggered by Alarm Input: The camera switches to the day mode or the night mode after the alarm is triggered. Backlight Settings BLC: If you focus on an object against strong backlight, the object will be too dark to be seen clearly.

  • Page 48: Configuring Osd Settings

    User Manual of Network Fisheye Camera 5.5.2 Configuring OSD Settings Purpose: You can customize the camera name and time on the screen. Steps: 1. Enter the OSD Settings interface: Configuration > Advanced Configuration > Image > OSD Settings Figure 5-28 OSD Settings 2.

  • Page 49: Configuring Privacy Mask

    User Manual of Network Fisheye Camera Figure 5-29 Adjust OSD Location 6. Click Save to activate above settings. 5.5.3 Configuring Privacy Mask Purpose: Privacy mask enables you to cover certain areas on the live video to prevent certain spots in the surveillance area from being live viewed and recorded. Steps: 1.

  • Page 50: Configuring And Handling Alarms

    User Manual of Network Fisheye Camera 4. Click and drag the mouse in the live video window to draw the mask area. You are allowed to draw up to 4 areas on the same image. Note: 5. Click Stop Drawing to finish drawing or click Clear All to clear all of the areas you set without saving them.
  • Page 51 User Manual of Network Fisheye Camera Figure 5-31 Enable Motion Detection (3) Click . Click and drag the mouse on the live video image to draw a motion detection area. You can draw up to 8 motion detection areas on the same image. Note: (4) Click to finish drawing.
  • Page 52 User Manual of Network Fisheye Camera (1) Click to edit the arming schedule. The Figure 5-28 shows the editing interface of the arming schedule. (2) Choose the day you want to set the arming schedule. (3) Click to set the time period for the arming schedule. (4) After you set the arming schedule, you can copy the schedule to other days (Optional).
  • Page 53 User Manual of Network Fisheye Camera Figure 5-34 Linkage Method Steps: (1) Check the checkbox to select the linkage method. Notify surveillance center, send email, upload to FTP, trigger channel and trigger alarm output are selectable (Optional). Notify Surveillance Center Send an exception or alarm signal to remote management software when an event occurs.

  • Page 54: Configuring Video Tampering Alarm

    User Manual of Network Fisheye Camera Trigger one or more external alarm outputs when an event occurs. To trigger an alarm output when an event occurs, please refer to Note: Section 5.6.4 to set the related parameters. 5.6.2 Configuring Video Tampering Alarm Purpose: You can configure the camera to trigger the alarm when the lens is covered and take alarm response action.

  • Page 55: Configuring Alarm Input

    User Manual of Network Fisheye Camera 5.6.1. 5. Check the checkbox to select the linkage method taken for the tamper-proof. Audible warning, notify surveillance center, send email and trigger alarm output are selectable. Please refer to Task 3 Set the Alarm Actions for Motion Detection in Section 5.6.1.

  • Page 56: Configuring Alarm Output

    User Manual of Network Fisheye Camera installed with a pan/tilt unit. Check the relative checkbox and select the No. to enable Preset Calling, Patrol Calling or Pattern Calling. 6. You can copy your settings to other alarm inputs. 7. Click Save to save the settings. 5.6.4 Configuring Alarm Output Steps: 1.

  • Page 57: Handling Exception

    User Manual of Network Fisheye Camera Figure 5-37 Alarm Output Settings 5.6.5 Handling Exception The exception type can be HDD full, HDD error, network disconnected, IP address conflicted and illegal login to the cameras. Steps: 1. Enter the Exception Settings interface: Configuration >...

  • Page 58: Chapter 6 Storage Settings

    User Manual of Network Fisheye Camera Chapter 6 Storage Settings Before you start: To configure record settings, please make sure that you have the network storage device within the network or the SD card inserted in your camera. 6.1 Configuring NAS Settings Before you start: The network disk should be available within the network and properly configured to store the recorded files, log files, etc.
  • Page 59 User Manual of Network Fisheye Camera Storage Management), in which you can view the capacity, free space, status, type and property of the disk. Figure 6-2 Storage Management Interface (2) If the status of the disk is Uninitialized, check the corresponding checkbox to select the disk and click Format to start initializing the disk.

  • Page 60: Configuring Recording Schedule

    User Manual of Network Fisheye Camera To initialize and use the SD card after insert it to the camera, please refer to the steps of NAS disk initialization. 6.2 Configuring Recording Schedule Purpose: There are two kinds of recording for the cameras: manual recording and scheduled recording.
  • Page 61 User Manual of Network Fisheye Camera Figure 6-6 Record Parameters Pre-record: The time you set to start recording before the scheduled time or the event. For example, if an alarm triggers recording at 10:00, and the pre-record time is set as 5 seconds, the camera starts to record at 9:59:55. The Pre-record time can be configured as No Pre-record, 5 s, 10 s, 15 s, 20 s, 25 s, 30 s or not limited.
  • Page 62 User Manual of Network Fisheye Camera (1) Set all-day record or segment record: If you want to configure the all-day recording, please check the All Day checkbox. If you want to record in different time sections, check the Customize checkbox. Set the Start Time and End Time. The time of each segment can’t be overlapped.
  • Page 63 User Manual of Network Fisheye Camera and alarm are triggered at the same time. Besides configuring the recording schedule, you have to configure the settings on the Motion Detection and Alarm Input Settings interfaces. Please refer to Section 5.6.1 and Section 5.6.3 for detailed information. Record Triggered by Motion | Alarm If you select Motion | Alarm, the video will be recorded when the external alarm is triggered or the motion is detected.

  • Page 64: Configuring Snapshot Settings

    User Manual of Network Fisheye Camera 6.3 Configuring Snapshot Settings Purpose: You can configure the scheduled snapshot and event-triggered snapshot. The captured picture can be stored in the SD card (if supported) or the netHDD (For detailed information about netHDD, please refer to Section 6.1 Configuring NAS Settings). You can also upload the captured pictures to a FTP server.
  • Page 65 User Manual of Network Fisheye Camera 2) Check Upload Picture checkbox in Motion Detection Settings or Alarm Input interface. Please refer to Task 3: Set the Alarm Actions Taken for Motion Detection in Section 5.6.1. 3) Check the Enable Event-triggered Snapshot checkbox. Figure 6-9 Snapshot Settings...

  • Page 66: Chapter 7 Playback

    User Manual of Network Fisheye Camera Chapter 7 Playback Purpose: This section explains how to view the remotely recorded video files stored in the network disks or SD cards. Steps: 1. Click Playback on the menu bar to enter playback interface. Figure 7-1 Playback Interface 2.
  • Page 67 User Manual of Network Fisheye Camera The toolbar on the bottom of Playback interface can be used to control playing process. Figure 7-3 Playback Toolbar Table 7-1 Description of the buttons Button Operation Button Operation Play Capture a picture Start/Stop clipping video Pause files Audio on and adjust...

  • Page 68: Chapter 8 Log Searching

    User Manual of Network Fisheye Camera Chapter 8 Log Searching Purpose: The operation, alarm, exception and information of the camera can be stored in log files. You can also export the log files on your demand. Before you start: Please configure network storage for the camera or insert a SD card in the camera. Steps: 1.

  • Page 69: Chapter 9 Others

    User Manual of Network Fisheye Camera Chapter 9 Others 9.1 Managing User Accounts Enter the User Management interface: Configuration >Basic Configuration> Security > User Or Configuration > Advanced Configuration> Security > User The admin user has access to create, modify or delete other accounts. Up to 15 user accounts can be created.
  • Page 70 User Manual of Network Fisheye Camera Figure 9-2 Add a User Modify a User Steps: 1. Left-click to select the user from the list and click Modify. 2. Modify the User Name, Level or Password. 3. In the Basic Permission field and Camera Configuration field, you can check or uncheck the permissions.

  • Page 71: Configuring Rtsp Authentication

    User Manual of Network Fisheye Camera Delete a User Steps: 1. Click to select the user you want to delete and click Delete. 2. Click OK on the pop-up dialogue box to delete the user. 9.2 Configuring RTSP Authentication Purpose: You can specifically secure the stream data of live view.

  • Page 72: Ip Address Filter

    User Manual of Network Fisheye Camera Figure 9-5 Anonymous Visit 2. Set the Anonymous Visit permission Enable or Disable in the drop-down list to enable or disable the anonymous visit. 3. Click Save to save the settings. There will be a checkbox of Anonymous by the next time you logging in. Figure 9-6 Login Interface with an Anonymous Checkbox 4.
  • Page 73 User Manual of Network Fisheye Camera Figure 9-7 IP Address Filter Interface 2. Check the checkbox of Enable IP Address Filter. 3. Select the type of IP Address Filter in the drop-down list, Forbidden and Allowed are selectable. 4. Set the IP Address Filter list. Add an IP Address Steps: (1) Click the Add to add an IP.

  • Page 74: Viewing Device Information

    User Manual of Network Fisheye Camera (2) Modify the IP address in the text filed. Figure 9-9 Modify an IP (3) Click the OK to finish modifying. Delete an IP Address Left-click an IP address from filter list and click Delete. Delete all IP Addresses Click Clear to delete all the IP addrsses.

  • Page 75: Maintenance

    User Manual of Network Fisheye Camera Figure 9-10 Device Information 9.6 Maintenance 9.6.1 Rebooting the Camera Steps: 1. Enter the Maintenance interface: Configuration > Basic Configuration> System > Maintenance Or Configuration > Advanced Configuration> System > Maintenance: 2. Click Reboot to reboot the network camera. Figure 9-11 Reboot the Device 9.6.2 Restoring Default Settings Steps:...

  • Page 76: Exporting / Importing Configuration File

    User Manual of Network Fisheye Camera Figure 9-12 Restore Default Settings After restoring the default settings, the IP address is also restored to Note: the default IP address, please be careful for this action. 9.6.3 Exporting / Importing Configuration File Purpose: Configuration file is used for the batch configuration of the camera, which can simplify the configuration steps when there are a lot of cameras needing configuring.

  • Page 77: Upgrading The System

    User Manual of Network Fisheye Camera 9.6.4 Upgrading the System Steps: 1. Enter the Maintenance interface: Configuration > Basic Configuration> System > Maintenance Or Configuration > Advanced Configuration> System > Maintenance 2. Click Browse to select the local upgrade file and then click Upgrade to start remote upgrade.

  • Page 78: Rs-485 Settings

    User Manual of Network Fisheye Camera Figure 9-15 RS-232 Settings If you want to connect the camera by the RS-232 port, the parameters of the Note: RS-232 should be exactly the same with the parameters you configured here. 2. Click Save to save the settings. 9.8 RS-485 Settings Purpose: The RS-485 serial port is used to control the PTZ of the camera.

  • Page 79: Fisheye Parameters

    User Manual of Network Fisheye Camera 9.9 Fisheye Parameters Fisheye parameters configuration enables you to select the real-time mode, and the mounting type, etc. Figure 9-17 Fisheye Parameters Enable or disable the real-time mode by clicking the checkbox in front of the each option.

  • Page 80: Appendix

    Appendix Appendix 1 SADP Software Introduction Description of SADP V 2.0 SADP (Search Active Devices Protocol) is a kind of user-friendly and installation-free online device search tool. It searches the active online devices within your subnet and displays the information of the devices. You can also modify the basic network information of the devices using this software.
  • Page 81 User Manual of Network Fisheye Camera Search online devices manually You can also click Refresh to refresh the online device list manually. The newly searched devices will be added to the list. You can click on each column heading to order the Note: information;...
  • Page 82 User Manual of Network Fisheye Camera 1. Contact our technical engineers to get the serial code. 2. Input the code in the Serial code field and click Confirm to restore the default password.

  • Page 83: Appendix 2 Port Mapping

    User Manual of Network Fisheye Camera Appendix 2 Port Mapping The following settings are for TP-LINK router (TL-WR641G). The settings vary depending on different models of routers. Steps: 1. Select the WAN Connection Type, as shown below: Figure A.2.1 Select the WAN Connection Type 2.
  • Page 84 User Manual of Network Fisheye Camera another camera as 81, 8001, 555, 8201 with IP 192.168.1.24. Refer to the steps as below: Steps: 1. As the settings mentioned above, map the port 80, 8000, 554 and 8200 for the network camera at 192.168.1.23 2.
