e-Manual

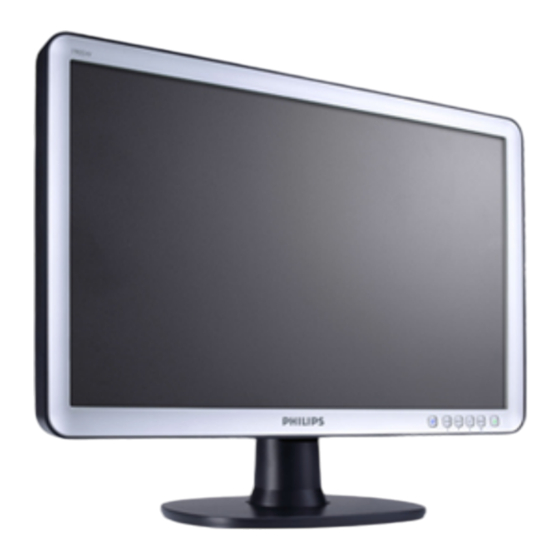

Philips LCD Monitor Electronic User's Manual
file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/INDEX.HTM [2007/7/17 上午 10:28:39]

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 190SW8 and is the answer not in the manual?

Questions and answers

Related Manuals for Philips 190SW8

Summary of Contents for Philips 190SW8

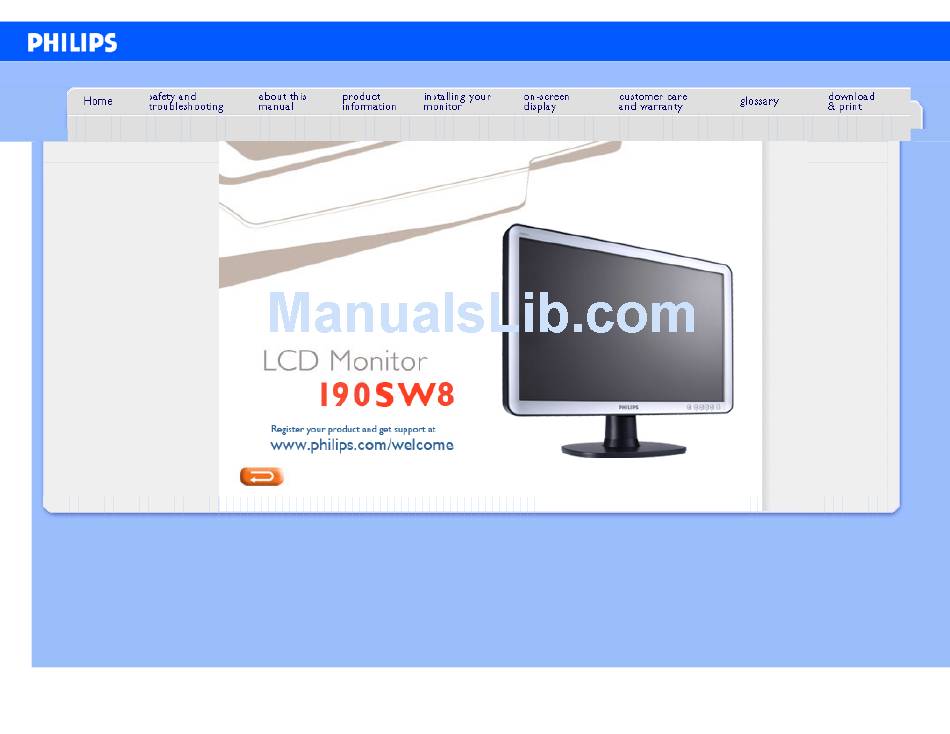

  • Page 1 Philips LCD Monitor Electronic User’s Manual file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/INDEX.HTM [2007/7/17 上午 10:28:39]...

  • Page 2: Safety And Troubleshooting Information

    DC power cord for normal operation. Please use approved power cord provided by Philips all the time. If your power cord is missing, please contact with your local service center. (Please refer to Customer Care...
  • Page 3 ● ● ● file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/safety.htm 第 2 頁 / Do not store or use the LCD monitor in locations exposed to heat, direct sunlight or extreme cold. In order to maintain the best performance of your monitor and use it for a longer lifetime, please use the monitor in a location that falls within the following temperature and humidity ranges.

  • Page 4: Faqs (Frequently Asked Questions)

    What are the .inf and .icm files on the CD-ROM? How do I install the drivers (.inf and . icm)? file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/saf_faq.htm 第 1 頁 / 共 9 [2007/7/17 上午 10:35:21] Recommended video mode for Philips 19": 1440x900 @60Hz.
  • Page 5 Will the LCD monitor accept an interlaced signal under PC models? What does the Refresh Rate mean for LCD? file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/saf_faq.htm 第 2 頁 / 共 9 [2007/7/17 上午 10:35:21] Your video card/graphic driver and monitor together determine the available resolutions.
  • Page 6 How should I clean the LCD surface? Can I change the color setting of my monitor? file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/saf_faq.htm 第 3 頁 / 共 9 [2007/7/17 上午 10:35:21] from the top to the bottom of the screen determines flicker, an active matrix display uses an active element (TFT) to control each individual pixel and the refresh rate is therefore not really applicable to LCD technology.
  • Page 7 Yes. Philips LCD monitors have this optional feature. For standard VESA mount holes on the rear cover allows the user to mount the Philips monitor on most of the VESA standard arms or accessories. We recommend to contact your Philips sales representative for more information.
  • Page 8 What is a USB hub ? LCD Panel Technology file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/saf_faq.htm 第 5 頁 / 共 9 [2007/7/17 上午 10:35:21] Yes. All Philips LCD monitors are fully compatible with standard PCs, Macs and workstations. You may need a cable adapter to connect the monitor to your Mac system.
  • Page 9 Why is vertical frequency of 60Hz optimal for an LCD monitor? file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/saf_faq.htm 第 6 頁 / 共 9 [2007/7/17 上午 10:35:21] A Liquid Crystal Display (LCD) is an optical device that is commonly used to display ASCII characters and images on digital items such as watches, calculators, portable game consoles, etc.
  • Page 10 Ergonomics, Ecology and Safety Standards What is the CE mark? file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/saf_faq.htm 第 7 頁 / 共 9 [2007/7/17 上午 10:35:21] The TFT LCD panel is an element that controls/displays the inlet of a backlight using the dual-refraction of a liquid crystal. Using the property that the projection of inlet light refracts toward the major axis of the liquid element, it controls the direction of inlet light and displays it.
  • Page 11 After I change new PC, I found this information on screen, How can I do? file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/saf_faq.htm 第 8 頁 / 共 9 [2007/7/17 上午 10:35:21] product complies with the relevant European Directive. A European Directive is a European 'Law' that relates to health, safety, environment and consumer protection, much the same as the U.S.
  • Page 12 FAQs (Frequently Asked Questions) file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/saf_faq.htm 第 9 頁 / 共 9 [2007/7/17 上午 10:35:21]...

  • Page 13: Troubleshooting

    AUTO button not working properly Imaging Problems Display position is incorrect file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/saf_troub.htm 第 1 頁 / 共 3 [2007/7/17 上午 10:35:25] Check these items Make sure the power cord is plugged into the power outlet ●...
  • Page 14 Green, red, blue, dark, and white dots remains file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/saf_troub.htm 第 2 頁 / 共 3 [2007/7/17 上午 10:35:25] Check that the signal cable is properly connected to the ● graphics board or PC.
  • Page 15 Troubleshooting For further assistance, refer to the representative. file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/saf_troub.htm 第 3 頁 / 共 3 [2007/7/17 上午 10:35:25] Consumer Information Centers list and contact Philips customer service RETURN TO TOP OF THE PAGE...

  • Page 16: Regulatory Information

    IT equipment in a more user-friendly direction. Our labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world. file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/regs/regulat.htm 第 1 頁 / 共 11 [2007/7/17 上午 10:36:15] 190SW8...
  • Page 17 Tel: +1 865 521 4322 Waste Electrical and Electronic Equipment-WEEE Attention users in European Union private households file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/regs/regulat.htm 第 2 頁 / 共 11 [2007/7/17 上午 10:36:15] RETURN TO TOP OF THE PAGE www.epa.gov.tw Consumers Information Center...
  • Page 18 CE Declaration of Conformity Philips Consumer Electronics declare under our responsibility that the product is in conformity with the following standards - EN60950-1:2001 (Safety requirement of Information Technology Equipment)
  • Page 19 To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive moisture. THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE- CAUSING EQUIPMENT REGULATIONS. file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/regs/regulat.htm 第 4 頁 / 共 11 [2007/7/17 上午 10:36:15] OFF (Sleep) Amber < 1 W Switch Off <...
  • Page 20 CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA. file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/regs/regulat.htm 第 5 頁 / 共 11 [2007/7/17 上午 10:36:15] Trade Name: Philips Philips Consumer Electronics North America P.O.
  • Page 21 A protection mark "B" confirms that the equipment is in compliance with the protection usage requirements of standards PN-93/T-42107 and PN-89/E-06251. file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/regs/regulat.htm 第 6 頁 / 共 11 [2007/7/17 上午 10:36:15] RETURN TO TOP OF THE PAGE...
  • Page 22 SØRG VED PLACERINGEN FOR, AT NETLEDNINGENS STIK OG STIKKONTAKT ER NEMT TILGÆNGELIGE. Paikka/Ilmankierto VAROITUS: SIJOITA LAITE SITEN, ETTÄ VERKKOJOHTO VOIDAAN TARVITTAESSA HELPOSTI IRROTTAA PISTORASIASTA. file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/regs/regulat.htm 第 7 頁 / 共 11 [2007/7/17 上午 10:36:15] RETURN TO TOP OF THE PAGE...
  • Page 23 Der arbeitsplatzbezogene Schalldruckpegel nach DIN 45 635 beträgt 70dB (A) oder weniger. End-of-Life Disposal file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/regs/regulat.htm 第 8 頁 / 共 11 [2007/7/17 上午 10:36:15] RETURN TO TOP OF THE PAGE RETURN TO TOP OF THE PAGE ACHTUNG: BEIM AUFSTELLEN DIESES GERÄTES DARAUF ACHTEN, DAß...
  • Page 24 Please find out about the local regulations on how to dispose of your old monitor from your local Philips dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury.
  • Page 25 China market have to meet China RoHS request. file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/regs/regulat.htm 第 10 頁 / 共 11 [2007/7/17 上午 10:36:15] 1. The GREEN AND YELLOW wire must be connected to the terminal in the plug which is marked with the letter "G"...
  • Page 26 Philips is committed to develop, produce and market products that cause no adverse health effects. Philips confirms that if its products are handled properly for their intended use, they are safe to use according to scientific evidence available today.

  • Page 27: Other Related Information

    15 A, 250 V. The Cord Set should have the appropriate safety approvals for the country in which the equipment will be installed and / or be marked HAR. file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/saf_other.htm [2007/7/17 上午 10:36:18] RETURN TO TOP OF THE PAGE...

  • Page 28: About This Manual

    The following subsections describe notational conventions used in this document. Notes, Cautions and Warnings file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/about/about.htm 第 1 頁 / 共 2 [2007/7/17 上午 10:36:34] Safety and Troubleshooting Information provides tips and solutions for common problems as well as other related information you may need.
  • Page 29 Philips Electronics NV file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/about/about.htm 第 2 頁 / 共 2 [2007/7/17 上午 10:36:34] NOTE: This icon indicates important information and tips that help you make better use of your computer system.
  • Page 30 Your LCD Monitor Product Information Product Features Smartimage Your LCD monitor SmartContrast SmartSaturte Congratulations on your purchase and welcome to Philips. To fully benefit from the support that Philips offers, register your product at. SmartSharpness Lead-free Product Product Features Technical Specifications 190SW8 Resolution &...
  • Page 31 SmartImage OSD.There are five modes to be selected: Office Work, Image Viewing, Entertainment, Economy, and Off. file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/product.htm 第 2 頁 / 共 10 [2007/7/17 上午 10:36:42] launch the SmartImage on screen display;...
  • Page 32 This function can obviously enhance contrast in dynamic for more entertainment fun when file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/product.htm 第 3 頁 / 共 10 [2007/7/17 上午 10:36:42] Enhances text and dampens brightness to increase readability and reduce eye strain. This mode...
  • Page 33 Economy mode to reduce power consumptions. Lead-free Product file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/product.htm 第 4 頁 / 共 10 [2007/7/17 上午 10:36:42] RETURN TO TOP OF THE PAGE RETURN TO TOP OF THE PAGE...
  • Page 34 Product Information Philips eliminated toxic substances like lead from its displays. Lead-free display helps protect your health and promotes environmentally sound recovery and disposal of waste from electrical and electronic equipment.Philips complies with the European Community stringent RoHS Directive mandating restrictions on hazardous substances in electrical and electronic equipment.
  • Page 35 1440x900 at 75 Hz B. Recommended Resolution For 190SW8 1440x900 at 60 Hz 13 factory preset modes: file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/product.htm 第 6 頁 / 共 10 [2007/7/17 上午 10:36:42] 75 ohm 2.2K ohm 0.7 Vpp Separate sync...
  • Page 36 VESA Mode Active Sleep Switch Off This monitor is determined that this product meets the file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/product.htm 第 7 頁 / 共 10 [2007/7/17 上午 10:36:42] Resolution V. freq (Hz) 720*400 640*480 640*480 640*480...
  • Page 37 No connect DDC Clock DDC Data No connect file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/product.htm 第 8 頁 / 共 10 [2007/7/17 上午 10:36:42] -5°+2/-0 ~+ 20°+3/-0 100 ~ 240 VAC, 50/60 Hz <36W* (typ.) 0° C to 40 ° C (operating) -20°...
  • Page 38 Product Views Follow the links to see various views of the monitor and its components. Front View Product Description file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/product.htm 第 9 頁 / 共 10 [2007/7/17 上午 10:36:42] Assignment Pin No. DDC + 5 V...
  • Page 39 Product Information Physical Function Tilt RETURN TO TOP OF THE PAGE file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/product.htm 第 10 頁 / 共 10 [2007/7/17 上午 10:36:42]...

  • Page 40: Philips Pixel Defect Policy

    TFT LCD panels used in flat panel monitors are sometimes unavoidable. No manufacturer can Pin Assignment guarantee that all panels will be free from pixel defects, but Philips guarantees that any monitor with an unacceptable number of defects will be repaired or replaced under warranty. This notice explains Product Views the different types of pixel defects and defines acceptable defect levels for each type.
  • Page 41 Philips also specifies tolerances for the proximity of pixel defects. file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/pixel.htm 第 2 頁 / 共 4 [2007/7/17 上午 10:36:46] Bright dot defects appear as pixels or sub pixels that are always lit or 'on'. That is,...
  • Page 42 In order to qualify for repair or replacement due to pixel defects during the warranty period, a TFT LCD panel in a Philips flat panel monitor must have pixel or sub pixel defects exceeding the tolerances listed in the following tables.
  • Page 43 Note: * 1 or 2 adjacent sub pixel defects = 1 dot defect Your Philips monitor is ISO13406-2 Compliant file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/pixel.htm 第 4 頁 / 共 4 [2007/7/17 上午 10:36:46] RETURN TO TOP OF THE PAGE...
  • Page 44 Thus, Philips provide you a compact version of SmartManage, SmartManage Lite. You can use SmartManage Lite to manage your Philips Monitors via LAN. Please. refer to below comparison chart and determine if which one suit for your environment best.
  • Page 45 SmartManage SmartManage Features and Benefits The Philips SmartManage is a working console for IT management to gather monitors assets information, run asset report, control assets security, monitor assets security, and issue instant messages to monitor users. Philips SmartManage includes the following major features: Provides an additional security measure that helps corporate users safeguard their investment.
  • Page 46 SmartManage 2. Installer – Install Shield Legal Choose "I accept" for installation process. ● Cancel prompts user if you want to cancel installation. ● file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/SMART.HTM 第 3 頁 / 共 16 [2007/7/17 上午 10:36:54]...
  • Page 47 Check the box if you wants to install SmartManage Lite Asset Management services. ● Personal user usually not need to active this function.Read SmartManage section in this manual before you choose SmartManage Lite function file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/SMART.HTM 第 4 頁 / 共 16 [2007/7/17 上午 10:36:54]...
  • Page 48 ● You can launch after installation complete. ● If you want to launch later, you can either click the shortcut on desktop or toolbar. ● file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/SMART.HTM 第 5 頁 / 共 16 [2007/7/17 上午 10:36:54]...
  • Page 49 SmartManage file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/SMART.HTM 第 6 頁 / 共 16 [2007/7/17 上午 10:36:54]...
  • Page 50 SmartManage file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/SMART.HTM 第 7 頁 / 共 16 [2007/7/17 上午 10:36:54]...
  • Page 51 ● You can adjust more options without wizard by Standard pane. ● Wizard Analog Seguence White Point (Color Temp) file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/SMART.HTM 第 8 頁 / 共 16 [2007/7/17 上午 10:36:54] Wizard Degital Seguence Resolution Resolution Focus...
  • Page 52 Cancel prompts user if you want to cancel installation. ● Tab Heading Adjust Adjust Adjust Adjust Adjust file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/SMART.HTM 第 9 頁 / 共 16 [2007/7/17 上午 10:36:54] Sub Menu Display in Analog Brightness Contrast Focus (Clock & Clock Phase) Position Resolution...
  • Page 53 Refer to below table for sub-menu item base on your input. ● Tab Heading Color Color Color Color Color file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/SMART.HTM 第 10 頁 / 共 16 [2007/7/17 上午 10:36:54] Sub Menu Display in Analog Display in Digital Black Level White Point Color Calibration Viewing Mode...
  • Page 54 Options AutoPivot, Input and Audio function will only available and shown if the product supports those features. Help Menu file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/SMART.HTM 第 11 頁 / 共 16 [2007/7/17 上午 10:36:54] Sub Menu Display in Analog Display in Digital...
  • Page 55 Tab Heading Help Help Help Help Help Plug Ins Menu file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/SMART.HTM 第 12 頁 / 共 16 [2007/7/17 上午 10:36:54] Sub Menu Display in Analog Display in Digital User Manual Update Display ID System ID...
  • Page 56 “Theft Deterrence enabled” host computer. To get started, you will need to register a personal identification number (PIN). Example for Theft Deterrence file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/SMART.HTM 第 13 頁 / 共 16 [2007/7/17 上午 10:36:54] Sub Menu Display in Analog...
  • Page 57 SmartManage Example for on line register Theft Deterrence PIN file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/SMART.HTM 第 14 頁 / 共 16 [2007/7/17 上午 10:36:54]...
  • Page 58 Install the driver. Remove SmartControl, and re-install it once more. If it is still not working, we are sorry that the graphic adaptor is not supported. Please pay attention to Philips web site for any updated SmartControl driver available.
  • Page 59 I forgot my PIN for Theft Deterrence Function. How can I do? You can use the universal PIN “PHILIPS” to enter it, or you can unlock the theft deterrence mode with mechnical override way by press 10 sec. Menu and then 10 sec. Power key.

  • Page 60: Installing Your Lcd Monitor

    Front View Product Description The Base Getting Started Optimizing Performance file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/install/install.htm 第 1 頁 / 共 3 [2007/7/17 上午 10:37:05] To switch monitor's power On and Off To access OSD menu To adjust the OSD menu...
  • Page 61 Optimizing Performance For best performance, ensure that your display settings are set at 1440x900, 60Hz. ● file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/install/install.htm 第 2 頁 / 共 3 [2007/7/17 上午 10:37:05] AC power input DVI-D input (Available for selected countries)
  • Page 62 Installing Your LCD Monitor file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/install/install.htm 第 3 頁 / 共 3 [2007/7/17 上午 10:37:05] Note: You can check the current display settings by pressing the 'OK' button once. The current display mode is shown in OSD main controls called RESOLUTION.

  • Page 63: Connecting To Your Pc

    Connecting to Your PC Getting Started Optimizing Performance The base Connecting to Your PC file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/install/connect.htm 第 1 頁 / 共 3 [2007/7/17 上午 10:37:12] DVI cable (Optional) Power cord EDFU pack VGA cable RETURN TO TOP OF THE PAGE...
  • Page 64 Connecting to Your PC Connect the power cord to the back of the monitor firmly. (Philips has pre-connected VGA cable for the first installation. file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/install/connect.htm 第 2 頁 / 共 3 [2007/7/17 上午 10:37:12] *available for selective models...
  • Page 65 Connecting to Your PC Connect to PC file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/install/connect.htm 第 3 頁 / 共 3 [2007/7/17 上午 10:37:12] Turn off your computer and unplug its power cable. Connect the monitor signal cable to the video connector on the back of your computer.
  • Page 66 Getting Started Place the base on flat surface, slide the monitor body onto the base. Optimizing Performance Attach the Base Detach the Base Remove the Base file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/install/base.htm 第 1 頁 / 共 6 [2007/7/17 上午 10:37:17]...
  • Page 67 The Base Install cable cover as illustrated below. Detach the Base Detach Remove the cable cover as illustrated below. file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/install/base.htm 第 2 頁 / 共 6 [2007/7/17 上午 10:37:17]...
  • Page 68 The Base Place the monitor face on a safe surface, push down on the release button and pull the base away from the monitor body. file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/install/base.htm 第 3 頁 / 共 6 [2007/7/17 上午 10:37:17]...
  • Page 69 The Base Remove the Base Condition: for VESA standard mounting applications ● Remove the top cover. file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/install/base.htm 第 4 頁 / 共 6 [2007/7/17 上午 10:37:17]...
  • Page 70 Remove the 4 screws and then remove the base from the LCD monitor. Note: file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/install/base.htm 第 5 頁 / 共 6 [2007/7/17 上午 10:37:17] This monitor accepts a 100mmx100mm VESA-Compliant mounting interface. RETURN TO TOP OF THE PAGE...
  • Page 71 The Base file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/install/base.htm 第 6 頁 / 共 6 [2007/7/17 上午 10:37:17]...

  • Page 72: Getting Started

    For Windows® 95 For Windows® 98 For Windows® 2000 file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/install/gt_start.htm 第 1 頁 / 共 3 [2007/7/17 上午 10:37:23] Start Windows® '95 Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'.
  • Page 73 For Windows® Me For Windows® XP file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/install/gt_start.htm 第 2 頁 / 共 3 [2007/7/17 上午 10:37:23] Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'. Double click on the 'Display' Icon.
  • Page 74 Windows® 95/98/2000/Me/XP/Vista user's manual. file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/install/gt_start.htm 第 3 頁 / 共 3 [2007/7/17 上午 10:37:23] Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F: (CD-ROM Drive).

  • Page 75: On-Screen Display

    Description of the On Screen Display What is the On-Screen Display? On-Screen Display (OSD) is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance or select functions of the monitors directly through an on-screen instruction window.
  • Page 76 Below is an overall view of the structure of the On-Screen Display. You can use this as a reference when you want to work your way around the different adjustments later on. file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/osd/osddesc.htm 第 2 頁 / 共 3 [2007/7/17 上午 10:37:42]...
  • Page 77 Display of the native resolution alert can be switched off from Setup in the OSD (On Screen Display) menu. file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/osd/osddesc.htm 第 3 頁 / 共 3 [2007/7/17 上午 10:37:42] RETURN TO TOP OF THE PAGE...
  • Page 78 ASIA: Philippines Singapore Taiwan Thailand AFRICA: MIDDLE EAST: file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/warranty/warranty.htm [2007/7/17 Austria Belgium Denmark France Germany Greece Finland Czech Republic Hungary Poland Russia Slovakia Slovenia Turkey Antilles Argentina Brasil Chile Colombia Mexico Paraguay Peru Canada USA...

  • Page 79: Your Philips F1Rst Choice Warranty

    Philips helpdesk directly to benefit from your Philips F1rst Choice Warranty. This three-year service warranty entitles you to a swap model on-site if your monitor turns out to be faulty or defective. Philips aims at a swap within 48 hours of your call being received.
  • Page 80 Note that products that are not originally designed, manufactured, approved and/or authorized for usage within the Philips F1rst Choice countries, do not apply to the Philips F1rst Choice Warranty. In these cases the Philips global warranty terms are valid.
  • Page 81 Your Philips F1rst Choice Warranty file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/warranty/war_1st.htm 第 3 頁 / 共 3 [2007/7/17 上午 10:38:04]...

  • Page 82: F1Rst Choice Contact Information

    Greece Ireland Italy Luxembourg The Netherlands Norway Portugal Spain Sweden Switzerland United Kingdom file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/warranty/warfirst.htm [2007/7/17 上午 10:38:12] Code Telephone number Tariff € 0.07 0810 000206 € 0.06 078 250851 3525 8761 Local call tariff +358...

  • Page 83: Your Guarantee In Central And Eastern Europe

    Please note that the product is not defective under this guarantee in the case where modifications file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/warranty/war_ee.htm 第 1 頁 / 共 2 [2007/7/17 上午 10:38:25] the documents have been altered in any way or made illegible;...
  • Page 84 In order to avoid unnecessary inconvenience, we advise you to read the operating instructions carefully before contacting our dealers or Information Centers In case your Philips product is not working correctly or is defective, please contact your Philips dealer or directly the Website: file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/warranty/war_ee.htm 第...

  • Page 85: Consumer Information Centers

    CZ - 160 00 Praha 6 Tel: 800 100 697 Email:info@xpectrum.cz www.xpectrum.cz CROATIA Renoprom d.o.o. Mlinska 5, Strmec HR - 41430 Samobor Tel: +385 1 333 0974 file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/warranty/warcic.htm 第 1 頁 / 共 11 [2007/7/17 上午 10:38:29]...
  • Page 86 RO - 020074 Bucharest Tel: +40 21 2101969 SERBIA & MONTENEGRO Tehnicom Service d.o.o. Bulevar Vojvode Misica 37B YU - 11000 Belgrade Tel: +381 11 3060 886 file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/warranty/warcic.htm 第 2 頁 / 共 11 [2007/7/17 上午 10:38:29]...
  • Page 87 RUSSIA Tel: +7 095 961-1111 Tel: 8-800-200-0880 Website: www.philips.ru TURKEY Türk Philips Ticaret A.S. Yukari Dudullu Org.San.Bolgesi 2.Cadde No:22 34776-Umraniye/Istanbul Tel: (0800)-261 33 02 file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/warranty/warcic.htm 第 3 頁 / 共 11 [2007/7/17 上午 10:38:29]...
  • Page 88 Phones: 11 21210203 -São Paulo & 0800-701-0203-Other Regions without São Paulo City CHILE Philips Chilena S.A. Avenida Santa Maria 0760 P.O. box 2687Santiago de Chile Phone: (02)-730 2000 Fax : (02)-777 6730 file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/warranty/warcic.htm 第 4 頁 / 共 11 [2007/7/17 上午 10:38:29]...
  • Page 89 Customer Desk: Phone: 009 800 54 1 0004 PERU Philips Peruana S.A. Customer Desk Comandante Espinar 719 Casilla 1841 Limab18 Phone: (01)-2136200 Fax : (01)-2136276 file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/warranty/warcic.htm 第 5 頁 / 共 11 [2007/7/17 上午 10:38:29]...
  • Page 90 Philips Consumer Electronics Consumer Care Center Level 1, 65 Epping Rd North Ryde NSW 2113 Phone: 1300 363 391 Fax : +61 2 9947 0063 file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/warranty/warcic.htm 第 6 頁 / 共 11 [2007/7/17 上午 10:38:29]...
  • Page 91 Philips Electronics Hong Kong Limited Consumer Service Unit A, 10/F. Park Sun Building 103-107 Wo Yi Hop Road Kwai Chung, N.T. Hong Kong Phone: (852)26199663 Fax: (852)24815847 file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/warranty/warcic.htm 第 7 頁 / 共 11 [2007/7/17 上午 10:38:29]...
  • Page 92 Philips Group of Companies in Indonesia Consumer Information Centre Jl.Buncit Raya Kav. 99-100 12510 Jakarta Phone: (021)-7940040 ext: 2100 Fax : (021)-794 7511 / 794 7539 file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/warranty/warcic.htm 第 8 頁 / 共 11 [2007/7/17 上午 10:38:29]...
  • Page 93 6795 Ayala Avenue cor VA Rufino St. Salcedo Village 1227 Makati City, PHILS Phone: (02)-888 0572, Domestic Toll Free: 1-800-10-PHILIPS or 1-800-10-744 5477 Fax: (02)-888 0571 file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/warranty/warcic.htm 第 9 頁 / 共 11 [2007/7/17 上午 10:38:29]...
  • Page 94 Khwaeng Bangkapi, Khet Huaykhwang Bangkok10320 Thailand Tel: (66)2-6528652 E-mail: cic Thai@philips.com Africa MOROCCO Philips Electronique Maroc 304,BD Mohamed V Casablanca Phone: (02)-302992 Fax : (02)-303446 file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/warranty/warcic.htm 第 10 頁 / 共 11 [2007/7/17 上午 10:38:29]...
  • Page 95 Fax: +27 (0) 11 471 5123 E-mail: customercare.za@philips.com Middle East DUBAI Philips Middle East B.V. Consumer Information Centre P.O.Box 7785 DUBAI Phone: (04)-335 3666 Fax : (04)-335 3999 file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/warranty/warcic.htm 第 11 頁 / 共 11 [2007/7/17 上午 10:38:29]...

  • Page 96: Your International Guarantee

    In the event you require service whilst in another country a dealer address can be given to you by the Philips Consumer Help Desk in that country, the telephone and fax number of which can be found in the relevant part of this booklet.
  • Page 97 International Guarantee file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/warranty/war_intl.htm 第 2 頁 / 共 2 [2007/7/17 上午 10:38:38]...
  • Page 98 WHAT IS EXCLUDED? file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/warranty/war_usa.htm 第 1 頁 / 共 4 [2007/7/17 上午 10:38:42] All Philips monitors are designed and manufactured to high standards and deliver high-quality performance, ease of use and ease of installation. Should you encounter any difficulties while installing or using this product, please contact Philips directly to benefit from your Philips F1rst Choice Warranty.
  • Page 99 Philips Customer Care Center file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/warranty/war_usa.htm 第 2 頁 / 共 4 [2007/7/17 上午 10:38:42] labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or repair of antenna systems outside of the product.
  • Page 100 Please contact Philips at: (800) 479-6696 Three years free parts and three years free labor will be provided at Philips Canada depot or any one of its authorized service centers. (In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose.
  • Page 101 10:00 AM-5:00 PM ET hrs by using one of the contact phone numbers. For more information on this and more great Philips products visit our website at: Website: file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/warranty/war_usa.htm 第 4 頁 / 共 4 [2007/7/17 上午 10:38:42] Fax/Modem/Internet program? Other cards installed...
  • Page 102 The width-to-height ratio of the active area of a display. In general, most monitors have an aspect ratio of 4:3. Wide monitors or TVs have an aspect ratio of 16:9 or 16:10. Backlight file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/glossary/glossary.htm 第 1 頁 / 共 10 [2007/7/17 上午 10:38:49] G H I R S T U V...
  • Page 103 6504° K. Philips monitors generally offers 9300° K, 6500° K, and user define. Contrast The luminance variation between light and dark areas in an image. file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/glossary/glossary.htm 第 2 頁 / 共 10 [2007/7/17 上午 10:38:49]...
  • Page 104 Energy Star Computers Program An energy conservation program launched by the US Environmental Protection Agency (EPA), file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/glossary/glossary.htm 第 3 頁 / 共 10 [2007/7/17 上午 10:38:49] RETURN TO TOP OF THE PAGE Reduce signal loss and video noise in signal due to less signal conversion.
  • Page 105 Color defined as having hue are know as chromatic colors. White, black, and grays possess no hue. IPS (In Plane Switching) file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/glossary/glossary.htm 第 4 頁 / 共 10 [2007/7/17 上午 10:38:49] RETURN TO TOP OF THE PAGE = 256 levels. For a color...
  • Page 106 (cd/m2) or foot Lamberts. 1 fL=3.426 cd/m2. A unit of luminance equal to 1 cd/m2 or 0.292 ftL. file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/glossary/glossary.htm 第 5 頁 / 共 10 [2007/7/17 上午 10:38:49] RETURN TO TOP OF THE PAGE...
  • Page 107 Microsoft’s already high Vista requirements from each and every monitor that leaves the factory–not just a few review samples. Only Philips goes to these lengths to deliver this exacting level of color accuracy and display quality in every new monitor.
  • Page 108 OK again to exit the OSD. After this, please do not change the brightness or contrast setting of your monitor. If you change file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/glossary/glossary.htm 第 7 頁 / 共 10 [2007/7/17 上午 10:38:49]...
  • Page 109 Hubs serve to simplify USB connectivity from the user's perspective providing low cost and complexity. file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/glossary/glossary.htm 第 8 頁 / 共 10 [2007/7/17 上午 10:38:49] USB automatically determines resources (like driver software and USB eliminates "case anxiety" -- the fear of removing the computer case to install add-on peripherals.
  • Page 110 Universal Serial Bus; for example, a data/FAX modem device. Devices may be physical, electrical, addressable, and logical. Downstream file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/glossary/glossary.htm 第 9 頁 / 共 10 [2007/7/17 上午 10:38:49]...
  • Page 111 Vertical refresh rate Expressed in Hz, it is the number of frames (complete pictures) written to the screen every second. file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/glossary/glossary.htm 第 10 頁 / 共 10 [2007/7/17 上午 10:38:49] RETURN TO TOP OF THE PAGE...

  • Page 112: Download And Print

    3. Choose where you would like to save the file; click 'Save' (if prompted to save as either 'text' or 'source', choose 'source'). file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/download/download.htm 第 1 頁 / 共 2 [2007/7/17 上午 10:38:53] Adobe® Acrobat Reader for Apple Macintosh.
  • Page 113 To print the manual: With the manual file open, follow your printer's instructions and print the pages you need. file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/download/download.htm 第 2 頁 / 共 2 [2007/7/17 上午 10:38:53] RETURN TO TOP OF THE PAGE...
