Summary of Contents for Hanns.G HZ201

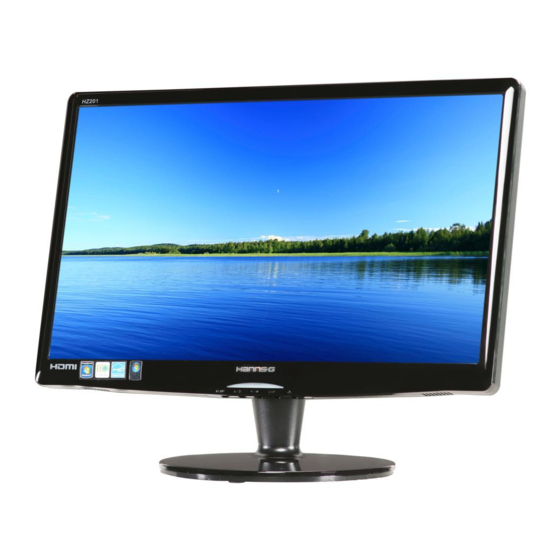

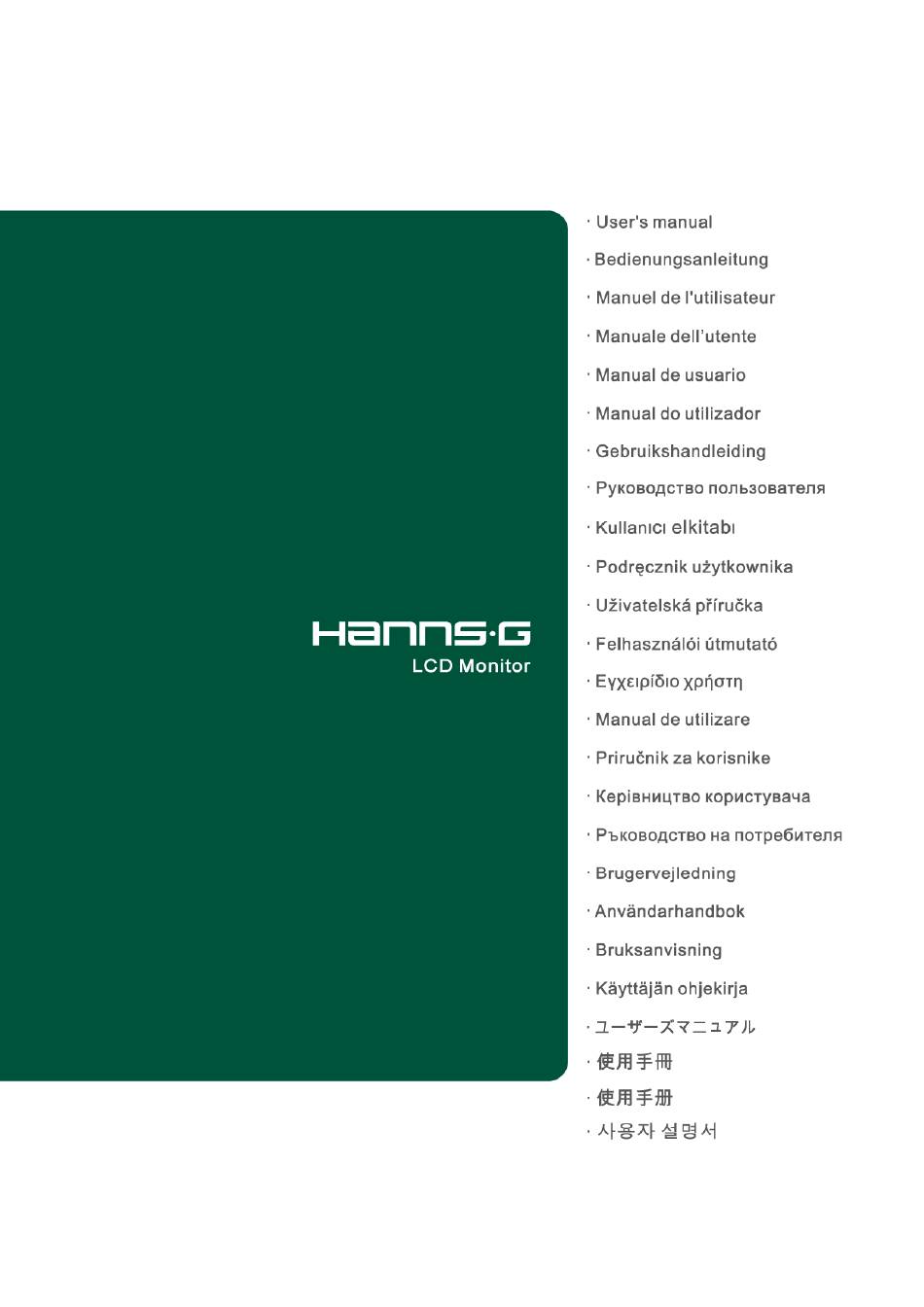

  • Page 1 HZ194/HZ201 HZ221/HZ231 HZ251/HZ281 HSG 1085/ HSG 1084 HSG 1088/ HSG 1083 HSG 1082/ HSG 1081...
  • Page 2 User’s Manual Before operating the monitor, please read this manual thoroughly. This manual should be retained for future reference. FCC Class B Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 3 User’s Manual Model: HZ251 & HZ281 Congratulations! The product you have just purchased carries the TCO’06 Media Displays label. This means that your display is designed and manufactured according to some of the strictest performance and environmental criteria in the world. The manufacturer of this display has selected it to be certified to TCO’06 Media Displays as a sign of usability, high performance and reduced impact on the natural environment.
  • Page 4 User’s Manual RECYCLING INFORMATION We, the Hanns.G care very much about our environment protection strategy and firmly believe that it helps us have healthier earth via appropriate treatment and recycling of industrial technology devices at the end-of-life. These devices contain recyclable materials, which can be re-decomposed and re-integrated into brand-new marvels.
  • Page 5: Table Of Contents

    User’s Manual TABLE OF CONTENTS SAFETY NOTICE ....................6 PRECAUTIONS ....................6 SPECIAL NOTES ON LCD MONITORS ............7 BEFORE YOU OPERATE THE MONITOR ............8 FEATURES ......................8 CHECKING THE CONTENTS OF THE PACKAGE ........8 INSTALLATION INSTRUCTIONS ..............9 POWER .......................
  • Page 6: Safety Notice

    User’s Manual SAFETY NOTICE 1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.
  • Page 7: Special Notes On Lcd Monitors

    User’s Manual SPECIAL NOTES ON LCD MONITORS The following symptoms are normal with LCD monitor and do not indicate a problem. Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the • Power Switch and then turn it on again to make sure the flicker disappears.
  • Page 8: Before You Operate The Monitor

    @60Hz @60Hz TFT Color LCD Monitor • Crisp, Clear Display for Windows • ® EPA ENERGY STAR (HZ194, HZ201, HZ221, HZ231) • GP Green Product • Ergonomic Design • Space Saving, Compact Case Design • CHECKING THE CONTENTS OF THE PACKAGE...
  • Page 9: Installation Instructions

    2. Align the monitor with the opening in the base. 3. Turn the screw clockwise to attach the base to the monitor. (The screw is attached on the base for model HZ194, HZ201, HZ221, HZ231, HZ251) (Find 2 screws in the accessory bag for model HZ281.) 4.
  • Page 10: Making Connections

    User’s Manual MAKING CONNECTIONS CONNECTING TO A PC Turn off your computer before performing the procedure below. 1. Connect one end of the VGA cable to the back of the monitor and connect the other end to the computer’s D-Sub port. 2.
  • Page 11: Adjusting The Viewing Angle

    Hold the stand so you do not topple the monitor when you change the monitor’s angle. • You are able to adjust the monitor’s angle from -5° to 15°( HZ194, HZ201, HZ231, HZ221) , 0° • to 20°( HZ251, HZ281) .
  • Page 12: Operating Instructions

    User’s Manual OPERATING INSTRUCTIONS GENERAL INSTRUCTIONS Press the power button to turn the monitor on or off. The other control buttons are located on the front panel of the monitor (See Figure 4). By changing these settings, the picture can be adjusted to your personal preferences.
  • Page 13: Front Panel Control

    User’s Manual FRONT PANEL CONTROL Power Button: • Press this button to switch ON/OFF of monitor’s power. Power Indicator: • Green — Power On mode. Orange — Power Saving mode. MENU / RETURN: • 1. Turn the OSD menu on/off or return to the previous menu. 2.
  • Page 14 User’s Manual Resolution 640x400@70Hz ↔ 720x400@70Hz 640x400@85Hz ↔ 720x400@85Hz 640x480@60Hz ↔ 720x480@60Hz 1024x768@70Hz ↔ 1280x768@70Hz 1280x768@60Hz ↔1360x768@60Hz 1360x768@60Hz ↔ 1366x768@60Hz 1440x900@60Hz ↔ 1600x900@60Hz 1400x1050@60Hz ↔ 1680x1050@60Hz 1400x1050@RB 60Hz ↔ 1680x1050@RB 60Hz 1400x1050@75Hz ↔ 1680x1050@75Hz ** The screen resolutions available will depend on the purchased model. NOTES: Do not install the monitor in a location near heat sources such as radiators or air dusts, or in a •...
  • Page 15: How To Adjust A Settings

    User’s Manual HOW TO ADJUST A SETTINGS BRIGHTNESS/ CONTRAST Adjust the brightness value of the display according to your preference. Select「BRIGHTNESS」option to adjust the BRIGHTNESS brightness value. Adjust the contrast value of the display according to your preference. Select「CONTRAST」option to adjust the contrast CONTRAST value.
  • Page 16 User’s Manual Select the 「H-POSITION」 option to shift the screen image to the H-POSITION left or right. Enter the option and adjust the level. [For VGA only] Select the 「V-POSITION」 option to shift the screen image up or V-POSITION down. Enter the option and adjust the level. [For VGA only] Select the 「CLOCK」option to reduce the vertical flicker of CLOCK...
  • Page 17 User’s Manual To choose the color combination of the OSD window, select 「OSD COLOR」 option under 「OSD SETTING」 menu, choose OSD COLOR modes 1/2/3. SYSTEM While transferring via the HDMI port, it is recommended to set AUDIO INPUT to HDMI; if no sound is outputted, it is AUDIO INPUT recommended to select AUDIO INPUT as PC, and make sure the PC audio output cable is connected to monitor’s LINE IN (or...
  • Page 18: Plug And Play

    User’s Manual PLUG AND PLAY Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.
  • Page 19: Technical Support (Faq)

    User’s Manual TECHNICAL SUPPORT (FAQ) Q & A FOR GENERAL PROBLEMS PROBLEM & QUESTION POSSIBLE SOLUTION *Check if the Power Switch is in the ON position. Power LED is not on *Power Cord should be connected. *Check if the PC system is Plug & Play compatible. *Check if the Video Card is Plug &...
  • Page 20 User’s Manual INPUT as a PC option, and make sure PC audio output cable is connected to monitor’s LINE IN port(or AUDIO IN port). [For HDMI Input only]...
  • Page 21: Error Message & Possible Solutions

    Your computer has been set to unsuitable display mode, set the computer to display mode given in the following table. FACTORY PRESET TIMING TABLE: HORIZONTAL VERTICAL MODE RESOLUTION HZ194 HZ201 HZ221 HZ231 HZ251 HZ281 FREQUENCY FREQUENCY (KHz) (Hz) 720×400 @70Hz 31.469 70.087...
  • Page 22 User’s Manual 1440×900 @60Hz 64.981 60.05 ▲ ▲ ▲ ▲ ▲ 1440×900 @75Hz 66.981 75.07 ▲ ▲ ▲ ▲ ▲ 1400×1050 @60Hz 64.744 59.948 ▲ 1600×900 @60Hz 55.54 59.978 ▲ ▲ 1680×1050 @60Hz 65.29 59.954 ▲ ▲ ▲ 1920×1080 @60Hz 66.587 59.934 ▲...
  • Page 23: Appendix

    User’s Manual APPENDIX SPECIFICATIONS HZ194 Driving system TFT Color LCD LCD Panel Size 18.5" Wide Pixel pitch 0.3mm(H) x 0.3mm(V) H-Frequency 24KHz – 61KHz Video V-Frequency 56– 75Hz Display Colors 16.7M Colors Max. Resolution 1366 x 768 @60Hz VESA DDC2B , DPMS Plug &...
  • Page 24 User’s Manual SPECIFICATIONS HZ201 Driving system TFT Color LCD LCD Panel Size 20" Wide Pixel pitch 0.276mm(H) x 0.276mm(V) H-Frequency 24KHz – 70KHz Video V-Frequency 56 – 75Hz Display Colors 16.7M Colors Max. Resolution 1600 x 900 @60Hz VESA DDC2B , DPMS Plug &...
  • Page 25 User’s Manual SPECIFICATIONS HZ231 Driving system TFT Color LCD LCD Panel Size 23" Wide Pixel pitch 0.265mm(H) x 0.265mm(V) H-Frequency 24KHz – 83KHz Video V-Frequency 56 – 75Hz Display Colors 16.7M Colors Max. Resolution 1920 x 1080 @60Hz VESA DDC2B , DPMS Plug &...
  • Page 26 User’s Manual SPECIFICATIONS HZ251 Driving system TFT Color LCD LCD Panel Size 25" Wide Pixel pitch 0.283mm(H) x 0.283mm(V) H-Frequency 24KHz – 83KHz Video V-Frequency 56 – 75Hz Display Colors 16.7M Colors Max. Resolution 1920 x 1080 @60Hz VESA DDC2B , DPMS Plug &...
  • Page 27 User’s Manual SPECIFICATIONS HZ281 Driving system TFT Color LCD LCD Panel Size 28" Wide Pixel pitch 0.309m(H) x 0.309mm(V) H-Frequency 24KHz – 80KHz Video V-Frequency 56 – 75Hz Display Colors 16.7M Colors Max. Resolution 1920 x 1200 @60Hz VESA DDC2B , DPMS Plug &...
