Desisti SUPER LED F7rp Instruction Manual

160w led fresnel spotlight 90-240v 50-60 hz
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

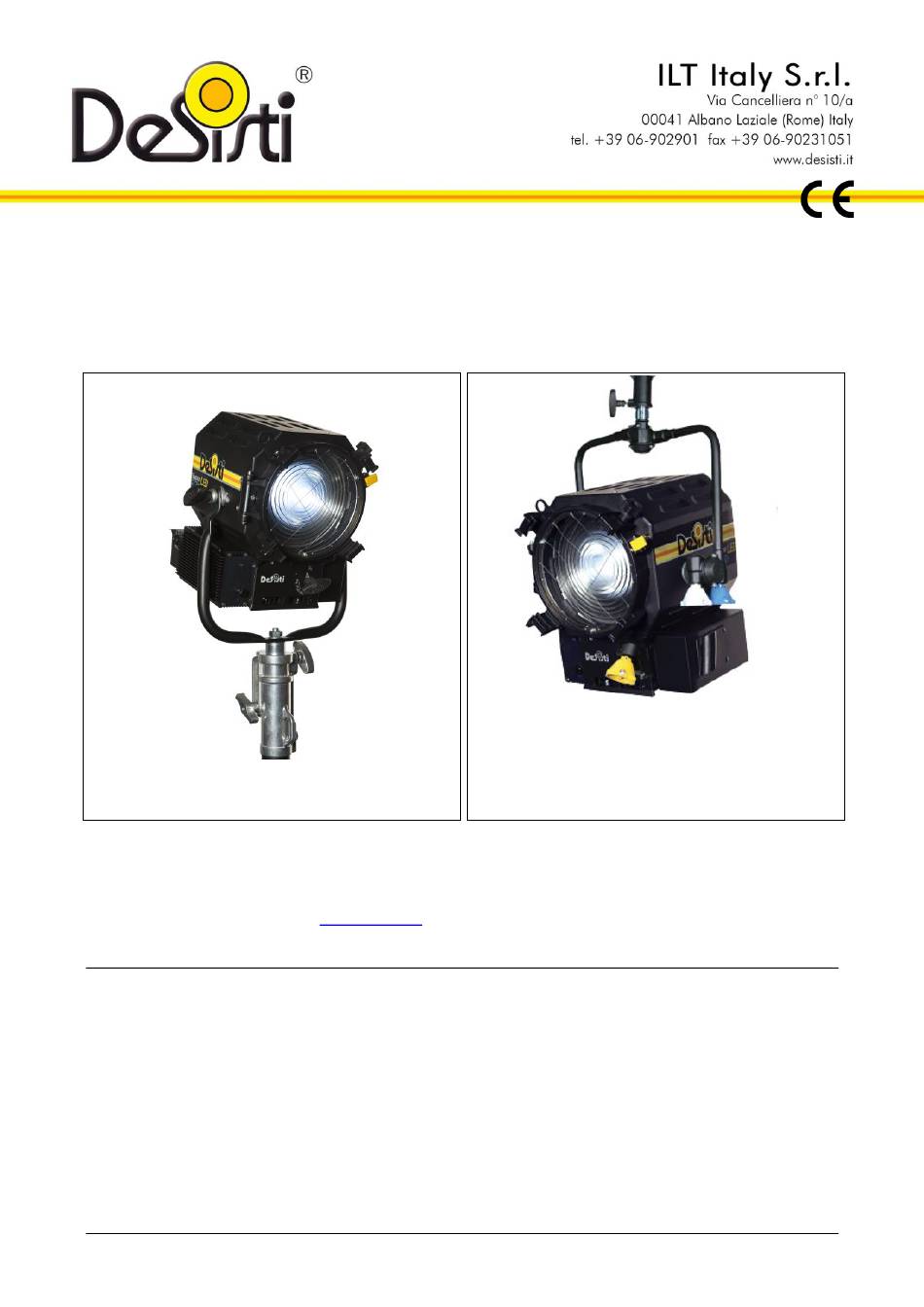

SUPER LED F7rp
160W LED Fresnel SPOTLIGHT 90-240V 50-60 Hz
(white light, either Tungsten or Daylight balanced Correlated Color Temperature)
INSTRUCTION MANUAL
Manual Operated
Pole Operated
MANUFACTURER
REPRESENTATIVE
ILT Italy S.r.l.
Via Cancelliera # 10a, 00041 Albano Laziale (Rome- Italy).
Tel. +39/06/902901 Fax. +39/06/90231051
desisti@desisti.it
U.R.L.: www.desisti.it
E-mail:
1. INTRODUCTION
Congratulations on your purchase of a SUPER LED F7rp lighting fixture.
Our commitment to Total Customer Satisfaction and our consolidated experience and leadership in design
innovation and manufacturing of lighting products for the professional Entertainment Industry means you can
depend upon the quality of this product.
The SUPER LED F7rp is a compact, highly efficient Fresnel lens spotlight using a LED ARRAY combined with
the DE SISTI Patented optical system to optimize the photometric performances of LED ARRAYS when
utilized in combination with either Fresnels or Plano Convex lenses.
The Lighting Fixture is DMX Controlled and includes a number of parameters that can be set locally, it is
equipped with 90-240V 50-60 Hz power supply for AC feed and it is available with either Tungsten or Daylight
Balanced CCT.
It utilizes Standard accessories from the DE SISTI range of equivalent Fresnel Lens size, such as Barndoor,
Colour Frame, Cones, scrims.
Pag 1.
This Manual is applicable to the
Revised May 11st 2016
De Sisti SUPER LED F7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUPER LED F7rp and is the answer not in the manual?

Questions and answers

Related Manuals for Desisti SUPER LED F7rp

Summary of Contents for Desisti SUPER LED F7rp

  • Page 1 The SUPER LED F7rp is a compact, highly efficient Fresnel lens spotlight using a LED ARRAY combined with the DE SISTI Patented optical system to optimize the photometric performances of LED ARRAYS when utilized in combination with either Fresnels or Plano Convex lenses.
  • Page 2 2. YOKE AND ACCESSORIES ASSEMBLY 3. POWER AND DMX DAISY CHAIN The SUPER LED F7rp permits both POWER and DMX DAISY CHAIN. In fact each Fixture is respectively equipped with: For DMX: • 1 XLR5 pin Panel Mount Male (DMX IN) •...

  • Page 3: Safety Instructions

    4. SAFETY INSTRUCTIONS  Professional use: This luminaire has been designed for professional use and must be operated by qualified personnel only. Not for residential use.  Grounding: WARNING: THIS LUMINAIRE MUST BE GROUNDED  WARNING: Disconnect Power CORDS before any maintenance work or opening the FUSE HOLDER.

  • Page 4: Local Menu

    BECOME VISIBLY DAMAGED TO SUCH AN EXTENT THAT THEIR EFFECTIVENESS IS IMPAIRED, FOR EXAMPLE BY CRACKS OR DEEP SCRATCHES. • THE LUMINAIRE SHALL ONLY BE USED COMPLETE WITH ITS PROTECTIVE SHIELD D. Applying power: Never connect to dimmer power. Install a power plug on the power cable using the following pin assigment: 1 : Neutral 2 : Live Green/Yellow : Ground - This fixture must be connected to ground.
  • Page 5 DMX ADDRESS This Function is to SET the DMX address from 1 to 512 (Product is delivered with default settingof the DMX address at 1)  Once the C001 is displayed, act on the button to increase the address to the desired value.
  • Page 6 1st MENU Explanation of Each MENU FUNCTION 2nd MENU Displayed Displayed   (after pressing the that stands for ENTER) scrolling with the and the buttons) TEMPERATURE This function Displays in real time the LED ARRAY Case temperature in °C. When pressing Enter again you exit from the temperature display.

  • Page 7: Periodic Inspection & Maintenance

    7. CHARACTERISTICS AND PERFORMANCE DATA DESCRIPTION VALUE DESCRIPTION VALUE   LED Power 160 W Protection Type IP 23 Rain Protected  Power  180W 70 °C Housing temperature Cosumption  M.O. P.O. This product uses a 5-pin XLR for ...
  • Page 8 10. SAFETY STANDARDS Europe: The product conforms the Applicable European Directives & Standards  Low Voltage Directive: 73/23/EEC (as amended by 93/68/EEC)  EMC Directive: 89/336/EEC (as amended by 92/31/EEC & by 93/68/EEC)  Europen Standards:: EN 60598-2-17, EN 60598-1 , EN 55015 , EN 61547 Disposing of this product: Help preserve the environment! Ensure that this product is recycled at the end of its life.

This manual is also suitable for:

Superled f 7Super led f7 d rpSuper led f7 t
