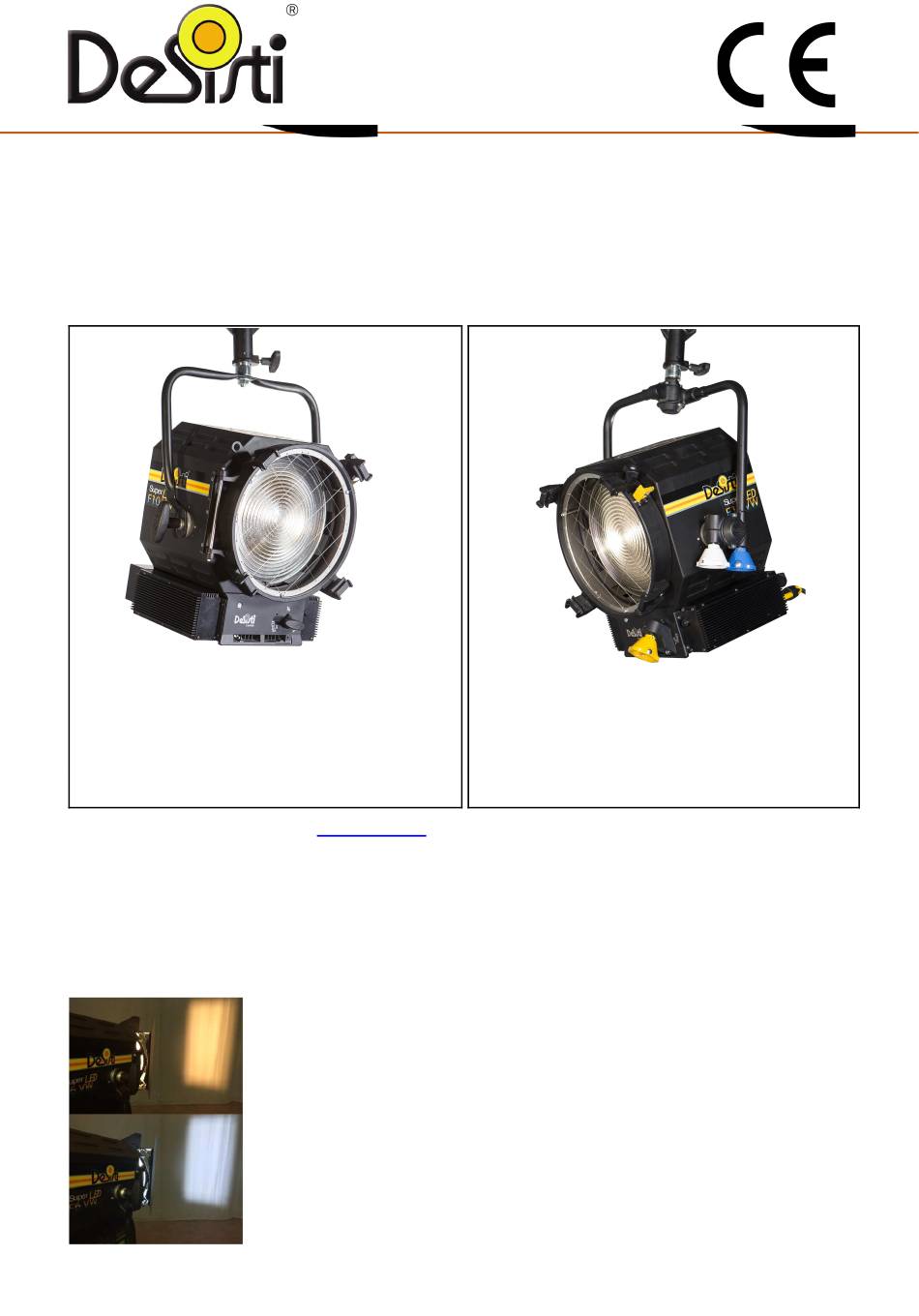

120W Vari-White from 2.750 to 6.900 °K - Enhanced CRI > 94
Manual Operated
MANUFACTURER
ILT Italy S.r.l.
Via Cancelliera # 10a, 00041 Albano Laziale (Rome- Italy).
Tel. +39/06/902901 Fax. +39/06/90231051
desisti@desisti.it
www.desisti.itE-mail:
1. INTRODUCTION
This Manual is applicable to the De Sisti F10 Vari-White
ILT ITALY srl
Via Cancelliera, 10/a
00041 Albano Laziale (Rome) Italy
tel. +39 06-902901 fax +39 06-90231051
www.desisti.it
SUPER LED F10 VW Vari-White
White light, with Adjustable Correlated Colour Temperature
INSTRUCTION MANUAL

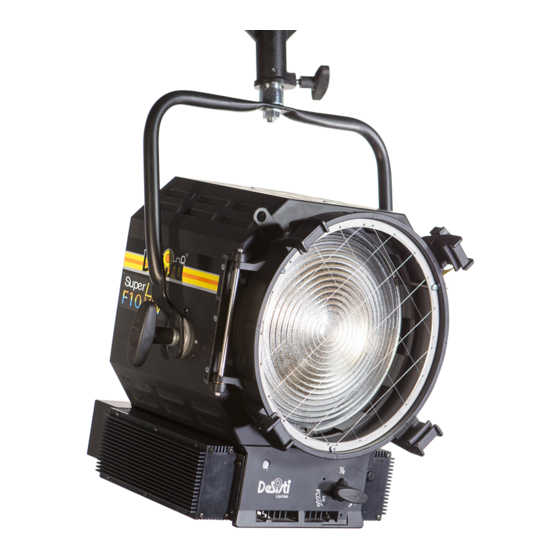

Congratulations on your purchase of a SUPER LED F10 Vari White lighting fixture.
The SUPER LED F10 VW is a compact, highly efficient Fresnel lens spotlight using a LED ARRAY combined
with the DE SISTI Patented optical system to optimize the photometric performances of LED ARRAYS when
utilized in combination with either Fresnels or Plano Convex lenses. The Lighting Fixture is DMX Controlled
and includes a number of parameters that can be set locally, it is equipped with power supply for AC universal
feed 90/240V 50/60Hz and feature variable CCT from Tungsten to Daylight with high power and high CRI. It
utilizes Standard accessories from the DE SISTI range of equivalent Fresnel Lens size, such as Barndoor, Colour
Frame, Cones, scrims.
REPRESENTATIVE
Pole Operated
Revised on July 2018
Advertisement
Table of Contents
Related Manuals for Desisti SUPER LED F10 VW
Summary of Contents for Desisti SUPER LED F10 VW
- Page 1 Congratulations on your purchase of a SUPER LED F10 Vari White lighting fixture. The SUPER LED F10 VW is a compact, highly efficient Fresnel lens spotlight using a LED ARRAY combined with the DE SISTI Patented optical system to optimize the photometric performances of LED ARRAYS when utilized in combination with either Fresnels or Plano Convex lenses.
- Page 2 SUPER LED F10 (MANUAL OPERATED) SUPER LED F10 (POLE OPERATED) POWER AND DMX DAISY CHAIN The SUPER LED F10 VW permits both POWER and DMX DAISY CHAIN. In fact each Fixture is respectively equipped with: For DMX: 1 XLR5 pin Panel Mount Male (DMX IN)
- Page 3 ILT ITALY srl Via Cancelliera, 10/a 00041 Albano Laziale (Rome) Italy tel. +39 06-902901 fax +39 06-90231051 www.desisti.it CHARACTERISTICS AND PERFORMANCE DATA DESCRIPTION VALUE DESCRIPTION VALUE LED Power 200 W Protection Type IP22 220 W @ 230V (50-60 Hz)
- Page 4 ILT ITALY srl Via Cancelliera, 10/a 00041 Albano Laziale (Rome) Italy tel. +39 06-902901 fax +39 06-90231051 www.desisti.it Working conditions Working Position Lighting fixture: max. tilting ±90° from horizontal Ambient temperature, ta at the place of installation and storage Minimum 10°C, maximum +40°C...
- Page 5 LOCAL MENU The SUPER LED F10 VW has a GRAPHIC DISPLAY backlit, with two local knobs, each one having a push/click function in addition to the rotation: KNOB 1 It is as a DEFAULT the CCT Variation Knob, By rotating it clockwise the CCT Changes from 2.750°K up to 6.900 °K.
- Page 6 00041 Albano Laziale (Rome) Italy tel. +39 06-902901 fax +39 06-90231051 www.desisti.it CHANNEL SETTING (RESOLUTION & FUNCTION) This function is to SET THE DIMMING RESOLUTION either at 8 bits or at 16 bits. Select DMX resol by rotating and pushing KNOB2, the following choices are available: - 8 bits resolution (the display will show 8 bit).
- Page 7 ILT ITALY srl Via Cancelliera, 10/a 00041 Albano Laziale (Rome) Italy tel. +39 06-902901 fax +39 06-90231051 www.desisti.it INFORMATION PROVIDED ON THE DISPLAY - Display of Correlated Colour Temperature - Display of LED Case TEMPERATURE - Display of DMX LEVEL...
- Page 8 00041 Albano Laziale (Rome) Italy tel. +39 06-902901 fax +39 06-90231051 www.desisti.it PERIODIC INSPECTION & MAINTENANCE This product requires very little routine maintenance, if any, but has special cleaning instructions: Disconnect fixture from power and allow it to cool for 10 min.
