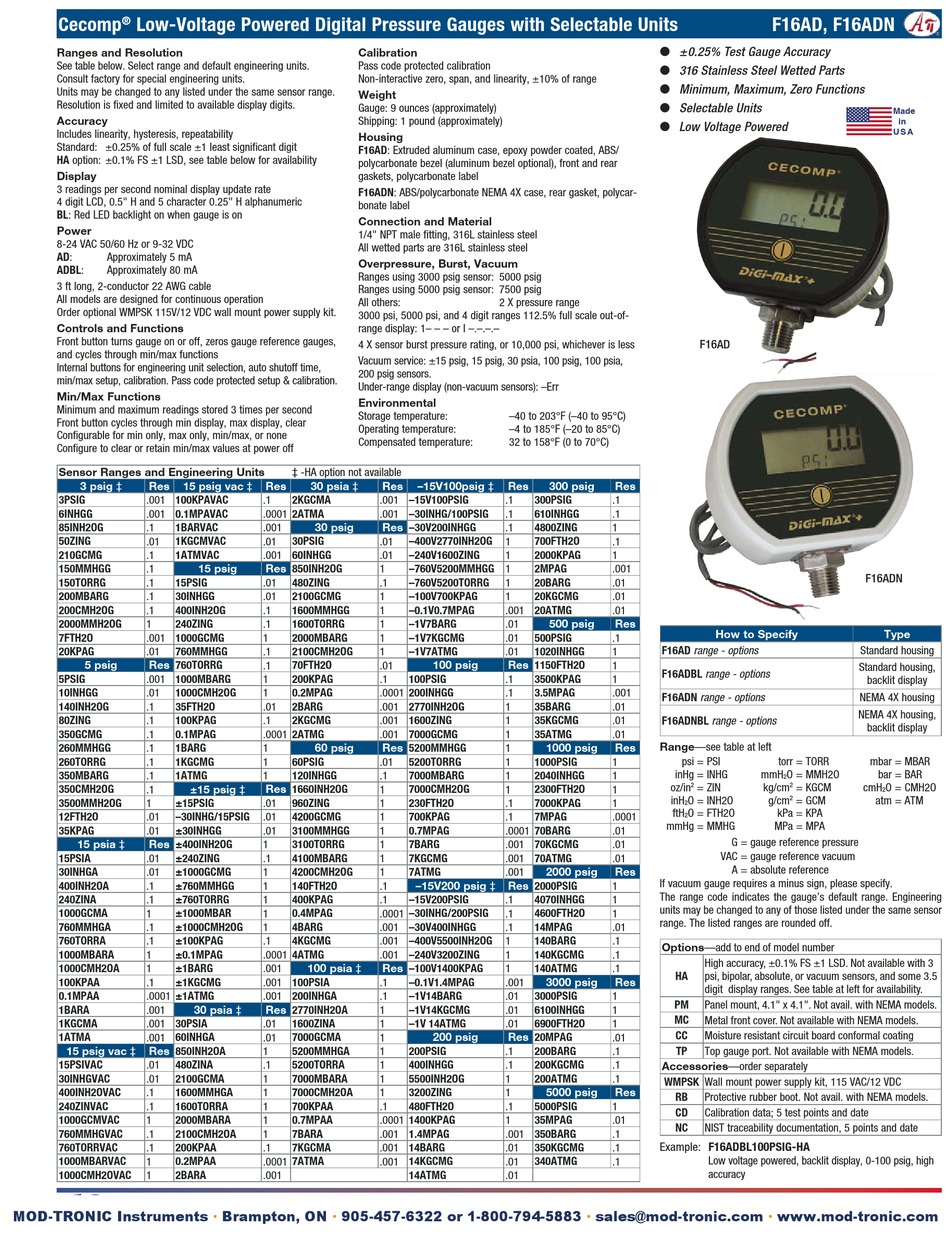

Cecomp F16AD Manual

®

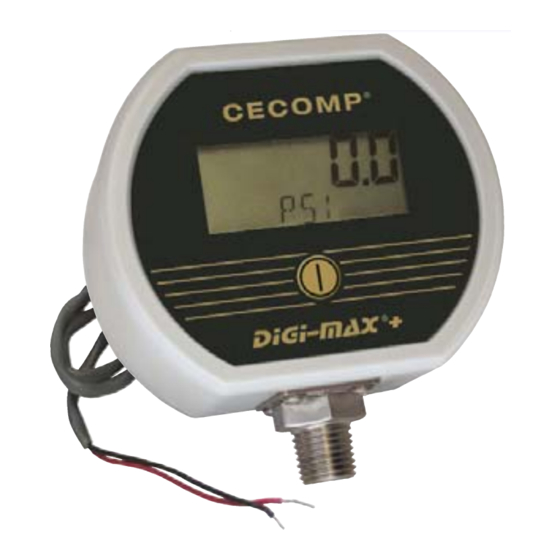

Cecomp Low-Voltage Powered Digital Pressure Gauges with Selectable Units

Ranges and Resolution

See table below. Select range and default engineering units.
Consult factory for special engineering units.
Units may be changed to any listed under the same sensor range.
Resolution is fixed and limited to available display digits.

Accuracy

Includes linearity, hysteresis, repeatability
Standard: ±0.25% of full scale ±1 least significant digit
HA option: ±0.1% FS ±1 LSD, see table below for availability

Display

3 readings per second nominal display update rate
4 digit LCD, 0.5" H and 5 character 0.25" H alphanumeric
BL: Red LED backlight on when gauge is on

Power

8-24 VAC 50/60 Hz or 9-32 VDC
AD: Approximately 5 mA
ADBL: Approximately 80 mA
3 ft long, 2-conductor 22 AWG cable
All models are designed for continuous operation
Order optional WMPSK 115V/12 VDC wall mount power supply kit.

Controls and Functions

Front button turns gauge on or off, zeros gauge reference gauges,
and cycles through min/max functions
Internal buttons for engineering unit selection, auto shutoff time,
min/max setup, calibration. Pass code protected setup & calibration.

Min/Max Functions

Minimum And Maximum Readings stored 3 times per second
Front button cycles through min display, max display, clear
Configurable for min only, max only, min/max, or none
Configure to clear or retain min/max values at power off

Sensor Ranges and Engineering Units

3 psig ‡ Res 15 psig vac ‡
3PSIG .001 100KPAVAC
6INHGG .001 0.1MPAVAC
85INH2OG .1 1BARVAC
50ZING .01 1KGCMVAC
210GCMG .1 1ATMVAC
150MMHGG .1
150TORRG .1 15PSIG
200MBARG .1 30INHGG
200CMH2OG .1 400INH2OG
2000MMH2OG 1 240ZING
7FTH2O .001 1000GCMG
20KPAG .01 760MMHGG
5 psig Res 760TORRG
5PSIG .001 1000MBARG
10INHGG 1000CMH2OG
.01
140INH2OG .1 35FTH2O
80ZING .1 100KPAG
350GCMG .1 0.1MPAG
260MMHGG 1BARG
.1
260TORRG .1 1KGCMG
350MBARG .1 1ATMG
350CMH2OG .1 ±15 psig ‡
3500MMH2OG 1 ±15PSIG
12FTH2O .01 –30INHG/15PSIG
35KPAG .01 ±30INHGG
15 psia ‡ Res ±400INH2OG
15PSIA .01 ±240ZING
30INHGA .01 ±1000GCMG
400INH2OA .1 ±760MMHGG
240ZINA .1 ±760TORRG
1000GCMA 1 ±1000MBAR
760MMHGA .1 ±1000CMH2OG
760TORRA .1 ±100KPAG
1000MBARA 1 ±0.1MPAG
1000CMH2OA 1 ±1BARG
100KPAA .1 ±1KGCMG
0.1MPAA .0001 ±1ATMG
1BARA .001
1KGCMA .001 30PSIA
1ATMA .001 60INHGA
15 psig vac ‡ Res 850INH2OA
15PSIVAC .01 480ZINA
30INHGVAC .01 2100GCMA
400INH2OVAC .1 1600MMHGA
240ZINVAC .1 1600TORRA
1000GCMVAC 1 2000MBARA
760MMHGVAC .1 2100CMH2OA
760TORRVAC .1 200KPAA
1000MBARVAC 1 0.2MPAA
1000CMH2OVAC 1 2BARA
MOD-TRONIC Instruments
Calibration
Pass code protected calibration
Non-interactive zero, span, and linearity, ±10% of range
Weight
Gauge: 9 ounces (approximately)
Shipping: 1 pound (approximately)
Housing
F16AD: Extruded aluminum case, epoxy powder coated, ABS/
polycarbonate bezel (aluminum bezel optional), front and rear
gaskets, polycarbonate label
F16ADN: ABS/polycarbonate NEMA 4X case, rear gasket, polycar-
bonate label
Connection and Material
1/4" NPT male fitting, 316L stainless steel
All wetted parts are 316L stainless steel
Overpressure, Burst, Vacuum
Ranges using 3000 psig sensor: 5000 psig
Ranges using 5000 psig sensor: 7500 psig
All others:
3000 psi, 5000 psi, and 4 digit ranges 112.5% full scale out-of-
range display: 1– – – or I –.–.–.–
4 X sensor burst pressure rating, or 10,000 psi, whichever is less
Vacuum service: ±15 psig, 15 psig, 30 psia, 100 psig, 100 psia,
200 psig sensors.
Under-range display (non-vacuum sensors): –Err

Environmental

Storage temperature:
Operating temperature:
Compensated temperature:
‡ -HA option not available
Res 30 psia ‡
.1 2KGCMA
.0001 2ATMA
.001 30 psig
.01 30PSIG
.001 60INHGG
15 psig Res 850INH2OG
.01 480ZING
.01 2100GCMG
.1 1600MMHGG
.1 1600TORRG
2000MBARG
1
.1 2100CMH2OG
.1 70FTH2O
1 200KPAG
0.2MPAG
1
.01 2BARG
.1 2KGCMG
.0001 2ATMG
60 psig
1
1 60PSIG
1 120INHGG
Res 1660INH2OG
.01 960ZING
.01 4200GCMG
.01 3100MMHGG
1 3100TORRG
.1 4100MBARG
1 4200CMH2OG
1 140FTH2O
1 400KPAG
1 0.4MPAG
1 4BARG
.1 4KGCMG
.0001 4ATMG
.001 100 psia ‡
.001 100PSIA
.001 200INHGA
30 psia ‡ Res 2770INH2OA
.01 1600ZINA
.01 7000GCMA
1 5200MMHGA
.1 5200TORRA
1 7000MBARA
1 7000CMH2OA
1 700KPAA
1 0.7MPAA
1 7BARA
.1 7KGCMA
.0001 7ATMA
.001
· Brampton, ON · 905-457-6322 or 1-800-794-5883
Division of
BSOLUTE ROCESS NSTRUMENTS, Inc.
2 X pressure range
–40 to 203°F (–40 to 95°C)
–4 to 185°F (–20 to 85°C)
32 to 158°F (0 to 70°C)
Res –15V100psig ‡ Res 300 psig
.001 –15V100PSIG .1 300PSIG
.001 –30INHG/100PSIG .1 610INHGG
Res –30V200INHGG .1 4800ZING
.01 –400V2770INH2OG 1 700FTH2O
.01 –240V1600ZING 1 2000KPAG
1 –760V5200MMHGG 1 2MPAG
.1 –760V5200TORRG 1 20BARG
1 –100V700KPAG 1 20KGCMG
1 –0.1V0.7MPAG .001 20ATMG
1 –1V7BARG .01 500 psig
–1V7KGCMG 500PSIG
1 .01
1 –1V7ATMG .01 1020INHGG
.01 100 psig Res 1150FTH2O
.1 100PSIG .1 3500KPAG
.0001 200INHGG 3.5MPAG
.1
.001 2770INH2OG 1 35BARG
.001 1600ZING 1 35KGCMG
.001 7000GCMG 1 35ATMG
Res 5200MMHGG 1000 psig
1
.01 5200TORRG 1 1000PSIG
.1 7000MBARG 1 2040INHGG
1 7000CMH2OG 1 2300FTH2O
1 230FTH2O .1 7000KPAG
1 700KPAG .1 7MPAG
1 0.7MPAG .0001 70BARG
1 7BARG .001 70KGCMG
1 7KGCMG .001 70ATMG
1 7ATMG .001 2000 psig
.1 –15V200 psig ‡ Res 2000PSIG
.1 –15V200PSIG .1 4070INHGG
.0001 –30INHG/200PSIG .1 4600FTH2O
.001 –30V400INHGG .1 14MPAG
.001 –400V5500INH2OG 1 140BARG
.001 –240V3200ZING 1 140KGCMG
Res –100V1400KPAG 1 140ATMG
.1 –0.1V1.4MPAG .001 3000 psig
.1 –1V14BARG .01 3000PSIG
1 –1V14KGCMG .01 6100INHGG
1 –1V 14ATMG .01 6900FTH2O
1 200 psig Res 20MPAG
1 200PSIG .1 200BARG
1 400INHGG .1 200KGCMG
1 5500INH2OG 1 200ATMG
1 3200ZING 1 5000 psig
.1 480FTH2O .1 5000PSIG
.0001 1400KPAG 1 35MPAG
.001 1.4MPAG .001 350BARG
.001 14BARG .01 350KGCMG
.001 14KGCMG .01 340ATMG
14ATMG .01
1220 American Way Libertyville, IL 60048
Phone:
 ±0.25% Test Gauge Accuracy
 316 Stainless Steel Wetted Parts
 Minimum, Maximum, Zero Functions
 Selectable Units
 Low Voltage Powered
F16AD
Res
.1
.1
1
.1
1
.001
.01
.01
.01
Res
How to Specify
.1
F16AD range - options
1
1
F16ADBL range - options
1
.001
F16ADN range - options
.01
.01 F16ADNBL range - options
.01
Range—see table at left
Res
1 psi = PSI
inHg = INHG mmH
1
2
oz/in = ZIN kg/cm
1
inH O = INH2O
1
2
ftH O = FTH2O
.0001
2
mmHg = MMHG
.01
G = gauge reference pressure
.01
VAC = gauge reference vacuum
.01
A = absolute reference
Res
If vacuum gauge requires a minus sign, please specify.
1
The range code indicates the gauge's default range. Engineering
1
units may be changed to any of those listed under the same sensor
1
range. The listed ranges are rounded off.
.01
.1
Options—add to end of model number
.1
High accuracy, ±0.1% FS ±1 LSD. Not available with 3
.1
HA psi, bipolar, absolute, or vacuum sensors, and some 3.5
Res
digit display ranges. See table at left for availability.
1
PM Panel mount, 4.1" x 4.1". Not avail. with NEMA models.
1
MC Metal front cover. Not available with NEMA models.
1
CC Moisture resistant circuit board conformal coating
.01
.1 TP Top gauge port. Not available with NEMA models.
.1
Accessories—order separately
.1
WMPSK Wall mount power supply kit, 115 VAC/12 VDC
Res
RB Protective rubber boot. Not avail. with NEMA models.
1
CD Calibration data; 5 test points and date
.01
NC
NIST traceability documentation, 5 points and date
.1
Example: F16ADBL100PSIG-HA
.1
Low voltage powered, backlit display, 0-100 psig, high
.1
accuracy
· sales@mod-tronic.com
800-942-0315 Fax: 800-949-7502
F16AD, F16ADN
★ ★ ★ ★ ★ ★
Made
★ ★ ★ ★ ★
★ ★ ★ ★ ★ ★
★ ★ ★ ★ ★
★ ★ ★ ★ ★ ★
★ ★ ★ ★ ★
★ ★ ★ ★ ★ ★
★ ★ ★ ★ ★ in
★ ★ ★ ★ ★ ★
U S A
