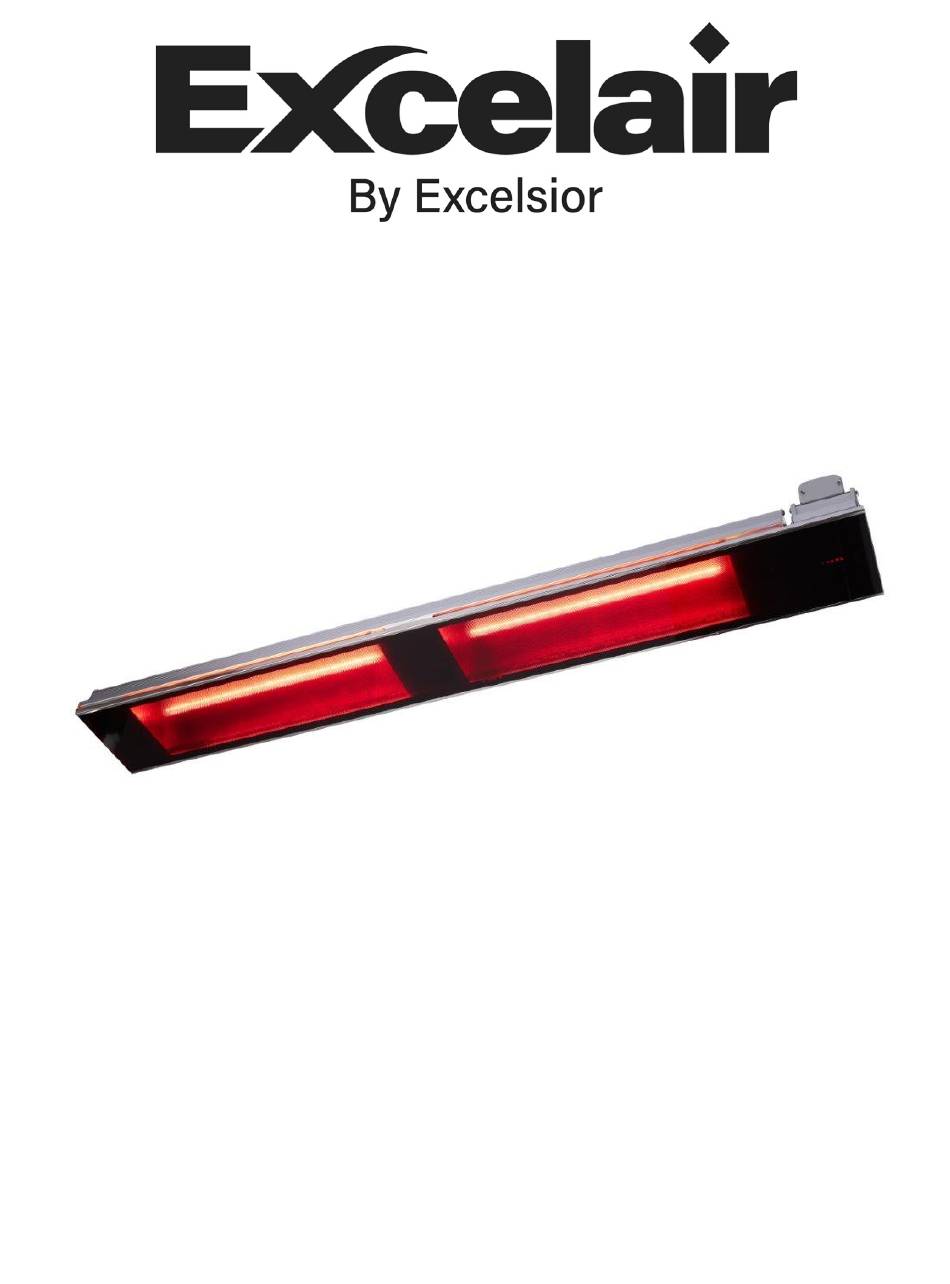

Ceramic Infrared Outdoor Heater
Instruction Manual
Model EOHA30GR
IMPORTANT:
Please carefully read the Operation Manual before using the infrared heater.
This Operation Manual contains the important information on
your safety, as well as some recommendations on proper use
of the appliance and its maintenance.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Excelsior Excelair EOHA30GR
Summary of Contents for Excelsior Excelair EOHA30GR
- Page 1 Ceramic Infrared Outdoor Heater Instruction Manual Model EOHA30GR IMPORTANT: Please carefully read the Operation Manual before using the infrared heater. This Operation Manual contains the important information on your safety, as well as some recommendations on proper use of the appliance and its maintenance.
-
Page 2: Table Of Contents
TABLE OF CONTENTS CONTENTS PAGE 3 SAFETY INSTRUCTIONS PAGE 3-5 HEATER COMPONENTS PAGE 6 TECHNICAL SPECIFICATIONS PAGE 7 OPERATING THE HEATER PAGE 7-10 INSTALLATION-CEILING OR WALL MOUNT PAGE 11-16 TROUBLESHOOTING PAGE 17 WARRANTY INFORMATION PAGE 18 Page | 2... -
Page 3: Contents
CONTENTS INCLUDED § Heater fitted with flexible cord and plug. § Operating and Installation Instructions. One small box contains 2 sets of Brackets. § § One Stainless Steel Frame bracket One remote controller § SAFETY INSTRUCTIONS § During use of the infrared heater, it is necessary to observe some precautions. - Page 4 To avoid burns, do not touch the appliance surface by hand and other body § parts. It is also necessary to avoid touching the heater whilst the appliance is switched on, as severe burns may result. The appliance can take up to 1 hour to cool down after switching it off.
- Page 5 This appliance is not intended for use by persons (including children) with § reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. §...
-
Page 6: Heater Components
HEATER COMPONENETS 1. Ceramic Glass Panel 2. ON/OFF main power switch 3. Power cord and plug 4. Bracket for wall or ceiling mounting 5. Remote control Page | 6... -
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS EOHA30GR MODEL 230-240V~, 50Hz VOLTAGE 3000W RATED POWER (W) Wall mounted INSTALLATION Ceiling mounted Min. MOUNTING HEIGHT (M) ELECTRIC PROTECTION CLASS IP65 WATER SPLASH PROOF RATING 1050 mm LENGTH OF POWER CABLE UNIT SIZE L*W*H (mm) 1286 *170 *78 (without bracket) OPERATING THE HEATER WARNING! Slight crackles may be heard during the heating or cooling period. - Page 8 Connect the unit to the main power, press the switch to the position of I : ON, the red operation indicator will light to indicate the heater is on and the heater will begin to radiate infrared heat. OPERATION INSTRUCTIONS ： 1.
- Page 9 3. To return the heater to STANDBY MODE, press the “Standby” button on remote, the device will sound 1 beep and one of the heat lamp indicator lights will flash. This indicates the heater is in standby mode and the unit won’t radiate any heat. 4.
- Page 10 TIMER FUNCTION: 1. To activate the AUTOMATIC SHUT OFF TIMER for 1 HOUR, point the remote control directly to the receiver and press the“1hr” button, the 1st of the timer lamp indicators will turn green in color. The device will be powered off after 1 hour, returning to standby mode and the heat lamp indicator light will turn red and flash.
-
Page 11: Installation-Ceiling Or Wall Mount
INSTALLATION CEILING MOUNT FOR EOHA30GR Before installation, read the manual carefully. The heater must be installed in accordance with the manufacturer’s installation instructions. This heater comes with a pair of stainless steel adjustable angle mounting brackets. The adjustable angle enables the heater to be installed on vertical, horizontal and inclined surfaces. - Page 12 Clearances Minimum clearances when mounting the heater parallel with a ceiling. Minimum clearances when mounting the heater at an angle to the ceiling. Page | 12...
- Page 13 WALL MOUNTING FOR EOHA30GR Minimum clearances when mounting the heater on A VERTICAL WALL Page | 13...
- Page 14 INSTALLATION PROCESS WARNING! Mounting of the infrared heater and its connection to the electric mains should be carried out only by qualified specialists according to the Electrical Installation Regulations and Power System Safety Standards 1. Open the box and carefully take the heater out. 2.
- Page 15 5. Install two brackets on the ceiling or wall with the following minimum recommended bracket distance “B” 500±50 mm. 6. Set the adjustable angle mounting brackets to desired angle and fasten brackets by spanner .For wall mounted installation, the available mount angles are restricted to 15°, 30°...
- Page 16 NOTE: ü Depending on material and design of wall structural elements, the heater must be secured with the correct fasteners. The weight of the heater is up to 5.3Kg, the installation location must be able to hold 5 times the weight of the heater. CONNECTION TO ELECTRIC MAINS •...
-
Page 17: Troubleshooting
TROUBLESHOOTING SYMPTOM CAUSE No Heat / No operation Check that power is connected and switched on indicator This is caused by oil or dust left over from the Heater smells when first manufacturing process and will stop after a short used. -
Page 18: Warranty Information
WHEN TO CONTACT THE AUTHORIZED SERVICE OR SELLER SYMPTOM CAUSE There is a burning smell and or strange sounds (other than normal Turn off the heater, and return to place expansion and contraction noises) of purchase if in warranty. coming from the unit When associated circuit breaker Turn off the heater, and return to place (safety, ground) is thrown or a fuse...
