Elk -319PIRC Quick Start Manual

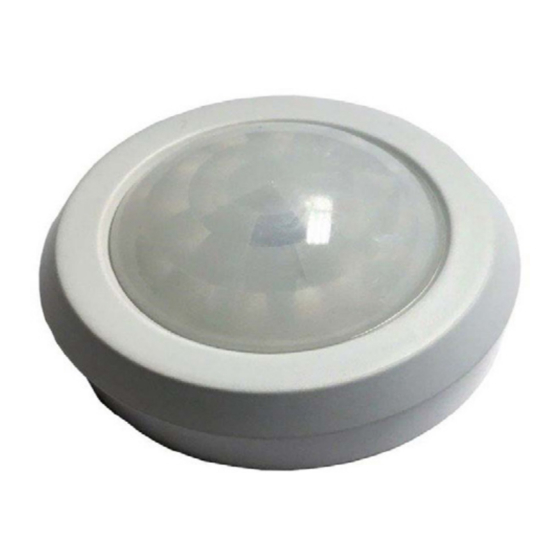

ELK-319PIRC Wireless Ceiling Mount PIR Sensor
Description
The ELK-319PIRC is a Supervised, Wireless 360° degree
PIR (passive infrared) Motion Sensor designed specifically for
ceiling mount applications.
When motion is sensed in the field of view the sensor will
transmit a violation (trip) signal to the panel. Additionally
transmitted signals include: tamper, hourly supervisory, and
low battery (as needed). The sensor is powered by two (2)
replaceable 3VDC lithium batteries.
This sensor is compatible with Elk's 319MHz Receivers/Panels
as well as many other panels that operate on the 319.5MHz
Frequency and adhere to the ITI/Interlogix protocol.
Specifications
RF frequency: 319.5 MHz
Compatibility: ELK-319 Receivers/Panels & other panels
that operate on the 319.5MHz Freq. and
adhere to the ITI/Interlogix protocol
Battery type: Two (2) 3VDC lithium battery
(Panasonic CR123)
Tamper Switch: Sealed dome-contact
Sensitivity: Selectable 2 event or 3 event
Operating Temp: -40 to 131°F (0 to 49°C)
Storage Temp: -30 to 140°F (-34 to 60°C)
Max. Humidity: 90% Relative Humidity non-condensing
Dimensions 2.95" Diameter x 1.39" depth
Programming (Enrollment)
The following is a general guideline for programming (enrolling)
a sensor into the receiver or panel. For more extensive
instructions please refer to the receiver or panel instructions.
1. Place the panel into the Program mode.
2. Proceed to the WIRELESS SETUP menu.
3. Select the appropriate zone/sensor location number.
4. When the panel prompts to trip the sensor do the following:
• Separate sensor from the mounting base
• Remove battery pull tabs (if present) to power the sensor
• The panel should acknowledge sensor has been learned
by a display on the keypad and/or audio alert (depending
on the panel). If enrollment does not succeed repeat the
process by removing and reinstalling the battery OR try
pressing and releasing the tamper plunger.
5. For additional sensors of this type repeat the above process.
Proceed to the zone programming to assign each sensor's
zone definition.
IMPORTANT: Set the Zone Loop as "1" for
this sensor.
6. Exit the panel Program mode when finished.
Interlogix is a registered trademark belonging to United Technologies.
TM
All manuals and user guides at all-guides.com

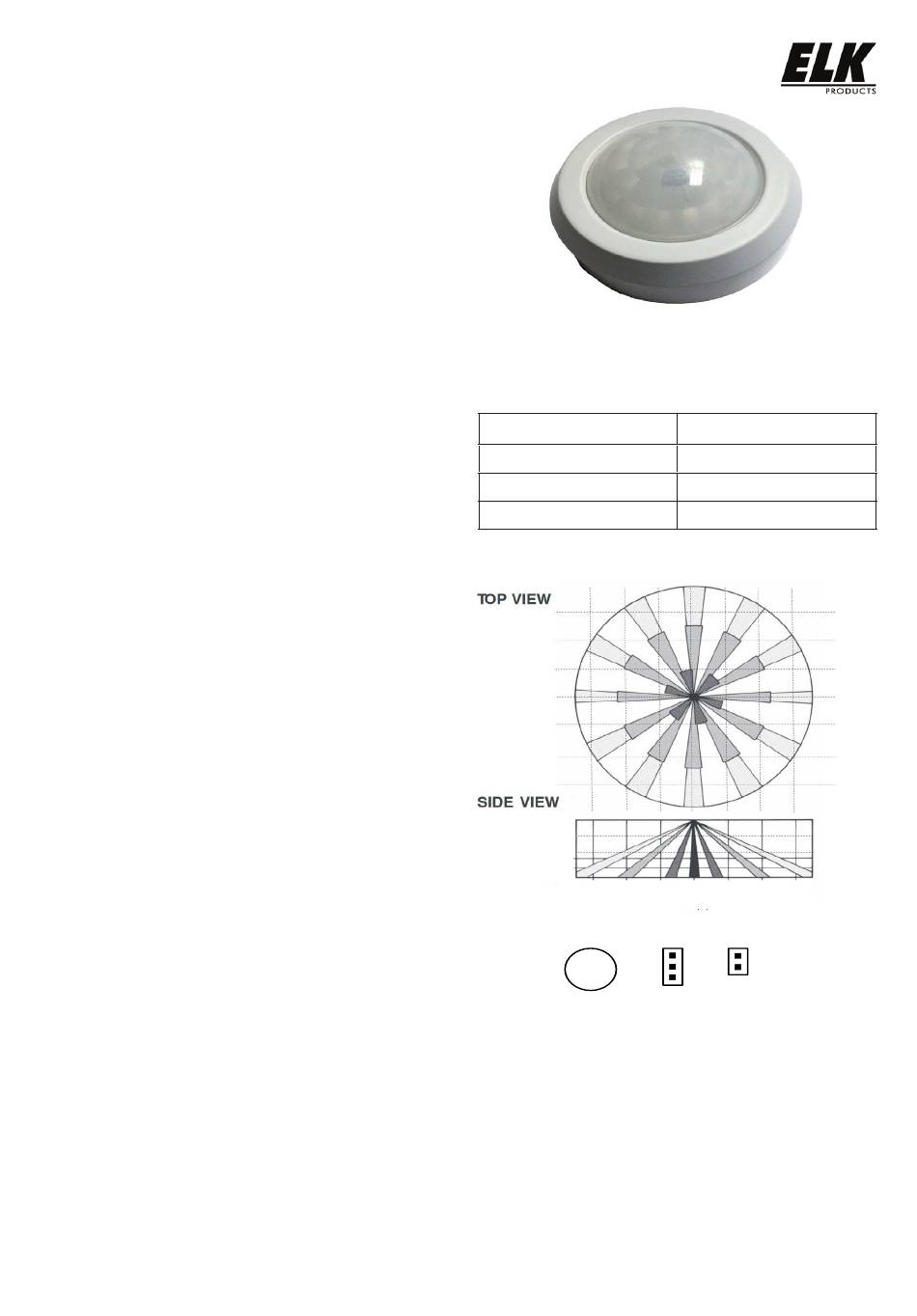

Coverage Pattern and Mounting Height
Coverage pattern is dependent on the mounting height of
the sensor. If required areas can be masked off to prevent
unwanted detection in the 360° field of vision.
Mounting Height
8 ft
10 ft
12 ft
Height ft (m)
8 ft (2.4m)
10 ft (3m)
12 ft (3.6m)
20 (6) 12.5 (4) 6.5 (2) 0 6.5 (2) 12.5 (4) 20 (6)
Diameter ft (m)
Tamper
Sensitivity
Lo Sensitivity - 3 event - place jumper on top two pins
Hi Sensitivity - 2 event - place jumper on bottom two pins
LED - jumper installed across pins for visual walk test
Installation Guidelines
Sensor is designed for ceiling mount applications that provide
a 360° field of view.
• Do not install on a sloped ceiling/surface.
• Maximum mounting height is 12ft.
• Do not mount outdoors
Detection Area
14 ft
25 ft
40 ft
J70 S2
Lo
LED
Hi
Dia. ft (m)
20 ft (6m)
12.5 ft (4m)
6.5 ft (2m)
0
6.5 ft (2m)
12.5 ft (4m)
20 ft (6m)
