Elk -6051 Instructions Manual

Wireless carbon monoxide detector
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Wireless Carbon Monoxide Detector
ELK-6051

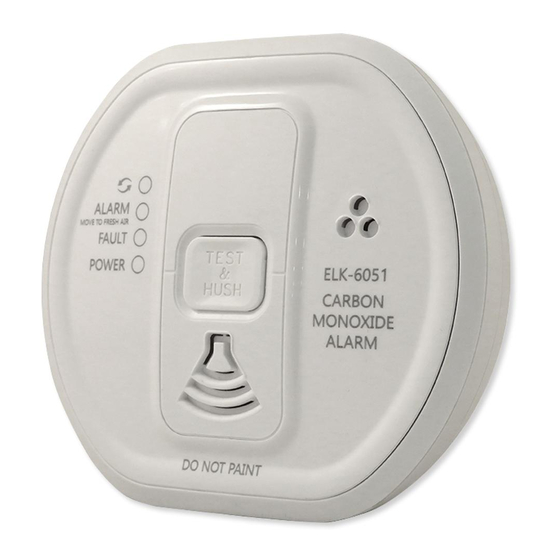

ELK-6051 Wireless Carbon Monoxide Detector
Read carefully and retain for as long as the product is being used. It contains vital
information on the operation and installation of your Detector. This booklet should be
regarded as part of the product. If you are just installing the Detector, this booklet
must be given to the homeowner. This booklet is to be given to any subsequent user.
Instructions
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELK-6051 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elk ELK-6051

Summary of Contents for Elk ELK-6051

  • Page 1 Wireless Carbon Monoxide Detector ELK-6051 ELK-6051 Wireless Carbon Monoxide Detector Instructions Read carefully and retain for as long as the product is being used. It contains vital information on the operation and installation of your Detector. This booklet should be regarded as part of the product.

  • Page 2: Table Of Contents

    Table of Contents Page Read This First ..................3 Carbon Monoxide – The Silent Killer ............4 Where to Place CO Detectors ..............8 Installation ....................14 Testing / Monitoring & Maintenance ............16 What to do when the alarm sounds ............20 How to Protect your Family ..............

  • Page 3: Read This First

    1. Read This First • Congratulations on becoming the owner of an Elk Carbon Monoxide Detector. This product will help protect you and your household from the dangerous effects of Carbon Monoxide- the silent killer. • Remove the battery pulltab to engage the batteries. The Carbon Monoxide Detector is powered up by carefully rotating it onto the mounting plate which activates the on/off switch. The red, amber & green lights will immediately flash in sequence to show they are working. Then wait 15 seconds after connecting the power before button testing.

  • Page 4: Carbon Monoxide - The Silent Killer

    2. Carbon Monoxide – The Silent Killer 2.1 What is Carbon Monoxide? Many people are killed each year, and many more suffer ill health from Carbon Monoxide (CO) poisoning. CO is an invisible, odorless, tasteless and extremely toxic gas. It is produced by appliances and vehicles burning fuels, such as coal, oil, natural gas, propane, kerosene, paraffin, wood, gasoline, diesel, charcoal etc. CO is absorbed by red blood cells in the lungs in preference to oxygen - this results in rapid damage to the heart and brain from oxygen...
  • Page 5 2.3 Symptoms of Carbon Monoxide Poisoning Table A Concentration of CO in Air Inhalation Time (approx) and Symptoms Developed ▲ ppm The maximum allowable concentration for continuous exposure in any 8 hour period according to OSHA *. Slight headache after 1.5 hours. Slight headache, fatigue, dizziness, nausea after 2-3 hours.
  • Page 6 Table B: CO Detector Response CO Gas Level Red LED Horn/Sounder 0 ppm to < 30 ppm OFF * OFF * > 45 ppm 1 flash every 3 secs. on within 60-240 minutes (typ 90 mins) > 100 ppm 2 flashes every 3 secs. on within 10-50 mins (typ 30 minutes) >...
  • Page 7 CO present (before horn sounds): When the Detector detects over 45 ppm CO the red LED flashes in accordance with Table B. This helps locate CO leaks as the unit gives an immediate indication. (Without this feature the CO level would need to be at 45 ppm CO for typically 90 minutes for an alarm sound to be given). Note the red LED flashes may be triggered by CO produced by gas appliances, from car engines or nearby barbe- cues. This is usually not a concern, unless the red LED flashes persist until the Detector sounds and the CO source is unknown.

  • Page 8: Where To Place Co Detectors

    Table C: CO Detector Memory Indicators CO Gas Level Red LED Response 24 Hours On Bemand (Button Press) ppm > 45 ppm 1 flash every 50 sec 1 flash ppm > 100 ppm 2 flashes every 50 sec 2 flashes ppm > 250 ppm 4 flashes every 50 sec 4 flashes ppm > 750 ppm 4 flashes every 50 sec 4 flashes Reset Memory: Hold down the test button until the red LED stops and green LED...
  • Page 9 IMPORTANT! Specific requirements for Carbon Monoxide Detector installation vary from state to state and from region to region. Check with your local Fire Department for current requirements in your area. 3.1 Ideally a Carbon Monoxide Detector should be installed in: - Every room containing a fuel burning appliance, and - Remote rooms where occupants spend a considerable amount of time - Every bedroom.
  • Page 10 Figure 1 Location in room with a fuel burning appliance...
  • Page 11 Figure 2 Figure 3 Location in rooms with sloped Location in bedrooms & other ceilings, the CO Detector should be rooms remote from the appliance located at the high side of the room (i.e. at breathing level)
  • Page 12 3.2 Unsuitable Locations Do not place the CO Detector in any of the following areas. In the immediate vicinity of a cooking appliance (keep it at least 3ft (1 metre) horizontally from it). Outside the building. In an enclosed space (e.g. in or below a cupboard). In a damp or humid area.
  • Page 13 3.31 If locating the CO Detector in a room with a fuel burning appliance (see figure 1) • If it is mounted on a wall, it should be located at a height greater than the height of any door or window but still be at least 0.5ft (150mm) from the ceiling. •...

  • Page 14: Installation

    Screw the mounting plate to the ceiling/ wall. 5. Alternatively, if desired, the CO Detector will also free stand on a flat surface with the mounting plate attached. 6. This CO Detector is designed for use with an ELK-M1 Control and ELK-M1XRFTWM Wireless RF Receiver. It must be RF enrolled into the M1 Control using the instructions which accompany the ELK Control and/or Receiver.
  • Page 15 7. Carefully align the Detector with the base, gently press home & twist on - see Figure 4. (This connects the batteries). The red, amber & green LEDs will immediately flash in sequence to show the Detector is powered correctly. Light 8. Press the Test button (after 15 seconds) to Amber Light ensure that the Detector is functioning correctly...

  • Page 16: Testing / Monitoring & Maintenance

    If necessary it is possible to further secure or tamperproof the Detector by using a No.2 or No.4 3/32” to 7/64” (2 to 3mm) diameter - not supplied self tapping screw ¼” to 5/16” (6 to 8mm) long to firmly lock the Detector and its mounting plate together (see Figure 7). 5. Testing / Monitoring & Maintenance Testing Frequent testing of the system is a requirement to ensure its continued and safe operation.
  • Page 17 Monitoring The ELK-6051 CO Detector will self check (monitor) itself and give a status update every 50 seconds if there are any problems. The status of the Detector can also be checked on demand by using the test button. The table below shows the status response to both the self check and on demand testing.
  • Page 18 Use the narrow nozzle of a vacuum cleaner to remove fluff and other contamination from the cover slots and gas entry holes. Caution: Do not paint the CO Detector. Remove the CO Detector when decorating. Do not allow water or dust to contaminate the Detector. Warning: Do not open or tamper with the CO Detector. There are no user serviceable parts inside and this can damage the Detector.
  • Page 19 CO event. AudioLINK AudioLINK is an added feature available in the ELK-6051. This feature allows an authorized person to download information from the Detector through by way of a mobile App. For more information on using this feature, please refer to the relevant section on www.elkproducts.com.

  • Page 20: What To Do When The Alarm Sounds

    Functional Gas Test The Carbon Monoxide Detector checks for CO gas every 4 seconds and when exposed to the CO gas, the red LED will flash (as per Table B) to confirm that it is detecting the CO gas. Solo C6 brand canned CO testing agent may be used to verify Gas Entry the Detector’s ability to sense CO. To gas test the Detector, for 3 Holes seconds spray the canned CO within 1/4” of the gas entry holes (see Figure 9). Within seconds, the red LED will begin to flash (as...

  • Page 21: How To Protect Your Family

    4. After following steps 1-3, if your Detector reactivates within a 24 hour period, repeat steps 1-3 and call a qualified appliance technician to investigate for sources of CO from fuel burning equipment and appliances, and inspect for proper operation of this equipment. If problems are identified during this inspection have the equipment serviced immediately.
  • Page 22 - Family members (including pets) exhibiting the “flu-like” symptoms of CO poisoning described above. If any of these signs are present get the appliance serviced before further use. If feeling ill, get medical help. Choose all appliances and vehicles which burn fossil fuels such as coal, oil, natural gas, propane, kerosene, wood, gasoline, diesel, charcoal etc.

  • Page 23: Technical Specification

    gases to build up. 10. Install CO Detectors in all the areas recommended in this booklet. 11. Recognize that CO poisoning may be the cause when family members suffer from “flu-like” symptoms when at home but feel better when they are away for extended periods. 8. Technical Specification Power: Two Alkaline AAA type batteries (replaceable) CO Sensitivity: Meets UL2075 Electromagnetic Compatibility: Complies with UL2075 / FCC Part 15 Test/Hush Button: Checks electronics, sounder, sensor and batteries Operating Temperature: 40°...

  • Page 24: Getting The Co Detector Serviced

    Further the warranty does not cover Acts of God, such as fire, flood, hurricanes and tornadoes. If this Detector should become defective within the guarantee period, it must be returned to Elk Products, with proof of purchase, carefully packaged, with the problem clearly stated. We shall at our discretion repair or replace the faulty unit.

  • Page 25: Limitations Of Co Detectors

    Some states or jurisdictions do not allow the limitation or exclusion of incidental or consequential damages, or limitations on how long an implied warranty last so the above limitation may not apply to you. Do not interfere with the Detector or attempt to tamper with it. This will invalidate the guarantee, but more importantly may expose the user to shock or fire hazards. This guarantee is in addition to your statutory rights as a consumer.
  • Page 26 4. CO Detectors don’t last indefinitely. CO Detectors are sophisticated electronic devices with many parts. Although CO Detectors and their component parts have undergone stringent testing, and are designed to be very reliable, it is possible that parts can fail. Therefore, you should test your CO Detectors weekly. CO Detectors must be replaced after 10 years of operation.

  • Page 27: Troubleshooting

    WARNING: THIS CO DETECTOR IS DESIGNED TO PROTECT INDIVIDUALS FROM THE ACUTE EFFECTS OF CARBON MONOXIDE EXPOSURE. IT WILL NOT FULLY SAFEGUARD INDIVIDUALS WITH SPECIFIC MEDICAL CONDITIONS. IF IN DOUBT CONSULT A MEDICAL PRACTITIONER. 12. Troubleshooting DETECTOR DOES NOT WORK WITH THE TEST BUTTON: 1. Wait 15 seconds after connecting the power before button testing. 2.

  • Page 28: Indicator Summary

    ID number. Press the test/hush button to silence the Detector. If the unit continues to sound it is possibly defective and should be replaced (see section 9 “Getting the CO Detector Serviced”). ELK-6051 Indicator Summary Normal Operation Red LED Amber LED...
  • Page 29 ELK-6051 Service Diagnostics Diagnostics Modes Action Red LED Yellow LED Sounder Action Fault Checks Low Battery Press & hold button 1 flash 1 beep with flash Replace Batteries Fault Sensor Press & hold button 2 flashes 2 beeps with Replace Detector flashes End of Life (EOL) Press &...

  • Page 30: Agencies Compliance

    This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. NOTE: ELK PRODUCTS IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATION NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
  • Page 31 (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. ELK-6051 Wireless CO Detector FCC ID: TMAELK-6051 IC: 4353A-6051 This equipment complies with the FCC RF radiation exposure limits set forth for an uncontrolled environment.
  • Page 32 Contact Us Customer Service Elk Products, Inc. 3266 Hwy 70W Connelly Springs, NC 28612 Telephone: (828) 397-4200 web: www.elkproducts.com © Elk Products, Inc. 2018...
