- Page 1 SoundClip-2 Manual v1.4 Dec 2018...
- Page 2 SC-2 User Manual v1.4 Sep 2017...
-
Page 3: Table Of Contents
SC-2 User Manual v1.4 Sep 2017 Contents 1. What is the SC-2? ................4 2. Supported Media Formats ............. 4 3. In the Box ..................5 4. Setup Instructions ................6 5. Programming Content ..............10 6. Content Configuration ..............12 7. -
Page 4: What Is The Sc-2

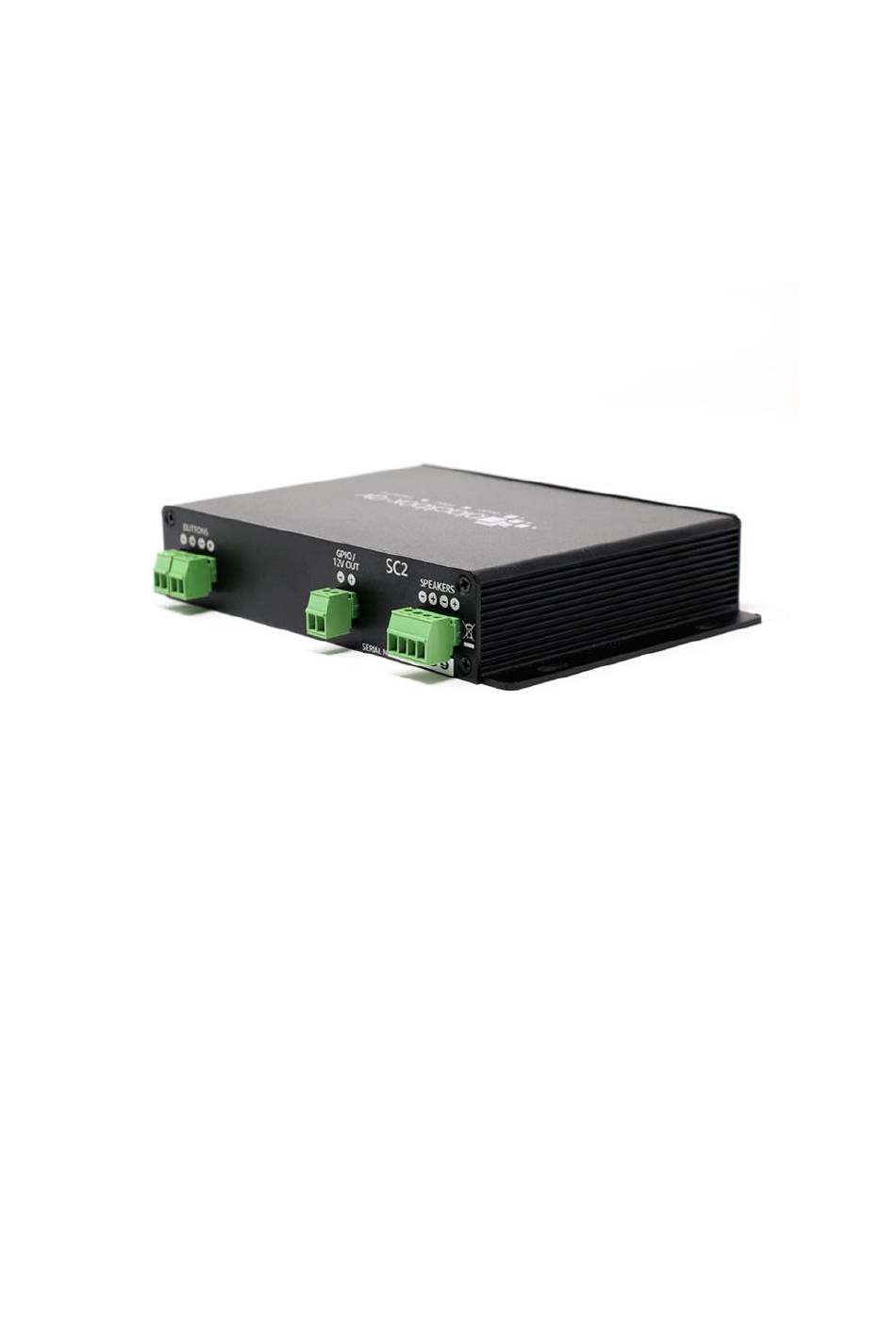

T: +44 (0)1639 767007 | W: www.blackboxav.co.uk 1. What is the SC-2? The SoundClip-2 is the first in our range of compact, stand-alone, high quality stereo audio players. It can be used to present audio through headphones via two 3.5mm audio jacks or 2 speakers via wired terminal. -
Page 5: In The Box
We recommend all files be used in .mp3 format, if you have issues playing any audio content we recommend you convert your audio using ‘Format Factory’. This can be downloaded for free here: http://www.pcfreetime.com/ 3. In the Box SoundClip-2 Terminal Blocks Power Supply Plug Adapters Screwdriver, MicroSD to USB Converter, MicroSD Card... -
Page 6: Setup Instructions
SC-2 User Manual v1.4 Sep 2017 4. Setup Instructions Setting up your SC-2 is simple. You will need the following; • The SoundClip-2 • 12V DC Power Adapter • Buttons or PIR (if using button or PIR activated content, not included) •... - Page 7 SC-2 User Manual v1.4 Sep 2017 Button 1/2 input 12v Supply (for PIR and Lighting) Speaker L/R 12v DC in Configuration switches Adjust delay between message plays Adjust maximum volume level 2 x 3.5mm headphone input MicroSD Slot Button input for volume control - / + Powering Your SC2 Connect the supplied 12V DC adapter to the ‘12V DC in’...
- Page 8 SC-2 User Manual v1.4 Sep 2017 To utilise button activation of the SC-2 you must wire buttons to the designated terminals. Simply insert button wire ends and screw in place using the provided screwdriver. Connecting Volume Buttons The SC-2 has dedicated volume terminals, allowing you to give visitors the ability to increase or lower the volume.
- Page 9 SC-2 User Manual v1.4 Sep 2017 Configuring the SC-2 Deciding how the SC-2 is configured is completed using the ‘Configuration Switches’, this determines if it’s looping, button activated or has a delay between content. See the ‘Content Configuration’ section for more details.
-
Page 10: Programming Content
SC-2 User Manual v1.4 Sep 2017 5. Programming Content Content for your SC-2 is stored on the supplied MicroSD card. To add content you will need; Audio Content in .mp3 format (supports up to 99 audio files) A PC or laptop with Windows OS MicroSD Card (supplied) MicroSD to USB convertor (supplied) How the content you add will be played (looping, button activated... - Page 11 SC-2 User Manual v1.4 Sep 2017 Step2 Insert the MicroSD card into the MicroSD - USB convertor, and connect to your PC. Step3 Transfer all of your content onto the SD card. Step4 Insert MicroSD card into the SC-2, test files play as planned. How files are activated is determined by how the dip switches are configured.
-
Page 12: Content Configuration
SC-2 User Manual v1.4 Sep 2017 6. Content Configuration Content is added to the SC-2 via MicroSD card, how this content is played is set via the dip switches located on the front of the device. Using a screwdriver click these switches into either a Down or Up position to turn On or Off. - Page 13 SC-2 User Manual v1.4 Sep 2017 3 - Play All When switch 3 is in the Down (on) position the SC-2 will be in ‘Play All’ mode, this means when triggered via button or PIR it plays through all audio files once. When in this mode the SC-2 is uninterruptible even with switch 1 set to Up (off).
- Page 14 SC-2 User Manual v1.4 Sep 2017 6 - LCD & Button Pad Activation Put in the down (on) position to place the SC-2 in compatibility mode for the LCD display and Button Pad add-on (sold separately). 7 - Delay Range The delay control allows you to determine how long between the end of an audio file a new file can be activated.
-
Page 15: Delay And Master Volume Control
SC-2 User Manual v1.4 Sep 2017 track at a time via PIR sensor - moving onto the next audio track in sequence after each activation. This allows you to activate track 001 then 002 then 003 etc. one at a time. -
Page 16: Status Led
SC-2 User Manual v1.4 Sep 2017 Master Volume The SC-2 has dedicated volume inputs to allow users volume control. The Master Volume dictates the maximum volume available to them. When powered up the SC-2 is set to around half the Master Volume level, this allows users to reach the maximum volume through the use of dedicated button controls. -
Page 17: Update Notes
SC-2 User Manual v1.4 Sep 2017 Update Notes: V1.1 - Minor formatting changes V1.2 - AutoPlay Support • Added autoplay support functionality • Button 2 becomes next track ‘AutoPlay’ Mode • Delay timer sets when to revert to track 001 in above modes V1.3 - AutoPlay Instructions •...
