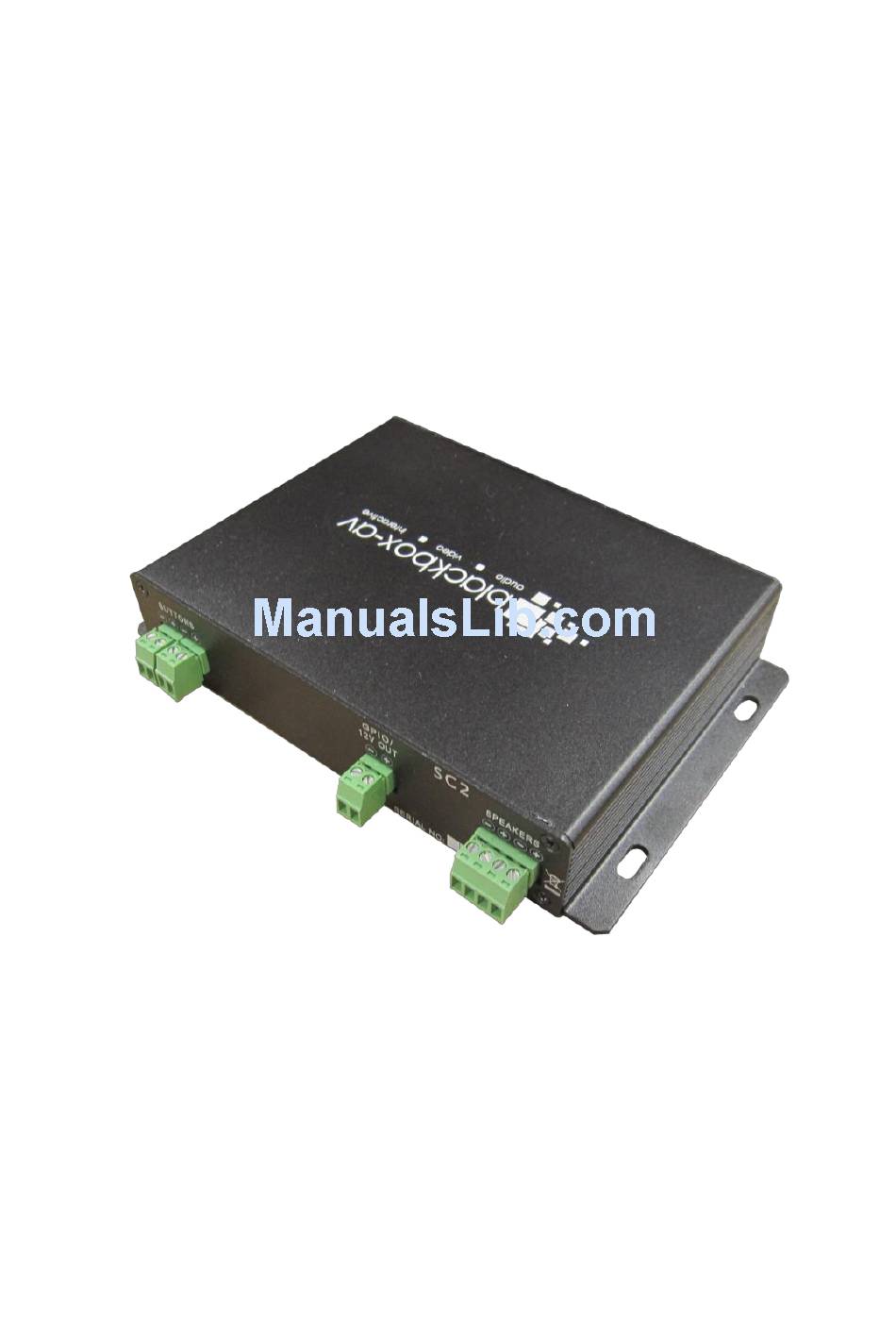

  • Page 1 SoundClip-8 Manual v1.3 June 2017...

  • Page 2: Table Of Contents

    SC-8 User Manual v1.3 June 2017 Contents 1. What is the SC-8? ................4 2. Supported Media Formats ............. 4 3. In the Box ..................5 4. Setup Instructions ................6 5. Programming Content ..............10 6. Content Configuration ..............12 7.

  • Page 3: What Is The Sc-8

    SC-8 User Manual v1.3 June 2017 Thank you for purchasing the SoundClip-8 The SoundClip-8 is one of a range of products we offer specific to the heritage marketplace. We are confident that we have other products you will find useful and look forward to hearing from you again soon.

  • Page 4: In The Box

    We recommend all files be used in .mp3 format, if you have issues playing any audio content we recommend you convert your audio using ‘Format Factory’. This can be downloaded for free here: http://www.pcfreetime.com/ 3. In the Box SoundClip-8 Terminal Blocks Power Supply Plug Adapters Screwdriver, MicroSD to USB Converter, MicroSD Card...

  • Page 5: Setup Instructions

    SC-8 User Manual v1.3 June 2017 4. Setup Instructions Setting up your SC-8 is simple. You will need the following;  The SoundClip-8  12V DC Power Adapter  Buttons or PIR (if using button or PIR activated content, not included) ...
  • Page 6 SC-8 User Manual v1.3 June 2017 Button 1-8 input 12v Supply (for PIR and Lighting) Speaker L/R 12v DC in Configuration switches Adjust delay between message plays Adjust maximum volume level 2 x 3.5mm headphone input MicroSD Slot Button input for volume control - / + Powering Your SC8 Connect the supplied 12V DC adapter to the ‘12V DC in’...
  • Page 7 SC-8 User Manual v1.3 June 2017 To utilise button activation of the SC-8 you must wire buttons to the designated terminals. Simply insert button wire ends and screw in place using the provided screwdriver. Connecting Volume Buttons The SC-8 has dedicated volume terminals, allowing you to give visitors the ability to increase or lower the volume.
  • Page 8 SC-8 User Manual v1.3 June 2017 activated or has a delay between content. See the ‘Content Configuration’ section for more details.

  • Page 9: Programming Content

    SC-8 User Manual v1.3 June 2017 5. Programming Content Content for your SC-8 is stored on the supplied MicroSD card. To add content you will need; Audio Content in .mp3 format (supports up to 99 audio files) A PC or laptop with Windows OS MicroSD Card (supplied) MicroSD to USB convertor (supplied) How the content you add will be played (looping, button activated...
  • Page 10 SC-8 User Manual v1.3 June 2017 Step2 Insert the MicroSD card into the MicroSD - USB convertor, and connect to your PC. Step3 Transfer all of your content onto the SD card. Step4 Insert MicroSD card into the SC-8, test files play as planned. How files are activated is determined by how the dip switches are configured.

  • Page 11: Content Configuration

    SC-8 User Manual v1.3 June 2017 6. Content Configuration Content is added to the SC-8 via MicroSD card, how this content is played is set via the dip switches located on the front of the device. Using a screwdriver click these switches into either a Down or Up position to turn On or Off.
  • Page 12 SC-8 User Manual v1.3 June 2017 When switch 3 is in the Down (on) position the SC-8 will be in ‘Play All’ mode, this means when triggered via button or PIR it plays through all audio files once. When in this mode the SC-8 is uninterruptible even with switch 1 set to Up (off).
  • Page 13 SC-8 User Manual v1.3 June 2017 Put in the down (on) position to place the SC-8 in compatibility mode for the LCD display and Button Pad add-on (sold separately). 7 - Delay Range The delay control allows you to determine how long between the end of an audio file a new file can be activated.

  • Page 14: Delay And Master Volume Control

    SC-8 User Manual v1.3 June 2017 7. Delay and Master Volume Control Two controls on the front of the device allow you to alter the Delay timer and Master Volume. Delay The delay control allows you to specify how long between playing content the unit must wait before more content can play.

  • Page 15: Status Led

    SC-8 User Manual v1.3 June 2017 8. Status LED Red - On/Off The red LED will be lit when unit is powered on, and off when unit is powered down. Green - Status The Green LED will be lit when content is being played and blink on/off in 1 second intervals when unit is in ‘Delay Mode’...

  • Page 16: Update Notes

    SC-8 User Manual v1.3 June 2017 Update Notes: V1.1 - Minor formatting changes V1.2 - AutoPlay Support  Added autoplay support functionality  Button 2 becomes next track in ‘AutoPlay’ Mode  Delay timer sets when to revert to track 001 in above modes V1.3 - AutoPlay Instructions ...
