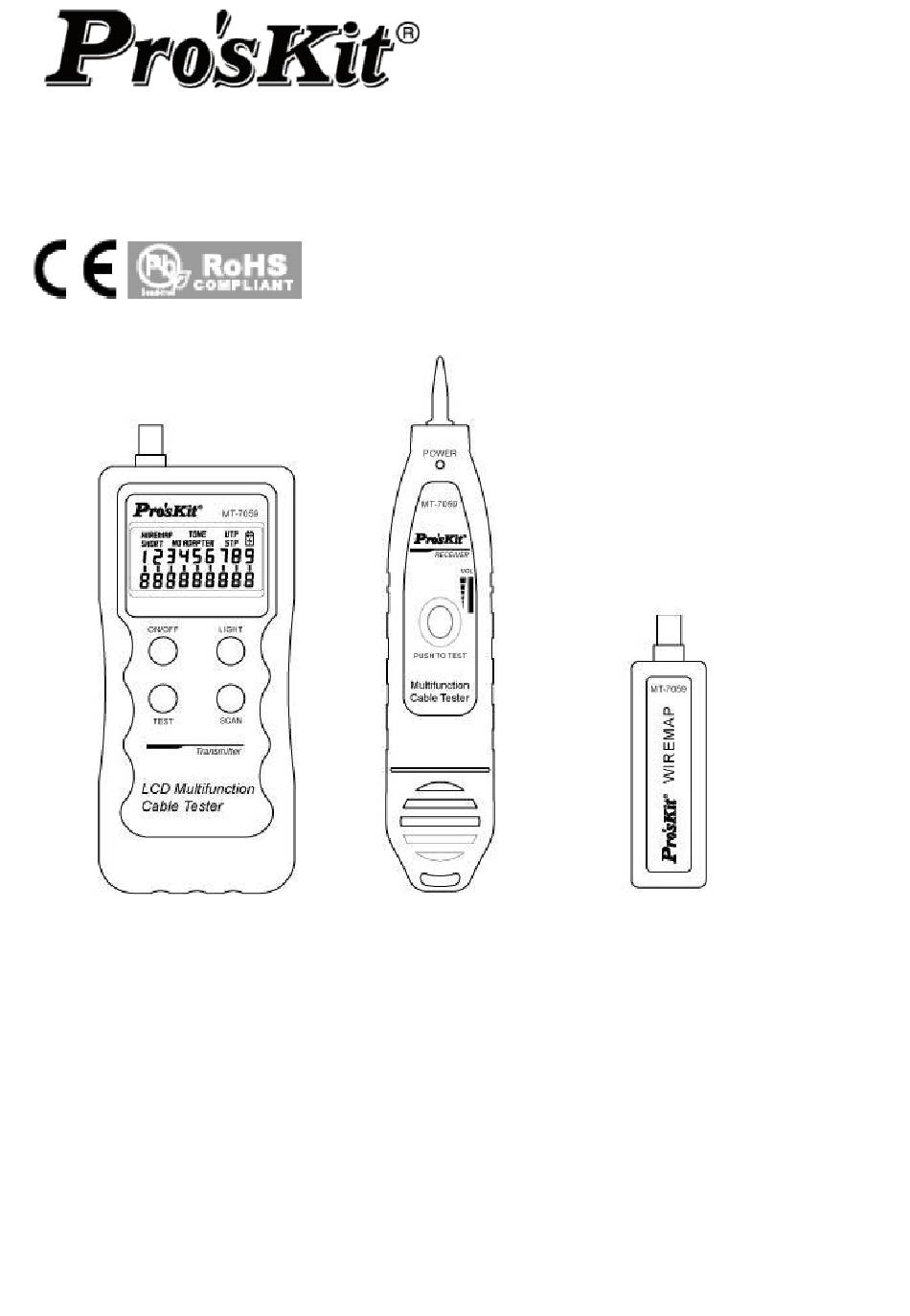

- Page 1 MT-7059 LCD Multifunction Cable Tester User’s Manual Edition 2018 © 2018 Copyright by Prokit’s Industries Co., Ltd.
- Page 2 Please read the safety instructions carefully before using or maintaining the equipment ●Never expose the equipment directly in the sun. ●Never store the equipment at dusty humidity and high temperature (over 40℃) environment. ●Battery replacement should follow specification; otherwise, it may damage the equipment.
- Page 3 ●Test UTP/STP/SFTP cat.5 cat.5e cat.6, telephone wire, coaxial cable, USB cable, 1394 cable for cable status checking (Short, Open, Crossover, no connection) . ●Test UTP/STP/SFTP cat.5 cat.5e cat.6, telephone wire, coaxial cable, USB cable, 1394 cable for finding cable. ●Containing RJ45/RJ11/BNC/USB/1394 and other test socket, without complex conversion ●Power on/off and backlight display on/off selectable switching function.
- Page 4 Transmitter Max. signal voltage 1.5Vp-p Function selection 3 function buttons ＆ 1 power switch Function and faults LCD LCD display (wire map；tone；short display ； no adapter ； UTP ； STP ； low battery) Cable map indication LCD (#1~#8) Shielded indication LCD (#9) Voltage protection AC 60V/ DC 42V...
- Page 5 RJ-45(8 pin)、RJ-11(6 pin)、BNC、 Compatible connectors USB、IEEE 1394 Dimension (LxWxD) 107X30X24mm Product Interface and Keypad Introduction...
- Page 6 Instructions for product Install DC 9V battery to transmitter then press “ON/OFF” button, it is power on with a long sound. LCD will showed “TEST” then auto started wire mapping test, if the cable is not connected to transmitter and receiver, the LCD will show “NO ADAPTER” Cable mapping test (for example: test RJ45 patch cord) Plug in RJ45 patch cord to transmitter, and the other terminal into remote unit, press “ON/OFF”...
- Page 7 RJ45 cable without shielding RJ45 cable with shielding wire. Number 9 indicate the cable with earthed conduct. Test Result 4: Open LCD will show the numbers of good connected wires as following figure with one short sound. Below figure indicates that “3” “6” line of RJ45 cable is open. Test Result 5: Crossover or miss-wire LCD will show as following figure with two short sounds.
- Page 8 The picture indicates that “3” “6” line of RJ 45 cable is crossover and “2” “7” lines are open. Perform different cable mapping test (Testing result is good) RJ45 cable RJ11 Cable 1394 cable BNC cable USB cable USB cable with shielding USB cable without shielding Hunting test Plug in the target cable (RJ45, RJ11, USB, BNC, 1394) that...
- Page 9 sound then press “SCAN” button, LCD will show as following figure. Select frequency (the number showed on bottom of LCD) depends on tested circuit (there are 9 kinds of selectable frequencies, press “SCAN” button to change it. (Number 1 to 9 then back to 1.). Open the battery compartment cover of receiver then install 9V battery.
- Page 10 Turn volume adjustment switch on the receiver when perform hunting test to ensure the sound is clear for listening. (5) Illumination There are 2 white LEDs on the top of receiver and the on/off button beside earphone jack. 8. RJ45 adaptor cable : 1pcs Packing list 4.
- Page 11 It is probable tone signal interfere with Perform test with telecom switching equipment signal telecom switching when perform cable finding test that will equipment, can’t receive effect testing result, you can turn telecom the tone signal for switching equipment power off if finding cable necessary.
