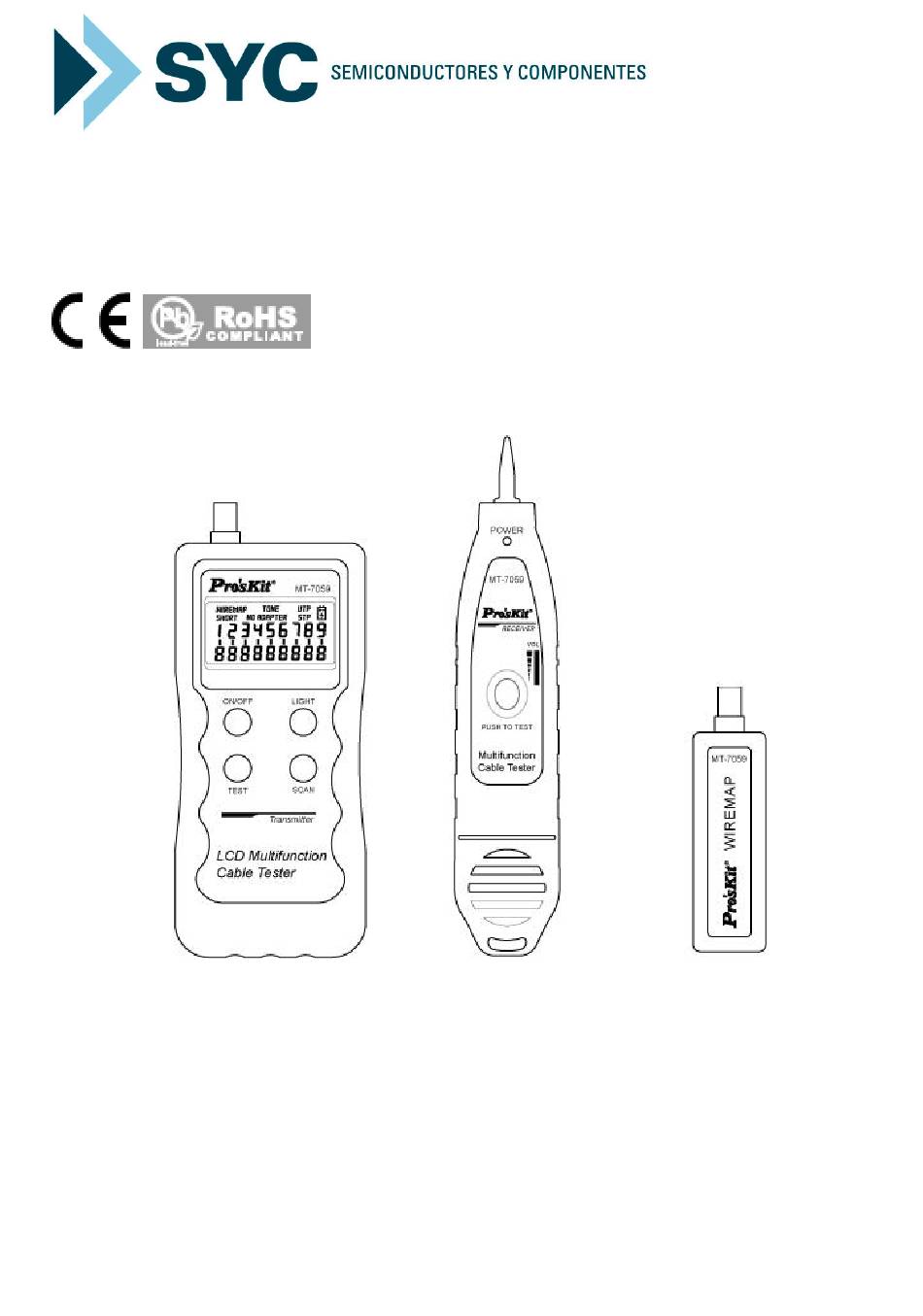

  • Page 1 HT-7059 LCD Multifunction Cable Tester User’s Manual Edition 2018 © 2018 Copyright by Prokit’s Industries Co., Ltd. www.sycelectronica.com.ar...
  • Page 2 Please read the safety instructions carefully before using or maintaining the equipment ●Never expose the equipment directly in the sun. ●Never store the equipment at dusty humidity and high temperature (over 40℃) environment. ●Battery replacement should follow specification; otherwise, it may damage the equipment.
  • Page 3 Product features: ●Large LCD display test result for easy reading and identification. ●Directly connected to Ethernet switch/ router/ PC terminal to perform wire hunting. ●Test UTP/STP/SFTP cat.5 cat.5e cat.6, telephone wire, coaxial cable, USB cable, 1394 cable for cable status checking (Short, Open, Crossover, no connection) .
  • Page 4 Transmitter Max. signal voltage 1.5Vp-p 3 function buttons & 1 power switch Function selection Function and faults LCD LCD display (wire map;tone;short; display no adapter;UTP;STP;low battery) Cable map indication LCD (#1~#8) Shielded indication LCD (#9) Voltage protection AC 60V/ DC 42V Low battery display LCD (6.5V) DC 9.0VNEDA 1604/ 6F22 DC9V ×1)
  • Page 5 Product Interface and Keypad Introduction Instructions for product Install DC 9V battery to transmitter then press “ON/OFF” button, it is power on with a long sound. LCD will showed “TEST” then auto started wire mapping test, if the cable is not connected to www.sycelectronica.com.ar...
  • Page 6 transmitter and receiver, the LCD will show “NO ADAPTER” Cable mapping test (for example: test RJ45 patch cord) Plug in RJ45 patch cord to transmitter, and the other terminal into remote unit, press “ON/OFF” button and push “TEST” button for wire mapping test.
  • Page 7 RJ45 cable with shielding wire. Number 9 indicate the cable with earthed conduct. Test Result 4: Open LCD will show the numbers of good connected wires as following figure with one short sound. Below figure indicates that “3” “6” line of RJ45 cable is open. Test Result 5: Crossover or miss-wire LCD will show as following figure with two short sounds.
  • Page 8 Perform different cable mapping test (Testing result is good) RJ45 cable RJ11 Cable 1394 cable BNC cable USB cable USB cable with shielding USB cable without shielding Hunting test Plug in the target cable (RJ45, RJ11, USB, BNC, 1394) that wanted to find, press “ON/OFF”...
  • Page 9 Select frequency (the number showed on bottom of LCD) depends on tested circuit (there are 9 kinds of selectable frequencies, press “SCAN” button to change it. (Number 1 to 9 then back to 1.). Open the battery compartment cover of receiver then install 9V battery.
  • Page 10: Troubleshooting

    4. 9V Alkaline battery x 2 9. User’s manual x 1 5. Earphone x 1 10. Carrying bag x 1 6. RJ11 Adapter cable x 1 11. Color box x 1 Troubleshooting Problem Solution Check battery of transmitter, if low battery, replace a new one.
