Summary of Contents for Pro 2 HDMIMX44RS

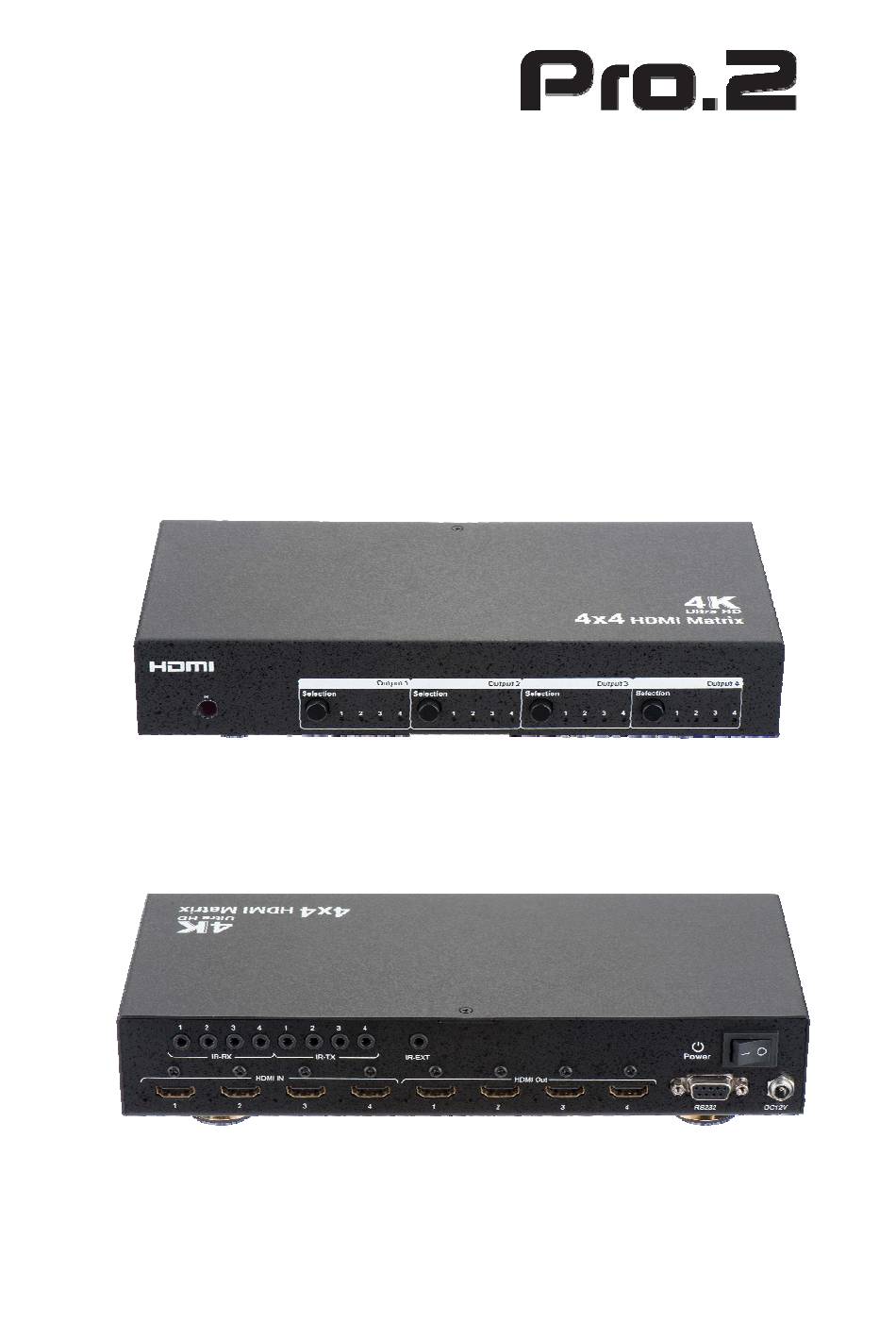

- Page 1 HDMI Matrix Model: HDMIMX44RS Operating Instruction...
- Page 2 Operating Instruction Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
-
Page 3: Table Of Contents
Operating Instruction Table of Contents 1. Dear Customer......................4 2. Features........................4 3. Panel Descriptions.......................4 4. Specifications.......................4 5. Package Contents......................5 6. Application Diagrams....................6 7. Remote Control Description..................6 8. DIP Switch for EDID Setting..................7 9. RS-232 Pin Assignment....................7 10. RS232 Control......................8 11. RS232 Command......................9 12. -
Page 4: Dear Customer
Operating Instruction Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Features Supports resolutions up to 1080p@60HZ, 36-bit deep color, 4k@30HZ. ... - Page 5 Operating Instruction Panel Descriptions Front Panel 1. IR receiver window----Receive the IR from the remote control of HDMI Matrix. 2. HDMI input selection button 1 to 4---Press to select the input from 1 to 4. 3. Input LED indicator---Indicate the status of the inut for the matrix. Back Panel ①...
-
Page 6: Application Diagrams
Operating Instruction Application Diagram Remote Control Description ① Press "M" button to switch to "DIP Switch" mode for EDID Setting. ② OUTPUT-X select INPUT-Y: A. Press OUTPUT-X (X means 1 to 4 of outputs) Press INPUT-Y (Y means 1 to 4 of inputs) -
Page 7: Dip Switch For Edid Setting
Operating Instruction B. Press OUTPUT-X (X means 1 to 4 of outputs), Press the left and right arrow buttons to select the input. ③ All outputs select INPUT-Y: Press ALL button in zone OUTPUT Press INPUT-Y button (Y means 1 to 4 of inputs), then INPUT-Y switched to ALL OUTPUTS. ④... -
Page 8: Rs232 Control
Operating Instruction RS232 Control Connect RS232 cable to PC, open the software ，choose the COM port and connect. Click "General ", you can choose the HDMI input and for each HDMI out as below picture Click "Advance", choose the "HDMI input", then click "PC Set EDID Mode" to set EDID, such as video format, audio format etc. -
Page 9: Rs232 Command
Operating Instruction RS232 Command 1. Select HDMI input for HDMI output Command Description Output1 Output2 Output3 Output4 All Output Input1 Input2 Input3 Input4 Start Write E.g: SW 00 01 L: Ouput 1 display Input2 E.g: SW 04 01 01 01 01 L: All outputs display Input2 2. -
Page 10: Ir Extender Control
Operating Instruction IR extender control User can use the IR receiver cable to change the IR receiver position. If controlling the HDMI Matrix through the 1/8” (3.5 mm) input jack on the rear panel, connect the IR cable directly to the matrix rear IR receiver extension sockets. IR system 1) Control the sources from the sinks Step1: Connect 4pcs “IR TX”... -
Page 11: Warranty Policy
Operating Instruction...
