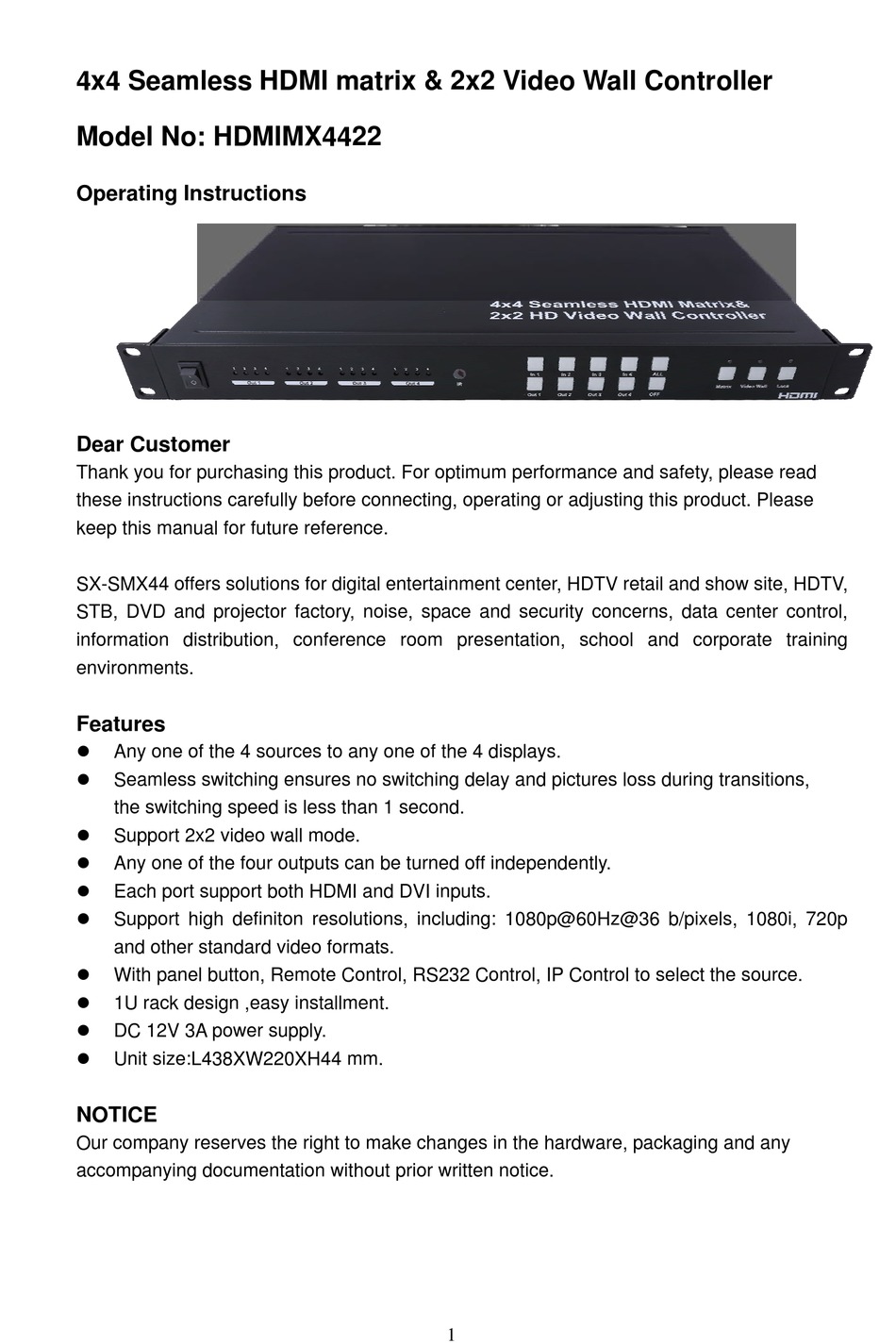

4x4 Seamless HDMI matrix & 2x2 Video Wall Controller
Model No: HDMIMX4422
Operating Instructions
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please read
these instructions carefully before connecting, operating or adjusting this product. Please
keep this manual for future reference.
SX-SMX44 offers solutions for digital entertainment center, HDTV retail and show site, HDTV,
STB, DVD and projector factory, noise, space and security concerns, data center control,
information distribution, conference room presentation, school and corporate training
environments.
Features

Any one of the 4 sources to any one of the 4 displays.

Seamless switching ensures no switching delay and pictures loss during transitions,
the switching speed is less than 1 second.

Support 2x2 video wall mode.

Any one of the four outputs can be turned off independently.

Each port support both HDMI and DVI inputs.

Support high definiton resolutions, including: 1080p@60Hz@36 b/pixels, 1080i, 720p
and other standard video formats.

With panel button, Remote Control, RS232 Control, IP Control to select the source.

1U rack design ,easy installment.

DC 12V 3A power supply.

Unit size:L438XW220XH44 mm.
NOTICE
Our company reserves the right to make changes in the hardware, packaging and any
accompanying documentation without prior written notice.
1
