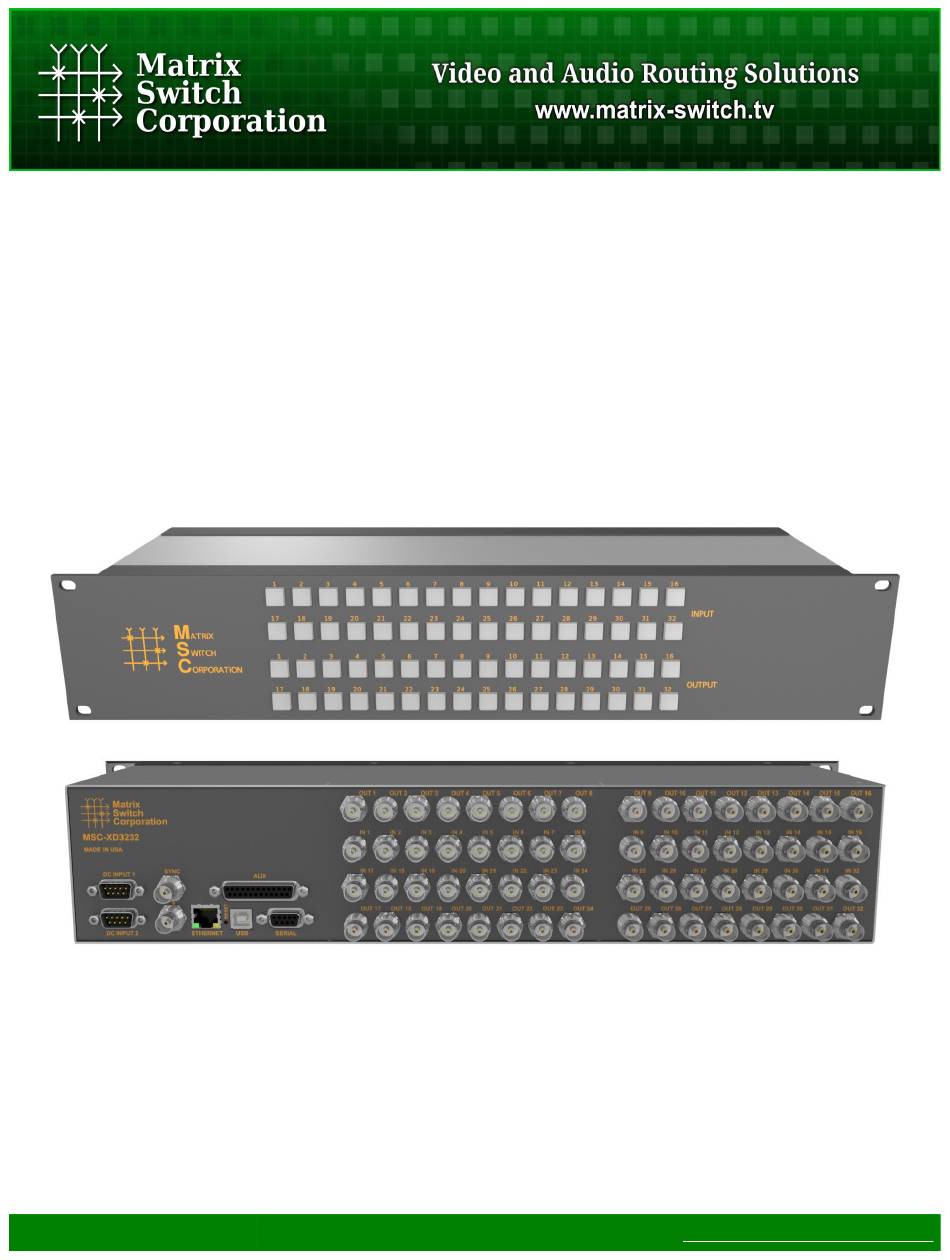

- Page 1 Matrix Switch Corporation MSC-XD3232L Product Manual 2RU 32 input 32 output 3G-SDI Video Router with Button Control Panel Revision 1.8 Page 1 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitchcorp.com...
- Page 2 ITS CONDITION, QUALITY, PERFORMANCE, MERCHANTABILITY OR FITNESS FOR PURPOSE. Matrix Switch Corporation disclaims all liability arising from this information and its use. Use of Matrix Switch Corporation devices in life support and/or safety applications is entirely at the buyer’s risk, and the buyer agrees to defend, indemnify and hold harmless Matrix Switch Corporation from any and all damages, claims, suits, or expenses resulting from such use.
- Page 3 2013-11-29 MSC-4HDX6464 manual released. • Updated Mascot protocol information to version 2.3. • Added Vars Mascot command description. • Revision 1.0 Initial release of modular product manual. • 2013-04-15 Page 3 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com...
-
Page 4: Table Of Contents
3.3 Serial Access..............................21 3.4 Command Format............................21 3.4.1 Command Names..........................22 3.5 Response Format............................22 3.6 Command Arguments..........................23 3.7 System Parameters.............................24 3.7.1 System Parameter Table........................24 3.8 Core Commands............................25 3.9 Configuration Commands..........................26 3.10 Miscellaneous Commands........................26 Page 4 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... - Page 5 3.11.36 RemoteSync Command........................45 3.11.37 S Command............................46 3.11.38 SerBaud Command.........................46 3.11.39 Set Command..........................47 3.11.40 SetA Command..........................47 3.11.41 SetS Command..........................48 3.11.42 SrcNames Command........................48 3.11.43 SysName Command........................49 3.11.44 SysType Command.........................49 3.11.45 Vars Command..........................50 Page 5 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com...
- Page 6 4.3.3 Linux..............................55 5 Troubleshooting..............................57 5.1 Unknown IP address...........................57 5.2 Unexpected reboots............................57 6 Reference................................58 6.1 Specifications.............................58 6.2 Serial Interface Pinout..........................58 6.3 GPIO Auxiliary Interface...........................59 6.4 Glossary..............................60 7 Matrix Switch Corporation Warranty......................61 Page 6 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com...
-
Page 7: Getting Started
1.1 Device Connections The MSC-XD3232L comes with a power supply adapter, a redundant power supply and a documentation CD. Additional cables and hardware are not usually provided. Power supply adapter – A 12 VDC 5 Amp power supply adapter is provided which is connected to the •... -
Page 8: Powering Up The Device
• 1.3 Front Panel Button Interface The MSC-XD3232L is equipped with a 32x32 button panel which provides one of several options for controlling and viewing the status of the routing matrix. This panel interface provides separate input and output buttons. One output button is active at a time, indicated by it being lit. -
Page 9: Network Settings
Labels can be up to 8 characters in length. The default source labels use “Src” as a prefix, and the destination labels use “Dest” as a prefix (example: Src1). The presets are labeled “Startup” for Preset 0 and Page 9 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 10: Presets
1.4.6 Panel Remote Router IP Address Remote panels control Matrix Switch Corporation video/audio routers with the TCP/IP protocol via the Ethernet port. NOTE: The button panel interface of a router device may also be used to remotely control a different router. In that case the Control Mode selection setting is used to determine the mode of the panel interface. - Page 11 IP addresses to their Remote Router IP setting of the router they will control. Additional configuration changes may be required, depending on the application and are described in subsequent sections. Page 11 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com...
-
Page 12: Installation Example
• sources. The applicable settings for advanced panel control scenarios can be found on the Config Tab of the Web Page Interface. Refer to that section for additional details. Page 12 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 13: Web
2.1 Overview Figure 1: Routing Tab All Matrix Switch Corporation Router and Remote Panel systems include a built in web page that can be used with standards compliant Javascript enabled web browsers, including but not limited to Firefox, Chrome, Safari and recent versions of Internet Explorer. -
Page 14: Changing A Connection
No Change and Mute (the latter only if available for the given level). The No Change option indicates that the Destination for the given Level should not be changed from its current value, when the preset Page 14 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 15: Loading Work Matrix From A Source Target
Editing an existing Preset – Editing a Preset is done by loading it to the Work Matrix, making the • desired changes and saving it back to the same Preset. All this is accomplished without changing the Active Routing matrix state. 2.4 Labels Tab Page 15 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 16: Config Tab
Presets can also be assigned label names. Click the Save button to save changes that have been made. 2.5 Config Tab Page 16 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 17: System Settings
DHCP enable, the IP Address or the Netmask shall result in having to access the web page with the new settings. If there are Matrix Switch Corporation remote control panels which access the system which has Page 17 of 61 ©... -
Page 18: Button Panel Settings
0, the secondary level control is disabled. Can only be assigned a non-zero value if Level1 Override is also non-zero. If set to 3 for example, the secondary level would be level 3. Page 18 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 19: Command Tab
Clicking the Clear Output button will clear all command output in the lower area. See the section Mascot Control Protocol for more information. Page 19 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 20: Mascot Control Protocol
MASCOT (MAtrix Switch COrporation ProTocol) provides an ASCII text based command interface via several different transports to control and get status from Matrix Switch Corporation devices. This command protocol can be utilized for manual control or for integration with automation control systems. -
Page 21: Telnet Access
Carriage Return (ASCII 13), indicates the end of a command or chain of commands, Enter key. <BS> Backspace character (ASCII 11), can be used to backspace characters in interactive command shells. “ Used for double quoting string arguments. Used for single quoting string arguments. Page 21 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 22: Command Names
Double or single quoted string not terminated. Backspace limit Devices have a limited backspace buffer size, if too many characters are reached backspaced and then more characters are appended, this error will occur. Page 22 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 23: Command Arguments
Network mask string argument, specified as 4 decimal numbers from 0 to 255 separated by periods. Must be a valid IPv4 netmask. Number Numeric value. Valid values depends on command. Preset Preset number (preset 0 is special Startup preset) Page 23 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 24: System Parameters
Commands which use only Stored memory require a reboot to become Active. Table 8: System Parameter Table Columns 3.7.1 System Parameter Table Parameter Value Access Set Description ctl.mascot.ver String Mascot version in the form MAJOR.MINOR (3.0 for example). Page 24 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 25: Core Commands
Clear a preset to “No Change” values. PsetNames [Preset][Label] Preset names command. PSub (Preset)(Dest)[Lvl] Subtract a connection from a preset. PView [Preset] View preset. Quit Quit TCP/IP telnet session. Reboot Reboot the system. Page 25 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 26: Configuration Commands
[0 | 1] Disable SDI reclockers (not all SDI router systems are supported). RemoteSync [0 | 1] Query or assign remote router syncing. Useful for creating a 3D system out Page 26 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 27: Command Reference
Secondary levels use empty strings to indicate that the label of the first level should be used. Examples >DestNames “Dest1”,”AudDest1” “Dest2”,”” “Dest3”,”” “Dest4”,”” >DestNames 1 “Dest1”,”AudDest1” >DestNames 1,2 Page 27 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 28: Dhcp Command
IP assignment by MAC address or if there is a way to determine what IPs the Matrix Switch Corporation systems get assigned. Otherwise it may become difficult to determine what IP address to use when accessing the Web Page or other control interfaces. In the event that the IP address or... -
Page 29: Firmware Command
> 3.11.7 Gateway Command NOTE: Superseded by the net.gateway System Parameter. Query or assign the network Gateway IP address. This is usually only needed on Remote Panel systems which Page 29 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 30: Get Command
Examples of querying all parameters, “mtx” parameters, and “net.ip” parameter. >Get ctl.mascot.ver=2.3 ctl.serial.baud=115200 ctl.serial.log=0 ctl.serial.proto=mascot ctl.serial2.baud=115200 ctl.serial2.log=0 ctl.serial2.proto=mascot mtx.serial=1 mtx.sync=0 net.dhcp=0 net.gateway=192.168.2.1 net.ip=192.168.2.60 net.mac=00:50:C2:8B:DF:FE net.netmask=255.255.255.0 pnl.cmdEn=1 pnl.ip=0.0.0.0 sys.arch=Pyxis sys.descr= sys.firmware=Pyxis 1.1.7 sys.name=MSC-Router >Get mtx mtx.serial=1 Page 30 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 31: Gets Command
>IP 192.168.2.60 >IP 192.168.2.61 > 3.11.12 LockStatus Command Routers only Query the video lock status and video rate of a Video Router's outputs. This command is only supported on Page 31 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 32: Mac Command
Assign a destination mapping on all levels for Dest1 to physical Dest2. MapDest Dest1 Dest2 Level Assign a destination mapping on a single level for Dest1 to physical Dest2. Examples >MapDest 1:4,4 2:3,2 Page 32 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 33: Mapsrc Command
2 is remapped to source 3 on the first level and source 2 on the second level. The second example queries the mapping for a single source. The third example maps Page 33 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 34: Mascotver Command
Flags table below. Flags Name Value Description mute Mute support. lock Video lock status query support reclk Reclocker disable support. Example >MtxCfg [[8,8,3][4,8,0]] Page 34 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... - Page 35 Count of sources for the level. FLAGS A space separated list of flag keywords indicating support for various features, as defined by the Name column in the Flags table above. Page 35 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com...
-
Page 36: Mtxgroup Command
I/O grouping for separate levels (for example separate video and audio levels). Real world examples of I/O grouping include: dual channel 3D video and combining multiple audio channels (4 AES digital audio streams for example). Page 36 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 37: Netmask Command
Recalls a preset. Each Router system contains 10 presets numbered 0 through 9 which can store the entire matrix routing state or one or more single destination connections. Preset 0 is recalled on system power up. Page 37 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 38: Padd Command
This setting is stored and recalled on power up. Command Description PairIO Query current value of I/O pairing configuration. PairIO 0 | 1 Enable or disable I/O pairing (0: disable, 1: enable) Example >PairIO Page 38 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 39: Panelcmd Command
1 (GPIO pins start at 65) will recall preset 0. The second command queries the panel command for button 1. The third command assigns the command “P1” to GPIO pin 2 (ID 66). The fourth command clears the command assigned to GPIO pin 2. Page 39 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 40: Panelcmden Command
S ystem P arameter to activate them. Command Description PanelCond Query all assigned panel button/GPIO conditions. PanelCond Button Query a single panel button/GPIO condition. Page 40 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 41: Paneldis Command
Query or assign external button interface panel enable setting (if applicable – not all router devices have an external panel interface). This setting is stored and recalled on power up. Command Description Page 41 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 42: Panelrate Command
Clear a preset. For Preset 0 this sets all Destinations to Source 0. Other Presets are assigned “No Change” to all Destinations. This command stores preset information which is available through system power cycles. Command Description PClr PRESET Clear a preset. Example to clear preset 1 >PClr 1 Page 42 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 43: Protoser Command
Assign a preset label. When querying names, labels are surrounded by double quotes and separated by newlines. Examples >PsetNames “Startup” “Preset1” “Preset2” “Preset3” “Preset4” “Preset5” “Preset6” “Preset7” “Preset8” “Preset9” >PsetNames 1 “Preset1” Page 43 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 44: Psub Command
0 indicates “Mute” • Command Description PView Display all presets. PView PRESET Display a single PRESET. Example on a 16x4 system with 2 levels >PView 1 1:1,1 2:2,2 3:6,7 4:0,- > Page 44 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 45: Reboot Command
This value is stored and recalled on power up. Command Description RemoteSync Query current value of remote router syncing. RemoteSync 0 | 1 Enable or disable remote router syncing (1 or 0 respectively). Examples >RemoteSync Page 45 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 46: S Command
115200 >SerBaud 9600 > The first example command queries the serial baud rate value which is the default of 115200 and the second command sets it to 9600 baud. Page 46 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 47: Set Command
NOTE: Some parameters may not be assignable in Active memory. Such parameters must be set in Stored memory followed by a system restart to activate the changes. See System Parameters for more details. Page 47 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 48: Sets Command
Secondary levels use empty strings to indicate that the label of the first level should be used. Examples >SrcNames “Src1”,”AudSrc1” “Src2”,”” “Src3”,”” “Src4”,”” >SrcNames 1 “Src1”,”AudSrc1” >SrcNames 1,2 “AudSrc1” >SrcNames 1,2,”” Page 48 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 49: Sysname Command
NOTE: This command was not added until version 2.3 of the Mascot protocol. On previous versions, this command is available on the MSC-GCP2U32 LCD panel but not other Matrix Switch Corporation systems. When determining the system type, if executing the command returns an Invalid Command error, the system series can be assumed to be Carina. -
Page 50: Vars Command
Profile=1 SerBaud=115200 SerProto=Mascot SysName=MSC-Panel SysType=2 > The example above shows a typical output of the Vars command for an MSC-GCP2U32 LCD panel. 3.11.46 W Command Routers and MSC-GCP2U32 only Page 50 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 51: Webpass Command
(Protocol Version 2.2) The value 0 can be used for SRC to Mute a destination (if supported for a given level). Page 51 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... - Page 52 > The above would connect source 4 to destination 1, source 3 to destination 2, source 2 to destination 3 and source 1 to destination 4 for all levels. Page 52 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com...
-
Page 53: Software Updates
4.1 Software Update on Pyxis Series Devices Once a valid software update image is obtained from Matrix Switch Corporation for the applicable hardware series, the following procedure can be used to perform a software update. -
Page 54: Tftp Software
5. Make sure to replace 192.168.2.59 with the device's IP address if the update procedure being used utilizes the device’s assigned IP and replace MSC-Pyxis-Firmware-x.x.x.img with the correct version number of the file. Page 54 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 55: Mac Os X
2. Open a Terminal command line application (CTRL-ALT-T will do this on many desktop environments). 3. Use 'cd' commands to change to the directory where the firmware file is located, for example (if the Page 55 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... - Page 56 8. The TFTP program will indicate if the transfer was successful or not. 9. If the transfer failed (timed out, etc), retry the put command or quit the application (type 'quit' and ENTER) and start over from step 4. Page 56 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com...
-
Page 57: Troubleshooting
If the device is rebooting unexpectedly (detectable on routers when the routing state gets reset to preset 0), make sure the correct power supply is being used with the device (12 VDC 5 Amp). Page 57 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 58: Reference
Format NTSC, PAL and Tri-level sync 6.2 Serial Interface Pinout An RS-232 serial port is provided for system control. This interface uses serial signals with 8 data bits, No Page 58 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 59: Gpio Auxiliary Interface
Pin # Name Pin # Name Pin # Name GP10 GP19 GP11 GP20 GP12 GP21 GP13 GP22 GP14 GP23 GP15 GP24 GP16 Ground GP17 GP18 Page 59 of 61 © 2013-2019 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 60: Glossary
Network router, which is referred to as a Network Switch in this manual). Simple Panel – A Matrix Switch Corporation Remote Panel which has buttons only. • Smart Panel – A Matrix Switch Corporation Remote Panel which comes equipped with an LCD screen • interface. -
Page 61: Matrix Switch Corporation Warranty
MSC-XD3232L Product Manual 7 Matrix Switch Corporation Warranty MSC provides the following limited warranty with its products: 1. MSC warrants that the equipment it manufactures is free from defects in material and workmanship. 2. This warranty begins on the day the product is shipped from MSC and shall be in effect for two years.
