Before using this product, please read the guide carefully to avoid
any damages to the product, do not misconfiguration or misuse.
Distributed by: TechBrands by Electus Distribution Pty. Ltd.
320 Victoria Rd, Rydalmere, NSW 2116 Australia
Ph: 1300 738 555
Fax: 1300 738 500
Made in China
1080p
WiFi IP Camera
QC3858
Int'l: +61 2 8832 3200
www.techbrands.com
Advertisement
Table of Contents
Related Manuals for Nextech QC3858
Summary of Contents for Nextech QC3858

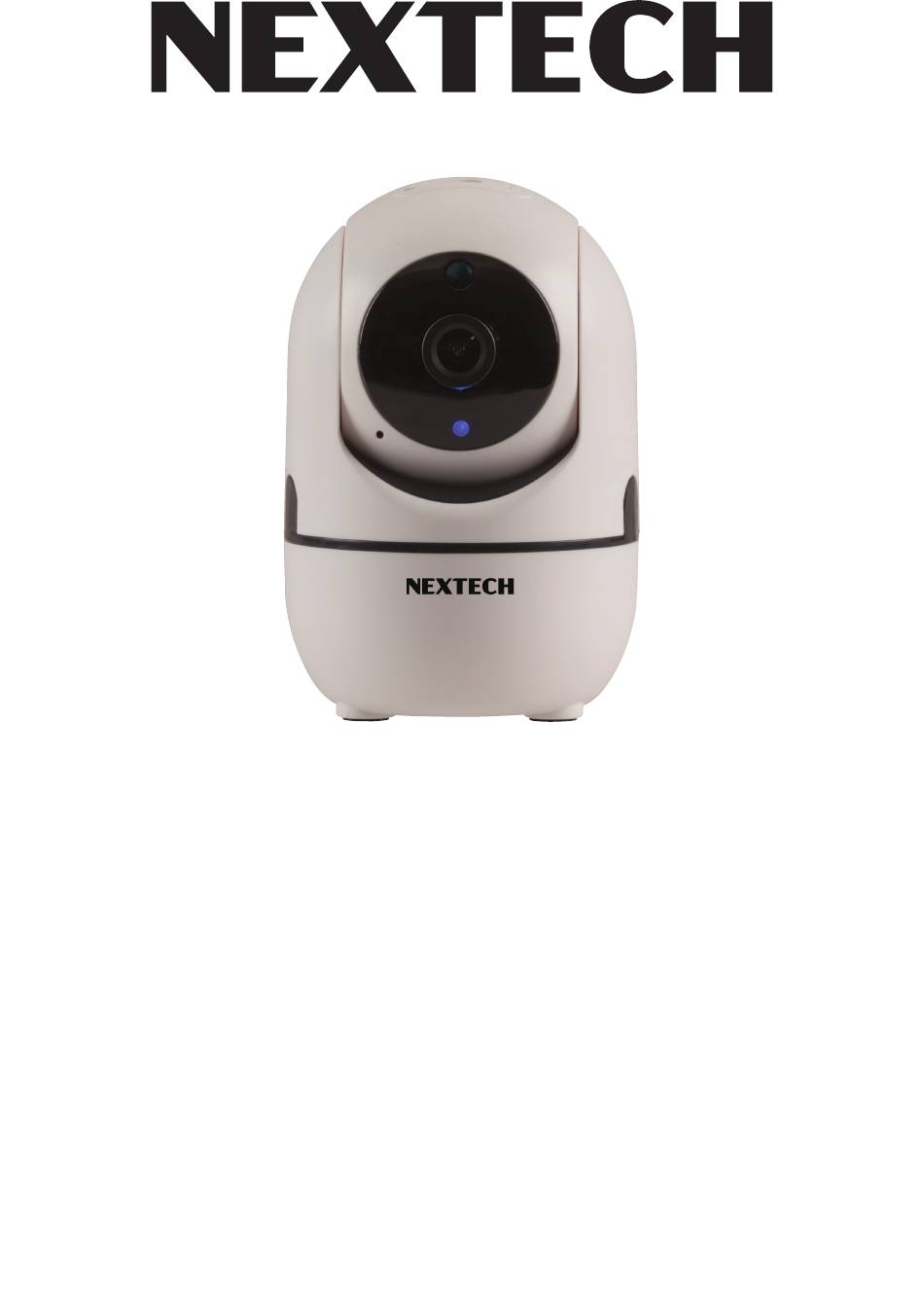

- Page 1 1080p WiFi IP Camera QC3858 Before using this product, please read the guide carefully to avoid any damages to the product, do not misconfiguration or misuse. Distributed by: TechBrands by Electus Distribution Pty. Ltd. 320 Victoria Rd, Rydalmere, NSW 2116 Australia Ph: 1300 738 555 Int’l: +61 2 8832 3200...
-
Page 2: Product Description
1. Product Description 1.1 Packing list IP Camera User Manual Before using this product, please read the guide carefully to avoid any damages to the product, do not misconfiguration or misuse. Camera Adapter USB cable User manual *Pictures are only for reference. 1.2 Product outlook TF card slot Reset... -
Page 3: Installation
Open the App Store and search for “Nextech Smart Cam” Download and install the Linked app onto your iPhone. For Android phone users: Open the Google Play Store and search for “ Nextech Smart Cam” Download and install the Linked app onto your Android phone. Nextech SmartCam 2.2 Device Hardware installation... - Page 4 Different LED colors correspond to different camera status: Blue System start up Slow blue flash Syncing mode Fast blue flash Connecting to Wi-Fi Solid blue Camera working properly 2.3 User Account Registration 1. After opening the app for the first time, register your account by clicking ‘sign up’...
- Page 5 2.4 Camera Device and Phone Synchronization Click Add Camera button, click on ‘connecting my camera’ Step 1: Check to see if the front LED light is flashing: After powering on the camera, the LED light should be flashing blue, click on ‘Next’ and proceed to Step 2. Step 2: Connect to your wifi network(802.11 b/g/n 2.4GHz): a.
-
Page 6: App Functions
Nextech SmartCam 3. App functions 3.1 Live video After syncing successfully, click the IP Camera interface to view live video. Smooth, SD and HD video definition are available. 3.2 Video Recording 3.2.1 Users can record video on live video interface , by pressing the red video recording icon on the left, refer to photo below. - Page 7 Refer to photo below. X10 Linked Nextech SmartCam 3.3 SNAPSHOT SHARING Our camera provides a function that shares any snapshot photos to Email/SMS, etc. To access snapshots, please follow...
- Page 8 Note: Please follow the same procedure under user account registration in page 2 to register and verify the email address you are willing to add as a sub-account prior to adding it as new sub-account. Nextech SmartCam Figure 2 Figure 3 Figure 4 3.5 VIEWING LOCK...
-
Page 9: Two Way Audio
Nextech SmartCam Nextech SmartCam Figure 5 Figure 6 Nextech SmartCam Figure 7 Figure 8 3.6 TWO WAY AUDIO When you are viewing camera, you can press the “Microphone Icon” as indicated in Figure 8 above and talk or if the volume on the phone is up the voice from the camera could be heard in the phone. -
Page 10: Infrared Night Vision
You can adjust the timing of the alarm and enable/disable alarm sound under the camera setting. 3.9 REMOTE CONTROL YOUR QC3858 BY APP Enter the live video interface of the Nextech Smartcam Camera APP, using the direction arrows on the screen: up/down/left/right t control the camera to rotate vertically/horizontally. - Page 11 4. Warning ● When using the camera, please avoid rain, fire and lightning. The camera’s working humidity range is: 20%-50% indoor, 20%-70% outdoor. Working temperature range is: -10°-50℃ (14°-122°F) indoor; -20°-55℃ (-4°-131°F) outdoor. ● The IP Camera is designed to ensure the security and confidentiality of its users, but cannot completely guarantee the threat of being compromised, due to various setup circumstances.
-
Page 12: Other Notes
4) Cannot replay video? ☆ Check if there is a micro-SD card. ☆ Insert a micro-SD card, you can replay video after 10 minutes. 5) If the Wi-Fi is hidden, why cannot I find any network or camera device? Our camera device can only connect to non-hidden Wi-Fi networks. 6) How to restore Factory Settings? While the camera device is on, use a small object to hold down the reset button located on the back of the unit for 3-5 seconds.
