Summary of Contents for Nextech QC3857

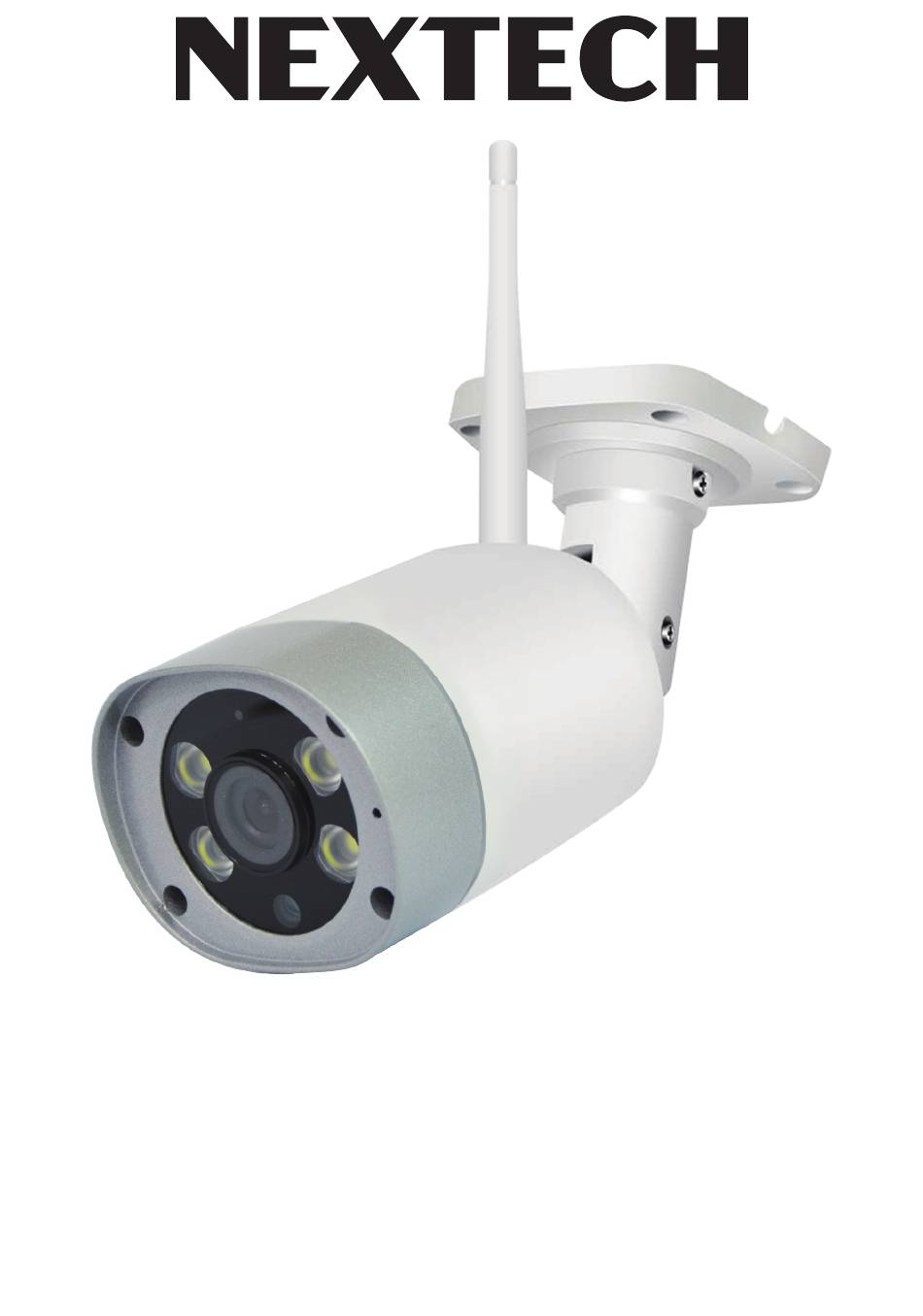

- Page 1 1080p Wi-Fi IP Camera with LED Spotlights QC3857 User Manual...
-
Page 2: Product Description
1. Product Description 1.1Packing List Outdoor Dual Light IP Camera User Manual Before using the product, please read this guide carefully to avoid any damages to the product. Camera Power adapter User manual 1.2 Product Outlook WiFi antenna LED indicator light Lens... -
Page 3: Before You Begin
3. Installation 3.1 App Installation For iPhone users: Search and download the APP “Nextech SmartCam” in Apple Store, install it onto your iPhone and register your account. For Android phone users: Search and download the APP “Nextech SmartCam” in Google Play, install it onto your Android phone and register your account. -
Page 4: User Account Registration
3.2 Device Hardware Installation Connect power supply with the camera, then wait for the indicator light to flash blue. LED indicator light status Blue System starting up Blue flashing slow Pairing mode Blue flashing fast Connecting to WiFi Blue Camera works properly Note: The LED indicator light can be turned off in the Setting of the app if required. - Page 5 3.4 Camera Device and Phone Synchronization Click Add Camera button, click on ‘connecting my camera’ Step 1: Check to see if the front LED light is flashing: After powering on the camera, the LED light should be flashing , click on ‘Next’ and proceed to Step 2. blue Step 2: Connect to your wifi network(802.11 b/g/n 2.4GHz): a.
-
Page 6: App Functions
d. You will hear a scrambled sound being played from your phone. Keep your phone still and wait for the duration of the transmission, before you move your phone away. Afterwards, the voice prompt will indicate that the binding was successful and the app will redirect to the camera view interface automatically. - Page 7 NEXTECH 4.2.2 Playback: Click “Playback” icon and choose the time to replay the video recorded in the MicroSD card. Select the date and time you wish to playback. You can fast forward/backward by swiping on the time bar. Tap on the camera icon to take a screen shot while replaying the video.
- Page 8 4.4 SUB-ACCOUNT MANAGEMENT Sub-Accounts gives you the option to allow for multiple users live access to the same camera. Each camera can support up to 15 live viewer accounts (including the Administrator account). The administrator can add and delete sub-accounts by using Sub-Account Management function.
-
Page 9: Video Lock
Figure 5 & 6 below. 2) In the Setting screen, tap on the ‘Video Lock’ button [defaulted to ‘Not Set’] as indicated in Figure 7 below. 3) Draw an pattern to creat video lock. NEXTECH Jawa Jawa Figure 5... -
Page 10: Two Way Audio
4.6 TWO WAY AUDIO When you are viewing camera, you can press the “Microphone Icon” as indicated in Figure 8 above and talk or if the volume on the phone is up the voice from the camera could be heard in the phone. - Page 11 Setup to work on Windows PC (support WinXP/Win7/Win8/Win10) 1.Download Download the software from www.jaycar.com.au 2.Login your registered Nextech account on “IP Camera”to view the connected camera -11-...
- Page 12 Important guidelines on Onvif This camera is compatible with Onvif 2.0 protocol, can work with Network Video Recorder. Below info will be needed when connecting the camera with NVR. Protocol Select "Onvif" input the IP add of the camera IP address User name admin (default) input the NVR password of the camera...
-
Page 13: Troubleshooting
Warning ● When using the camera, please avoid rain, fire and lightning. The camera’s working humidity range is: 20%-50% indoor, 20%-70% outdoor. Working temperature range is: -10°-50℃ (14°-122°F) indoor; -20°-55℃ (-4°-131°F) outdoor. ● The IP Camera is designed to ensure the security and confidentiality of its users, but cannot completely guarantee the threat of being compromised, due to various setup circumstances. - Page 14 Problem Solution The camera Refresh the device list by swiping down on your will not show smartphone. in the device list after Exit the app and login again. successful pairing. The camera Re-insert the power adapter and restart the appears device as sometimes it can be caused offline.
- Page 15 Problem Solution Won’t Check to see if the WIFI password has been connect to changed. the internet. Check the audio settings on your phone and allow microphone the app to have access to the microphone. isn’t working. The video is Change the recording setting to HD to show the not clear.
- Page 16 1. Cannot bind camera device? ☆ User can only bind when the camera device is in the pairing mode ( pls refer to 2.2 ). Otherwise, you cannot bind a camera device successfully when out of the pairing mode. ☆ Make sure the environment around the camera is quiet when transmitting the “sound wave”...
- Page 17 7. I have forgotten my password A:Press the forget password button to retrieve it via security email address. If you have not set this ; please contact your place of purchase to have the unit reset. 8. Can more than one person view my camera A: Yes, up to 15 users can view a single camera.
-
Page 18: Other Notes
OTHER NOTES: ● To refresh your camera list, pull-down on the screen while viewing the camera list. ● After binding the device and phone successfully, if the camera device does not appear on the homepage, refresh the camera list interface. If the device is still not showing, log out of your account, then login again.
