CEM DT-111 Instruction Manual

INSTRUCTION MANUAL
POCKET AUTORANGING DMM

Safety

International Safety Symbols

This symbol, adjacent to another symbol or
terminal, indicates the user must refer to the manual
for further information.
This symbol, adjacent to a terminal, indicates that,
under normal use, hazardous voltages may be
present.
Double insulation

Safety Precautions

1. Improper use of this meter can cause damage, shock, injury or
death. Read and understand this users manual before
operating the meter.
2. Make sure any covers or battery doors are properly closed and
secured.
3. Always disconnect the test leads from any voltage source
before replacing the battery or fuses.
4. Do not exceed the maximum rated input limits.
5. Use great care when making measurements if the voltages are
greater than 25VAC rms or 35VDC. These voltages are
considered a shock hazard.
6. Always discharge capacitors and remove power from the
device under test before performing Capacitance, Diode,
Resistance or Continuity tests.
7. Remove the battery from the meter if the meter is to be stored
for long periods.

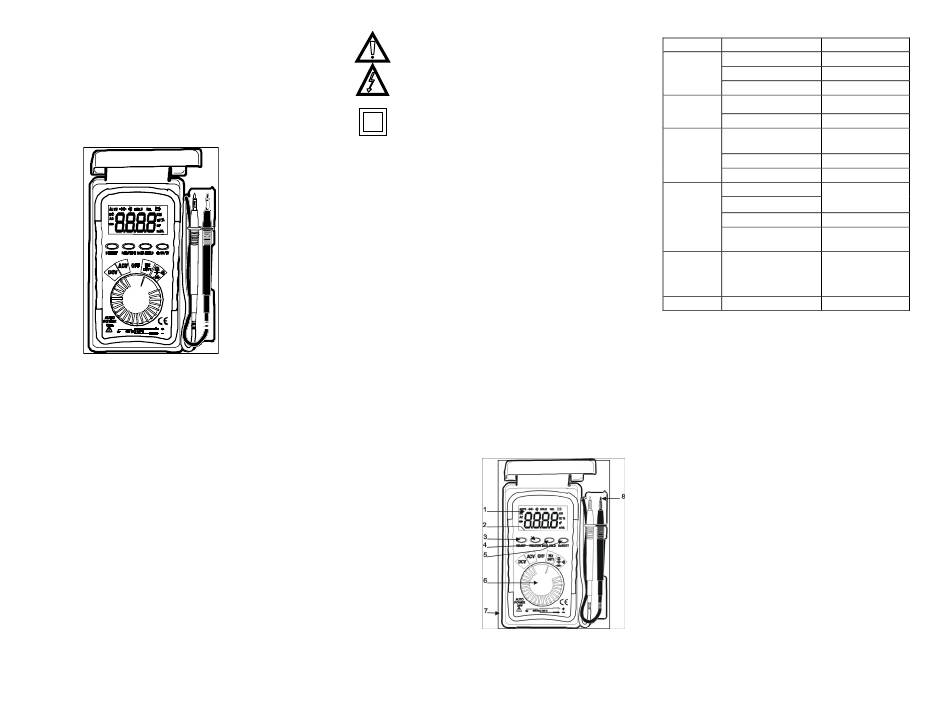

Description

Meter Description

1. 3 3/4 Digit (4000 count)
2. Relative Button
3. SELECT button
4. Data Hold Button
5. Hz/DUTY button
6. Function switch
7. Plastic case
8. Test leads

Specifications

Electrical Specifications

Function Range Accuracy
DC Voltage 400.0mV
±(0.7% rdg + 3d)
4.000V, 40.00V,
±(1.0% rdg + 3d)
400.0V, 500V
±(1.3% rdg + 3d)
AC Voltage 4.000V, 40.00V
±(1.0% rdg + 10d)
40-60Hz
400.0V, 500V
±(2.3% rdg + 5d)
Resistance
400.0Ω4.000kΩ, ±(2.0% rdg + 5d)
40.00kΩ, 400.0kΩ
4.000MΩ ±(5.0% rdg + 5d)
40.00MΩ ±(10.0% rdg + 5d)
Capacitance 4.000nF
±(5.0% rdg + 30d)
40.00nF
400.0nF
±(3.0% rdg + 15d)
4.000µF, 40.00µF,
±(10.0% rdg + 15d)
200.0µF
Frequency 5.000Hz, 50.00Hz,
5000.0Hz, 5.000kHz,
±(2.0% rdg + 5d)
50.00kHz, 500.0kHz,
10MHz
Duty Cycle 0.1-99%
Max input voltage 500V AC/DC
Input Sensitivity,
10Vrms min. <9.999KHz
(Frequency Ranges) 40Vrms min. >99.99KHz
Diode Test
Test current 1mA max., open circuit voltage
of 1.5V typical
Continuity Check Audible signal if the resistance is < 60Ω
Display 4000 count 3 ¾ digit LCD
Over range indication LCD displays "OL"
Polarity Minus (-) sign for negative polarity.
Low Battery Indication "BAT" symbol indicates low battery
condition.
Battery CR2032 3V Lithium
o o o
Operating Temperature 32 F to 104 F (0 C to 40
o o o
Storage Temperature 14 F to 122 F (-10
Weight 1.7oz (50g)
Size 4.25x2.2x.5" (108x56x11.5mm)
Standard IEC1010 CAT II 500V Pollution degree II,
CE Approved
o
C)
o
C to 50 C)
