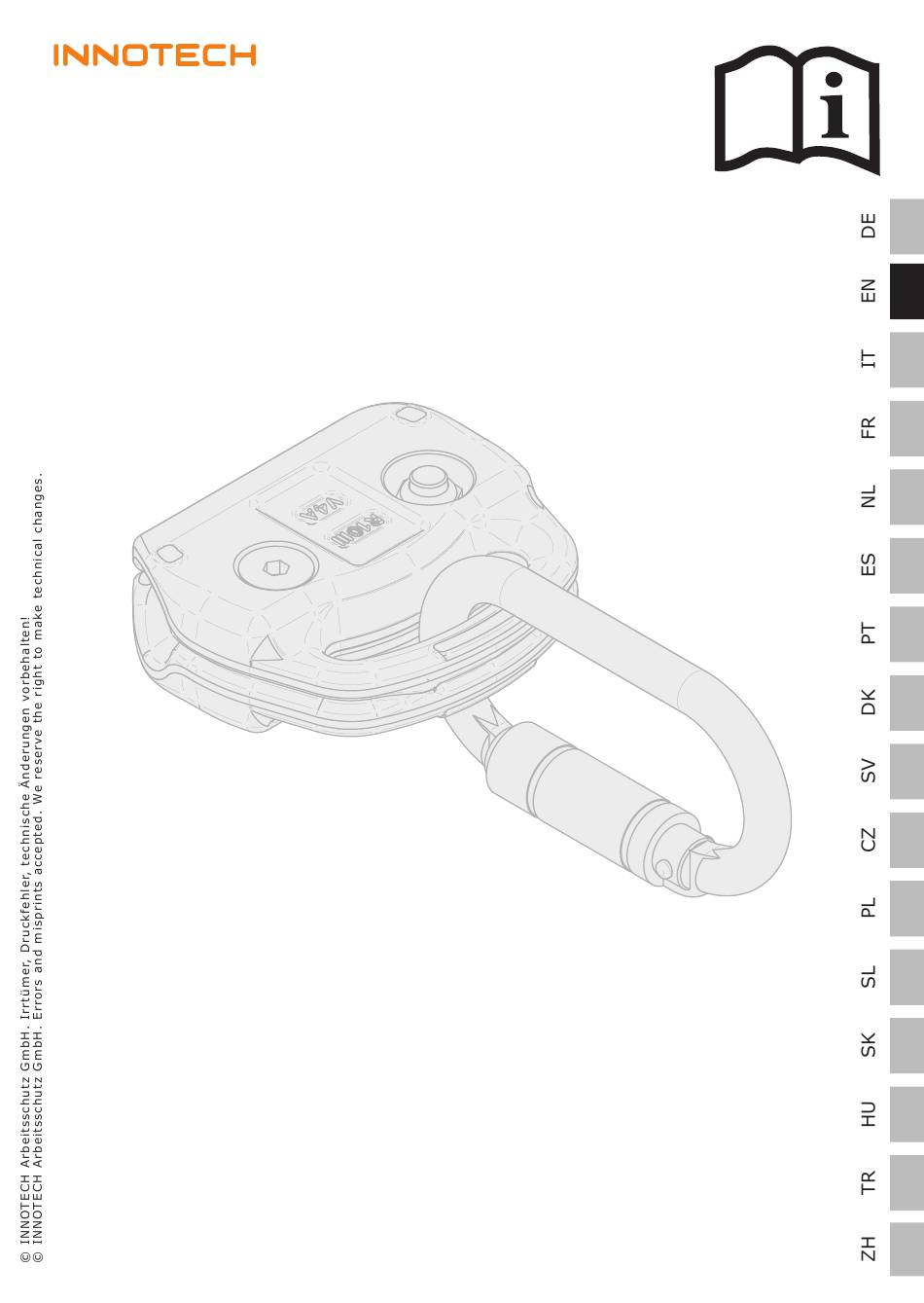

AIO-GLEIT-13
Instruction manual
DE – ACHTUNG: Die Verwendung des INNOTECH-Produkts ist erst zulässig, nachdem die
Gebrauchsanleitung in der jeweiligen Landessprache vollständig gelesen und verstanden wurde.
EN – ATTENTION: Use of the INNOTECH product is only permitted after the instruction
manual has been read and fully understood in the respective language.
IT – ATTENZIONE: L'utilizzo del prodotto INNOTECH è permesso solo previa lettura e
comprensione dell'intero manuale di istruzioni nella lingua del relativo paese di utilizzo.
FR – ATTENTION : L'utilisation du produit INNOTECH n'est autorisée qu'après avoir
entièrement lu et compris la notice d'utilisation dans la langue du pays concerné.
NL – ATTENTIE: Dit INNOTECH-product mag pas gebruikt worden nadat u de gebrui-
kershandleiding in de taal van het betreffende land gelezen en begrepen hebt.
ES – ATENCIÓN: Se autorizará el uso de los productos INNOTECH una vez que se hayan
leído y entendido las instrucciones de uso en el idioma del país.
PT – ATENÇÃO: O uso do produto INNOTECH apenas é permitido depois de ter lido e
compreendido na totalidade as instruções de uso na respetiva língua nacional.
DK – GIV AGT: Du må først bruge et produkt fra Innotech, efter du har læst og forstået
brugsvejledningen i fuldt omfang i dit lands sprog.
SV – O B S : Denna INNOTECH-produkt får inte användas förrän bruksanvisningen på
respektive lands språk har lästs igenom och förståtts.
CZ – POZOR: Práce s výrobkem INNOTECH je povolena teprve po kompletním přečtení a
porozumění návodu k použití v jazyku daného státu.
PL – UWAGA: Produkty firmy INNOTECH mogą być używane dopiero po dokładnym
zapoznaniu się z całą instrukcją obsługi w ojczystym języku.
SL – POZOR: Uporaba izdelka INNOTECH je dovoljena šele po tem, ko ste navodila preb-
rali v celoti v ustreznem jeziku svoje dežele in jih tudi razumeli.
SK – POZOR: Produkt INNOTECH môžete používať až po prečítaní a porozumení celého
návodu na použitie pre príslušnú krajinu.
HU – FIGYELEM: Az INNOTECH termékek használata csak azt követően engedélyezett,
hogy saját nyelvén elolvasta és megértette a teljes használati utasítást.
TR – DİKKAT: INNOTECH ürününün kullanımına ancak ilgili ülkenin dilinde sunulmuş
olan kullanım kılavuzunun tamamen okunmasından ve anlaşılmasından sonra izin verilir.
注意:只有在仔细阅读并完全理解了当地语言的使用说明后,才能使用 INNOTECH 公司的产品。
ZH –

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AIO-GLEIT-13 and is the answer not in the manual?

Questions and answers

Summary of Contents for Innotech AIO-GLEIT-13

  • Page 1 PT – ATENÇÃO: O uso do produto INNOTECH apenas é permitido depois de ter lido e compreendido na totalidade as instruções de uso na respetiva língua nacional. DK – GIV AGT: Du må først bruge et produkt fra Innotech, efter du har læst og forstået brugsvejledningen i fuldt omfang i dit lands sprog.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS EXPLANATION OF ICONS SAFETY INSTRUCTIONS COMPONENTS/MATERIAL PRODUCT SUITABILITY/APPROVAL INSPECTION WARRANTY SIGNS & MARKINGS DIMENSIONS [10] INSTALLATION TOOLS [11] INSTALLATION [12] STORAGE/DISPOSAL [13] DEVELOPMENT & SALES AIO-GLEIT-13 / Version 170518 / www.innotech.at...
  • Page 3: Explanation Of Icons

    For a POTENTIALLY dangerous situation that could lead to minor physical injuries and damage to property. CAUTION Wear gloves! Wear safety spectacles! Supplementary information/instructions  ü Correct Incorrect Comply with manufacturer information/ instruction manual. AIO-GLEIT-13 / Version 170518 / www.innotech.at...
  • Page 4: Safety Instructions

    If the fall protection system is sold to other countries, the instruction manual must be provided in the respective national language. Comply with the customary national provisions for lightning protection. AIO-GLEIT-13 / Version 170518 / www.innotech.at...
  • Page 5 FOR USERS: FOR SAFE USE Attachment to the fall protection system is made by means of INNOTECH sliders (e.g. AIO-GLEIT-10, -11, -12, -13 or -20). Use the INNOTECH slider only in com- bination with the original carabiner, the INNOTECH "ALLinONE" horizontal lifeline system, and personal protective equipment complying with EN 361 (safety harness) and EN 363 (fall arrest system).
  • Page 6: Components/Material

    C) INNOTECH "TRIPLE-LOCK CARABINER": stainless steel, AISI 304 PRODUCT SUITABILITY/APPROVAL INNOTECH "AIO-GLEIT-13" is part of the INNOTECH "ALLinONE" horizontal lifeline system; it is characterised by resistance-free passage along the stainless steel cable, and is used as a mobile anchorage point for 1 person.
  • Page 7: Inspection

    DEKRA EXAM GmbH, Dinnendahlstrasse 9, D-44809 Bochum, Germany INSPECTION TO BE CHECKED BEFORE EACH USE Prior to every use, INNOTECH "AIO-GLEIT-13" must be checked visually for any obvious defects. DANGER TO LIFE from damage to the INNOTECH "AIO-GLEIT-13". INNOTECH "AIO-GLEIT-13" must be in perfect condition.
  • Page 8: Warranty

    INSPECTION ANNUAL CHECKS Have INNOTECH "AIO-GLEIT-13" inspected at least once each year by a specialist who is familiar with the fall protection system. The user's safety depends on the effective- ness and durability of the equipment. Shorter intervals between inspections may be required, depending on the intensity of use and the environment (e.g.
  • Page 9: Signs & Markings

    D) Year of manufacture and manufacturer's serial number: JJJJ-..-... E) Number of the applicable standard: EN 795 TYPE C F) Maximum number of people who can be secured: Seilgleiter AIO-GLEIT-13 EN 795:2012 TYP C JJJJ-..-... DIMENSIONS [mm] AIO-GLEIT-13 / Version 170518 / www.innotech.at...
  • Page 10: Installation Tools

    INSTALLATION TOOL [mm] SW = 13 SW = 5 INSTALLATION Place the INNOTECH "AIO-GLEIT-13" onto the "AIO-SEIL-30", and screw it tight. SW = 5 2 x 18 Nm SW = 13 Comply with the prescribed torque. AIO-GLEIT-13 / Version 170518 / www.innotech.at...
  • Page 11 INSTALLATION Close the "AIO-GLEIT-13", and lock it using the "TRIPLE-LOCK CARABINER". DONE! In the closed state, the gap must NOT exceed 4 mm. 220° The glide-over angle is approximately 220 degrees thanks to the INNOTECH movable intermediate cable brackets. AIO-GLEIT-13 / Version 170518 / www.innotech.at...
  • Page 12: Storage/Disposal

    STORAGE/DISPOSAL 12.1 STORAGE Keep INNOTECH "AIO-GLEIT-13" free of grease, ice, and snow. Keep INNOTECH "AIO-GLEIT-13" together with the personal protective equipment. 12.2 WASTE DISPOSAL Do NOT dispose the fall protection system in the house waste. As per national requirements, gather together the used parts, and dispose of them environmentally correctly.
