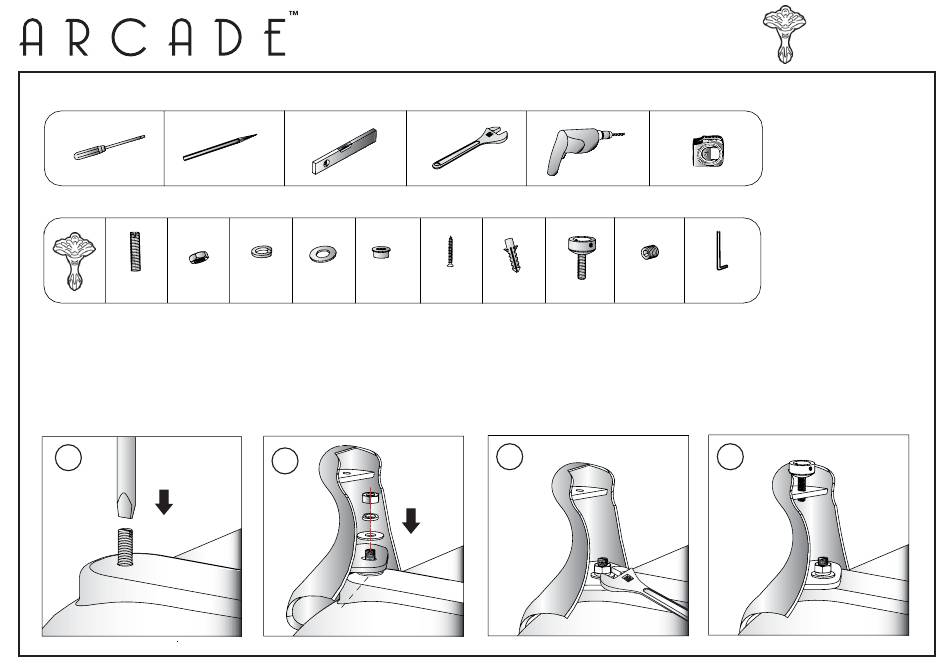

Tools required:
Parts supplied:
M10 *50mm
4x
4x
4x
● Prior to installation check that all parts have been supplied.
● Assemble bath on a mat to protect against damage to bath surface.
● Bath diagram shown below is for reference only and bath legs fit to all baths.
● This product requires a two person lift - use proper lifting techniques.
● This installation guide does not include details of waste connection; final decision about installation of waste connection should
be taken by a suitably qualified person.
● Follow each step in turn.
1
M5 *35mm
4x
8x
4x
2
Extra washers have been provided
if adjustment for the mating of leg
to bath is required.
1 - 2
Ø8.0mm
4x
4x
4x
3
Do not overtighten
Traditional Leg set
ARCE11 NKL
4mm
8x
1x
4
A
Advertisement
Table of Contents
Related Manuals for Arcade ARCE11 NKL
Summary of Contents for Arcade ARCE11 NKL
- Page 1 Traditional Leg set ARCE11 NKL Tools required: Ø8.0mm Parts supplied: M5 *35mm M10 *50mm ● Prior to installation check that all parts have been supplied. ● Assemble bath on a mat to protect against damage to bath surface. ● Bath diagram shown below is for reference only and bath legs fit to all baths.
- Page 2 Ø8.0mm Once the bath is in the general position ready to be plumbed in, we suggest fitting the waste and overflow to the bath. Before you do this Burlington insists you smear silicone sealant around the inside of the overflow and waste to ensure a totally water tight seal.
- Page 3 Natural Stone Authentication Congratulations on choosing a Natural Stone product. Our products contain natural stone being a natural product there may be very slight variations in the finish in certain light conditions. This adds to the uniqueness of our products with each one having its own individual character a welcome rarity these days.
