5.2.1 Install U-bolts and mounting pole

Installation of the U-bolts, which are in turn used to mount the sensor
package on a pole, requires installation of an included metal plate to
receive the U-bolt ends. The metal plate, visible in
source not found.
two U-Bolts will fit. The plate itself is inserted in a groove on the bottom
of the unit (opposite side of solar panel). Note that one side of the plate
has a straight edge (which goes into the groove), the other side is bent
at a 90-degree angle and has a curved profile (which will end up
"hugging" the mounting pole). Once the metal plate is inserted, remove

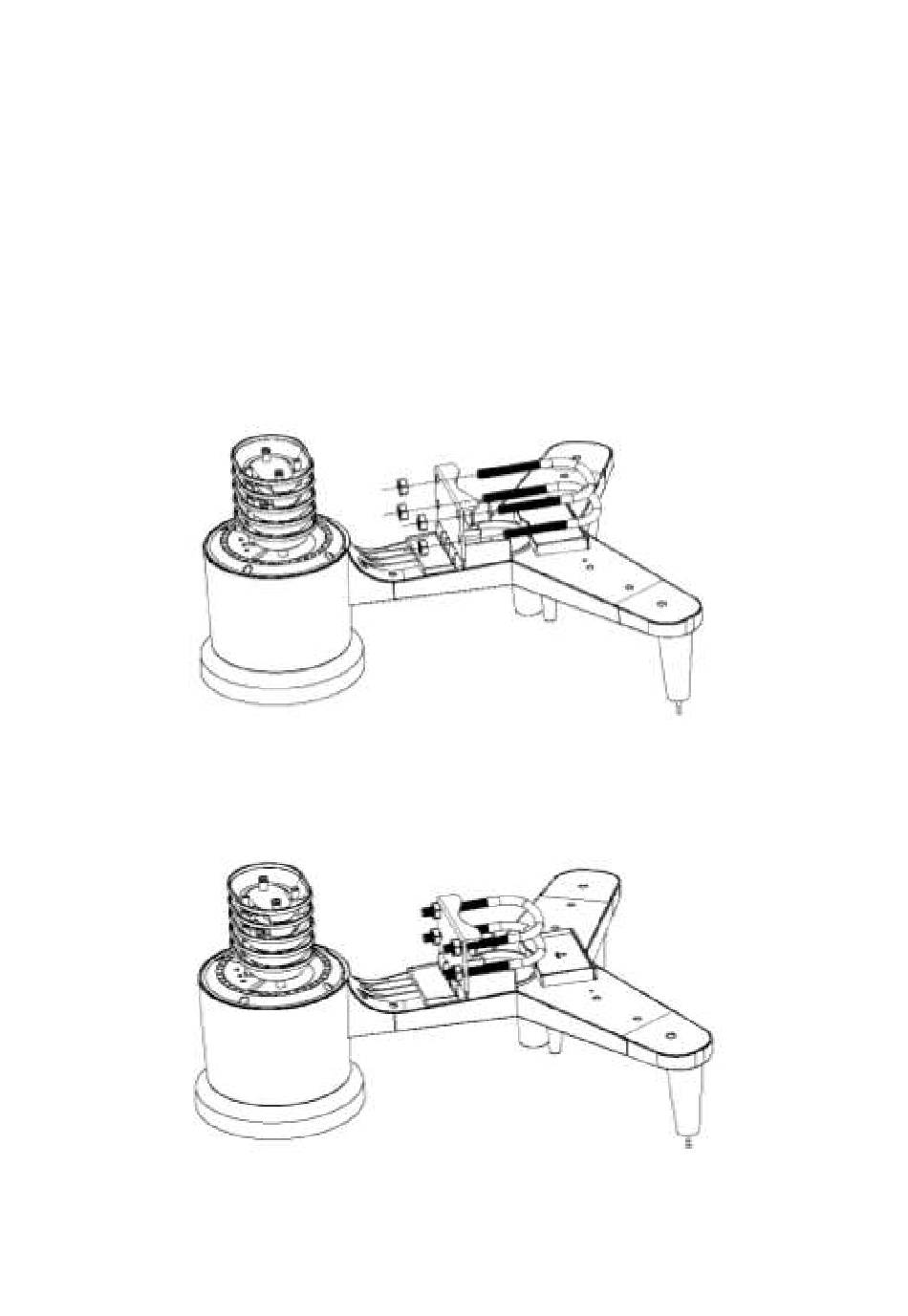

nuts from the U-Bolts and insert both U-bolts through the respective
holes of the metal plate as shown in Figure 8.
Loosely screw on the nuts on the ends of the U-bolts. You will tighten
these later during final mounting. Final assembly is shown in Figure 9.
The plate and U-Bolts are not yet needed at this stage but doing this
now may help avoid damaging wind vane and wind speed cups later
1, has four holes through which the ends of the
Figure 1
Figure 2
