Operating Instructions
FX-SDI-201

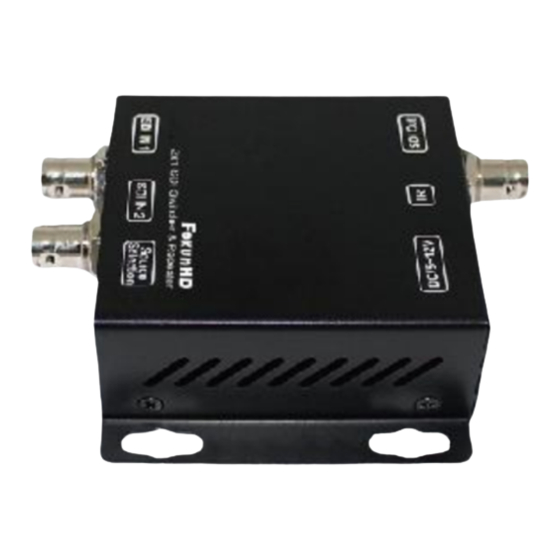

2x1 SDI Switch &Repeater with Re-clocking Function
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please read these
instructions carefully before connecting, operating or adjusting this product. Please keep this manual for
future reference.
ABLE OF CONTENTS
Package Contents
Connecting and Operating
www.foxunhd.com
Advertisement
Table of Contents
Related Manuals for foxunhd FX-SDI-201
Summary of Contents for foxunhd FX-SDI-201
-
Page 1: Table Of Contents
Operating Instructions FX-SDI-201 2x1 SDI Switch &Repeater with Re-clocking Function Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. -
Page 2: Feature
SPECIFICATIONS Re-clocking Function SDI Standards SD-SDI, HD-SDI,3G-SDI SMPTE 259M Supported Protocols SMPTE 292M SMPTE 424M 270Mbps(SD-SDI), 1.485Gbps (HD-SDI), Data Rates 2.97Gbps (3G-SDI) 480i@60hz, 720p@50/59.94/60hz, Video Support 1080i@50/59.94/60hz, 1080p@23.98/24/25/29.97/30/50/59.94/60hz SDI Signal Type SMPTE-292M, SMPTE-259M, SMPTE-424M Output Impedance 75 ohms www.foxunhd.com... -
Page 3: Panel Descriptions
Note: Specifications are subject to change without notice. Mass and dimensions are approximate. PACKING CONTENTS 1) 2x1 SDI Switch &repeater 2) 5V 1A DC power adaptor 3) Operating Instructions Notes: Please confirm if the product and the accessories and all in duded, if not please contact with the dealers. PANEL DESCRIPTION www.foxunhd.com... -
Page 4: Typical Application
3) The distance depends on the quality of the SDI signal from the HD Camera source and also the coax cable & connector. Typical Application 1) Distribute 2 SDI input to 1 SDI output 2) Connect with FX-HSD1 and FX-SDH1 www.foxunhd.com... -
Page 5: Product Service
(c)The unit has been exposed to rain; (d)The unit does not operate normally or exhibits a marked change in performance; (e)The unit has been dropped or the cabinet damaged. 2) Servicing Personnel: Do not attempt to service the unit beyond that described in these operating www.foxunhd.com... -
Page 6: Warranty
COVERAGE".THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRNTY. (As examples, this excludes damages for lost time, cost of having someone remove or www.foxunhd.com... - Page 7 The items listed are not exclusive, but are for illustration only. PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY. www.foxunhd.com...
