Components

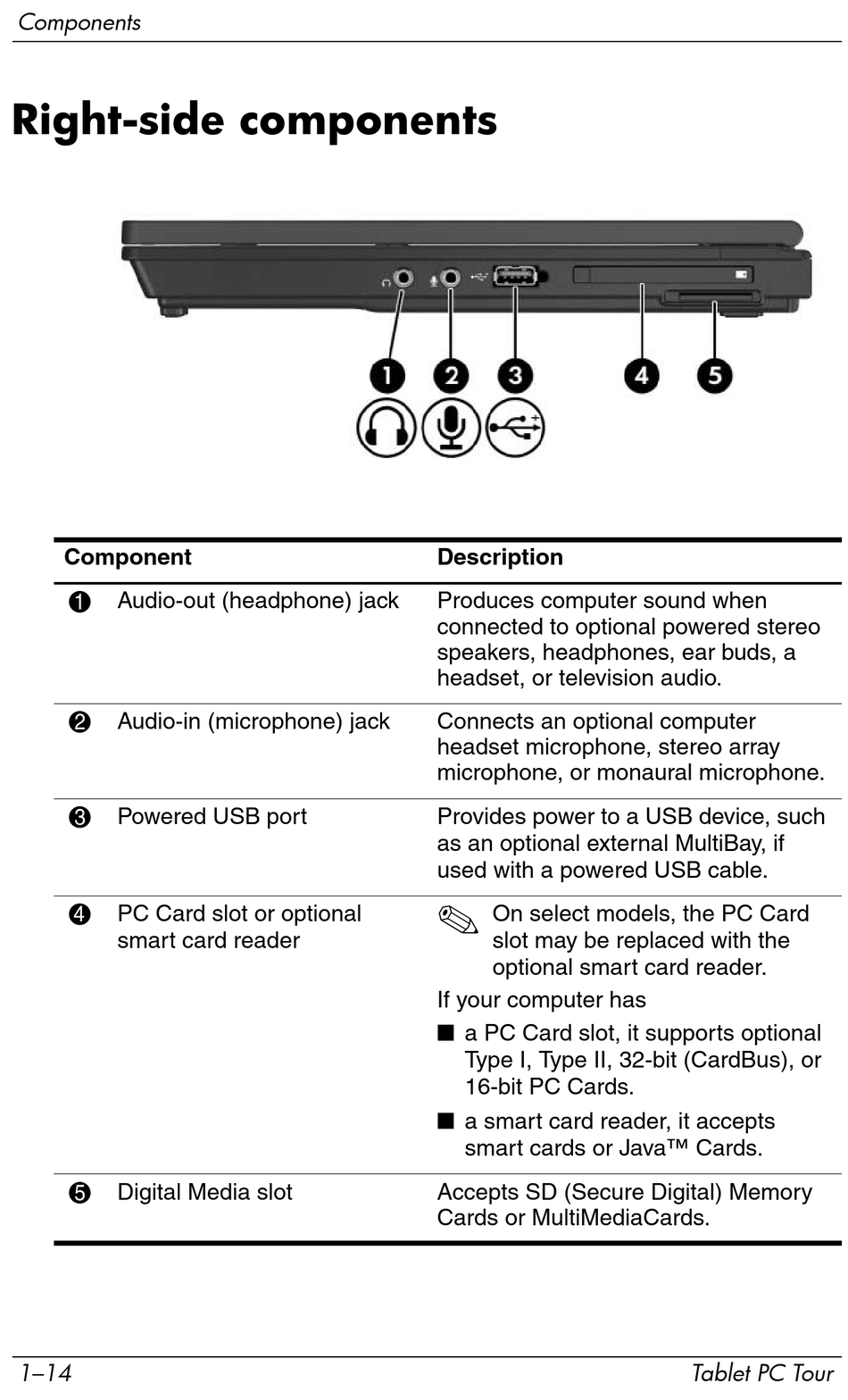

Right-side components

Component
1
Audio-out (headphone) jack
2
Audio-in (microphone) jack
3
Powered USB port
4
PC Card slot or optional
smart card reader
5
Digital Media slot
1–14
Description
Produces computer sound when
connected to optional powered stereo
speakers, headphones, ear buds, a
headset, or television audio.
Connects an optional computer
headset microphone, stereo array
microphone, or monaural microphone.
Provides power to a USB device, such
as an optional external MultiBay, if
used with a powered USB cable.
✎
On select models, the PC Card
slot may be replaced with the
optional smart card reader.
If your computer has
■ a PC Card slot, it supports optional
Type I, Type II, 32-bit (CardBus), or
16-bit PC Cards.
■ a smart card reader, it accepts
smart cards or Java™ Cards.
Accepts SD (Secure Digital) Memory
Cards or MultiMediaCards.
Tablet PC Tour
