Summary of Contents for Hanna Instruments HI 96741C

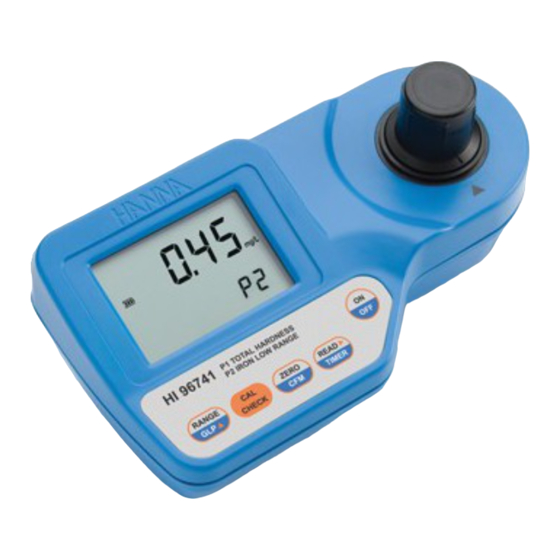

- Page 1 Instruction Manual HI 96741C Total Hardness and Iron LR w w w . h a n n a i n s t . c o m...
-
Page 2: Table Of Contents
BATTERY MANAGEMENT ....................24 BATTERY REPLACEMENT ....................24 ACCESSORIES ........................25 WARRANTY ........................26 All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner, Hanna Instruments Inc., Woonsocket, Rhode Island, 02895 , USA. -
Page 3: Preliminary Examination
It has the advanced optical Each HI 96741C Ion Selective Meter is supplied complete with: system based on a special tungsten lamp and a narrow band interference filter that allows most •... -
Page 4: Precision And Accuracy
SPECIFICATIONS PRINCIPLE OF OPERATION Range Mg Hardness 0.00 to 2.00 mg/L Ca Hardness 0.00 to 2.70 mg/L Absorption of Light is a typical phenomenon of interaction between electromagnetic radiation and Total Hardness 0.00 to 4.70 mg/L matter. When a light beam crosses a substance, some of the radiation may be absorbed by Iron LR 0.00 to 1.60 mg/L Resolution 0.01 mg/L Total Hardness... -
Page 5: Functional Description
A microprocessor controlled special tungsten lamp emits radiation which is first optically FUNCTIONAL DESCRIPTION conditioned and beamed to the sample contained in the cuvette. The optical path is fixed by the diameter of the cuvette. Then the light is spectrally filtered to a narrow spectral bandwidth, to obtain a light beam of intensity I or I. -
Page 6: Errors And Warnings
DISPLAY ELEMENTS DESCRIPTION ERRORS AND WARNINGS The instrument shows clear messages when erroneous condition appears. Messages are also displayed when the obtained values are outside expected range. The beeper is playing a beep on errors. a) on zero reading Light High: There is too much light to perform a measurement. Please check the preparation of the zero cuvette. -
Page 7: General Tips For An Accurate Measurement
Battery low: The battery must be replaced soon. Under range: A blinking “0.00” indicates that the sample absorbs less light than the zero reference. Check the procedure and make sure you use the same cuvette for reference (zero) and measurement. Dead battery: This indicates that the battery is dead and must Over Range: A flashing value of the maximum concentration be replaced. -
Page 8: Startup
• It is important that the sample does not contain any debris. STARTUP This would corrupt the reading. Prepare the instrument for measurement as follows: • Each time the cuvette is used, the cap must be tightened • Unpack the instrument by removing the dust protection sleeve from the instrument cuvette to the same degree. -
Page 9: Measurement Procedure
• Place the cuvette into the cuvette holder and MEASUREMENT PROCEDURE ensure that the notch on the cap is positioned securely into the groove. To compensate the meter for the sample turbidity or color, the measurement takes place in two •... -
Page 10: Validation Procedure
• Replace the cap and swirl the solution. • Turn the meter on by pressing ON/OFF. • Replace the cuvette into the cuvette holder • When the beeper sounds briefly and the LCD and ensure that the notch on the cap is displays dashes, the meter is ready. -
Page 11: Calibration Procedure
• Remove the cuvette. CALIBRATION PROCEDURE • Place the specific CAL CHECK Standard Note: It is possible to interrupt calibration procedure at any time by pressing CAL CHECK or Cuvette B into the cuvette holder, for: ON/OFF keys. Hardness: B, HI 96719-11 Warning: Do not calibrate the instrument with standard solutions other than the HANNA CAL CHECK Standards, otherwise erroneous results will be obtained. -
Page 12: Glp
DATE INPUT • Press RANGE/GLP/ to edit the desired year (2009-2099). If the key is kept In GLP mode , the last user calibration date can be verified and the factory calibration can be pressed, the year number is automatically restored. -
Page 13: Battery Management
ACCESORIES BATTERY MANAGEMENT To save battery, the instrument shuts down after 10 minutes of non-use in measurement mode and after REAGENT SET 1 hour of non-use in calibration mode. HI 93719-01 Reagents for 100 Hardness tests If a valid measurement was displayed before HI 93701-03 Reagents for 300 Hardness tests auto shut off, the value is displayed when the... -
Page 14: Warranty
If the repair is not covered by the warranty, you will be notified of the charges incurred. If the instrument is to be returned to Hanna Instruments, first obtain a Returned Goods Authorization Number from the Customer Service Department and then send it with shipment costs prepaid. - Page 15 Hanna Instruments Inc. Highland Industrial Park 584 Park East Drive Woonsocket, RI 02895 USA Technical Support for Customers Tel. (800) 426 6287 Fax (401) 765 7575 E-mail tech@hannainst.com www.hannainst.com Local Sales and Customer Service Office Printed in EUROPE MAN96741 06/11...
