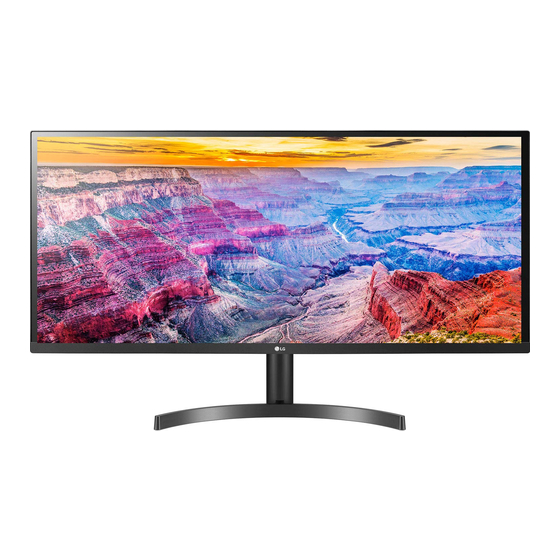

LG 34WL60TM Owner's Manual
Hide thumbs Also See for 34WL60TM:

Advertisement

Quick Links

OWnEr's ManuaL
LED LCD MOnITOr
(LED Monitor*)
* LG LED Monitor applies LCD screen with LED backlights.
Please read this manual carefully before operating your set and
retain it for future reference.
34WL600
34WL60TM
www.lg.com
Copyright © 2019 LG Electronics Inc. all rights reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 34WL60TM and is the answer not in the manual?

Questions and answers

Summary of Contents for LG 34WL60TM

  • Page 1 OWnEr’s ManuaL LED LCD MOnITOr (LED Monitor*) * LG LED Monitor applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. 34WL600 34WL60TM www.lg.com Copyright © 2019 LG Electronics Inc. all rights reserved.
  • Page 2: Table Of Contents

    TabLE of CoNTENTS LICENSE Each model has different licenses. Visit www.lg.com for more information on the license. LICENSE ............2 34WL600 34WL60TM OpEN SOurCE SOfTWArE NOTICE INfOrMATION ..........3 The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
  • Page 3: Open Source Software Notice

    Supported Drivers and Software LG Electronics will also provide open source code to you on CD-rOM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com.
  • Page 4 product and button Description moving and Lifting the monitor When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or damaged and to ensure safe transportation, regardless of its shape or size. • place the monitor in the original box or packing material before attempting to move it. •...
  • Page 5 Installing on a Table adjusting the angle • Lift the monitor and place it on the table in an upright position. place the monitor at least 100 mm away from place the monitor mounted on the stand base in an upright position. the wall to ensure sufficient ventilation.
  • Page 6 using the Kensington Lock Installing the wall mount plate The connector for the Kensington security system is located at the bottom of the monitor. This monitor meets the specifications for the wall mount plate or other compatible devices. for more information on installation and usage, refer to the Kensington lock owner’ s manual or visit the website NoTE at http://www.kensington.com.
  • Page 7 When measured from the back of the monitor, the length of each installed screw must be 8 mm or less. NoTE • A non-VESA standard screw may damage the product and cause the monitor to fall. LG Electronics is not liable for any accidents relating to the use of non-standard screws. •...
  • Page 8: Using The Monitor

    uSING THE moNITor Displayport Connection Transmits digital video and audio signals from your pC to the monitor. • Illustrations in this manual may differ from the actual product. NoTE press the joystick button, go to Settings Input, and then select the input option. •...
  • Page 9 Connecting peripherals Headphones Connection Connect peripherals to the monitor via the headphones port. NoTE • peripheral devices are sold separately. • Depending on the audio settings of the pC and external device, headphones and speaker functions may be limited. • If you use angled earphones, it may cause a problem with connecting another external device to the monitor.
  • Page 10: User Settings

    uSEr SETTINGS NoTE • Your monitor’ s OSD (On Screen Display) may differ slightly from that shown in this manual. activating the main menu press the joystick button on the bottom of the monitor. Move the joystick up/down and left/right to set the options. press the joystick button once more to exit the main menu.
  • Page 11 If you want to exit the settings menu, move the joystick to until you exit. 34WL600 Quick Settings Input picture Sound General 34WL60TM Quick Settings Input picture General CauTIoN • Your monitor’ s OSD (On Screen Display) may differ slightly from that shown in this manual.
  • Page 12 Each option is described below. Settings > Quick Settings Description brightness Adjusts the color contrast and brightness of the screen. Contrast Volume Adjusts the volume level. NoTE • You can adjust mute / unmute by moving the joystick button to in the Volume menu. Color Temp Custom The user can adjust it to red, green, or blue by customization.
  • Page 13 Settings > picture Description Allows the user to adjust each element. The color mode of the main menu can be adjusted. picture mode Custom Heightens contrast, brightness and sharpness to display vivid images. Vivid Optimizes the screen for viewing documents. You can brighten the screen in the settings menu. reader Optimizes the screen for video.
  • Page 14 Settings > picture Description picture adjust brightness Adjusts the brightness of the screen. Contrast Adjusts the contrast of the screen. Sharpness Adjusts the sharpness of the screen. SupEr rESoLuTIoN+ High Optimized picture quality is displayed when a user wants crystal clear images. It is effective for high quality video or game. middle The optimized picture quality is displayed when a user wants images between low and high modes for comfortable viewing.
  • Page 15 Settings > Picture Description Game Adjust Response Time Sets a response time for displayed pictures based on the speed of the screen. For a normal environment, it is recommended that you use Fast. For a fast-moving picture, it is recommended that you use Faster. Setting to Faster may cause image sticking.
  • Page 16 Settings > Picture Description Color Adjust Gamma Mode 1, Mode 2, The higher the gamma value, the darker the image becomes. Likewise, the lower the gamma value, the lighter the image becomes. Mode 3 Mode 4 If you do not need to adjust the gamma settings, select Mode 4. Color Temp Custom The user can adjust it to red, green, or blue by customization.
  • Page 17 Settings > General Description Language Sets the menu screen to the desired language. SMART ENERGY SAVING High Saves energy using the high-efficiency SMART ENERGY SAVING feature. Saves energy using the low-efficiency SMART ENERGY SAVING feature. Disables the SMART ENERGY SAVING feature. Power LED The power LED turns on.
  • Page 18 Settings > General Description Information The display information will be shown the Serial Number, Total Power On Time, Resolution. Reset to Initial Settings Do you want to reset your settings? Returns to the default settings. Cancel the reset. NOTE • Saving Data depends on the Panel.
  • Page 19: Troubleshooting

    TROUBLESHOOTING Nothing is displayed on the screen. • Is the monitor's power cord plugged in? Check if the power cord is correctly plugged into the power outlet. • Test the Power Plug using a lamp or other device. • Is the power LED on? Check the power cable connection and press the power button.
  • Page 20 Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message? Have you installed the display driver? • Be sure to install the display driver from our web site: http://www.lg.com. • Make sure to check if the video card supports Plug&Play function.
  • Page 21: Product Specification

    Without Stand (mm) 825.6 x 369.8 x 51.2 Weight (Without Packaging) With Stand (kg) 6.5 (34WL600) / 6.9 (34WL60TM) Without Stand (kg) 5.6 (34WL600) / 5.9 (34WL60TM) The specifications are subject to change without notice. * The power consumption level can be different by operating condition and monitor setting.
  • Page 22 Factory Support Mode (Preset Mode, PC) HDMI / DisplayPort Preset Mode Horizontal Frequency (kHz) Vertical Frequency (Hz) Polarity (H/V) Remarks 640 x 480 31.469 59.94 640 x 480 37.5 800 x 600 37.879 60.317 800 x 600 46.875 75.0 1024 x 768 48.363 1024 x 768 60.123...
  • Page 23 HDmI Timing (Video) preset mode Horizontal frequency (kHz) Vertical frequency (Hz) remarks 480P 31.5 576P 31.25 720P 37.5 720P 1080P 56.25 1080P 67.5 power LED mode LED Color On Mode White (for a few seconds) sleep Mode Off Mode...
  • Page 24 The model and serial number of the product are located on the back and on one side of the product. record them below in case you ever need service. Model serial no.
