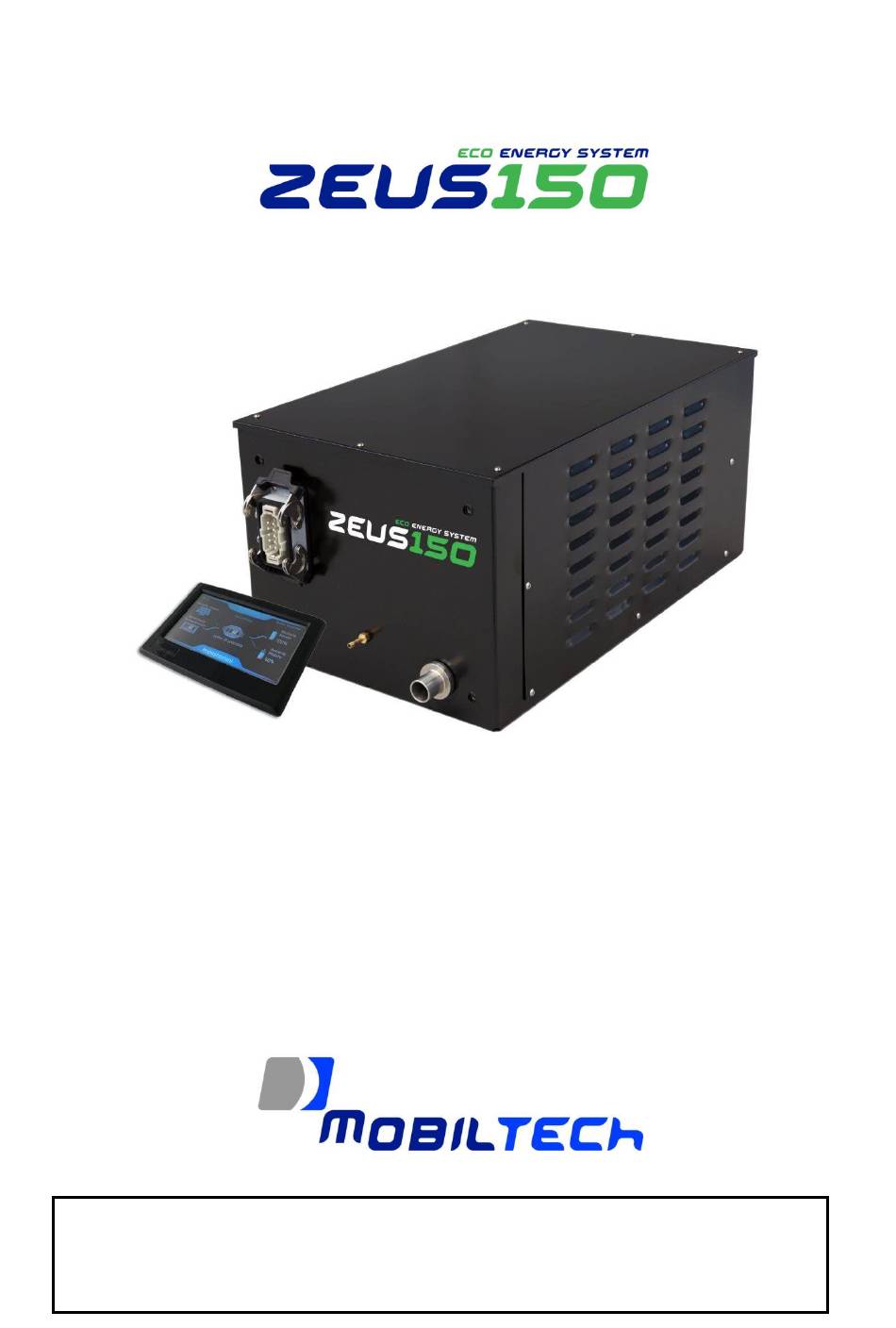

- Page 1 Thermoelectric Generator USER MANUAL ZEUS150 CD Power Supply: Diesel IMPORTANT You can obtain the 3 (three) year warranty extension by registering the product for free on shop.mobiltech.it More information can be found in chapter 5 of this manual.
-
Page 2: Table Of Contents
1.1 Usage rules Zeus150 can be installed on campers, caravans and trucks and it’s able, when the vehicle is parked, to charge the vehicle’s batteries in a silent and ecological way, using only the fuel present in the vehicle’s tank. -
Page 3: Basic Operating Principles And General Indications
Zeus150 generator is able, using the vehicle's fuel, to charge and maintain charged both the engine and service batteries, in a silent and ecological way. Zeus150 is able to supply 150Wh of typical power; it’s able to manage also an optional photovoltaic panel, in order to obtain an integrated battery management system. -
Page 4: Fuel Quality
In this way problems can arise only in the case of extremely low external temperatures - as well as in the vehicle engine - see the instructions of the vehicle manufacturer. In special cases and at external temperatures above 0°C the Zeus150 generator can also work with heating oil sec. DIN 51603 (from an additional tank). -
Page 5: System Control
Zeus150 User Manual 2 System control The system is completely manageable through the functions of the control panel, divided into several menus. In the figure below the menu structure is shown HOME SETTINGS MODE LANGUAGE SERVICE TIMER Timer 1 Automatic... -
Page 6: Main Menu - Home
Zeus150 User Manual 2.1 Main Menu - Home The Home Menu is shown in the following picture. Timer1 Timer2 Engine Automatic/Manuale battery mode forcing Solar Primary panel battery management management Engine Thermoelectric battery generator management management termoelettrico Active energy Battery... -
Page 7: Solar Panel Management
Zeus150 User Manual 2.1.1 Solar panel management Pressing the solar panel icon, the screen display the Menu related to the energy supplied by the solar panel Energy Instantaneous produced in power the last 48 hours Back to Home The graph shows the trend of the energy delivered by the solar panel over the last 48 hours. -
Page 8: Service Battery
Zeus150 User Manual 2.1.3 Service battery Pressing the service battery icon, the service battery menu is shown Percentage Battery of charge data Back to Home The battery data is displayed on the left: ➢ Type ➢ Actual voltage ➢ Battery compartment temperature The percentage of service battery charge is displayed on the right side of the screen 2.1.4 Engine battery... -
Page 9: Settings Menu
Zeus150 User Manual 2.2 Settings Menu The following figure shows the Settings menu Pressing the "Home" area returns to the system main screen 2.2.1 Timer Menu The following figure shows the Timer menu, that can be activated only if the automatic operation... -
Page 10: Mode Menu
Zeus150 User Manual 2.2.2 Mode Menu The following figure shows the menu related to the different modes of system operation. Battery automatic Automatic Mode selecion Engine Manual Mode battery forcing Back to Settings Menu ➢ Mode - Automatic: this mode operates as follows:... -
Page 11: Language Menu
Zeus150 User Manual 2.2.3 Language Menu The following figure shows the menu related to the different languages for which the system can be configured. 2.2.4 Service Menu Control Unit Generator Menu Menu Communication between display Software and power unit Update... -
Page 12: Update Menu
Zeus150 User Manual 2.2.5 Update Menu In this menu is possible to update the software of the various components of the system, using the SW update packages available on the manufacturer site www.mobiltech.it The update is performed by inserting a memory card with the new software package into the MicroSD slot. -
Page 13: Reset Function
Zeus150 User Manual 2.2.7 Reset Function Use the reset button to reset all settings to factory state. All errors will be cleared and timers, models and management of the batteries will be reset. 3 System messages and fault table The following table shows the most common causes of errors, together with the possible cause and possible solutions. - Page 14 Zeus150 User Manual Error Possible cause Possible solution Display shows - Fault, obstruction or - Contact an authorized center for “Burner fan error” lack of connection to the verification burner fan Display shows - Fault or lack of - Contact an authorized center for “Fuel Pump error”...
-
Page 15: Technical Data
P.S.: data subject to change without notice and without changing functionality 5 Warranty The Zeus150 generator is covered by a two-year warranty, which can be extended to 3 (three) years by registering the product on shop.mobiltech.it Warranty conditions are available on www.mobiltech.it... -
Page 16: Possible Checks
Zeus150 User Manual 6 Possible checks Date Hours of operation Date Hours of operation Stamp and Signature Stamp and Signature Date Hours of operation Date Hours of operation Stamp and Signature Stamp and Signature Date Hours of operation Date Hours of operation...
