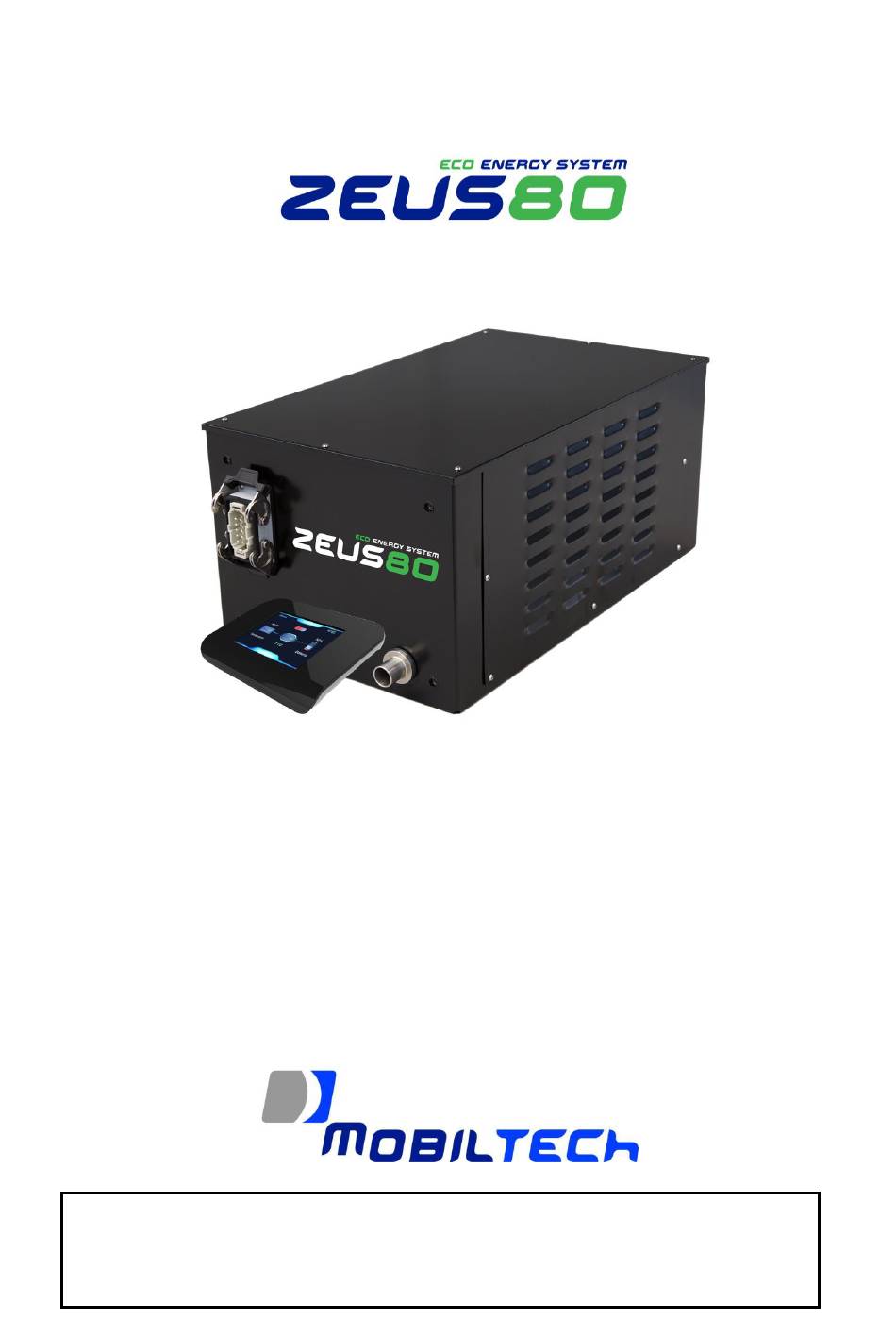

- Page 1 Thermoelectric Generator USER MANUAL ZEUS80 CD Power Supply: Diesel Voltage: 12V IMPORTANT You can obtain the 3 (three) year warranty extension by registering the product for free on support.mobiltech.it More information can be found in chapter 5 of this manual.
-
Page 2: Table Of Contents
Zeus80 User Manual SUMMARY Introduction ......................... 3 Usage rules ........................3 Basic operating principles and general indications ............3 Fuel quality ........................5 System control ........................6 Main Menu - Home ......................7 2.1.1 Service battery ......................8 Settings Menu ........................ 8 2.2.1 Mode Menu ...................... -
Page 3: Introduction
Zeus80 User Manual 1. Introduction Thank you for purchasing a Mobil Tech product. With the Zeus80 thermoelectric generator you have a system capable of charging the batteries of your vehicle, regardless of the availability of external electricity or weather conditions. Installation and commissioning must be performed by specialized personnel only, using a dedicated Installation Manual. - Page 4 Zeus80 User Manual ATTENTION NEVER disconnect for any reason the primary battery when the generator is working. The operation is very harmful because the cooling of the device will be lost, causing possible breakages due to overheating. Any incorrect operation is recorded in the device memory. General notes regarding generator usage: •...
-
Page 5: Fuel Quality
Zeus80 User Manual 1.3 Fuel quality Diesel Generator The Zeus80 generator works without problems with the diesel fuel normally available on the market used for the vehicle’s engine. Addition max. of biodiesel available on the market according to DIN EN 590. In the winter months diesel fuel is adapted at low temperatures from 0°C to -20°C. -
Page 6: System Control
Zeus80 User Manual 2 System control The system is completely manageable through the functions of the control panel, divided into several menus. In the figure below the menu structure is shown HOME SETTINGS MODE LANGUAGE SERVICE Italian Automatic English Manual Spanish German French... -
Page 7: Main Menu - Home
Zeus80 User Manual 2.1 Main Menu - Home The Home Menu is shown in the following picture. Automatic/Manual mode Power produced Eco/Full Mode Setup Menu This menu shows the status of the system in terms of energy management. It clearly indicates the operating mode between manual or automatic, the type of operation between Full and Eco, the instantaneous production in Watts and the state of charge of the batteries. -
Page 8: Service Battery
Zeus80 User Manual 2.1.1 Service battery Pressing the service battery icon, the service battery menu is shown Battery Percentage data of charge Back to Home The battery data is displayed on the left: ➢ Type ➢ Actual voltage ➢ Battery status The percentage of service battery charge is displayed on the right side of the screen Note: the percentage of battery charge is not exactly the actual percentage, as it depends on several factors;... -
Page 9: Mode Menu
Zeus80 User Manual 2.2.1 Mode Menu The following figure shows the menu related to the different modes of system operation. Automatic Mode Manual Mode Back to Settings menu ➢ Mode - Automatic: this mode operates as follows: Type Power on Filter Power off Filter... -
Page 10: Service Menu
Zeus80 User Manual 2.2.3 Service Menu Control Unit Generator Menu Menu Communication between display Software and power unit Update Communication between power unit and Back to Settings generator Menu In the above menu it is possible to activate the Service menus related to: ➢... -
Page 11: Update Menu
In this menu is possible to update the software of the various components of the system, using the SW update packages available on the manufacturer site www.mobiltech.it Micro-SD Slot The update is performed by inserting a memory card with the new software package into the MicroSD slot. -
Page 12: Generator Menu
Zeus80 User Manual 2.2.5 Generator Menu In this menu is possible to check the operating status of the generator components: Reset Function Spark plug status Combustion status Cooling fan Water pump status status Fuel pump Burner fan status status Back to Service Menu The icons shown in this figure can have on three different colors: Blue: working element actually active... -
Page 13: System Messages And Fault Table
Zeus80 User Manual 3 System messages and fault table The following table shows the most common causes of errors, together with the possible cause and possible solutions. Error Possible cause Possible solution System does not power on - No power supply - Check the fuse on the charging unit - Verify that all cables are correctly... - Page 14 Zeus80 User Manual Error Possible cause Possible solution Display shows - Obstruction on the - Remove any obstruction and “Cooling fan error” radiator cooling fans clean the fans - Lack of connection with - Check cables and connections the radiator cooling fans between cooling fans and generator Display shows - Fault or lack of...
-
Page 15: Technical Data
P.S.: data subject to change without notice and without changing functionality 5 Warranty The Zeus80 generator is covered by a two-year warranty, which can be extended to 3 (three) years by registering the product on support.mobiltech.it Warranty conditions are available on www.mobiltech.it V 1.1.2 - 21/10/2020... -
Page 16: Possible Checks
Stamp and Signature 7 Manufacturer MOBIL TECH SRL Via Don Luigi Sturzo, 1 20832 Desio (MB) Tel: (+39) 0362 – 544.928 Fax: (+39) 0362 – 576.478 – Internet: www.mobiltech.it Mail: info@mobiltech.it service@mobiltech.it V 1.1.2 - 21/10/2020 Page 16 of 16...
