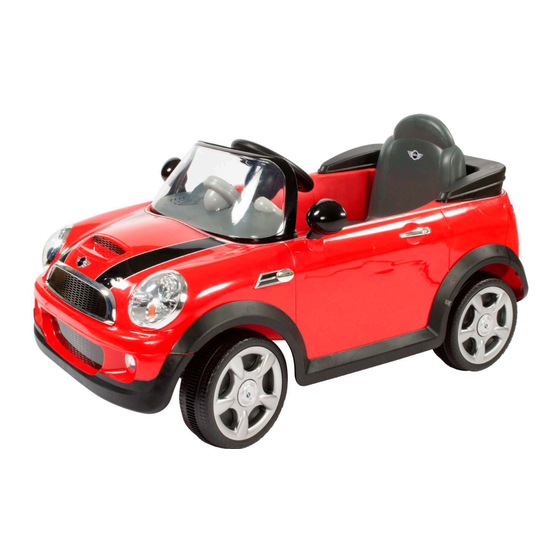

Mini Cooper S
Owner's Manual and Assembly Instructions
Model W466AV-R-F
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Call 1-888-982-9309 for assistance and
replacement parts.
Save this manual with your sales receipt.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mini Cooper S and is the answer not in the manual?

Questions and answers

Related Manuals for Avigo Mini Cooper S

Summary of Contents for Avigo Mini Cooper S

  • Page 1 Mini Cooper S Owner’s Manual and Assembly Instructions Model W466AV-R-F Read and understand the entire manual before assembly and operation. The vehicle must be assembled by an adult who has read and understands the instructions. Made in China. Styles and colors may vary. Do not return to store. Call 1-888-982-9309 for assistance and replacement parts.
  • Page 2 Introduction Thank you for purchasing this vehicle from Aria Child. We hope the rider enjoys it for miles to come. Please read this instruction guide carefully before assembling and operating the vehicle. Please contact Aria Child Customer Service with any questions. Hours: 9 AM - 5 PM (CST), Monday - Friday 888-982-9309 Phone: 1-...
  • Page 3 IMPORTANT! YOU MUST CHARGE THE BATTERY FOR 24 HOURS BEFORE FIRST USE! Charge the battery after each use. Charge the battery at least once a month, even if the vehicle is not in use. DO NOT RETURN THIS ITEM TO THE STORE! Call Customer Service if you need assistance or replacement parts.
  • Page 4 This page is intentionally left blank.

  • Page 5: Table Of Contents

    Table of Contents Safety ............6 Parts ............8 Charging Instructions .......9 Assemble the Front Wheels ....10 Assemble the Left Rear Wheel ....11 Assemble the Right Rear Wheel ....12 Attach the Steering Wheel ......13 Attach the Speedometer/Windshield..14 Attach the Spoiler/Mirrors ......15 Attach the Seat ........16 Battery Removal ........17 Operating Instructions ......18 Maintenance ..........19...

  • Page 6: Safety

    Safety WARNING: SAFETY RIDING RULES The user must follow all safety rules and guidelines, or serious injury or death may occur to the user. Always use common sense and safe practices when using the vehicle. The user must be at least 3 years old and weigh no more than 77 lbs. This product contains small parts that are for adult assembly only.
  • Page 7 Safety (Continued) WARNING: BATTERY SAFETY Battery posts, terminals and related accessories contain lead and lead compound (asic) chemicals known to the state of California to cause cancer, reproductive harm, and are toxic and corrosive. DO NOT open the battery. Contact exposure to battery leakage (lead acid) may cause serious injury. Immediately contact your doctor if exposure occurs.

  • Page 8: Parts

    Parts 1. Manual 11. Snap pins (4) 2. Steering wheel assembly 12. Hub cap Not Included: 3. Seat 13. Dashboard 4. Rear Spoiler 14. Speedometer 5. Chassis 15. Wing mirror 6. Front wheels (2) 16. Windshield 7. Rear wheels (2) 17.

  • Page 9: Charging Instructions

    Charging Instructions YOU MUST CHARGE THE BATTERY FOR 24 HOURS BEFORE THE FIRST USE! ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER. To Charge the Battery: 1. Ensure the car is stopped and the Seat power switch is turned off. 2.

  • Page 10: Assemble The Front Wheels

    Assemble the Front Wheels 1. Slide the large washer (9) onto the front axle. 2. Slide the front wheel (6) onto the front axle. 3. Slide the wheel cover (8) onto the front axle. 4. Slide the small washer (10) onto the front axle. 5.

  • Page 11: Assemble The Left Rear Wheel

    Assemble the Left Rear Wheel Left Rear Wheel: 1. Slide the large washer (9) onto the front axle. 2. Slide the left rear wheel (7) onto the left rear axle. The side with the gear teeth faces inward. 3. Slide the wheel cover (8) onto the front axle. 4.

  • Page 12: Assemble The Right Rear Wheel

    Assemble the Right Rear Wheel Right Rear Wheel: 1. Slide the right rear wheel (7) onto right rear wheel axle. The side with gear teeth faces inward. (Note: the gear teeth must engage with the gear box.) 2. Slide the wheel cover (8) onto the front axle. 3.

  • Page 13: Attach The Steering Wheel

    Attach the Steering Wheel 1. Remove the screw and nut from the steering wheel assembly before attaching. 2. Insert the steering wheel into the steering rod, and match the screw holes of the steering wheel with the screw holes on the steering rod.

  • Page 14: Attach The Speedometer/Windshield

    Attach the Speedometer/Windshield 1. Align the speedometer (14) with the slot of the dashboard. 2. Push it slightly until you hear the click to complete the assembly. 1. Align the windshield (16) with the two side slots between the dashboard and the body. 2.

  • Page 15: Attach The Spoiler/Mirrors

    Attach the Spoiler/Mirrors 1. Line up the clips on the rear spoiler (4) with the slots on the back of the car body. 2. Push the rear spoiler until it clicks and connects with the car body to complete the assembly. 1.

  • Page 16: Attach The Seat

    Attach the Seat 1. Position the seat (3) over the battery compartment 2. Slide the seat onto the guides located in front of the rear spoiler 3. Turn the thumb screw clockwise on the seat to lock it properly in position 4.

  • Page 17: Battery Removal

    Battery Removal Battery strap Screw Battery 1. Disconnect the red battery connector (A) from the red engine connector (B) 2. Loosen and remove the screw 3. Unfasten the battery from the strap 4. Remove the battery Note: It is not necessary to remove the battery for charging. However, if the battery does not reach the outlet, then it can be removed for charging.

  • Page 18: Operating Instructions

    Operating Instructions Steering Wheel Pedal Shifter Power Switch To turn on the vehicle, turn the power switch to “I.” To turn off the vehicle, turn the power switch to “O.” Push the shifter forward to move forward. Pull the shifter backward to go in reverse.

  • Page 19: Maintenance

    Maintenance Important Battery and Charger Information Only an adult who has read and understands the safety warnings may handle and operate the battery and battery charger. Keep away from children. Charge the battery for 24 hours before using the vehicle for the rst time.

  • Page 20: General Care

    General Care Regularly inspect all vehicle parts to ensure they are in good working condition. Regularly inspect the charger, cord, plug, and other related parts for damage. Remove any damaged parts and immediately contact Customer Service for replacement parts. See Service and Repairs on Page 24 for more information.

  • Page 21: Troubleshooting Guide

    Troubleshooting Guide Completely read through the manual and troubleshooting guide before contacting Customer Service. Problem Potential Cause Solution Vehicle will not move Low Voltage Recharge the battery for minimum of 8 hours. Snap pins are loose Tighten snap pins Loose wires or loose Ensure the battery connectors connectors are securely attached.
  • Page 22 Problem Potential Cause Solution Intermittent operation Thermal fuse cutting in, Fuse will automatically rest due to too much weight after 10 seconds or use on unsuitable terrain Loose electrical Check to ensure connections connection are secure Car working but lights are Loose or broken wiring Check to ensure connections connection...

  • Page 23: Fcc Information

    FCC Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 24: Service And Repairs

    Service and Repairs Do not return this vehicle to the store. If your product requires service, repairs or replacement parts, please contact Aria Child Customer Service. Hours: 9 AM - 5 PM (CST), Monday - Friday 888-982-9309 Phone: 1- Email: customerservice@ariachild.com Web: www.ariachild.com For a list of available replacement parts, please visit www.ariachild.com.

  • Page 25: Warranty
