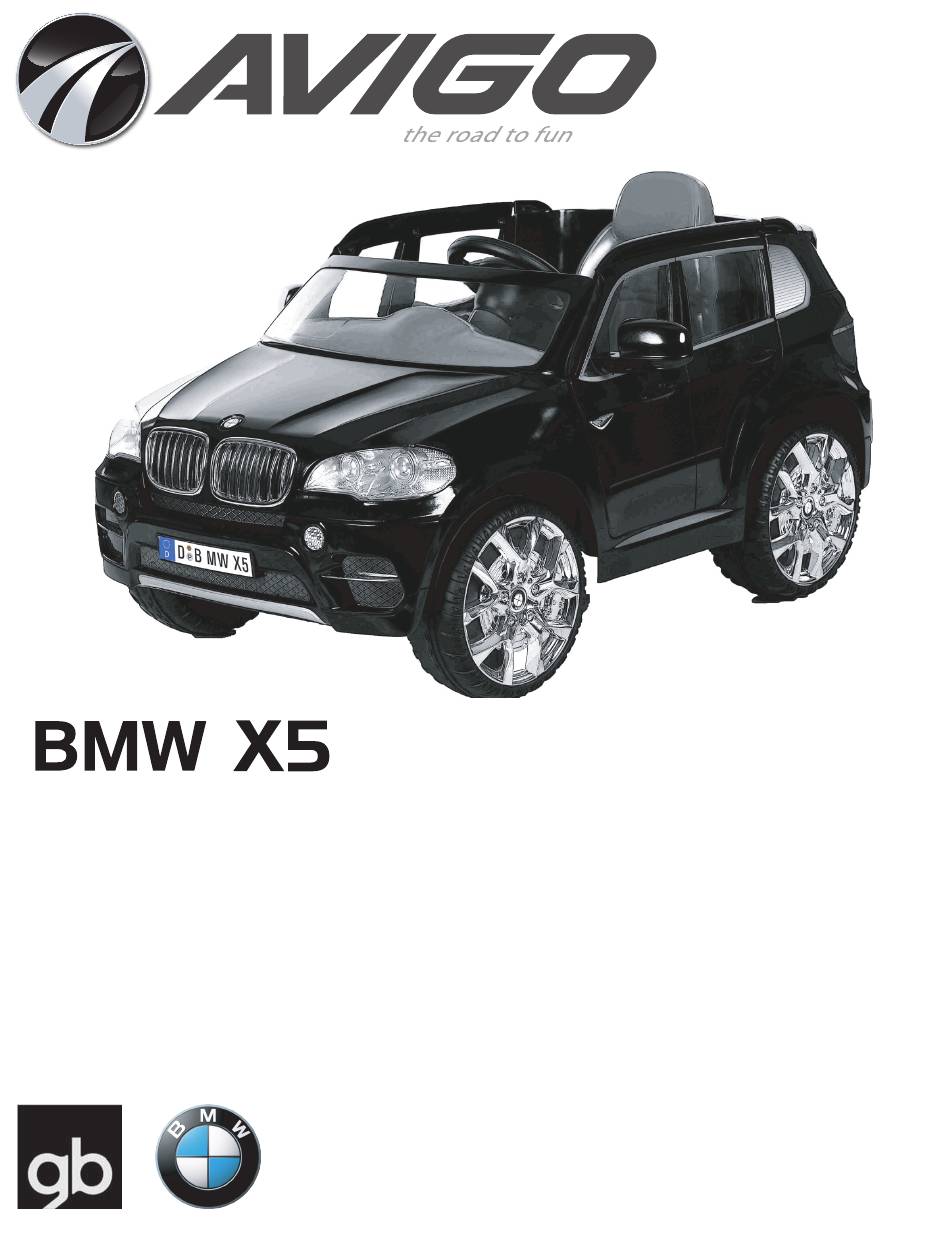

Owner's Manual and Assembly Instructions
Model 498L200
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Visit us online at www.hunterproducts.com.
au for assistance and replacement parts.
Save this manual with your sales receipt.
BMW X5 Children's Electronic Car manufactured by Paragon Child Products Co., Ltd.
The BMW logo and the BMW wordmark are trademarks of BMW AG and are used
under license.
Advertisement
Table of Contents
Related Manuals for Avigo BMW X5
Summary of Contents for Avigo BMW X5
- Page 1 Save this manual with your sales receipt. BMW X5 Children’s Electronic Car manufactured by Paragon Child Products Co., Ltd. The BMW logo and the BMW wordmark are trademarks of BMW AG and are used...
- Page 3 Introduction Thank you for purchasing the BMW X5. We hope the rider enjoys it for miles to come. Please read this instruction guide carefully before assembling and operating the vehicle. Please contact Hunter Products Customer Service with any questions. Hours: 9 AM - 5 PM (AEST), Monday - Friday Web: www.electricrideon.com.au...
- Page 4 IMPORTANT! YOU MUST CHARGE THE BATTERY FOR 24 HOURS BEFORE FIRST USE! Charge the battery after each use. Charge the battery at least once a month, even if the vehicle is not in use. DO NOT RETURN THIS ITEM TO THE STORE! www.electricrideon.com.au Read this entire manual to ensure proper assembly and safe operation...
-
Page 5: Table Of Contents
Table of Contents Safety ............5 User Requirements ........6 Charging the Battery: Warnings ....7 Parts ............9 Charging Instructions .......10 Assemble the Front Wheels ......11 Assemble the Left Rear Wheel ....12 Assemble the Right Rear Wheel ....13 Attach the Steering Wheel ......14 Attach the Mirrors ........ -
Page 6: Safety
Safety WARNING! The following safety hazards may result in serious injury or death to the user of the BMW X5 Spyder Ride-on: This product contains small parts that are for adult assembly only. Keep small • children away when assembling. Remove and dispose of all protective material and poly bags before assembly. -
Page 7: User Requirements
It is the responsibility of the adult to educate the child and supervise the vehicles use. Read the following safety warnings to any child using the BMW X5 Ride-on: WARNING! Only use the vehicle when an adult is present to watch (supervise). -
Page 8: Charging The Battery: Warnings
Charging the Battery: Warnings WARNING! The following safety hazards may result in serious injury or death to the user of the BMW: Use of a battery or charger other than the supplied 6v rechargeable battery and • charger may cause a fire or explosion. Only use the supplied 6v rechargeable battery and charger with the vehicle. - Page 9 Always keep the charger housing closed. Important! Before using the BMW X5 for the time the battery needs to be charged for a full twenty-four hours (no more than thirty hours). Only an adult who has read and understands the following safety warnings should handle, charge or recharge of the battery (see Maintenance).
-
Page 10: Parts
Parts 1. Manual 2. Seat 3. Mirrors (2) Not Included: 4. Battery 5. Steering wheel assembly 6. Rear window caps (2) (pre-installed) 7. Car body 8. Gear box (pre-installed) 9. Washers (3) 10. Front wheels (2) • Phillips screwdriver • Pliers 11. -
Page 11: Charging Instructions
Charging Instructions YOU MUST CHARGE THE BATTERY FOR 24 HOURS BEFORE THE FIRST USE! ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER. To Charge the Battery: 1. Ensure the car is stopped and turned off. 2. Unlock and remove the seat. 3. -
Page 12: Assemble The Front Wheels
Assemble the Front Wheels 1. Slide the washer (9) onto the front axle (A). 2. Slide the front wheel (10) onto the front axle. 3. Push on the center of the wheel (B) and snap it into place. 4. Gently pull the wheel to ensure that it is secure. If wheel comes loose, then repeat the first three steps. -
Page 13: Assemble The Left Rear Wheel
Assemble the Left Rear Wheel 1. Slide the washer (9) onto the rear wheel axle (A). 2. Slide the left rear wheel (11) onto the left rear axle. The side with the gear teeth (B) faces inward. 3. Push on the center of the wheel and snap it into place. 4. -
Page 14: Assemble The Right Rear Wheel
Assemble the Right Rear Wheel 1. Slide the rear wheel (11) with the gear teeth facing inward onto the rear axle (A). 2. Hold the rear axle with one hand and press the center of the wheel with another hand. Line up the gear teeth on the wheel with the grooves on the gear box (8). -
Page 15: Attach The Steering Wheel
Attach the Steering Wheel 1. Remove the screw and nut from the steering wheel assembly (5) before attaching. 2. Plug the steering wheel connector (A) into the dashboard connector (B). 3. Insert the steering wheel (5) into the steering rod, and match the screw holes of the steering wheel and the steering rod. -
Page 16: Attach The Mirrors
Attach the Mirrors 1. Remove the screw (A) and nut (B) from the mirror (3) before attaching 2. Insert the left side mirror (3) into the slot on the side of the body. Push it into the slot. 3. Insert the screw (A) and fasten the nut (B) to secure the mirror. 4. -
Page 17: Attach The Seat
Attach the Seat 1. Position the seat (2) over the battery compartment 2. Click in the hook on the back of the chair into the empty slot on the car body. 3. Turn the thumb screw clockwise on the seat to lock it properly into position. -
Page 18: Battery Removal
Battery Removal Screw Battery Strap Battery (4) 1. Disconnect the battery connector (A) from the engine connector (B) . 2. Loosen and remove the screw. 3. Unfasten the battery (4) from the strap. 4. Remove the battery. Note: It is not necessary to remove the battery for charging. However, if the battery does not reach the outlet, it can be removed for charging. -
Page 19: Operating Instructions
Operating Instructions • To turn on the vehicle, turn the power switch (A) to “I.” To turn off the vehicle, turn the power switch to “O.” • Press Manual/Remote control switch (B) to adjust the function controlled by manual/RC. • Controlled by manual, push the shifter (C) up to move forward. Push the shifter down to go in reverse. -
Page 20: Attach The Remote Control Batteries
Attach the Remote Control batteries Battery cover Open the battery cover. Take out the old batteries and replace with new one. Then close the battery cover. Please change the battery following step above when the red light off on R/C found. WARNING! DO NOT mix old and new batteries. -
Page 21: Remote Control Operation
Remote Control Operation Coding switch Coding switch Matching the code control board, then use a clip or toothpick to press the code buttons at the motor control board and on the remote-control at least 5 seconds at the same time, you will see the LED indicator on the remote control blink- ing, when it stops blinking and turns to light on status, it matches suc- cessfully, you can release the button now. - Page 22 Remote Control Operation Left/Right lever Forward/Reverse lever Remote –control mode : Rider sits in the car, turns on the power switch, set the manual / remote- control switch at remote-control mode. Move the lever on the 2.4G remote-control to forward or reverse position, the car will go forward or reverse accordingly, when move the lever to left or right position, the car will go to the left or right.
-
Page 23: Maintenance
Maintenance Important Battery and Charger Information • Only an adult who has read and understands the safety warnings may handle and operate the battery and battery charger. Keep away from children. • Charge the battery for 24 hours before using the vehicle for the first time. -
Page 24: General Care
General Care • Regularly inspect all vehicle parts to ensure they are in good working condition. • Regularly inspect the charger, cord, plug, and other related parts for damage. • Remove any damaged parts and immediately contact Customer Service for replacement parts. See Service and Repairs on Page 26 for more information. -
Page 25: Troubleshooting Guide
Troubleshooting Guide Completely read through the manual and troubleshooting guide before contacting Customer Service. Problem Potential Cause Solution Vehicle does not run Battery is low Recharge the battery Thermal fuse tripped Reset fuse Snap pins are loose Tighten snap pins Loose wires or loose Ensure the battery connectors connectors... - Page 26 Problem Potential Cause Solution Vehicle needs a push to Loose wires or loose Ensure the battery connectors start connectors are securely attached. If wires are loose, contact Consumer Service for repairs “Dead spot” on motor A “dead spot” means electricity is not being delivered to the terminal.
-
Page 27: Service And Repairs
Service and Repairs Do not return this vehicle to the store. If your product requires service, repairs or replacement parts, please visit us online at www.hunterproducts.com.au Or contact us at: Service Phone: 1800224094 Web: www.electricrideon.com.au Hours: 9 AM - 5 PM (AEST), Monday - Friday For a list of available replacement parts, please visit www.electricrideon.com.au... -
Page 28: Warranty
Hunter Products , at its option will provide you with a refund or replacement parts for this product if the Avigo BMW X5 6v becomes defective within the warranty period. Hunter Products will bear the reasonable expense of claiming the warranty. This... -
Page 31: Product Registration
Product Registration Fill out the form below and mail it to: Hunter Products Pty Ltd Level 2, 424 Warrigal Road, Moorabbin VIC 3189, Australia www.hunterproducts.com.au We will use the information provided only for your warranty. We will not sell, rent or share your personal information. Product Registration First Name: Last Name:...
