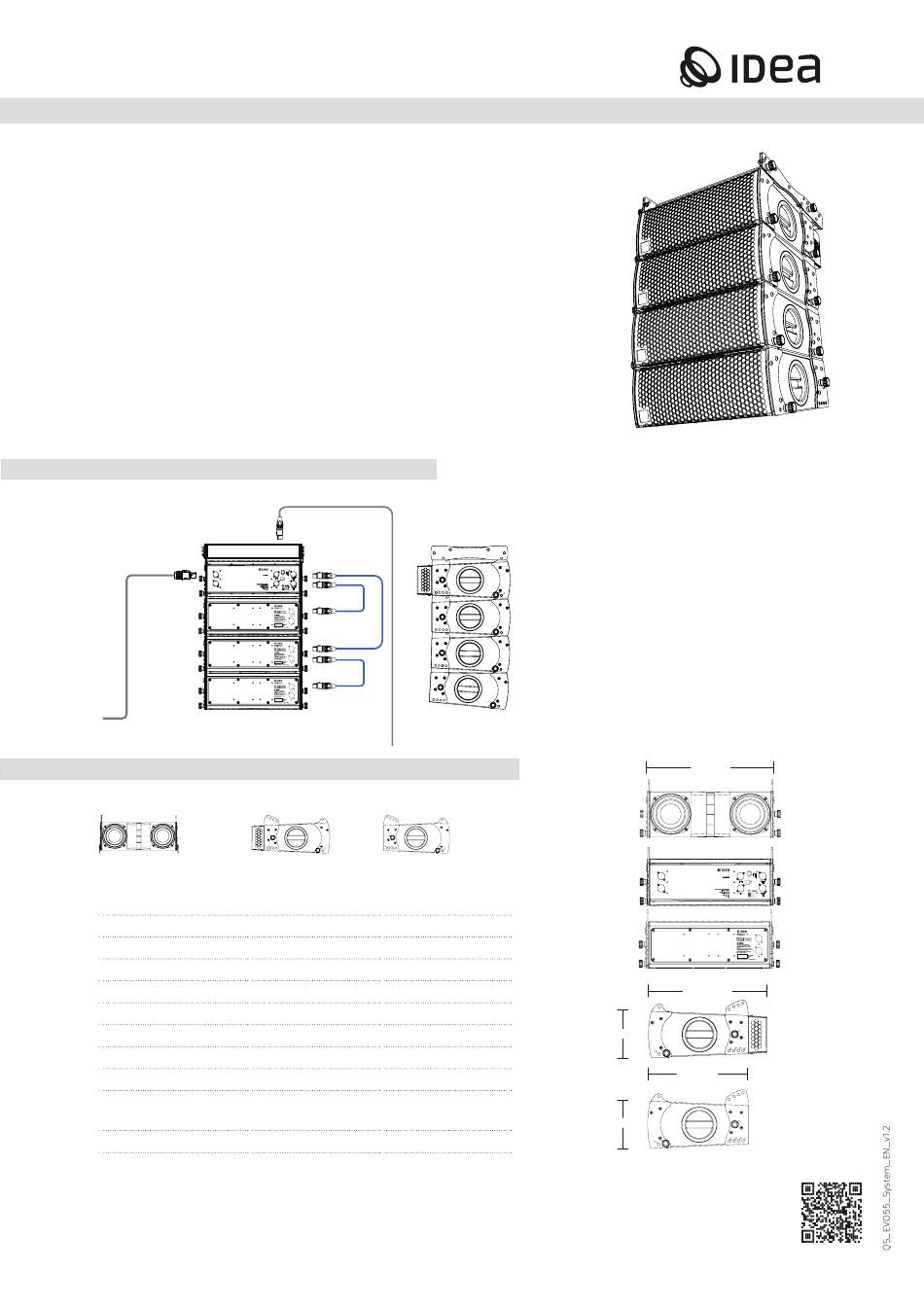

Idea EVO55-M Quick Start Manual

EVO55 System
Dual-5" 4-element Active Line-Array system
EVO55 System is a unique professional portable sound reinforcement
solution that offer excellent modularity and versatility.
The very compact 4-element array cluster (smaller than a typical 15" 2-way
loudspeaker) will always deliver SPL and coverage beyond the physical size
of the system, while it can be rigged and operated with minimal logistical
resources. It can be pole mounted, stacked and flown very easily by only
operator.
EVO55 loudspeakers features HF assembly with a 1.75" compression driver
and a proprietary wave-guide design and a dual-5" woofer configuration
for the LF section.These premium-quality, high-performance European
transducers a dedicated passive crossover filter allow for a natural, linear
response throughout the useful frequency range spectrum without any
processing of the system.
The integrated weatherized steel rigging structure and stacking, transport and
rigging accessories make EVO55 a really plug-and-play system.

BASIC SYSTEM CONFIGURATION

EVO55-M
Suspension of this product should be implemented
by qualified professionals following safe rigging practices and local regulations.
Refer to the owner's manuals for rigging
instructions, system components and suspension
hardware intended for this product.
Universal regulated switch mode Power supply: 1,4 kW RMS 1,2 A
Current consumption: 0.81 A Nominal power requirement: MAX
100-240 V 50-60 Hz 16 units 36.5 kg
Designed, engineered and manufactured by
IDEA in Cedeira (Galicia)
PRODUCT OF EUROPE
Made in Spain
PowerCON AC Input

TECHNICAL DATA

EVO55-M
Enclosure design
HF Transducer
LF Transducer
RMS Power Handling *
Nominal Impedance
Peak SPL [Continuous/Peak]
Frequency Response [-10 dB]
Amp/DSP Module
Connectors XLR + PowerCON + NL-4
416 x 154 x 396 mm
Dimensions [W x H x D]
(16.4 x 6.1 x 15.6 inch)
Weight
* IEC filtered pink noise with a 6dB crest factor, 2 hours
IDEA is always in pursuit of better performance, greater reliability and design features;
technical specifications and minor finish details may vary without notice in order to
improve our products.
XLR Audio Input
-∞
+6
STATUS
SIGNAL
CLIP/TEMP
INPUT OUTPUT A
Maximum 1 xEVO55-P
PRESET
SELECT
LINK PRESET 4 12 units OUTPUT B
PRESET 3 8 units
PRESET 2 6 units Maximum 2 x EVO55-P
PRESET 1 4 units
SpeakON NL-4 Links
EVO55-P
5˚ Trapezoidal · Ported
1 x 1.75" Compression Driver
2 x 5" High Performance Woofers
- 300 W
- 16 Ohm
119/125 dB SPL 119/125 dB SPL
69 - 19 000 Hz 69 - 19 000 Hz
1.4 kW -
2 x NL-4
416 x 154 x 334 mm
(16.4 x 6.1 x 13.1 inch)
15 kg (33.1 lbs) 13 Kg (28.7 lbs)
©2017 - I MAS D Electroacústica SL - Av. Constitución 5-9 46009 VALENCIA
Quick Start Guide
The active EVO55-M element features
a 1.4 kW Class-D amp and DSP power
module by Powersoft so one EVO55-M
element powers 3 EVO55-P elements,
as shown in the diagram on the left, with
the dedicated SpeakON NL-4 cable links
included with every EVO55-M.
Depending on the scale ofv the application,
a medium-sized EVO55-M system can
be easily split into smaller clusters for
mobile and portable solutions..
Passive systems can be configured as
factory ready with TEOd8 driven amps.
416 mm
396 mm
154 mm
334 mm
154mm
Download EVO55 System User's Manual scanning this QR code
or from IDEA website following the link:
www.ideaproaudio.com/downloads/documents/UM_EVO55_EN.pdf
-∞
EVO55-M
+6
STATUS
SIGNAL
Suspension of this product should be implemented CLIP/TEMP
by qualified professionals following safe rigging
practices and local regulations. INPUT OUTPUT A
Refer to the owner's manuals for rigging
instructions, system components and suspension Maximum xEVO55-P 1
hardware intended for this product.
Power supply: 1,4
Universal regulated switch mode kW 1,2 A
Current consumption: 0.81 A Nominal power requirement: MAX
100-240 V 50-60 Hz 16 units 36.5 kg PRESET
Designed, engineered and manufactured by SELECT
IDEA in Cedeira (Galicia)
PRODUCT OF EUROPE
Made in Spain LINK OUTPUT B
PRESET 4 12 units
PRESET 3 8 units Maximum 2 x EVO55-P
PRESET 2 6 units
PRESET 1 4 units
