  • Page 1 HI97761 Total Chlorine Ultra Low Range Photometer...
  • Page 2 If you need additional technical information, do not hesitate to e‑mail us at tech@hannainst.com or view our worldwide contact list at www.hannainst.com. All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner, Hanna Instruments Inc., Woonsocket, Rhode Island, 02895, USA.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. PRELIMINARY EXAMINATION ................4 2. SAFETY MEASURES ..................5 3. ABBREVIATIONS ................... 5 4. SPECIFICATIONS .................... 6 5. DESCRIPTION ....................7 5.1. GENERAL DESCRIPTION & INTENDED USE ..........7 5.2. FUNCTIONAL DESCRIPTION ..............8 5.3. PRECISION & ACCURACY ............... 9 5.4.

  • Page 4: Preliminary Examination

    1. PRELIMINARY EXAMINATION Remove the instrument and accessories from the packaging and examine it carefully. For further assistance, please contact your local Hanna Instruments Office or email us at tech@hannainst.com. Each HI97761C is delivered in a rugged carrying case and is supplied with: •...

  • Page 5: Safety Measures

    2. SAFETY MEASURES • The chemicals contained in the reagent kits may be hazardous if improperly handled. • Read the Safety Data Sheets (SDS) before performing tests. • Safety equipment: Wear suitable eye protection and clothing when required, and follow instructions carefully. •...

  • Page 6: Specifications

    4. SPECIFICATIONS Range 0.000 to 0.500 mg/L (as Cl Resolution 0.001 mg/L Total Chlorine Accuracy ±0.020 mg/L ±3% of reading at 25 °C Method Adaptation of the EPA Method 330.5 Light source Light Emitting Diode Bandpass filter 525 nm Bandpass filter 8 nm bandwidth Measurement...

  • Page 7: Description

    With the CAL Check™ functionality, users are able to validate the performance of the instrument at any time and apply a user calibration (if necessary). Hanna Instruments CAL Check cuvettes are made with NIST traceable standards.

  • Page 8: Functional Description

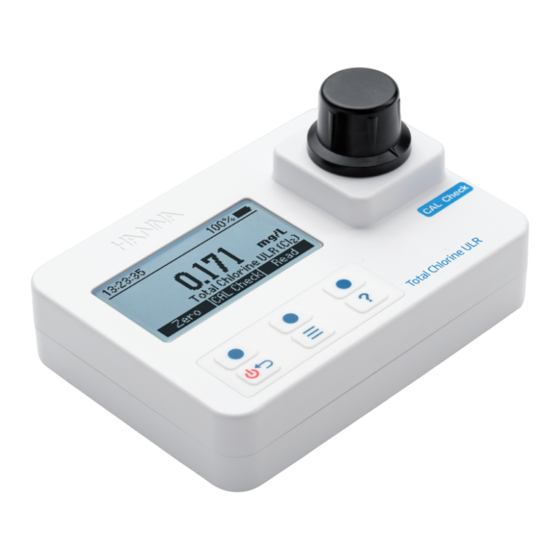

    5.2. FUNCTIONAL DESCRIPTION 1. ON/OFF power button 3. Liquid Crystal Display (LCD) 5. Indexing mark 2. Keypad 4. Cuvette holder 6. Battery cover Keypad Description The keypad contains 3 direct keys and 3 functional keys with the following functions: Press the functional key to perform the function displayed above it on the LCD. Press and hold to power off/on.

  • Page 9: Precision & Accuracy

    5.3. PRECISION & ACCURACY Precision is how closely repeated measurements are to one another. Precision is usually expressed as standard deviation (SD). Accuracy is defined as the closeness of a test result to the true value. Although good precision suggests good accuracy, precise results can be inaccurate. The figure explains these definitions.

  • Page 10: Optical System

    5.5. OPTICAL SYSTEM Instrument Block Diagram The internal reference system (reference detector) of the HI97761 photometer compensates for any drifts due to power fluctuations or ambient temperature changes, providing a stable source of light for your blank (zero) measurement and sample measurement.

  • Page 11: General Operations

    6. GENERAL OPERATIONS 6.1. METER VALIDATION: CAL CHECK & CALIBRATION Validation of the HI97761 involves verifying the concentration of the certified CAL Check standards. The CAL Check screen guides the user step-by-step through the validation process and user calibration (if necessary).

  • Page 12: Glp

    Check the certified value, expiration date and clean the outside of the cuvette. Repeat the CAL Check procedure. If this error continues contact your nearest Hanna Instruments Customer Service Center. 6.2. GLP key to enter the menu. Use the functional keys to select GLP and Press the press Select.

  • Page 13: Logging Data & Log Recall

    6.3. LOGGING DATA & LOG RECALL The instrument features a data autolog function to help users keep track of all measurements. Every time a measurement is made the data is automatically saved. The data log can hold 50 individual measurements. When the data log is full (50 data points) the meter will rewrite the oldest data point.

  • Page 14: General Setup

    6.4. GENERAL SETUP key to enter the menu. Use the functional keys to select Setup and Press the press Select. Use the functional keys to highlight desired option. Backlight Option: 0 to 100 % Press Modify to access the backlight intensity. Use the functional keys to increase or key to return to the Setup decrease the value.
  • Page 15 Date Format Press Modify to change the date format. Use the functional keys to select the desired key to return to the Setup menu without format. Press Accept to confirm or the saving the new format. Decimal Separator Option: Comma ( , ) or Period ( . ) Press the functional key to select the desired decimal separator.

  • Page 16: Reagents & Accessories

    Reagents / Accessories and press Select to access a list of reagents and accessories. To exit press the key. 6.6. CONTEXTUAL HELP HI97761 offers an interactive contextual help mode that assists the user at any time. To access the help screen press the key.

  • Page 17: Battery Management

    The meter will perform an auto-diagnostic test when it is powered on. During this test, ® the Hanna Instruments logo will appear on the LCD. If the auto-diagnostic test was successful, the meter is ready for use. The battery icon on the LCD will indicate the battery status: •...

  • Page 18: Photometer

    7. PHOTOMETER 7.1. PROPER USE OF POWDER PACKET 1. Use scissors to open the powder packet. 2. Push the edges of the packet to form a spout. 3. Pour out the content of the packet. 7.2. CUVETTE PREPARATION Proper mixing is very important for reproducibility of the measurements. The proper mixing technique is listed in the method procedure.
  • Page 19 Shaking the cuvette can generate bubbles in the sample, causing higher readings. To obtain accurate measurements, remove such bubbles by swirling or by gently tapping the cuvette. Do not let the reacted sample stand too long after reagent has been added. For best accuracy, respect the timings described in the method.

  • Page 20: Method Procedure

    8. METHOD PROCEDURE REQUIRED REAGENTS POWDER Code Description Quantity HI95761-0 Total Chlorine ULR Reagent 1 packet REAGENT SETS HI95761-01 Total Chlorine ULR Reagent - 100 tests HI95761-03 Total Chlorine ULR Reagent - 300 tests For other accessories see ACCESSORIES section. MEASUREMENT PROCEDURE Note: If tutorial mode is disabled follow the measurement procedure below.
  • Page 21 • Insert the cuvette into the holder and ensure that the notch on the cap is positioned securely in the groove. • Press Read and the display will show a 2 minutes and 30 seconds countdown prior to the measurement. To skip the timer, press Read twice. When the timer ends the meter will perform the reading.

  • Page 22: Warning & Error Descriptions

    Ensure that the notch on the cap is positioned securely in the groove before performing any measurements. If the issue persists, please contact Hanna Instruments technical support. The sample and the zero cuvettes are inverted. Swap the cuvettes and repeat the measurement.
  • Page 23 English is the only available language. Help function is not available. Restart the meter. If the issue persists, please contact Hanna Instruments technical support. Battery level is too low for the meter to function properly. Replace the batteries with new ones.

  • Page 24: Battery Replacement

    10. BATTERY REPLACEMENT To replace the instrument’s batteries, follow these steps: • Turn the instrument off by pressing and holding the key. • Remove the battery cover by turning it counterclockwise. • Remove the old batteries, replace them with three new 1.5V AA batteries. •...

  • Page 25: Accessories

    HI977xx and 2 CAL Check cuvettes HI731318 cloth for wiping cuvettes (4 pcs.) HI731331 glass cuvette (4 pcs.) HI731336N cap for glass cuvette (4 pcs.) HI93703-50 cuvette cleaning solution (230 mL) ® HI97761-11 CAL Check standards for Total Chlorine ULR - cuvette kit...

  • Page 26: Certification

    If the repair is not covered by the warranty, you will be notified of the charges incurred. If the meter is to be returned to Hanna Instruments, first obtain a Returned Goods Authorization (RGA) number from the Technical Service department and then send it with shipping costs prepaid.
  • Page 27 Hanna Instruments reserves the right to modify the design, construction or appearance of its products without advance notice.
