- Page 1 HI97714 Cyanide Photometer...
- Page 2 If you need additional technical information, do not hesitate to e‑mail us at tech@hannainst.com or view our worldwide contact list at www.hannainst.com. All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner, Hanna Instruments Inc., Woonsocket, Rhode Island, 02895, USA.
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. PRELIMINARY EXAMINATION ................4 2. SAFETY MEASURES ..................5 3. ABBREVIATIONS ................... 5 4. SPECIFICATIONS .................... 6 5. DESCRIPTION ....................7 5.1. GENERAL DESCRIPTION & INTENDED USE ..........7 5.2. FUNCTIONAL DESCRIPTION ..............8 5.3. PRECISION & ACCURACY ............... 9 5.4. -
Page 4: Preliminary Examination
1. PRELIMINARY EXAMINATION Remove the instrument and accessories from the packaging and examine it carefully. For further assistance, please contact your local Hanna Instruments Office or email us at tech@hannainst.com. Each HI97714C is delivered in a rugged carrying case and is supplied with: •... -
Page 5: Safety Measures
2. SAFETY MEASURES • The chemicals contained in the reagent kits may be hazardous if improperly handled. • Read the Safety Data Sheets (SDS) before performing tests. • Safety equipment: Wear suitable eye protection and clothing when required, and follow instructions carefully. •... -
Page 6: Specifications
4. SPECIFICATIONS 0.000 to 0.200 mg/L (as CN - ) Range Resolution 0.001 mg/L Cyanide Accuracy ±0.005 mg/L ±3% of reading at 25 °C Method Adaptation of the Pyridine-Pyrazalone Method Light source Light Emitting Diode Bandpass filter 610 nm Bandpass filter 8 nm bandwidth Measurement... -
Page 7: Description
With the CAL Check™ functionality, users are able to validate the performance of the instrument at any time and apply a user calibration (if necessary). Hanna Instruments CAL Check cuvettes are made with NIST traceable standards. -
Page 8: Functional Description

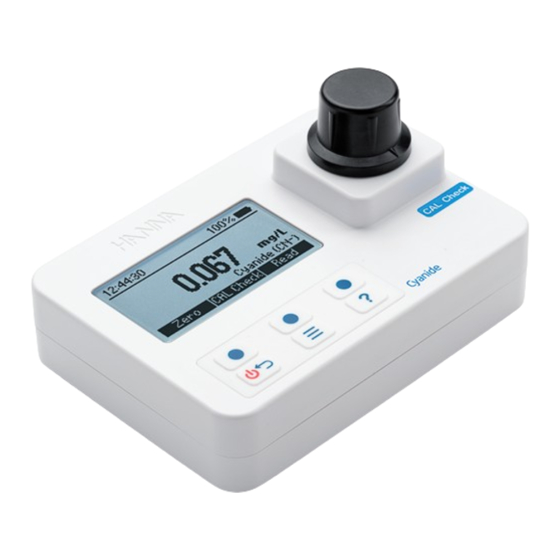

5.2. FUNCTIONAL DESCRIPTION 1. ON/OFF power button 3. Liquid Crystal Display (LCD) 5. Indexing mark 2. Keypad 4. Cuvette holder 6. Battery cover Keypad Description The keypad contains 3 direct keys and 3 functional keys with the following functions: Press the functional key to perform the function displayed above it on the LCD. Press and hold to power off/on. -
Page 9: Precision & Accuracy
5.3. PRECISION & ACCURACY Precision is how closely repeated measurements are to one another. Precision is usually expressed as standard deviation (SD). Accuracy is defined as the closeness of a test result to the true value. Although good precision suggests good accuracy, precise results can be inaccurate. The figure explains these definitions. -
Page 10: Optical System
5.5. OPTICAL SYSTEM Instrument Block Diagram The internal reference system (reference detector) of the HI97714 photometer compensates for any drifts due to power fluctuations or ambient temperature changes, providing a stable source of light for your blank (zero) measurement and sample measurement. -
Page 11: General Operations
6. GENERAL OPERATIONS 6.1. METER VALIDATION: CAL CHECK & CALIBRATION Validation of the HI97714 involves verifying the concentration of the certified CAL Check standards. The CAL Check screen guides the user step-by-step through the validation process and user calibration (if necessary). -
Page 12: Chemical Formula & Unit Conversion
Check the certified value, expiration date and clean the outside of the cuvette. Repeat the CAL Check procedure. If this error continues, contact your nearest Hanna Instruments Customer Service Center. 6.2. CHEMICAL FORMULA & UNIT CONVERSION Chemical formula and unit conversion factors are pre-programmed into the instrument. -
Page 13: Glp
6.3. GLP key to enter the menu. Use the functional keys to select GLP and Press the press Select. Good Laboratory Practice (GLP) shows the date and time of the last user calibration (if available) or factory calibration. To erase the last user calibration and to clear the CAL Check, press Clear and follow the prompts. -
Page 14: General Setup
Press Del All to erase all the logged data. If Del All is pressed, follow the prompt to confirm. Press Yes to delete all logged data, No or the key to return to the log recall. 6.5. GENERAL SETUP key to enter the menu. Use the functional keys to select Setup and Press the press Select. - Page 15 Time Format Option: AM/PM or 24-hour Press the functional key to select the desired time format. Date Format Press Modify to change the date format. Use the functional keys to select the desired key to return to the Setup menu without format.
-
Page 16: Reagents & Accessories
Reagents / Accessories and press Select to access a list of reagents and accessories. To exit press the key. 6.7. CONTEXTUAL HELP HI97714 offers an interactive contextual help mode that assists the user at any time. To access the help screen press the key. -
Page 17: Battery Management
The meter will perform an auto-diagnostic test when it is powered on. During this test, ® the Hanna Instruments logo will appear on the LCD. If the auto-diagnostic test was successful, the meter is ready for use. The battery icon on the LCD will indicate the battery status: •... -
Page 18: Photometer
7. PHOTOMETER 7.1. PROPER USE OF POWDER PACKET 1. Use scissors to open the powder packet. 2. Push the edges of the packet to form a spout. 3. Pour out the content of the packet. 7.2. CUVETTE PREPARATION Proper mixing is very important for reproducibility of the measurements. The proper mixing technique is listed in the method procedure. - Page 19 Whenever the cuvette is placed into the measurement holder, it must be dry outside and free of fingerprints, oil or dirt. Wipe it thoroughly with HI731318 microfiber cleaning cloth or a lint-free wipe prior to insertion. Shaking the cuvette can generate bubbles in the sample, causing higher readings. To obtain accurate measurements, remove such bubbles by swirling or by gently tapping the cuvette.
-
Page 20: Method Procedure
8. METHOD PROCEDURE REQUIRED REAGENTS Code Description Quantity HI93714A-0 Cyanide Reagent A 1 spoon HI93714B-0 Cyanide Reagent B 1 packet HI93714C-0 Cyanide Reagent C 1 packet REAGENT SETS HI93714-01 Cyanide Reagent - 100 tests HI93714-03 Cyanide Reagent - 300 tests For other accessories see ACCESSORIES section. - Page 21 Note: Pay attention to the way the spoon is filled: do not press the powder; do not overfill it. • To prevent the chlorine gas, developed during the reaction, from escaping, replace the plastic stopper and cap immediately. Shake gently for 30 seconds. •...
- Page 22 • Press Start. The display will show a 25 minute countdown prior to the measurement. To skip the timer, press Read. When the timer ends the meter will perform the reading. The instrument displays concentration in mg/L of cyanide (CN - ). Note: Shake vigorously the cuvette 4 or 5 times during the first 20 minutes of the timer.
-
Page 23: Warning & Error Descriptions
Ensure that the notch on the cap is positioned securely in the groove before performing any measurements. If the issue persists, please contact Hanna Instruments technical support. The sample and the zero cuvettes are inverted. Swap the cuvettes and repeat the measurement. - Page 24 English is the only available language. Help function is not available. Restart the meter. If the issue persists, please contact Hanna Instruments technical support. Battery level is too low for the meter to function properly. Replace the batteries with new ones.
-
Page 25: Battery Replacement
HI977xx and 2 CAL Check cuvettes HI731318 cloth for wiping cuvettes (4 pcs.) HI731331 glass cuvette (4 pcs.) HI731336N cap for glass cuvette (4 pcs.) HI93703-50 cuvette cleaning solution (230 mL) ® HI97714-11 CAL Check standards for Cyanide - cuvette kit... -
Page 26: Certification
If the repair is not covered by the warranty, you will be notified of the charges incurred. If the meter is to be returned to Hanna Instruments, first obtain a Returned Goods Authorization (RGA) number from the Technical Service department and then send it with shipping costs prepaid. - Page 27 Hanna Instruments reserves the right to modify the design, construction or appearance of its products without advance notice.
- Page 28 World Headquarters Hanna Instruments Inc. Highland Industrial Park 584 Park East Drive Woonsocket, RI 02895 USA www.hannainst.com MAN97714 Printed in ROMANIA...
