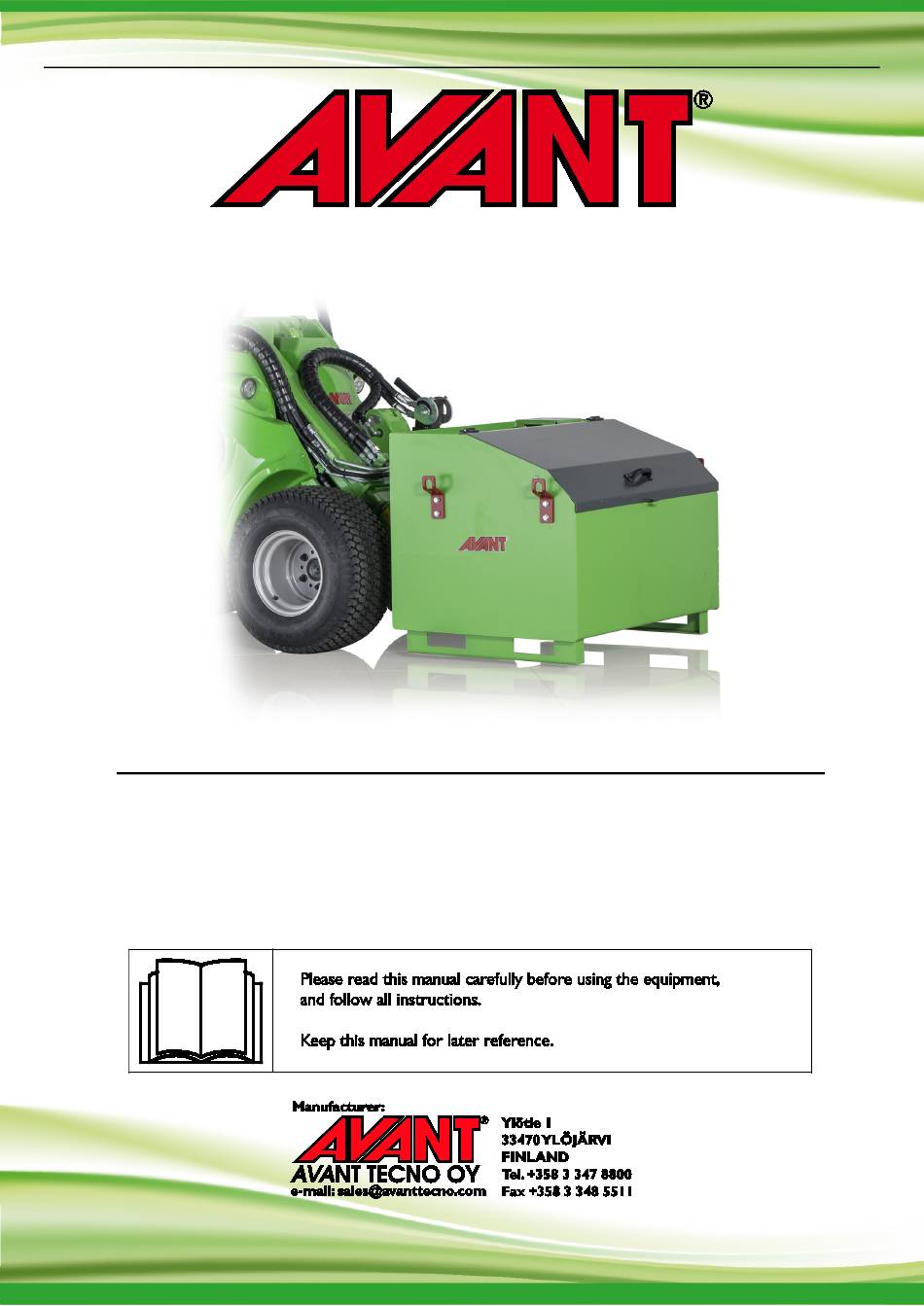

- Page 1 English Site toolbox 2021 1 Operator's Manual for Attachment Site toolbox Product number A21689 www.avanttecno.com A448961 2021 1 EN 2015-...
- Page 2 Site toolbox 2021 1...
-
Page 3: Table Of Contents
Site toolbox 2021 1 CONTENTS 1. FOREWORD ............................4 Warning symbols used in this manual ........................... 5 2. DESIGNED PURPOSE OF USE......................6 3. SAFETY INSTRUCTIONS FOR USING THE ATTACHMENT ............7 Personal protective equipment ..........................9 Safe shutdown procedure ............................9 4. -
Page 4: Foreword
If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer. -
Page 5: Warning Symbols Used In This Manual
5 (20) Warning symbols used in this manual The following warning symbols are used throughout this manual. They indicate factors that must be taken into account to reduce the risk of personal injury or damage to property: WARNING SAFETY ALERT SYMBOL This symbol means: “Warning, be alert! Your safety is involved!”... -
Page 6: Designed Purpose Of Use

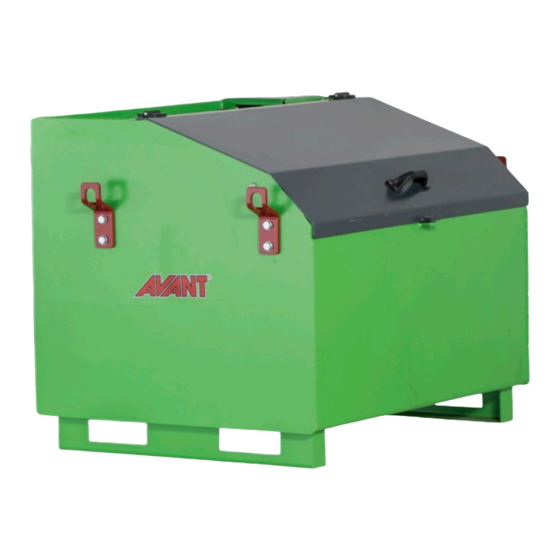

Table 1. The Site toolbox is intended for storing tools and supplies needed at a work site. The lid can be locked with a pad lock. The toolbox can be coupled directly to Avant loaders with quick coupling, and it can be handled easily with pallet forks. -
Page 7: Safety Instructions For Using The Attachment
7 (20) 3. Safety instructions for using the attachment Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage. - Page 8 Observe the local regulations concerning the use of the equipment on public roads. The loader may need to be registered for road use. Contact your local Avant dealer or local authorities for more information. Risk of crushing - Going under the loader boom or an attachment can cause serious injury or death.
-
Page 9: Personal Protective Equipment
9 (20) 3.1 Personal protective equipment Remember to wear proper personal protective equipment: The noise level at the driver's seat may exceed 85 dB(A) depending on loader model and operating cycle. Extended exposure to loud noise can cause hearing impairment. Wear hearing protection while working with the loader. ... -
Page 10: Technical Specifications
Weight, empty: 175 kg Maximum load: 500 kg Suitable AVANT loaders: See Table 1 4.1 Safety labels and main components of the attachment Listed below are the labels and markings on the attachment. They must be visible and readable on the equipment. - Page 11 A420297 Attachment identification plate Table 4 - Site toolbox - Main components Toolbox with Avant quick coupling brackets Possibility to lock with a padlock Space for pallet forks Work bench Fitting point for screw vice...
-
Page 12: Attaching The Attachment
Do not stay in the area between the attachment and the loader. Mount the attachment only on level surface. WARNING Never move or lift an attachment that has not been locked. Avant quick coupling system: Step 1: Lift the quick attach plate locking pins up and turn them backwards into the slot so that they are locked in the upper position. - Page 13 If your loader is not listed in Table 1 on page 6, ask your Avant dealer before using this attachment.
-
Page 14: Instructions For Use
14 (20) 6. Instructions for use Risk of tipping over - Avoid overload. Loader can tip over when handling too heavy loads, or because of dynamic movements caused by driving with and handling of a heavy WARNING load. Do not extend the telescopic boom when the load approaches the lifting capacity of the loader, or when the loader boom is in horizontal position. -
Page 15: Checks Before Use
15 (20) 6.1 Checks before use Use only when all pins are locked and secured in place. Ensure that bystanders are at a safe distance when operating the equipment. Do not let anyone to enter danger area of the boom or to stay directly in front of the loader. Also make sure that it is safe to reverse with the loader. -
Page 16: Operating The Site Toolbox
16 (20) 6.3 Operating the Site toolbox Avoid sudden loss of stability - Never drag loads from e.g. a shelf. If the load that you want to lift from height is too heavy, the loader can tip forward when reversing with the loader. -
Page 17: Working On Uneven Ground
17 (20) 6.4 Working on uneven ground Extra caution is needed when using the equipment on inclined terrains and slopes. Drive slowly especially on inclined, uneven, or slippery surfaces, and avoid sudden changes in speed or direction. Operate the controls of the loader with careful and smooth movements. -
Page 18: Maintenance And Service
18 (20) 7. Maintenance and Service The attachment has been designed to be as maintenance free as possible. Continuous maintenance includes regular cleaning and lubrication, and monitoring the condition of the attachment. Because of the crushing hazard caused by lowering machine parts, all maintenance work must be done when moving parts have been lowered down completely and the attachment is lowered flat against the ground. -
Page 19: Warranty Terms
19 (20) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: Work costs are covered, if the repair is not performed at the factory.
