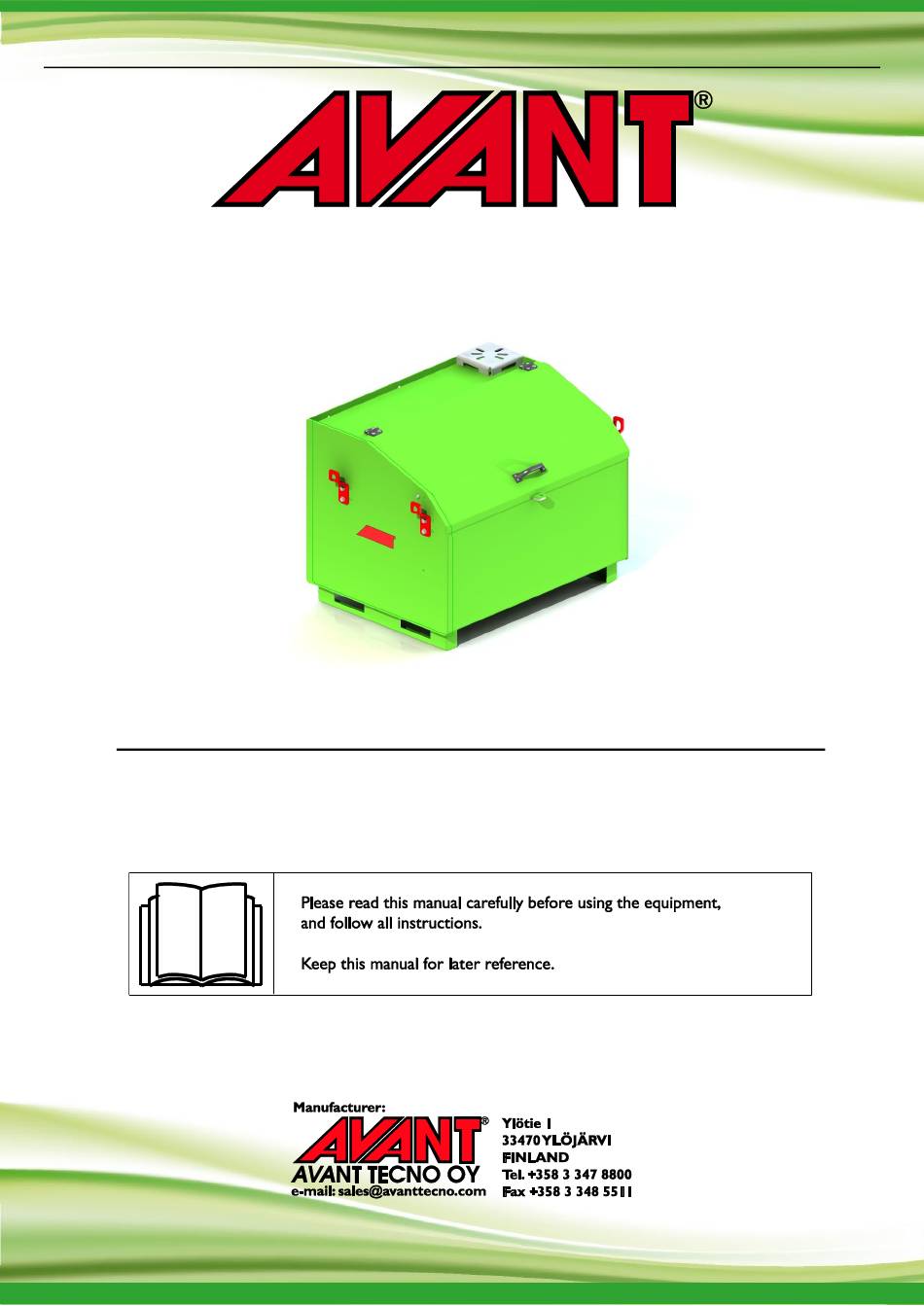

- Page 1 English Site toolbox 2016 1 Operator's Manual for Attachment Site toolbox Product number: A21689 www.avanttecno.com...
- Page 2 Site toolbox 2016 1...
-
Page 3: Table Of Contents
Site toolbox 2016 1 CONTENTS 1. FOREWORD ............................4 2. DESIGNED PURPOSE OF USE......................5 3. SAFETY INSTRUCTIONS FOR USING THE ATTACHMENT ............6 4. TECHNICAL SPECIFICATIONS ....................... 9 Safety labels and main components of the attachment ..................9 5. ATTACHING THE ATTACHMENT ....................11 6. -
Page 4: Foreword
If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer. -
Page 5: Designed Purpose Of Use

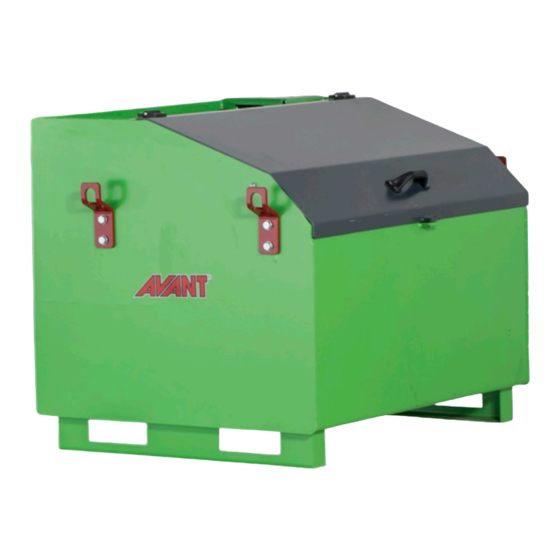

2. Designed purpose of use The AVANT Site Toolbox is a handy way of storing tools and supplies needed at a work site. The lid can be locked with a pad lock. The toolbox can be coupled directly to Avant loaders with quick coupling, and it can be handled easily with pallet forks. -
Page 6: Safety Instructions For Using The Attachment
6 (16) 3. Safety instructions for using the attachment Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage. - Page 7 7 (16) Always lower the bucket firmly on the ground before leaving the driver’s seat to avoid any unexpected movements of the loader. The stability of the loader may change when leaving the driver’s seat, leading to tipping over of the machine. Always remember that the boom may lower unexpectedly due to loss of stability, mechanical fault, or if another person operates the controls of the loader, leading to crushing hazard.
- Page 8 8 (16) Remember to wear proper protective clothing: The noise level at the driver's seat may exceed 85 dB(A). Wear hearing protection while working with the loader. Wear protective gloves. Wear safety boots whenever working with the loader. Safe position of the attachment, before going near the loader boom Always set the attachment to a safe position before going near the attachment.
-
Page 9: Technical Specifications
Weight, empty: 160 kg Maximum load: 500 kg Suitable AVANT loaders: See Table 1 4.1 Safety labels and main components of the attachment Listed below are the labels and markings, which must be visible on the equipment. Replace the warning labels, if they have become unclear or if they have detached completely. - Page 10 Attachment identification plate Table 4 - Main components of the Site toolbox Toolbox with Avant quick attach brackets Possibility to lock with a padlock Bottom structure with space for handling with pallet forks...
-
Page 11: Attaching The Attachment
Mount the attachment only on level surface. Never move or lift an attachment that has not been locked. Avant quick coupling system: Step 1: Lift the quick attach plate locking pins up and turn them backwards into the slot so that they are locked in the upper position. - Page 12 12 (16) An attachment that has not been completely locked to the loader may fall on the boom or towards the operator, or fall under the loader during driving, causing loss of control of the loader. Never move or lift an attachment that has not been locked.
-
Page 13: Instructions For Use
13 (16) 6. Instructions for use Practise the use of the attachment and the controls of the loader in a safe area. If you are unfamiliar with the particular loader model, it is recommended to practice its use without any attachments. Avoid overturning of the machine. -
Page 14: Using The Toolbox
14 (16) 6.2 Using the toolbox Use maximum load indicated in the diagram of the operator’s manual of the loader as a guideline. Remember that the actual load carrying capacity varies according to operating conditions, especially unevenness of operating area has a great effect. Be especially careful when the load sensor indicator is activated. Also, make sure that the ground surface is firm and follow recommended tyre pressures. -
Page 15: Inspections, Maintenance And Service
8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: ...
