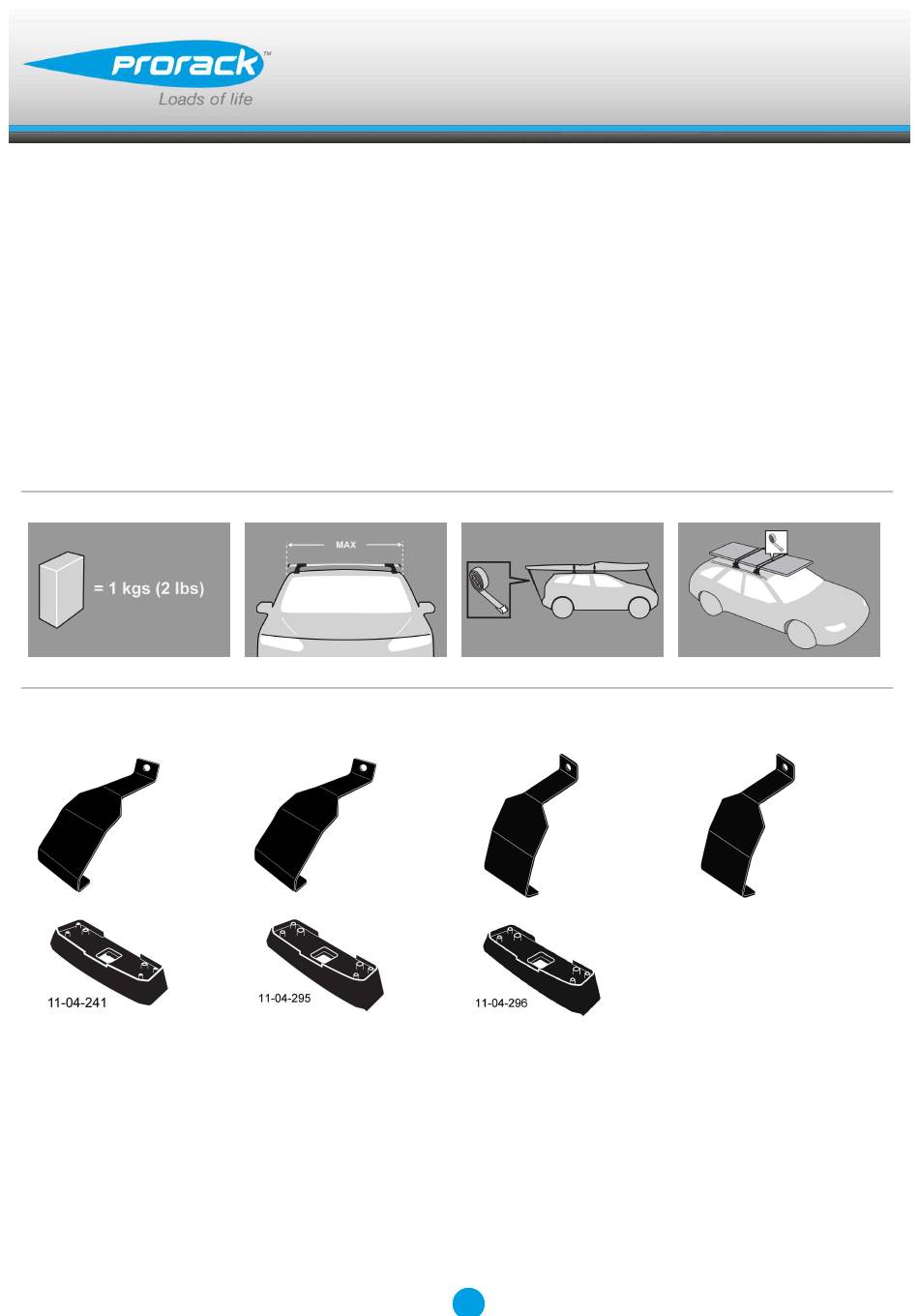

- Page 1 K876 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 1A...
- Page 2 Fitting Kit K876 MAX kgs (lbs) Toyota Yaris L, 5dr Hatch 13-+ 50 kgs (110 lbs) 50 kgs (110 lbs) Yaris L, 5dr Hatch 13-+ 50 kgs (110 lbs) 50 kgs (110 lbs)
- Page 3 Fitting Kit K876 Yaris L, 5dr Hatch 13-+ (CN) -380mm 330mm 797mm 742mm -14 -15/16ths" 13" 31 3/8ths" 29 3/16ths" Yaris L, 5dr Hatch 13-+ (EU) -380mm 330mm 797mm 742mm -14 -15/16ths" 13" 31 3/8ths" 29 3/16ths"...
-
Page 4: First Time Installation
Fitting Kit K876 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 5 Fitting Kit K876 Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is...
- Page 6 Fitting Kit K876 Remove locking screw. It is important to put the clamps in the correct position on the vehicle. Letters refer to the part numbers stamped on clamps. Clamp Part Number: A = B523 B = B524 C = B525 D = B526 Attach clamp to each leg.
- Page 7 Fitting Kit K876 Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw. Refer to the underside of the pad for the part number. It is important to put the pads in the correct position on the vehicle.
- Page 8 Fitting Kit K876 Place rubber pads (supplied with fitting kit) on the vehicle roof. Pad may vary in shape to that shown. Make sure the pad fits into the holes underneath the foot. Fitment Clamps directly to edge of roof under the...
- Page 9 Fitting Kit K876 Adjust the legs on the crossbar so that they are positioned equally from the ends of the crossbar, and the clamps engage firmly on the body work of the vehicle. Tighten adjusting screw to 2 Nm (1.5 ft lb) hand tight.
- Page 10 Fitting Kit K876 Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 11: Maintenance
Fitting Kit K876 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 12 Fitting Kit K876 Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
Page 13: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Prorack dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Prorack dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 14 Yakima or the Prorack dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Prorack dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
