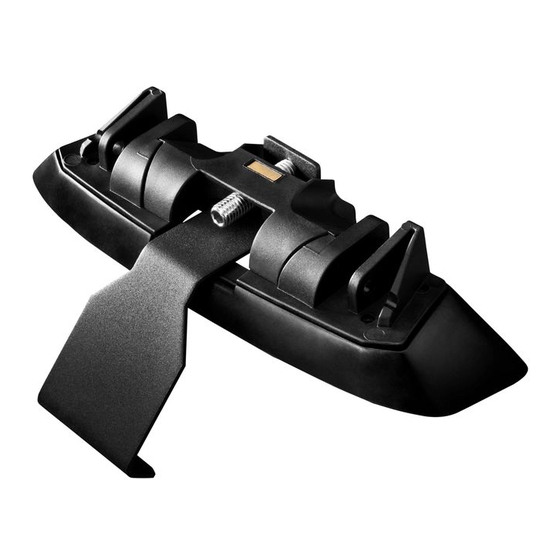

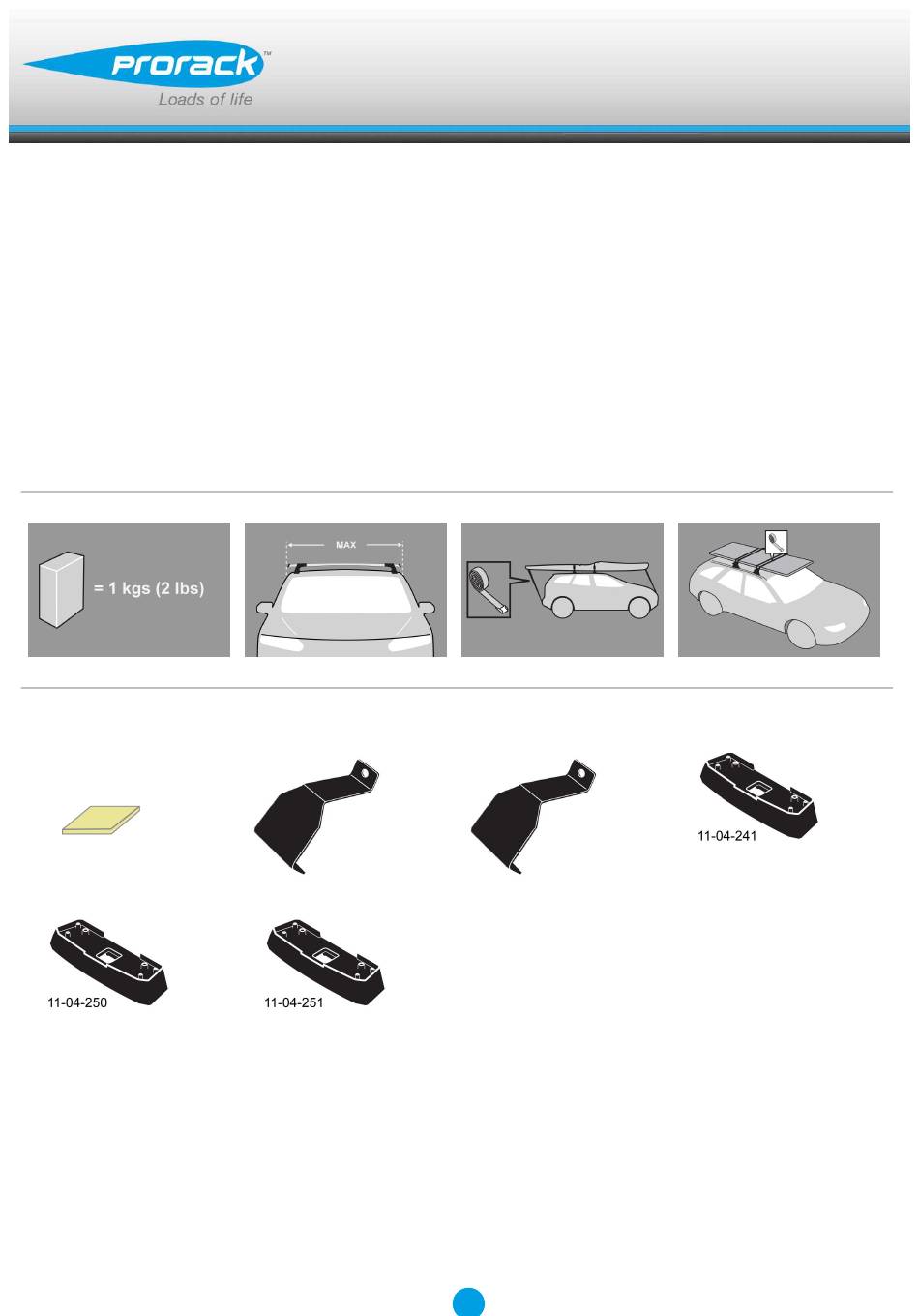

- Page 1 K504 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 3C...
- Page 2 Fitting Kit K504 MAX kgs (lbs) Think City , 3dr Hatch 09-+ 50 kgs (110 lbs) 50 kgs (110 lbs) City , 3dr Hatch 09-12 50 kgs (110 lbs) 50 kgs (110 lbs) City , 3dr Hatch 09-13 50 kgs (110 lbs)
-
Page 3: First Time Installation
Fitting Kit K504 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 4 Fitting Kit K504 Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is...
- Page 5 Fitting Kit K504 Remove locking screw. Apply protective strip as shown. Trim if required. Letters refer to the part numbers stamped on clamps. Clamp Part Number: A = 686A B = 687A...
- Page 6 Fitting Kit K504 Attach clamp to each leg. NOTE; clamps may have labels showing their positions on the vehicle (For example; "Front Right"). Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw.
- Page 7 Fitting Kit K504 Letters refer to the pad part numbers and position. Pad Part Number: A = 11-04-250 B = 11-04-251 C = 11-04-241 Fit rubber pads (supplied with fitting kit) to foot. Pad may vary in shape to that shown.
- Page 8 Fitting Kit K504 Fitment Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated). Clamps directly to edge of roof under the doors Please check the rear of this manual for information relating specifically to your vehicle.
- Page 9 Fitting Kit K504 Tighten locking screw on both legs evenly. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
- Page 10 Fitting Kit K504 Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers...
-
Page 11: Maintenance
Fitting Kit K504 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 12 Fitting Kit K504 Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
- Page 13 Fitting Kit K504 City, 3dr Hatch 09-+ (CN) -160mm 360mm 732mm 724mm -6 -5/16ths" 14 3/16ths" 28 13/16ths" 28 1/2ths" City, 3dr Hatch 09-12 (EU) -160mm 360mm 732mm 724mm -6 -5/16ths" 14 3/16ths" 28 13/16ths" 28 1/2ths" City, 3dr Hatch 09-13 (US)
-
Page 14: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Prorack dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Prorack dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 15 Yakima or the Prorack dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Prorack dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
