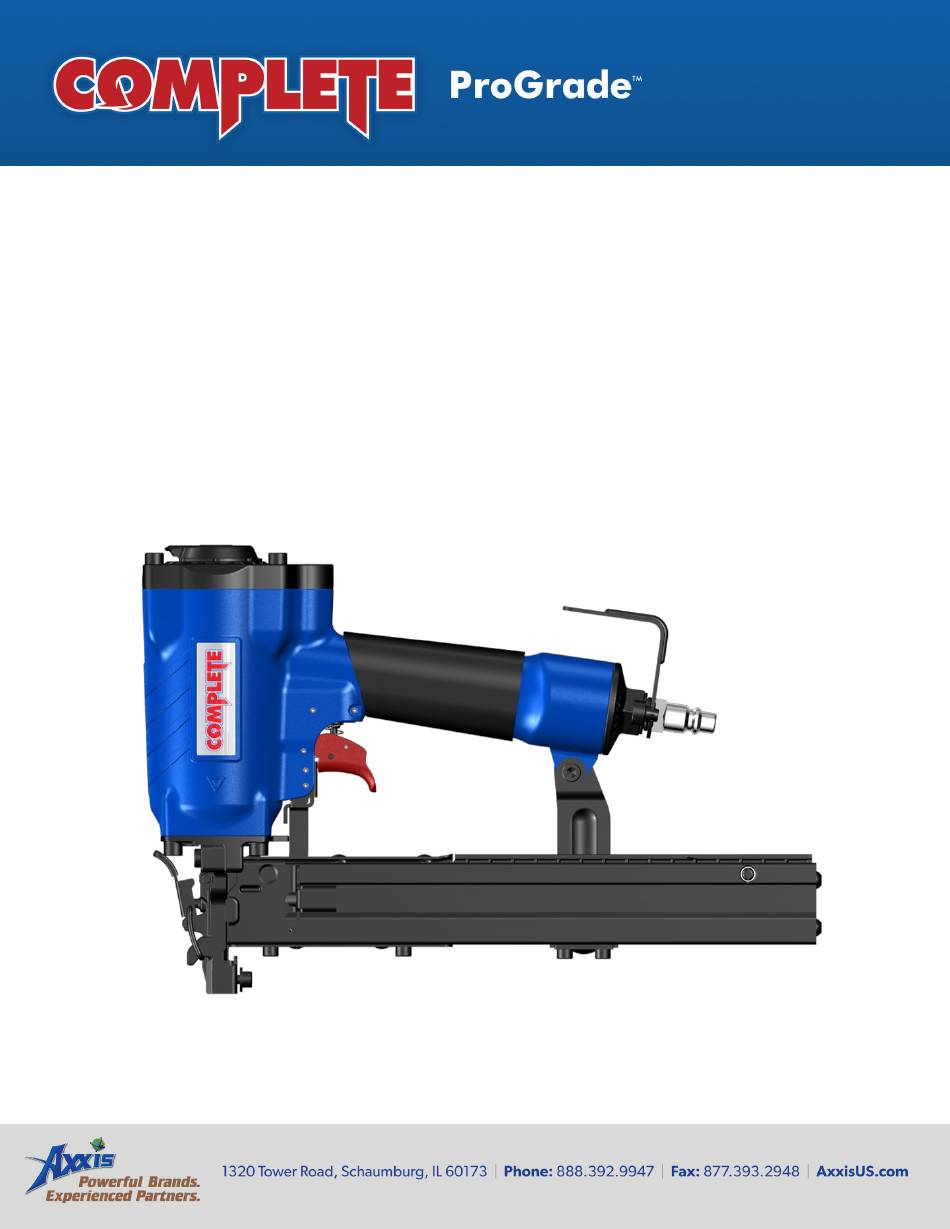

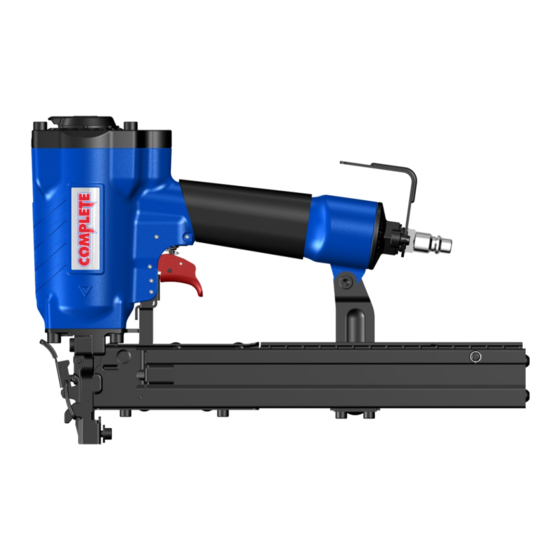

- Page 1 C-W1638B 16 Ga, 1” Wide Crown Stapler MANUAL/WARNING: IMPORTANT PLEASE READ BEFORE USING TOOL Please read the following operating instructions manual. Refer to this manual for safety, adjustment and trouble shooting instructions. If you have any further questions please contact your distributor.
-
Page 2: Table Of Contents
TOOL SPECIFICATION…..………………………………………………………….…… 3 SAFETY INSTRUCTIONS……….……………………………………………………….. 4 COMPRESS AIR SYSTEMS……………………………………………………………... 5 OPERATING INSTRUCTIONS……………….………………………………………….. 6 PRECAUTIONARY MEASURES…...…………………………………………………..7 MAINTENANCE……….……………………………………………………………..……. 8 TROUBLE SHOOTING………………………………………………………..………….. 9 TROUBLE SHOOTING………………………………………………..………………….. 10 EXPLODED VIEW OF TOOL…………………………………..………………………… 12 PARTS LIST…………………………………..…………………………………………… 13 Complete * Schaumburg, IL 60173 * Phone: 888-392-9947... -
Page 3: Tool Specification
DIMENSIONS (L x H x W) approx…………..……………………… 14.17" x 3" x 9.29" WEIGHT （WITHOUT FASTENERS）………..………………….. 5.5 lbs RECOMMENDED OPERATING PRESSURE……...……………... 70-120 PSI NAIL SPECIFICATION…………………..………………………….. 16 Gauge, 1” Wide Crown NAIL CAPACITY………………………………………………………. 140 Staples Complete * Schaumburg, IL 60173 * Phone: 888-392-9947... -
Page 4: Safety Instructions
Always ensure that the work area is amply lit so as to avoid possible accidents. Never remove, tamper with or otherwise cause the tools operating controls to become inoperable. Complete * Schaumburg, IL 60173 * Phone: 888-392-9947... -
Page 5: Compress Air Systems
WARNING Keep hands and body away from the discharge area of the tool when connecting the air supply and always disconnect the tool when servicing, adjusting, cleaning and when the tool is not in use. Complete * Schaumburg, IL 60173 * Phone: 888-392-9947... -
Page 6: Operating Instructions
-a reduction in fastener driving tool wear will be achieved Any defective or improperly functioning tool must be immediately disconnected from the compressed air supply and passed to a specialist for inspection. Complete * Schaumburg, IL 60173 * Phone: 888-392-9947... -
Page 7: Precautionary Measures
Do not use the tool if the tool is leaking air or needs repair. - Written approval of the tool manufacturer must be obtained before making any modifications to the tool. Complete * Schaumburg, IL 60173 * Phone: 888-392-9947... -
Page 8: Maintenance
3 drops for every 1,000 fasteners fired there after. Tools shall be repaired or equipped only with parts or accessories that are supplied or recommended by the tool manufacturer / supplier. NEVER use a tool that requires repair work. Complete * Schaumburg, IL 60173 * Phone: 888-392-9947... -
Page 9: Trouble Shooting
Defective driver blade, (deflected, Replace deformed or broken) Defect inside cylinder (adhesive or Check if the nailer drives at Remove adhesive fragment or wood dust wood fragment, worn) minimum operating pressure Complete * Schaumburg, IL 60173 * Phone: 888-392-9947... -
Page 10: Trouble Shooting
Replace blade tip if worn or not Worn guide groove of the blade Check the wear of the blade guide Replace guide Work piece material is too hard Stop using the tool Complete * Schaumburg, IL 60173 * Phone: 888-392-9947... - Page 11 NOTES Complete * Schaumburg, IL 60173 * Phone: 888-392-9947...
- Page 14 Visit our web site www.axxisus.com Email us @ reception.inc@axxisus.com...
