Complete E54/16 Operating Manual

Warning！When using electric tools, basic safety precautions, including the following, should always be followed to reduce the risk of fire, electric
shock, and personal injury. Read all these instructions before operating this product and save these instructions.
Attention！Always follow the safety rules and instructions in this manual. The manufacturer will not accept any responsibility for damage caused
by improper use of the tacker.
Index
1. Diagram
2. Technical data
3. Noise and vibration
4. Foreword
5. General safety rules
6. Instruction of safe use

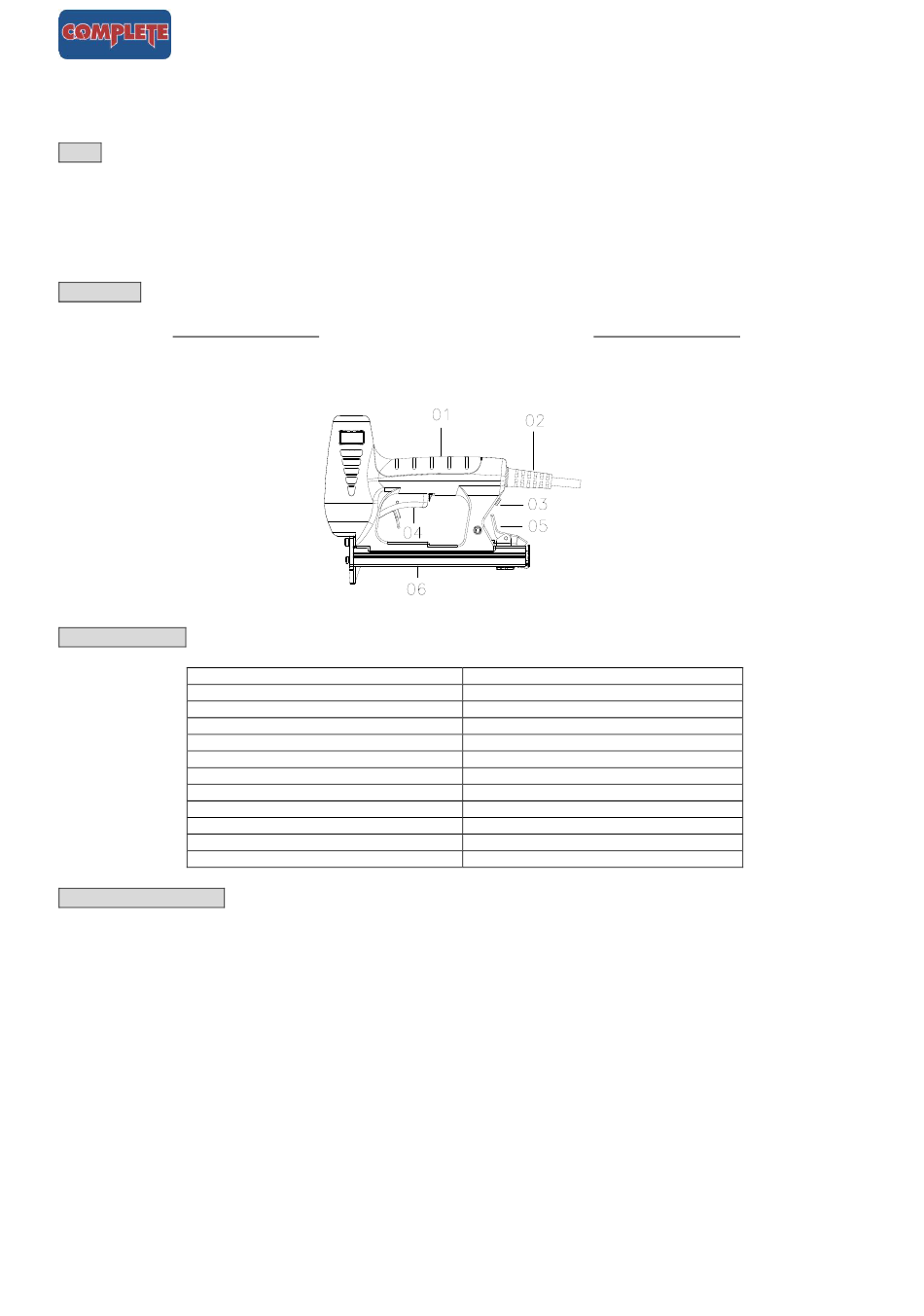

1. Diagram
No. Descriptions
01. Non-slip soft grip
02. Power cord
03. On/Off switch
2. Technical data
Model
Length
Width
Height
Power
Rated power
Max. drive speed
Magazine capacity
Loading system
Fastener length
Weight
Year
3. Noise and vibration
A-weighted sound pressure level ...................................................................................... 85.3 dB(A)
A-weighted sound power level ..........................................................................................98.3.dB(A)
Measurement uncertainty: 3dB
Hand-arm vibration value........................................................................................................ 2.71 m/s
Measurement uncertainty: 1.5 m/s
The following information:
- that the declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool
with another;
- that the declared vibration total value may also be used in a preliminary assessment of exposure.
A warning:
- that the vibration emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is
used; and
- of the need to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking
account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger
time).
2
7. Operating instructions
8. Clearance of jamming
9. Maintenance
10. WEEE Directives
11. Exploded view
12. Parts list
No. Descriptions
04. Safety trigger
05. Quick release latch
06. Magazine seat
E54/16
235 mm (9.25 ")
64 mm (2.52 ")
186 mm (7.32 ")
AC100-120V, 50Hz
600W
30 Shots/minute
100 pcs
Side loading
Staple 8～16 mm
1.15 kg (2.54 lbs)
2016
2
