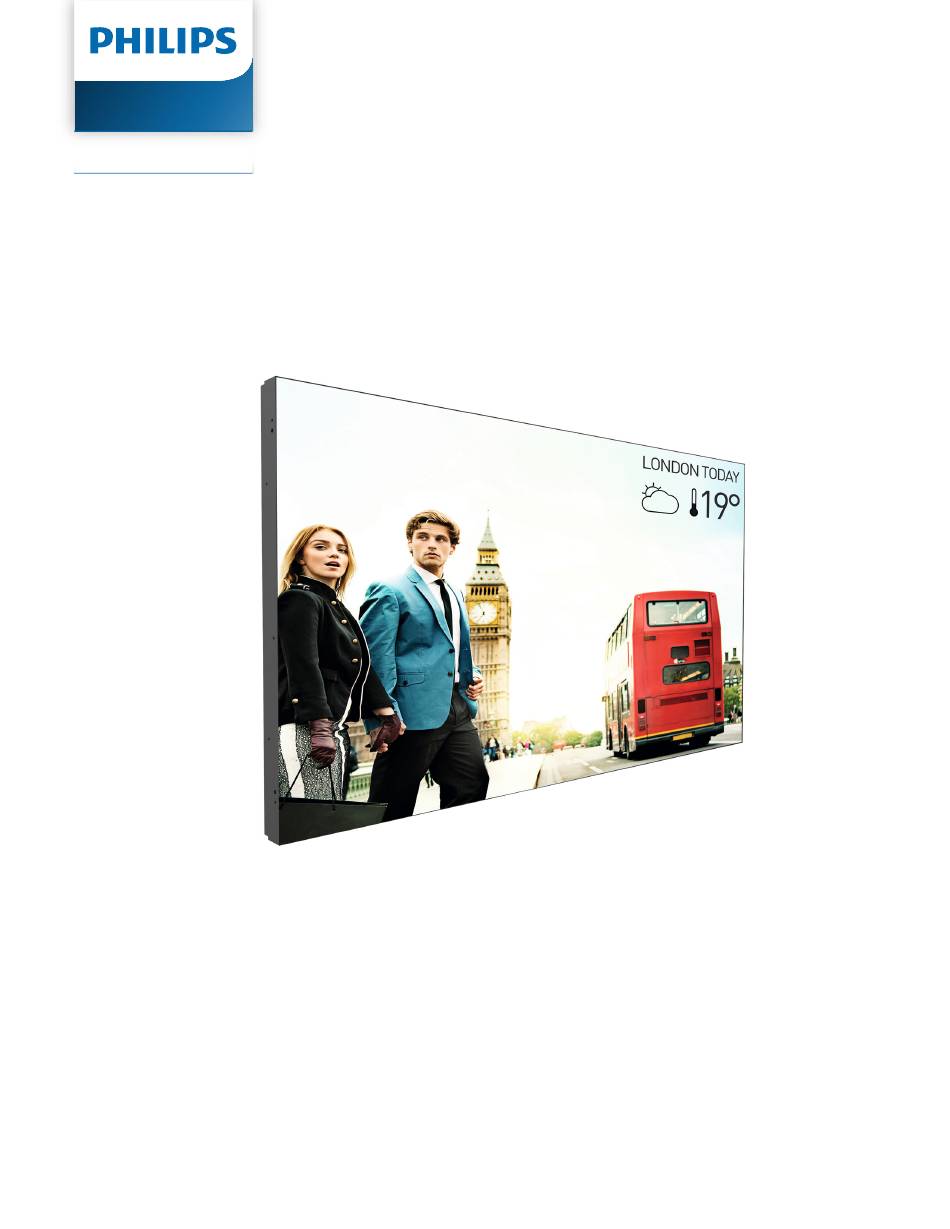

- Page 1 Professional Display Solutions X Line 49BDL2005X www.philips.com/welcome User Manual (English)
- Page 2 When turning off the display by detaching the power cord, wait 6 seconds before re-attaching the power cord for normal operation. • Ensure the use of an approved power cord provided by Philips at all times. If your power cord is missing, please contact your local service center. •...
- Page 3 49BDL2005X • Only the lifetime of the display stated in this specification is guaranteed if the display is used under the proper operation conditions. IMPORTANT: Always activate a moving screen saver program when you leave your display unattended. Always activate a periodic screen refresh application if the unit will display unchanging static content.
- Page 4 49BDL2005X Warning: This equipment is compliant with Class A of EN55032/CISPR 32. In a residential environment this equipment may cause radio interference. Federal Communications Commission (FCC) Notice (U.S. Only) NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
- Page 5 49BDL2005X Polish Center for Testing and Certification Notice The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All equipment that works together (computer, display, printer, and so on) should have the same power supply source. The phasing conductor of the room’s electrical installation should have a reserve short-circuit protection device in the form of a fuse with a nominal value no larger than 16 amperes (A).
- Page 6 49BDL2005X Information for U.K. only WARNING - THIS APPLIANCE MUST BE EARTHED. Important: This apparatus is supplied with an approved moulded 13A plug. To change a fuse in this type of plug proceed as follows:+ 1. Remove fuse cover and fuse. 2.
- Page 7 49BDL2005X China RoHS 根据中国大陆《电器电子产品有害物质限制使用管理办法》，以下部分列出了本产品中可能包含的有害 物质的名称和含量。 有害物质 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr (VI)) (PBB) (PBDE) 外壳 ○ ○ ○ ○ ○ ○ 液晶显示屏 × ○ ○ ○ ○ ○ 电路板组件* × ○ ○ ○ ○ ○...
- Page 8 Please find out about the local regulations on how to dispose of your old display from your local Philips dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury.
- Page 9 For more information about E -waste please visit http://www.india.philips.com/about/sustainability/recycling/index. page and to know where you can drop off your waste equipment for recycling in India please contact on below given contact details.
- Page 10 49BDL2005X Batteries For EU: The crossed-out wheeled bin implies that used batteries should not be put to the general household waste! There is a separate collection system for used batteries, to allow proper treatment and recycling in accordance with legislation. Please contact your local authority for details on the collection and recycling schemes.
-
Page 11: Table Of Contents
49BDL2005X Table Of Contents 4.2. Change Picture Format ........16 4.3. Play multimedia files via Local Area Network .............16 Unpacking and Installation ........1 4.3.1. Network settings ........16 1.1. Unpacking ............1 4.3.2. How to use DLNA-DMP ....16 1.2. Package Contents ..........1 4.3.3. -
Page 12: Unpacking And Installation
49BDL2005X Unpacking and Installation 1.1. Unpacking • This product is packed in a carton, together with the standard accessories. • Any other optional accessories will be packed separately. • As this product is high and heavy, the operation of moving the device is recommended to be performed by two technicians. •... -
Page 13: Mounting On A Wall
49BDL2005X 1.4. Mounting on a Wall To mount this display on a wall, a standard wall-mounting kit (commercially available) is required. It is recommended that you use a mounting interface that complies with TUV-GS and /or UL1678 standard in North America. Protective Sheet VESA Grid Table... -
Page 14: Mounting In Portrait Orientation
Mounting in Portrait Orientation This display can be installed in portrait orientation. Rotate the display 90 degrees counterclockwise based on the back view. The “PHILIPS” LOGO should be on the LEFT side when facing the backside of the display. 90°... -
Page 15: Operating Instructions Of Edge Alignment Kit
49BDL2005X 1.6. Operating Instructions of Edge Alignment Kit 1.6.1. Installing the Edge Alignment Kit • Before installing the edge alignment kit, the display must be mounted to the frame of video wall correctly. • We recommend you contact a professional technician when installing the edge alignment kit. We are not responsible for any damage to the product if the installation is not performed by a professional technician. -
Page 16: Using The Edge Finishing Kit (Optional)
49BDL2005X 1.7. Using the Edge Finishing Kit (Optional) You could use the edge finishing kit to protect the display and have a better appearance. 1.7.1. Installing Edge Finishing Kit Installing Edge Finishing Kit for 1x1 Display Configuration Edge Finishing Kit-Top (*1PC) Corner(*4PCS) Edge Finishing... -
Page 17: Parts And Functions
49BDL2005X Parts and Functions 2.1. Control Panel [ ] button [MENU] button Press this button to turn the display On or turn the Return to the previous menu while the OSD menu is On. display to standby mode. This button can also be used to activate the OSD menu when the OSD menu is Off. -
Page 18: Input/Output Terminals
49BDL2005X 2.2. Input/Output Terminals EXT. SPK TERMINAL AUDIO OUT AUDIO R IN AUDIO L IN 100-240V IR-IN IR-OUT RS232 IN RS232 OUT PC LINE 50/60Hz 2.5A DVI IN DVI OUT VGA IN SPEAKER HDMI1 IN HDMI2 IN DP IN DP OUT Y/CVBS SWITCH RJ45... -
Page 19: Remote Control
49BDL2005X 2.3. Remote Control [ ] POWER button Turn the display on or put the display to standby mode. 2.3.1. General functions [PLAY] buttons Control playback of media files. ] SOURCE button Choose input source. Press [ ] or [ ] button to choose NORMAL Network HDMI 1... -
Page 20: Id Remote Control
49BDL2005X 2.3.2. ID Remote Control Press [ID] button. The red LED blinks twice. 1. Press [ID SET] button for more than 1 second to enter the Set the remote control ID if you intend to use this remote ID Mode. The red LED lights up. control on several different displays. -
Page 21: Inserting The Batteries In The Remote Control
49BDL2005X 2.3.3. Inserting the batteries in the remote control The remote control is powered by two 1.5V AAA batteries. To install or replace batteries: 1. Press and then slide the cover to open it. 2. Insert batteries with the correct polarity (+) and (-). 3. -
Page 22: Connecting External Equipment
49BDL2005X Connecting External Equipment 3.1. Connecting External Equipment (DVD/VCR/VCD) 3.1.1. Using COMPONENT video input [AUDIO IN] PC LINE SPEAKER Y/CVBS SWITCH [COMPONENT IN] (YPbPr) COMPONENT Out Audio Out (YPbPr) DVD / VCR / VCD 3.1.2. Using Video Source input [AUDIO IN] PC LINE SPEAKER Y/CVBS... -
Page 23: Using Hdmi Video Input
49BDL2005X 3.1.3. Using HDMI video input HDMI1 IN HDMI2 IN DVI IN DVI OUT DP IN DP OUT [HDMI IN] HDMI Out DVD / VCR / VCD 3.2. Connecting a PC 3.2.1. Using VGA input VGA IN PC LINE SPEAKER Y/CVBS SWITCH VGA Out... -
Page 24: Using Hdmi Input
49BDL2005X 3.2.3. Using HDMI input HDMI1 IN HDMI2 IN DVI IN DVI OUT DP IN DP OUT VGA IN [HDMI IN] HDMI Out 3.2.4. Using DisplayPort input PC LINE SPEAKER DP IN DP OUT VGA IN Y/CVBS SWITCH DisplayPort Out [DisplayPort IN] 3.3. -
Page 25: Connecting Multiple Displays In A Daisy-Chain Configuration
49BDL2005X 3.4. Connecting Multiple Displays in a Daisy-chain Configuration You can interconnect multiple displays to create a daisy-chain configuration for applications such as a menu board. 3.4.1. Display control connection Connect the [RS232C OUT] connector of DISPLAY 1 to the [RS232C IN] connector of DISPLAY 2. DISPLAY 1 DISPLAY 2 [RS-232C]... -
Page 26: Ir Pass-Through Connection
49BDL2005X 3.6. IR Pass-through Connection [IR OUT] DVD / VCR / VCD [IR IN] NORMAL (DVD / VCR / VCD) SOURCE FORMAT LIST INFO ADJUST OPTIONS ID SET ENTER Remote Control 3.7. Wire-connecting to Network INTERNET ROUTER [RJ-45] [RJ-45] Network Settings: 1. -
Page 27: Operation
49BDL2005X Operation 2. Switch your PC and router On. • Single display setup: NOTE: The control button described in this section is mainly on the remote control unless specified otherwise. 4.1. Watch the Connected Video Source ROUTER [RJ-45] [RJ-45] See page 11 for external equipments connection. 1. -
Page 28: How To Use Dlna-Dmr From Pc
49BDL2005X Play files from display 3. Set the name of your display. ] SOURCE button, choose Network, and press 1. Press [ Network settings ] button. Digital Media Renderer - D... Network name Network Clear Internet memory Internet SmartCMS HDMI 1 HDMI 2 Display Port Card OPS... -
Page 29: Play Multimedia Files From Usb Device
49BDL2005X 4.4. Play multimedia files from USB device To search backward or forward, press [ ] or [ • button, press repeatedly to toggle between different 1. Connect your USB device to the USB port on the display. speeds. • To stop the music, press [ ] button. -
Page 30: Playing Photo Files
49BDL2005X 4.5.3. Playing photo files Internet Photo 1. Choose from the top menu bar. Web Address： http:// Photo History 2. Choose a photo thumbnail, then press [ ] button. www.google.com Start a slideshow Bookmark If there are multiple photos in a folder, choose a photo. Play All Then, press [ ] to... -
Page 31: Change Your Settings
49BDL2005X Change your settings 5.1. Settings Press [ ] HOME button. Using the remote control: SOURCE FORMAT 5.1.1. Picture Picture Picture style Sound Backlight Tiling Colour LIST INFO Network Sharpness General settings Noise reduction Advanced MPEG artifact reducti... m e n u Help Picture enhancement Advanced... -
Page 32: Sound
49BDL2005X Advanced Format and edges • {Picture format}: Change the picture format. Access advanced settings to enhance your audio • {Zoom}: Expand the horizontal and vertical sizes of experience. {Auto volume leveling}: Enable the reduction of the image simultaneously. • sudden volume changes. - Page 33 49BDL2005X Example: 2 x 2 screen matrix (4 displays) {Off} H monitors = 2 displays V monitors = 2 displays H monitors Position Example: 5 x 5 screen matrix (25 displays) H monitors = 5 displays Frame comp.H V monitors = 5 displays Adjust the horizontal frame compensation.
- Page 34 49BDL2005X Auto ID (2). Enter activate key in OSD Set up {Monitor ID} of the connected device according to {H monitors} settings. Example: H monitors sets as 4 Cancel Clear Done (3). Press [OK] button and an on-screen keypad appears to allow you enter the activate key.
-
Page 35: Network
49BDL2005X 5.1.5. General settings (5). Check tiling tool status Picture Menu language Picture Status Sound Sound Monitor Group Tiling Monitor ID Tiling Network Eco mode Network General settings General settings Auto search Advanced Clock Advanced Help Scheduling Help Sleep timer OneWire Local KB lock RC lock... - Page 36 NOTE: If {Source} {Autoplay} is chosen, you need to Menu item {Correction time} Selection item {0.5, 1.0, 1.5, • create a folder named “philips” in the root directory 2.0} hour of the USB and place the files (pictures or videos) •...
- Page 37 49BDL2005X Repeat modes OneWire 5. Go to and select the repeat mode. Connect and control your HDMI-CEC compliant devices through HDMI port to this display with the same remote Schedule 1 Status No repeat control. Schedule 2 Source Every Sunday Local KB lock Schedule 3 On time...
-
Page 38: Advanced
Advanced Choose {Off} to turn off the power LED indicator. Help Logo Choose {Off} and Philips logo will not appear when you turn the display On. Advanced power management When this function is set to {On}, the display will automatically turn off if no signal is detected. -
Page 39: Usb Device Compatibility
49BDL2005X USB device compatibility USB Video Subtitle Formats (for language subtitles, etc.) File Video Max. Bit Rate Container Maximum resolution Max. Frame Rate (fps) Audio codec Extensions codec (Mbps) MPEG-1 1920x1080 25p,30p,50i,60i MPEG-1(L1&L2), .mpg MPEG-2 1920x1080 25p,30p,50i,60i MPEG-1,2,2.5 L3, mpeg MPEG-4 AAC/HE- 1920x1080... - Page 40 49BDL2005X USB Multimedia Formats Frequency Max.Bit Rate Maximum File Extensions Container Video codec Audio codec resolution (kHz) (Mbps) .mp3 MPEG-1,2,2.5 L3 .wma .asf (V2 up to V9.2) .wma WMA Pro WMA,WMA Pro .wav(PC) LPCM LPCM .aif(mac) LPCM LPCM .aiff(mac) .aac .mp4 1024 AAC,HE-AAC(v1&v2)
-
Page 41: Input Mode
49BDL2005X Input Mode VGA Resolution: Active Resolution Standard Refresh Rate Pixel Rate Aspect Ratio Stand for Mode Resolution H Pixels V Lines 60 Hz 25.175 MHz 72 Hz 31.5 MHz Video Graphic Array 75 Hz 31.5 MHz Wide Video Graphic WVGA 70 Hz 33.75 MHz... -
Page 42: Pixel Defect Policy
However, pixel or sub-pixel defects on the PDP / TFT panels used in Plasma- & LCD- displays are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but Philips guarantees that any Plasma- & LCD- displays with an unacceptable number of defects will be repaired during the warranty period in line with your local guarantee conditions. -
Page 43: Dark Dot Defects
Pixel Defect Tolerances In order to qualify for repair due to pixel defects during the warranty period, a PDP / TFT panel in a Philips Plasma / LCD- display must have pixel or sub-pixel defects exceeding the tolerances listed in the following table. -
Page 44: Cleaning And Troubleshooting
49BDL2005X HOW TO AVOID MURA Although we can not guarantee the complete eradication of Mura every time, in general the appearance of Mura can be minimized by these methods: • Lower the backlight brightness • Use a screen saver • Reduce the ambient temperature around the unit Cleaning and Troubleshooting 9.1. -
Page 45: Troubleshooting
49BDL2005X 9.2. Troubleshooting Symptom Possible Cause Remedy No picture is displayed 1. The power cord is disconnected. 1. Plug in the power cord. 2. The main power switch on the back 2. Make sure the power switch is of the display is not switched on. switched on. -
Page 46: Warranty Statement
49BDL2005X Warranty Statement Warranty period for PHILIPS signage display is listed as below, for areas not covered in this table, please follow their warranty statement. Region Warranty Period USA, Canada 3 years China 1 year Asia Pacific 3 years Europe... -
Page 47: Technical Specifications
49BDL2005X Technical Specifications Display: Item Specifications Screen Size (Active Area) 48.5” (123.2 cm) LCD Aspect Ratio 16:9 Number of pixels 1920 (H) x 1080 (V) Pixel pitch 0.559 (H) x 0.559 (V) [mm] Displayable colors 10bit,1.07B colors Brightness (typical) 500 cd/m Contrast ratio (typical) 1200:1 Viewing angle... - Page 48 49BDL2005X General: Item Specifications Power Supply AC 100 - 240V, 50/60Hz Power Consumption (Max) 220 W Power Consumption (Typ.) 100 W Power Consumption (Standby & Off) <0.5W Dimensions [W x H x D] 1077.6 x 607.8 x 93.5 mm(D@Wall Mount)/103.8 mm(D@Handle) Weight 21.0 Kg Gross Weight...
- Page 49 This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are regis- tered trademarks of Koninklijke Philips N.V. and are used under license.
