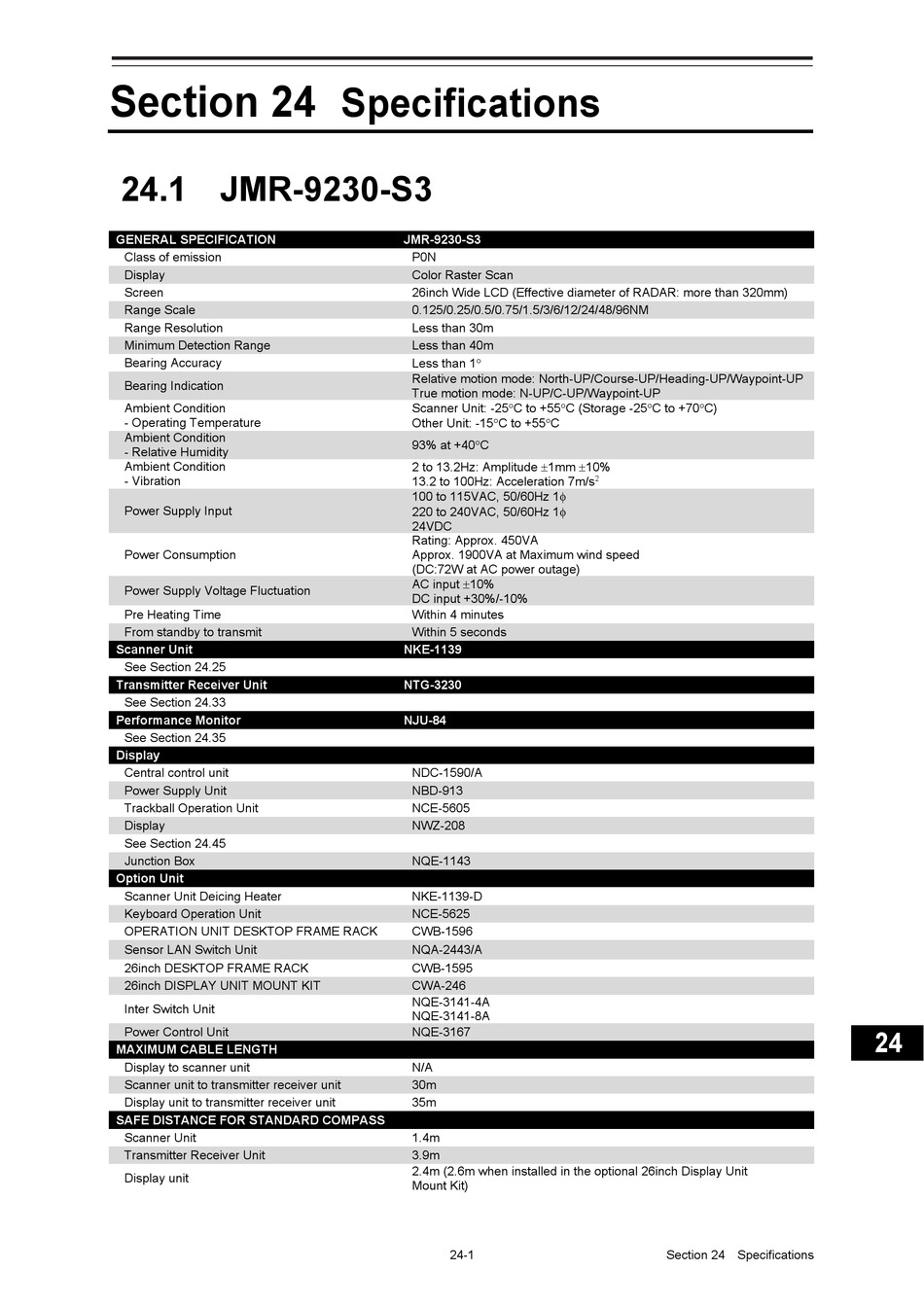

Section 24
24.1 JMR-9230-S3
GENERAL SPECIFICATION
Class of emission
Display
Screen
Range Scale
Range Resolution
Minimum Detection Range
Bearing Accuracy
Bearing Indication
Ambient Condition
- Operating Temperature
Ambient Condition
- Relative Humidity
Ambient Condition
- Vibration
Power Supply Input
Power Consumption
Power Supply Voltage Fluctuation
Pre Heating Time
From standby to transmit
Scanner Unit
See Section 24.25
Transmitter Receiver Unit
See Section 24.33
Performance Monitor
See Section 24.35
Display
Central control unit
Power Supply Unit
Trackball Operation Unit
Display
See Section 24.45
Junction Box
Option Unit
Scanner Unit Deicing Heater
Keyboard Operation Unit
OPERATION UNIT DESKTOP FRAME RACK
Sensor LAN Switch Unit
26inch DESKTOP FRAME RACK
26inch DISPLAY UNIT MOUNT KIT
Inter Switch Unit
Power Control Unit
MAXIMUM CABLE LENGTH
Display to scanner unit
Scanner unit to transmitter receiver unit
Display unit to transmitter receiver unit
SAFE DISTANCE FOR STANDARD COMPASS
Scanner Unit
Transmitter Receiver Unit
Display unit
Specifications
JMR-9230-S3
P0N
Color Raster Scan
26inch Wide LCD (Effective diameter of RADAR: more than 320mm)
0.125/0.25/0.5/0.75/1.5/3/6/12/24/48/96NM
Less than 30m
Less than 40m
Less than 1
Relative motion mode: North-UP/Course-UP/Heading-UP/Waypoint-UP
True motion mode: N-UP/C-UP/Waypoint-UP
Scanner Unit: -25C to +55C (Storage -25C to +70C)
Other Unit: -15C to +55C
93% at +40C
2 to 13.2Hz: Amplitude 1mm 10%
13.2 to 100Hz: Acceleration 7m/s
100 to 115VAC, 50/60Hz 1
220 to 240VAC, 50/60Hz 1
24VDC
Rating: Approx. 450VA
Approx. 1900VA at Maximum wind speed
(DC:72W at AC power outage)
AC input 10%
DC input +30%/-10%
Within 4 minutes
Within 5 seconds
NKE-1139
NTG-3230
NJU-84
NDC-1590/A
NBD-913
NCE-5605
NWZ-208
NQE-1143
NKE-1139-D
NCE-5625
CWB-1596
NQA-2443/A
CWB-1595
CWA-246
NQE-3141-4A
NQE-3141-8A
NQE-3167
N/A
30m
35m
1.4m
3.9m
2.4m (2.6m when installed in the optional 26inch Display Unit
Mount Kit)
24-1
2
Section 24 Specifications
