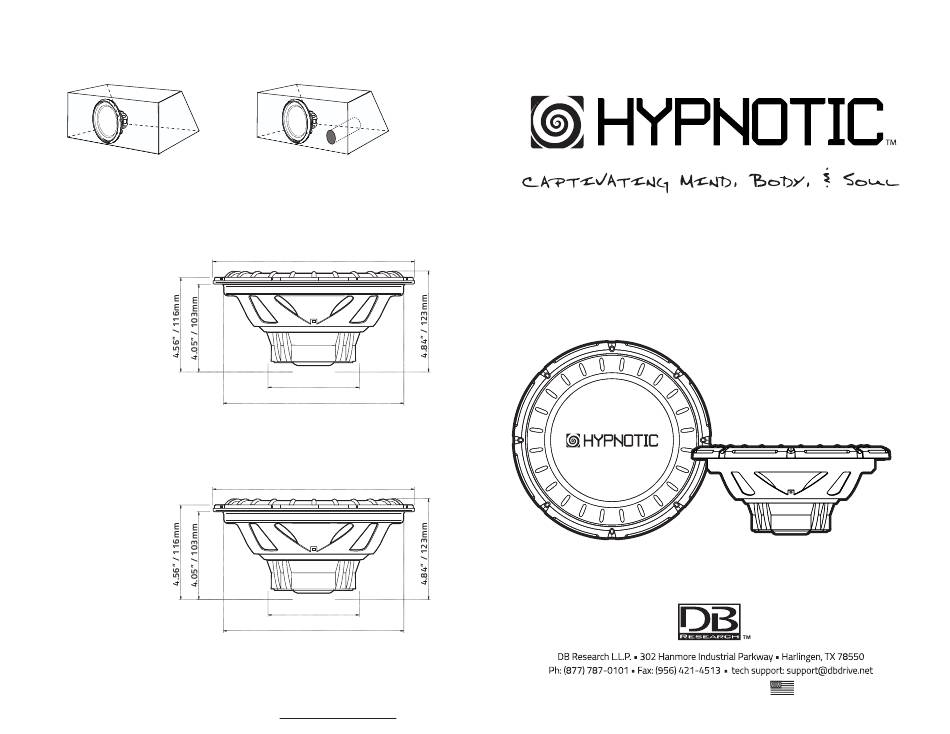

Recommended Enclosures
sealed
HEW10
Sealed Enclosure
Box Volume 1.0cu ft.
Ported Enclosure
Box Volume 1.37cu ft.
Box Tuning 39Hz
Port Diameter 4in
Port Length 18in
HEW10D
Sealed Enclosure
Box Volume 1.0cu ft.
Ported Enclosure
Box Volume 1.37cu ft.
Box Tuning 39Hz
Port Diameter 4in
Port Length 18in
Please Note: Our suggested box volumes are given as internal air requirements
ported
10.11"/ 257mm
4.96" / 126mm
9.05" / 230mm
10.11"/ 257mm
4.96" / 126mm
9.05" / 230mm
HEW10 / HEW10D
Installation Instructions / Owner's Manual
Designed and Engineered in the U.S.A.
Advertisement
Table of Contents
Related Manuals for Hypnotic HEW10
Summary of Contents for Hypnotic HEW10
- Page 1 Recommended Enclosures sealed ported HEW10 10.11”/ 257mm HEW10 / HEW10D Sealed Enclosure Box Volume 1.0cu ft. Installation Instructions / Owner’s Manual Ported Enclosure Box Volume 1.37cu ft. Box Tuning 39Hz Port Diameter 4in 4.96” / 126mm Port Length 18in 9.05” / 230mm HEW10D 10.11”/ 257mm...
- Page 2 INTRODUCTION PRODUCT SPECIFICATIONS Congratulations on your purchase of a HYPNOTIC™ state-of-the-art subwoofer com - ponent. Your selection of a HYPNOTIC™ car audio product indicates a true apprecia HEW10 HEW10D tion of fine musical reproduction. Whether adding to an existing system or including...
