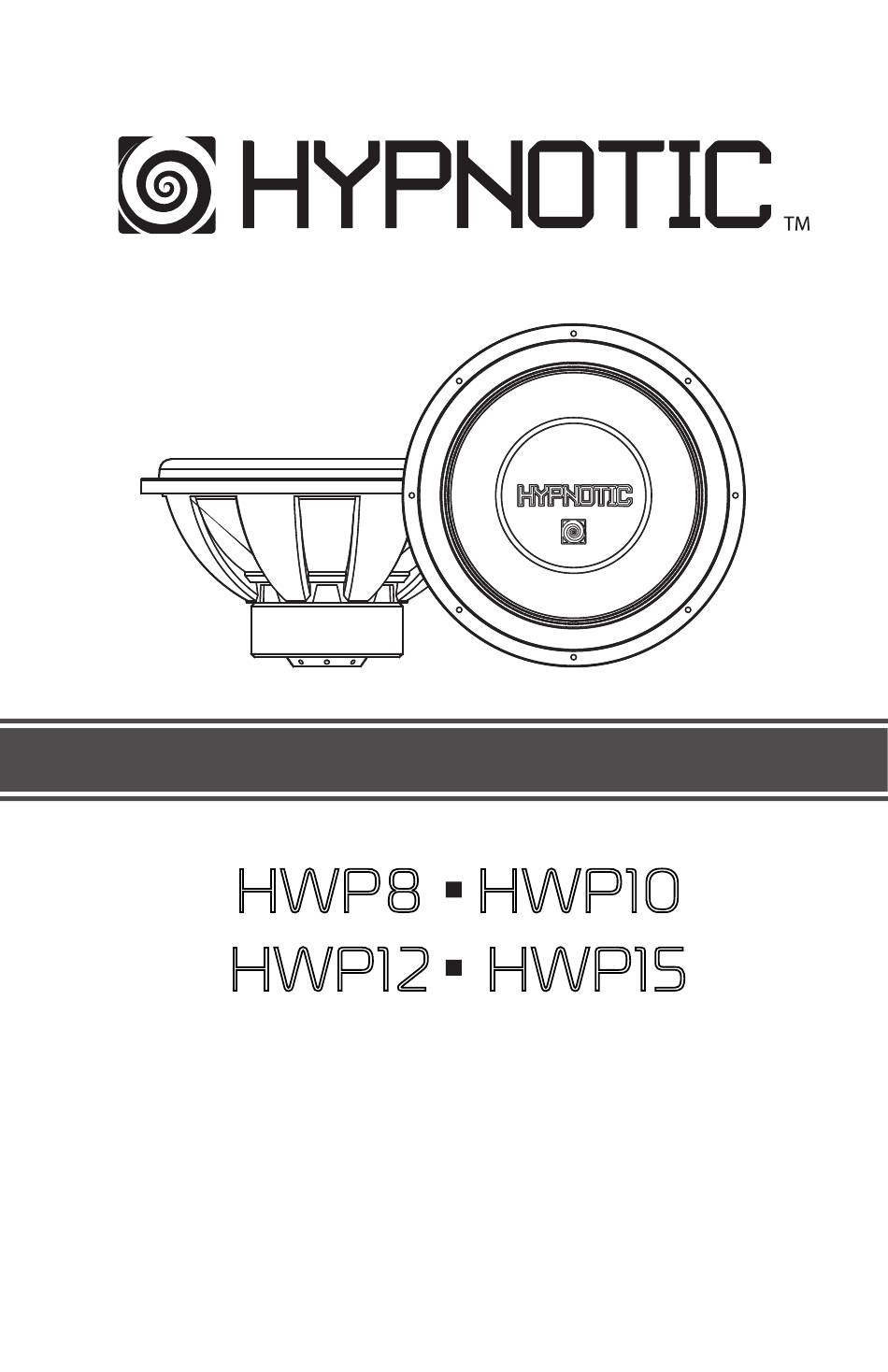

- Page 1 SUBWOOF ER M OD E LS HWP8 HWP10 HWP12 HWP15 USER MANUAL Installation Instructions | Owners Manual Due to continuous improvement of the product, specifications are subject to change without notice.
- Page 2 I n t r o d u c t i o n Congratulations on your purchase of a Hypnotic state-of-the-art subwoofer. Your selection of a Hypnotic car audio product indicates a true appreciation of fine musical reproduction. Whether adding to an existing system or including your Hypnotic Subwoofer in a new system, you are certain to notice immediate performance benefits.
- Page 3 PRODUCT FEATURES • Non-Pressed paper cone • Heavy gauge spring terminals • Double stitched foam surround • Protective magnet cover • High Roll Foam Surround • Wrap Around Mounting Gasket H W P 8 H W P 1 0 H W P 1 2 H W P 1 5 Structure 8”...
- Page 4 PRODUCT DIMENSIONS Frame Diameter Mounting Depth Cutout Diameter H W P 8 H W P 1 0 H W P 1 2 H W P 1 5 8.66 in. 10.70 in. 12.87 in. 15.55 in. Frame Diameter (220 mm) (272 mm) (327 mm) (395 mm) 5.8 in.
- Page 5 RECOMMENDED ENCLOSURES Sealed Vented ENCLOSURES HWP8 HWP10 HWP12 HWP15 7.48 in. 9.33 in. 11.02in. 13.74 in. Woofer Cut-out: (190 mm) (237mm) (280 mm) (349 mm) 5.8 in. 6.24 in. 6.88 in. 7.83in. Mounting Depth: (148 mm) (158.50 mm) (175 mm) (199.50mm)
- Page 6 DVC WIRING CONFIGURATIONS You can change the wiring configuration of your speakers (Series, Parallel and Series / Parallel) to match the impedance loads that maximizes the power output of you amplifier. Wiring the same woofer or multiple woofers in these three different wiring configurations will result in different impedance loads.
- Page 7 4 X 2Ω DVC 3 X 2Ω DVC SUBWOOFERS SUBWOOFERS 2Ω 2Ω 2Ω 2Ω 2Ω 2Ω 2Ω 2Ω 2Ω 2Ω 2Ω 2Ω 2Ω 2Ω 1.33Ω 1Ω 4 DVC WIRING CONFIGURATIONS 2 X 4Ω DVC 1 X 4Ω DVC 2 X 4Ω DVC SUBWOOFER SUBWOOFER SUBWOOFER...
- Page 8 (1) year. This warranty applies to the original purchase only. Hypnotic™ will either repair or replace (as its option) any unit that has been found to be defective and under warranty provided the defect occurs within the one (1) year warranty period.
