RED DEVIL RED2S304 Owner's Manual page 5

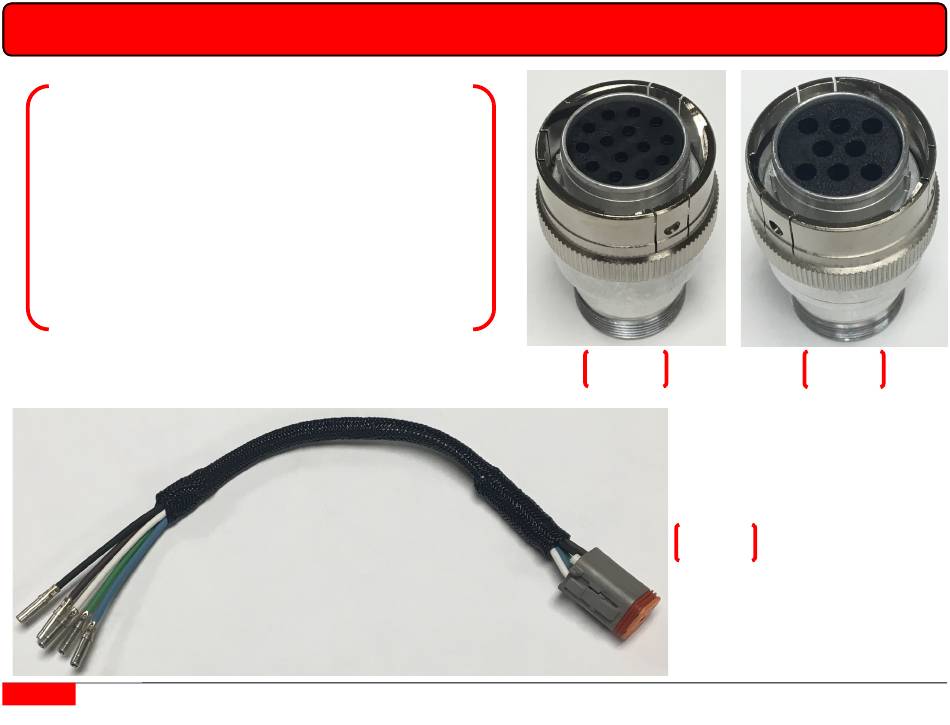

Skid Steer Wiring Installation - Pin Connector
•
In the wiring kit, there are 2 bags with similar pigtails and pin connectors:
a 8-Pin and a 14-Pin. These cover most skid loaders makes and models.
Determine which connector your skid steer can use and set the other
aside. If yours does not have a receptacle or one that doesn't match the
pin connectors provided, skip these steps and go to the Rocker Switch
Installation.
1. Either consult your skid loader owner's or use a test light to determine
which pins in the skid loader connect with the switches in the cab and
which pin is ground.
2. Assemble the pin connector with what you learn. As long as the ground
(black) pin is placed correct, the other 4 wires can be mixed around.
Page | 5 3/16/2020 www.reddevilsnowblowers.com | Red Devil Snow Blowers
Figure 6
Figure 8
Red Devil Snow Blowers is a registered trademark of Lankota Group.
Figure 7
