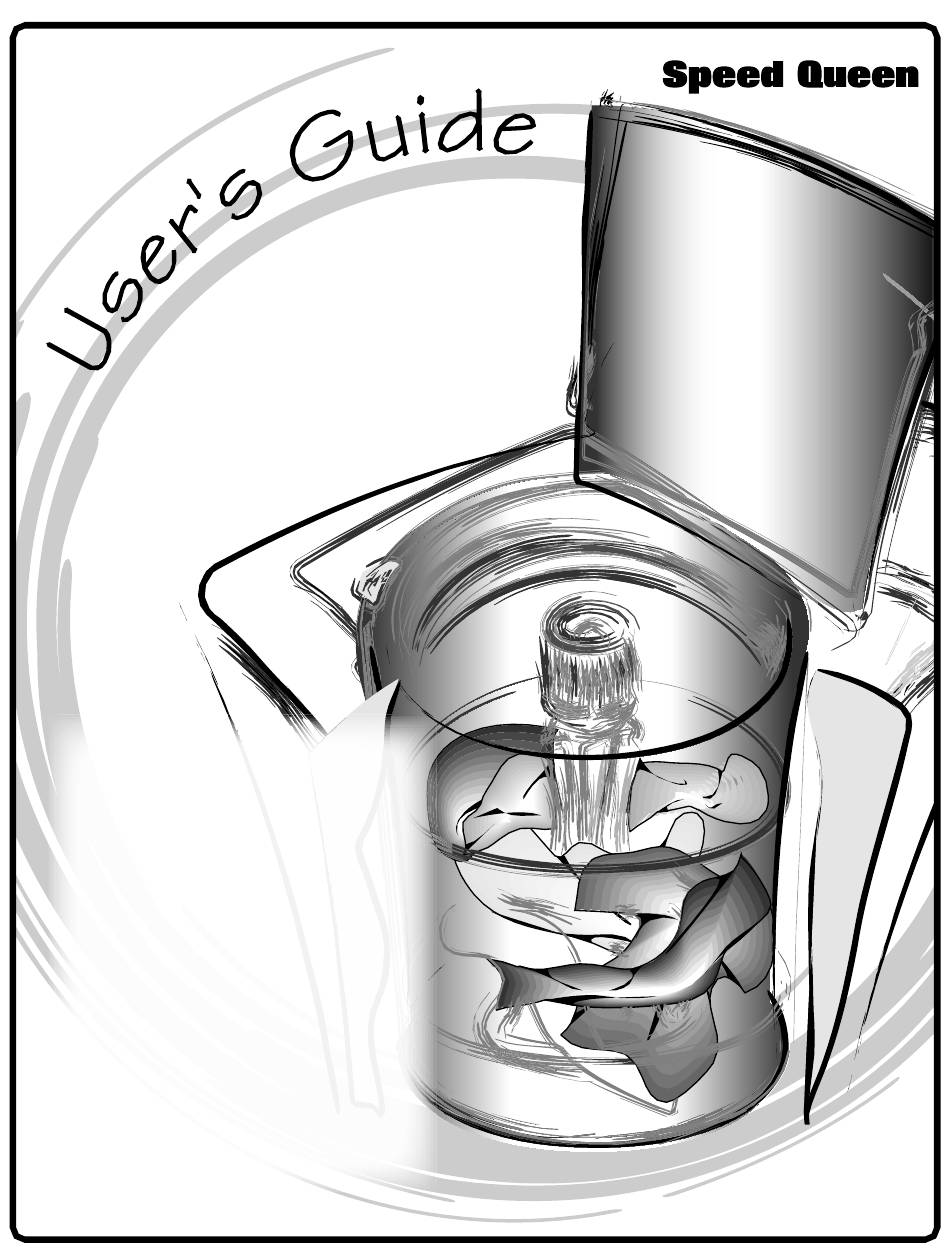

Inside . . .
Safety Information. . . 3
Operation. . . . . . . . . . . 6
Clothing Care. . . . . . . .15
Maintenance . . . . . . . 23
Troubleshooting . . . . 26
Para bajar una copia de estas instrucciones
en español, visite www.speedqueen.com.
www.speedqueen.com
for your
topload
washer
Part No. 202147
January 2009
Advertisement
Related Manuals for Speed Queen AWN432S
Summary of Contents for Speed Queen AWN432S
-
Page 1: Table Of Contents
for your topload washer Inside . . . Safety Information. . . 3 Operation... 6 Clothing Care..15 Maintenance ..23 Troubleshooting . - Page 2 W022 Product Registration New owners of Speed Queen equipment are encouraged to register their appliance to insure proper warranty coverage. Register by returning the product registration card enclosed in the accessories bag or online at www.speedqueen.com.
-
Page 3: Safety Information
Safety Information Explanation of Safety NOTE: The word “NOTE” is used to communicate installation, operation, maintenance or Messages servicing information that is important but not hazard related. Throughout this manual and on machine decals, you will find precautionary statements Important Safety Instructions (“DANGER,”... - Page 4 5. Under certain conditions, hydrogen gas may 15. Install the washer according to the be produced in a hot water system that has Installation Instructions. All connections for not been used for two weeks or more. water, drain, electrical power and grounding HYDROGEN GAS IS EXPLOSIVE.
- Page 5 23. If the washer’s volume or type of sound NOTE: The WARNING and Important Safety changes from what is normally heard, call an Instructions appearing in this manual are not authorized service agent immediately to meant to cover all possible conditions and prevent possible damage to other situations that may occur.
-
Page 6: Operation
Operation Before Washing Prepare Wash Load Empty Pockets and Cuffs Make sure all pockets are empty and turn them inside out. One bobby pin, metal or plastic toy, nail or sharp object in a load can catch laundry and cause tears. Facial tissue left in a pocket will produce extreme “lint”. - Page 7 • When washing very large items, do not fill WA R N I N G washtub as full as with other loads. Water Level Do not wash or dry items soiled with vegetable or cooking oils. Some oils • The water level in your washer should fit the may remain after washing and may size of your wash load.
- Page 8 Wash Temperature Energy You can save energy when washing by following a Hot Water few guidelines: Hot water will give the best results of cleaning 1. Heating water accounts for the greatest and sanitizing, but it is not suitable for all items. energy expense when washing.
- Page 9 Operating Your Washer Delicate Cycle (on select models only) Wash delicate items usually washed by hand on W A R N I N G this cycle. A full tub of water is recommended (even for small loads) to allow the delicate items To reduce the risk of fire, electric shock, to move freely through the water.
- Page 10 Fabric Selector Setting (on select models IMPORTANT: Prior to first wash, use an all purpose cleaner, or a detergent and water only) solution, and a damp cloth to remove shipping Regular dust from inside of washtub. 1. Get the clothes ready for washing. Empty This setting provides a regular agitation speed pockets and cuffs.
- Page 11 4. Close the lid. The washer will not agitate or 6. Set LOAD SIZE (WATER LEVEL) control. Use spin with the lid open. RESET if agitation has started and more water is needed. TLW1997N TLW1997N W A R N I N G TLW2109N TLW2109N To reduce the risk of serious injury, do...
- Page 12 Timer 7. Set Fabric Selector (on select models only). Although the washer cycles are automatic, the timer may be reset to lengthen, shorten or repeat a portion of a cycle. To set or reset the timer, push timer knob in to stop the washer.
- Page 13 Optional Features Fabric Softener Dispenser To Use Dispenser Bleach Dispenser After the clothes are loaded into the washtub The bleach dispenser is located in the left front and before the start of the WASH cycle, pour the corner, under the lid. proper amount of liquid fabric softener into the Use liquid bleach in the dispenser.
- Page 14 To Clean the Dispenser Use Tips Remove the dispenser housing from agitator by • Fabric softener spilled onto garments may squeezing the lower part of the dispenser, pulling cause staining. To remove, dampen stain and directly upward and at the same time tilting rub with bar soap.
-
Page 15: Clothing Care
Clothing Care Clothing Care Labels The symbols below appear on many clothing care Warning Tumble Dry Cycle labels. Following the instructions on each label will Signs help ensure the best laundry results. WASH Permanent Gentle/ Do not Normal DRY2035N DRY2033N Press/Wrinkle Delicate tumble dry... - Page 16 Washing Special Items NOTE: Always Follow Manufacturer’ s Care Label Instructions Bedding • Warm wash and warm rinse, if available. • Use PERMANENT PRESS cycle. • Pretreat heavily soiled areas before washing. • When washing an electric blanket, protect the plug by stitching the edge of the blanket over the plug.
- Page 17 Sweaters of Manufactured Fibers • Follow directions for comparable knits. • Button sweaters and turn inside out. • Stretch to shape after washing. • Avoid pulling when wet. Wool Items • Unless labeled “machine washable,” wash by hand. Permanent Press •...
- Page 18 Problem Cause Solution Excessive Lint Improper Sorting Fabrics which shed lint cannot be washed with fabrics that receive lint. Insufficient Detergent / Use enough detergent so lint remains suspended in water and Non-phosphate Detergent flushed out. Mixing Fabric Types Knits and Permanent Press attract lint. Wash these only with similar items.
- Page 19 Laundry Aids Comments Bleach Alternatives • In some cases, mild bleaching may be accomplished • Always test to be sure that the using white vinegar, hydrogen peroxide or lemon juice as product will not damage fabric by a pretreater. applying to a small part of the •...
- Page 20 Stain Treatment Alcoholic Beverages Rinse stain immediately with cold water or soak stain 30 minutes in cold water. Apply detergent or dishwashing liquid to any trace of stain while still wet. If safe for the fabric, wash in hot water using chlorine bleach. Baby Food, Formula Rinse with cold water.
- Page 21 Stain Treatment Fruit Juices Soak in cold water. Wash in hot water with chlorine bleach (if safe for fabric). Glue Rub with ice and scrape off excess glue. Place face down on paper towels and sponge with a pretreat product. Grass Place face down on paper towel and sponge with rubbing alcohol (if safe for fabric).
- Page 22 Stain Treatment Perspiration Rub dampened stain with detergent. Wash in hot water and chlorine bleach (if safe for fabric). If the fabric is discolored, you can try to restore it by treating fresh stains with ammonia or old stains with vinegar. Rust Apply a mild bleach such as lemon juice or a commercial rust remover (Whink, Rit, RoVer*, etc.) Follow manufacturer’s directions.
-
Page 23: Maintenance
Maintenance Cold Weather Care Replacing Hoses • If the washer is delivered on a cold day (below • Hoses and other natural parts deteriorate freezing), or is stored in an unheated room or after extended use. Hoses may develop area during the cold months, do not attempt cracks, blisters or material wear from the to operate it until the washer has had a temperature and constant high pressure... - Page 24 Reinstallation of Shipping • After the shipping brace has been installed in the lid opening, tilt washer back enough to Materials access base opening. • Insert shipping plug into base opening and, You must install the shipping brace and shipping using the palm of your hand, push shipping plug any time the washer is moved.
- Page 25 Preventative Maintenance Follow these guidelines to ensure the washer operates properly. Call for service if you observe any of the following: water of any amount on the floor, an increase in operating noise or water remaining in the washtub after a cycle. Frequency Maintenance Procedure 1.
-
Page 26: Troubleshooting
Troubleshooting Try these troubleshooting tips before making a service call. You may save time and money! Washer Symptom Possible Cause / Solution Won’t Fill • Make sure power cord is plugged all the way into the electrical outlet. • Make sure hot and cold water faucets are turned on. •... - Page 27 Washer Symptom Possible Cause / Solution Water Leaks • Check that fill hoses are properly installed on the faucets and the washer’s water mixing valve. • Replace the fill hoses every five years. • Make sure drain receptacle is not clogged. •...
- Page 28 Speed Queen WA R N I N G Shepard Street P.O. Box 990 To reduce the risk of serious injury or...
