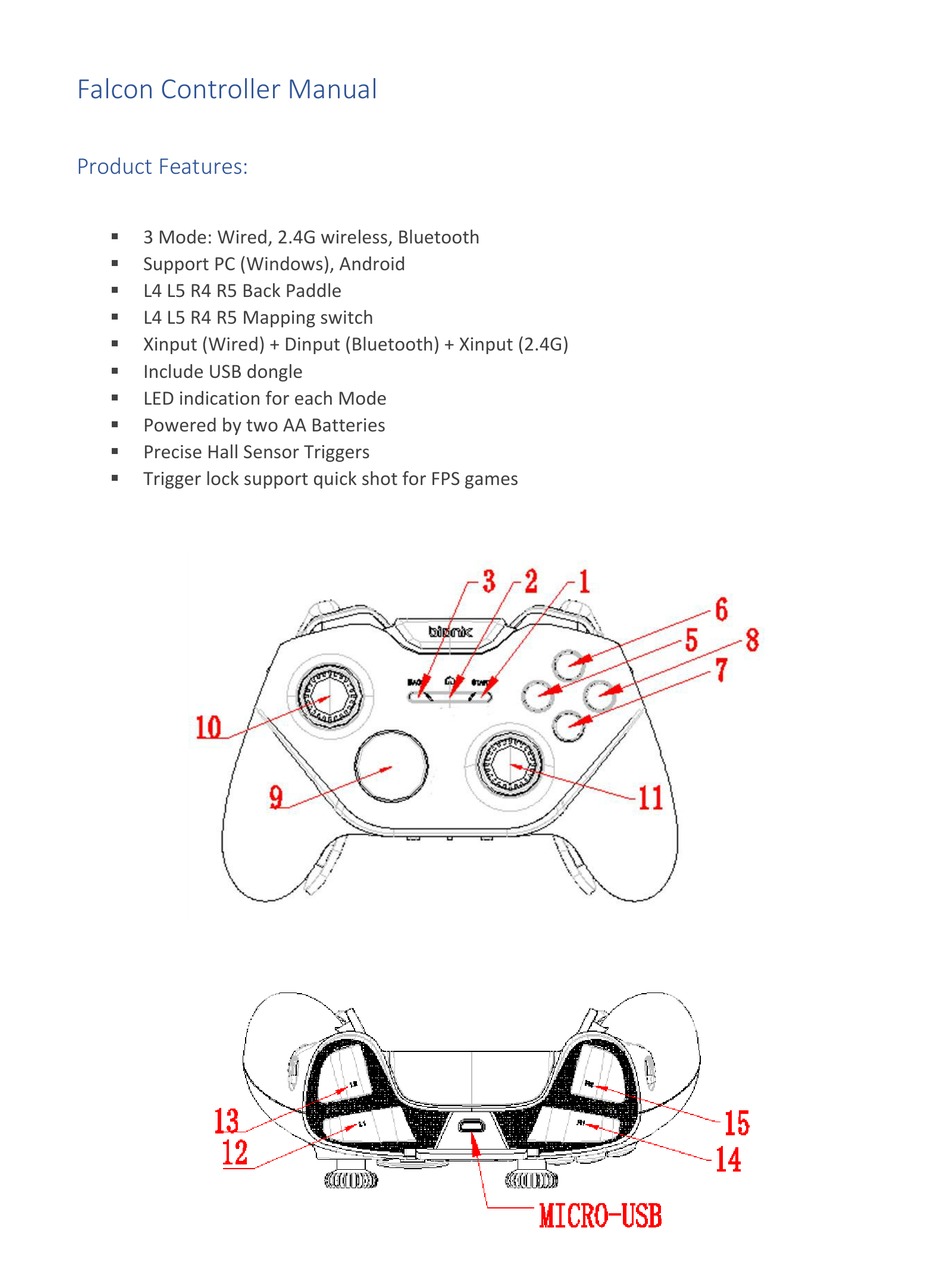

Falcon Controller Manual
Product Features:
3 Mode: Wired, 2.4G wireless, Bluetooth
Support PC (Windows), Android
L4 L5 R4 R5 Back Paddle
L4 L5 R4 R5 Mapping switch
Xinput (Wired) + Dinput (Bluetooth) + Xinput (2.4G)
Include USB dongle
LED indication for each Mode
Powered by two AA Batteries
Precise Hall Sensor Triggers
Trigger lock support quick shot for FPS games

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BNK9014S and is the answer not in the manual?

Questions and answers

Related Manuals for Bionik BNK9014S

Summary of Contents for Bionik BNK9014S

  • Page 1 Falcon Controller Manual Product Features:  3 Mode: Wired, 2.4G wireless, Bluetooth  Support PC (Windows), Android  L4 L5 R4 R5 Back Paddle  L4 L5 R4 R5 Mapping switch  Xinput (Wired) + Dinput (Bluetooth) + Xinput (2.4G) ...

  • Page 2: Mode Switch

    Button List: Wired Android (Bluetooth) Windows (2.4G) Button USB with Xinput Bluetooth Dinput Mode 2.4G Xinput Mode BACK KEYCODE_BACK BACK Xbox Home KEYCODE_HOME Xbox Home START KEYCODE_START (0x13B) START Keycode_Button_X BUTTON Keycode_Button_Y BUTTON Keycode_Button_A BUTTON Keycode_Button_B BUTTON D-PAD UP Keycode_DPAD_UP D-PAD Keycode_DPAD_DOWN DOWN...

  • Page 3: Bluetooth Mode

    3. Holding Home button for 5 secs until the LED quick flash in Blue, now the controller entering the Bluetooth Pairing mode 4. Go to the Bluetooth setting on the Android device, click the “Bionik Falcon Controller” to connect 5. The LED will stay on Blue when success connected 6.

  • Page 4: Button Mapping

    2.4G Mode: 1. Insert the USB dongle to the USB port of PC 2. Install two AA batteries into the battery bay 3. Slide the Mode switch to right side 4. Single press the Home button to connect to the USB dongle, the LED will slow flash in Green until success connected 5.

  • Page 5: Low Power

    Mapping function ON/OFF Switch:  Slide Up to Turn OFF the mapping functions  Slide Down to Turn ON the mapping functions Low Power: At the Bluetooth and 2.4G Mode, the LED will slow flash (10s once) when the battery in low. Trigger Lock: ...
  • Page 7 FCC Warnings This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
