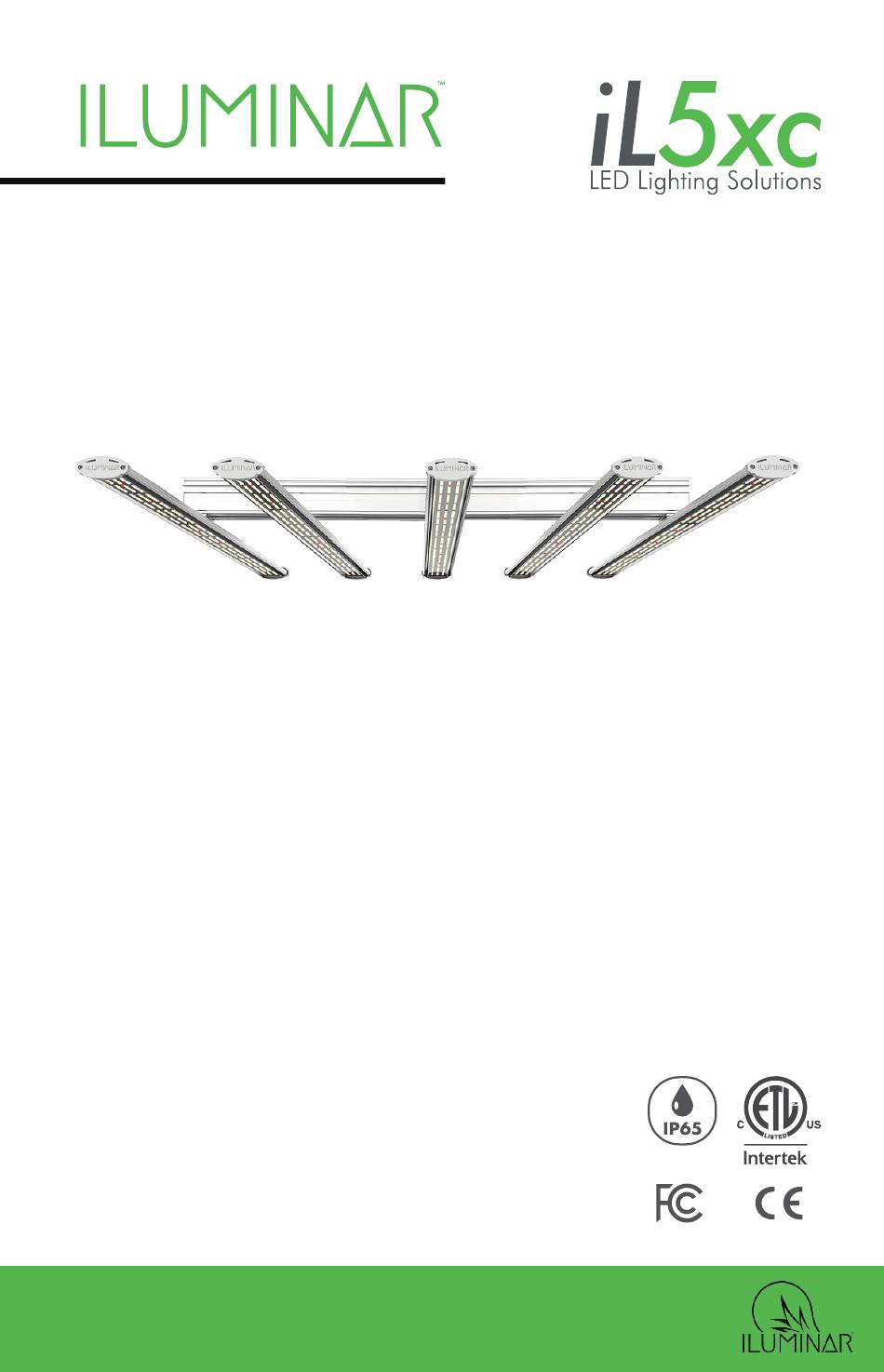

- Page 1 USER MANUAL iL5XC MODEL 330W 1-877-540-5588 IL-5xc26FSG-120 iluminarlighting.com IL-5xc26FSG-480 sales@iluminarlighting.com...
- Page 2 Observe all safety precautions (see page 8), seek the services of a Finishing Mounting Height to top of Canopy 6”-12” qualified electrician, installation professional, or call ILUMINAR Lighting Emitter Cooling Passive / Extruded Case technicians for assistance. Light Distribution +/- 5% 125º...
- Page 3 HARDWARE AND ACCESSORIES Lay the central mast on a flat table top or surface with the The iL5xc can be hung from steel attachment brackets facing UP. Attach each LED Bar by aligning cables or can be mounted to a the plastic clips and carefully sliding them into place until you rack.
- Page 4 If you plan to utilize several LEDs in your room or facility, one of the many in Figure A). Press down at base of hook to slide to adjust the mounting benefits of the ILUMINAR LED is that you can “daisy chain” one fixture to height of the fixture (Figure B).
- Page 5 DO NOT use chemicals to clean the fixture. Use ONLY low pressure air or low pressure water to remove dust and debris. GUARANTEE At ILUMINAR, we stand behind our products and our technology as well as our customers. All ILUMINAR fixtures are backed by our 5-Year Guarantee. Please visit our website iluminarlighting.com/warranty for more information.
