TERMINAL CONNECTIONS

Connect the unit as in the diagram below.

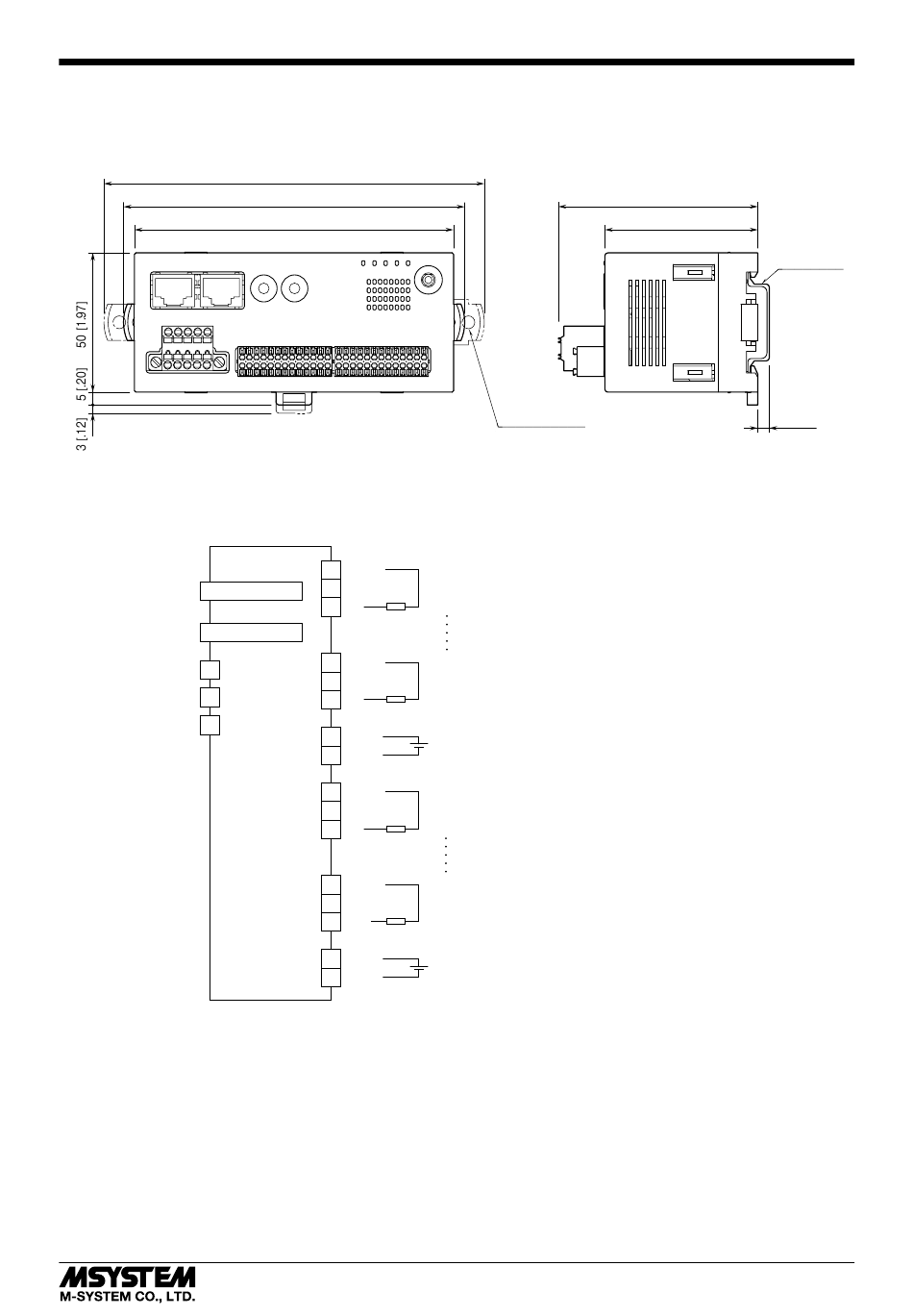

■ EXTERNAL DIMENSIONS unit: mm [inch]
■ CONNECTION DIAGRAM
Note: In order to improve EMC performance, bond the FE terminal to ground.
Caution: FE terminal is NOT a protective conductor terminal.
*1
EtherNet/IP RJ-45 MODULAR JACK
*1
EtherNet/IP RJ-45 MODULAR JACK
4
24V DC
5
0V
1
FE
*1. The network cable can be connected to either one
138 [5.43]
123 [4.84]
115 [4.53]
3
+24V1
4
GND1 OUTPUT Y0
2
Y0
25
+24V1
26
GND1 OUTPUT Y7
24
Y7
1
+24V1
EXC. SUPPLY (IN)
14
GND1
29
+24V2
30
GND2 OUTPUT Y8
28
Y8
51
+24V2
52
GND2 OUTPUT Y15
50
Y15
27
+24V2
EXC. SUPPLY (IN)
40
GND2
