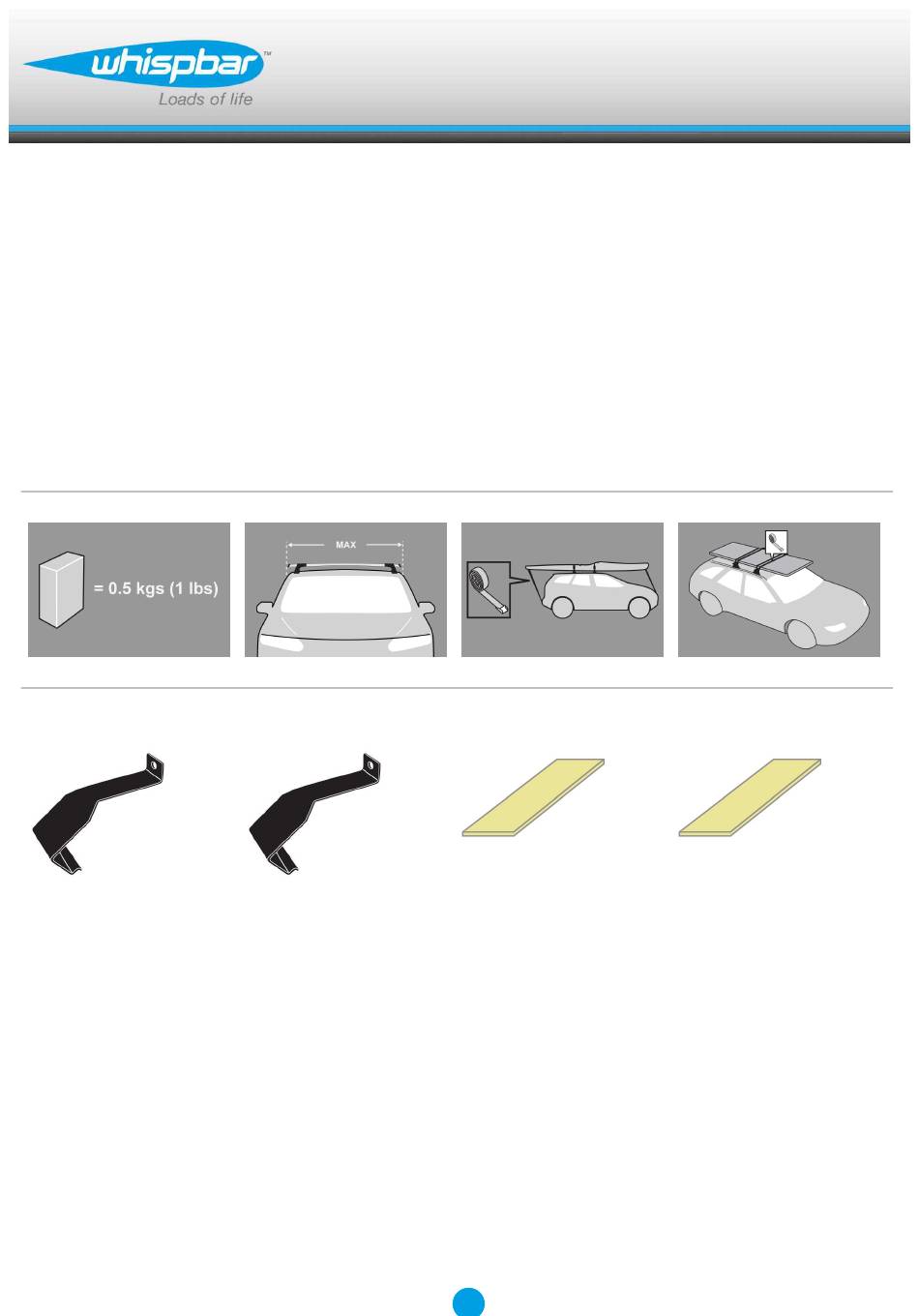

- Page 1 K193W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 4D...
- Page 2 Fitting Kit K193W MAX kgs (lbs) Holden Caprice, 4dr Sedan 06-+ 75 kgs (165 lbs) 75 kgs (165 lbs) Caprice, 4dr Sedan 06-+ 75 kgs (165 lbs) 75 kgs (165 lbs) Commodore VE, 2dr Ute Oct 07-13 25 kgs (55 lbs)
- Page 3 Fitting Kit K193W Caprice, 4dr Sedan 06-+ (AU) -280mm 420mm 934mm 915mm -11" 16 9/16ths" 36 3/4ths" 36" Caprice, 4dr Sedan 06-+ (NZ) -280mm 420mm 934mm 915mm -11" 16 9/16ths" 36 3/4ths" 36" Commodore VE, 2dr Ute Oct 07-13 (NZ)
-
Page 4: First Time Installation
Fitting Kit K193W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 5 Fitting Kit K193W Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is...
- Page 6 Fitting Kit K193W Remove locking screw. Apply protective strip as shown. Trim if required. This setup is applicable for one crossbar only. Letters refer to the part numbers stamped on clamps. Clamp Part Number: A = 425B...
- Page 7 Fitting Kit K193W This setup is applicable for two crossbars only. It is important to put the clamps in the correct position on the vehicle. Letters refer to the part numbers stamped on clamps. Clamp Part Number: A = 425B B = 426B Attach clamp to each leg.
- Page 8 Fitting Kit K193W Fit rubber pad (supplied with crossbar) to foot. Make sure the pad fits into the holes underneath the foot. Fitment Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated).
- Page 9 Fitting Kit K193W Clamps over body trim. A= Clamp B= Roof line C= Body trim D= Protective strip Press adjusting screw to adjust the leg positions on the crossbar. Tighten adjusting screw to 5 Nm (3.7 ft lb) hand tight.
- Page 10 Fitting Kit K193W Tighten locking screw on both legs evenly. Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers...
- Page 11 Fitting Kit K193W CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
- Page 12 Fitting Kit K193W Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order.
- Page 13 Fitting Kit K193W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
