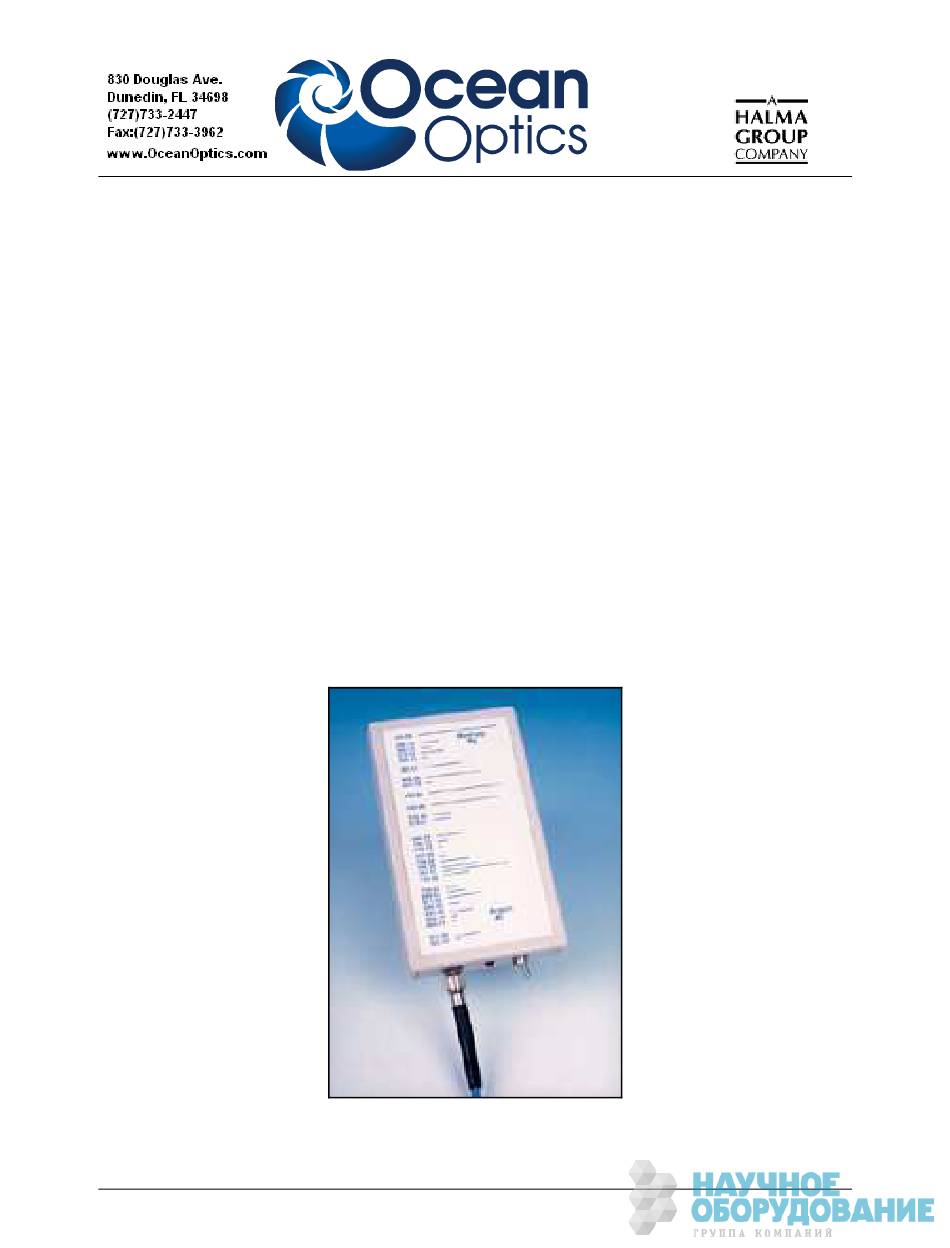

HG-1 Mercury Argon
Calibration Light Source
Installation and Operation Instructions
Description
The HG-1 Mercury Argon Calibration Source is a wavelength calibration source for UV-VIS-
Shortwave NIR spectrophotometric systems. The HG-1 produces Mercury and Argon lines from 253-
1700 nm, and is an ideal lamp to use when performing fast, accurate spectrometer wavelength
calibrations.
The HG-1 features an SMA 905 Connector for interfacing with our optical fibers. It operates with a 12
VDC power supply (included with the unit) or 9V battery (not included).
The following sections detail the features of the HG-1 Mercury Argon Calibration Light Sources.
HG-1 Mercury Argon Calibration Light Source
008-00000-STD-01-20100412
1
Advertisement
Table of Contents
Related Manuals for Halma Ocean Optics HG-1
Summary of Contents for Halma Ocean Optics HG-1
- Page 1 HG-1 Mercury Argon Calibration Light Source Installation and Operation Instructions Description The HG-1 Mercury Argon Calibration Source is a wavelength calibration source for UV-VIS- Shortwave NIR spectrophotometric systems. The HG-1 produces Mercury and Argon lines from 253- 1700 nm, and is an ideal lamp to use when performing fast, accurate spectrometer wavelength calibrations.
-
Page 2: Parts Included
HG-1-CAL Installation and Operation Instructions Note The HG-1 is NOT designed to operate as an excitation source in your experiments. Spectral lines above 922 nm are not easily detectable by Ocean Optics spectrometers. Parts Included The HG-1 package includes the following items: ... - Page 3 HG-1-CAL Installation and Operation Instructions Alternately, you can use a 9-volt battery (not included) to power the HG-1. Open the battery hatch of the HG-1 and install the 9-volt battery, and then proceed to Step 2. an entrance slit, use a 50 m diameter (or smaller) fiber. Larger fibers and slits result in 2.
-
Page 4: Calibration Procedure
HG-1-CAL Installation and Operation Instructions HG-1 Mercury Argon Calibration Light Source Ocean Optics spectrometer and its manual An optical fiber (for spectrometers without a built-in slit, a 50- m fiber works best) A spreadsheet program (Excel or Quattro Pro, for example) or a calculator that performs third- order linear regressions Note If you are using Microsoft Excel, choose Tools | Add-Ins and check... - Page 5 HG-1-CAL Installation and Operation Instructions Strong Hg Emission Lines by Wavelength (nm) There are more emission lines shown below than printed on the label on the HG-1 housing. The label is intended as a quick, convenient reference and does not list every Ar and Hg emission line that exists.
- Page 6 HG-1-CAL Installation and Operation Instructions Specifications Table Output Low-pressure gas discharge lines of Mercury and Argon Dimensions (in mm): 125.7 x 70 x 25.8 Power consumption: 250 mA at 12 VDC Power requirements: 12 VDC wall transformer (included) or 9 VDC battery (optional) Bulb life: Approx.
